48" Wide Exam Room Casework Cabinet (Fully Assembled) with Refrigerator and Sink - C48ELPVG

This product has been discontinued by the manufacture and is no longer available.

48" Wide Exam Room Casework Cabinet (Fully Assembled) with Refrigerator and Sink

Model: C48ELPVG

48" Wide Exam Room Casework Cabinet (Fully Assembled) with Refrigerator and Sink C48ELPVG48" Wide Exam Room Casework Cabinet (Fully Assembled) with Refrigerator and Sink C48ELPVG48" Wide Exam Room Casework Cabinet (Fully Assembled) with Refrigerator and Sink C48ELPVG48" Wide Exam Room Casework Cabinet (Fully Assembled) with Refrigerator and Sink C48ELPVG48" Wide Exam Room Casework Cabinet (Fully Assembled) with Refrigerator and Sink C48ELPVG48" Wide Exam Room Casework Cabinet (Fully Assembled) with Refrigerator and Sink C48ELPVG48" Wide Exam Room Casework Cabinet (Fully Assembled) with Refrigerator and Sink C48ELPVG48" Wide Exam Room Casework Cabinet (Fully Assembled) with Refrigerator and Sink C48ELPVG48" Wide Exam Room Casework Cabinet (Fully Assembled) with Refrigerator and Sink C48ELPVG48" Wide Exam Room Casework Cabinet (Fully Assembled) with Refrigerator and Sink C48ELPVG
48" Wide Exam Room Casework Cabinet (Fully Assembled) with Refrigerator and Sink C48ELPVG
48" Wide Exam Room Casework Cabinet (Fully Assembled) with Refrigerator and Sink C48ELPVG
48" Wide Exam Room Casework Cabinet (Fully Assembled) with Refrigerator and Sink C48ELPVG
48" Wide Exam Room Casework Cabinet (Fully Assembled) with Refrigerator and Sink C48ELPVG
48" Wide Exam Room Casework Cabinet (Fully Assembled) with Refrigerator and Sink C48ELPVG
+5more

Color : White

48" Wide Exam Room Casework Cabinet (Fully Assembled) with Refrigerator and Sink C48ELPVG
White

Key Features

  • 48" wide fully assembled exam room station

  • Slim-fitting design

  • Purpose-built vaccine refrigerator (SKU: ARG6PV)

  • Sink and faucet

  • Medical storage cabinet

  • Factory-installed lock (refrigerator)

  • Antimicrobial silver ion-coated handle (refrigerator)

  • Remote alarm contacts (refrigerator)

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications

Features

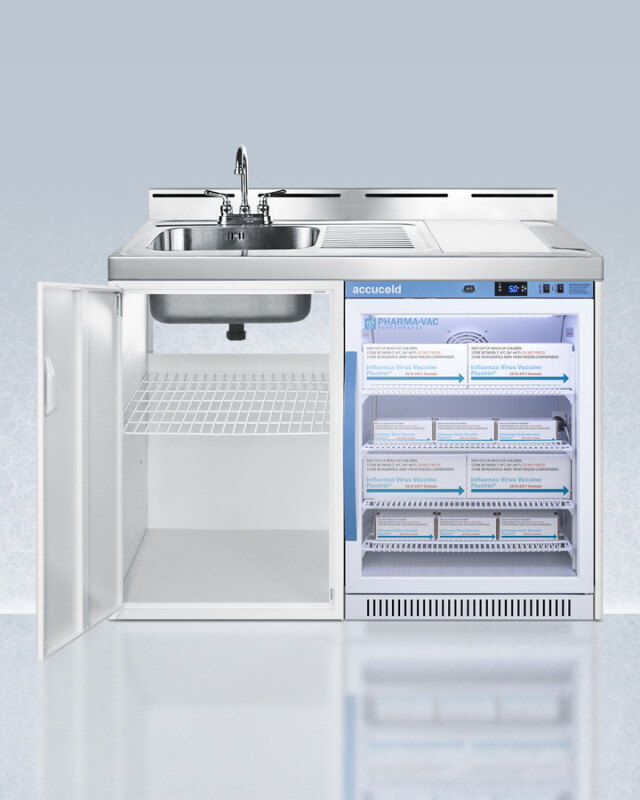

48" wide fully assembled exam room station

Assembled metal casework with vaccine refrigerator, sink, and storage cabinet for use in healthcare settings

Slim-fitting design

48" wide and 24" deep, perfect for space-challenged medical offices, exam rooms, pharmacies, waiting areas, nursing stations, and more

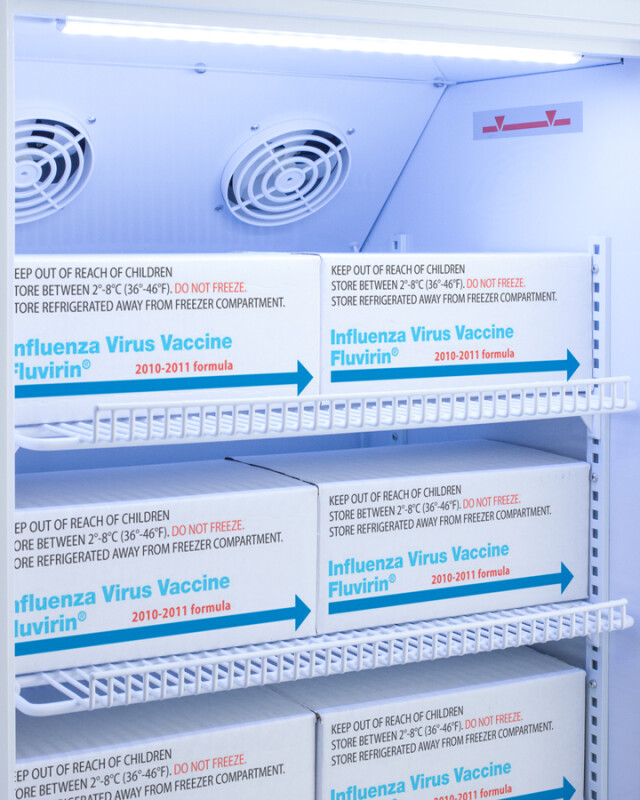

Purpose-built vaccine refrigerator (SKU: ARG6PV)

Includes 6 cu.ft. refrigerator designed to support meeting the CDC's standards for vaccine storage

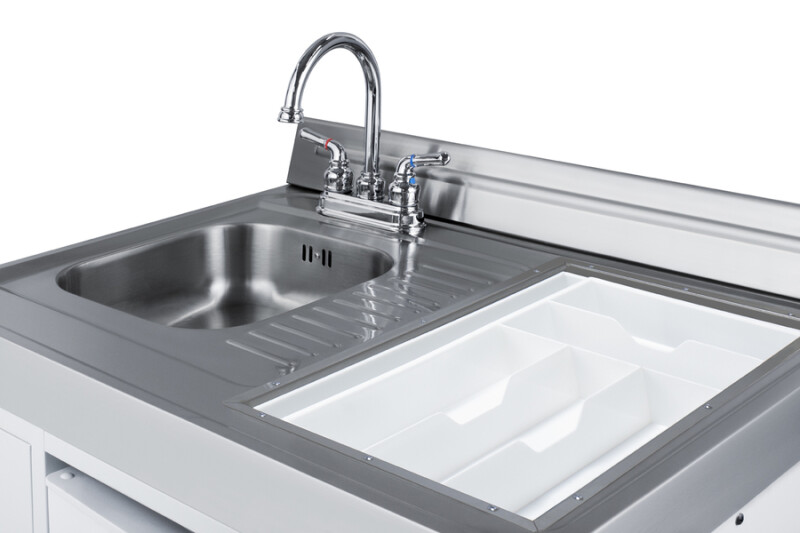

Sink and faucet

Stainless steel sink with ready-to-use gooseneck faucet included

Medical storage cabinet

Large convenient cabinet with center shelf lets you store dry goods behind a door

Factory-installed lock (refrigerator)

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

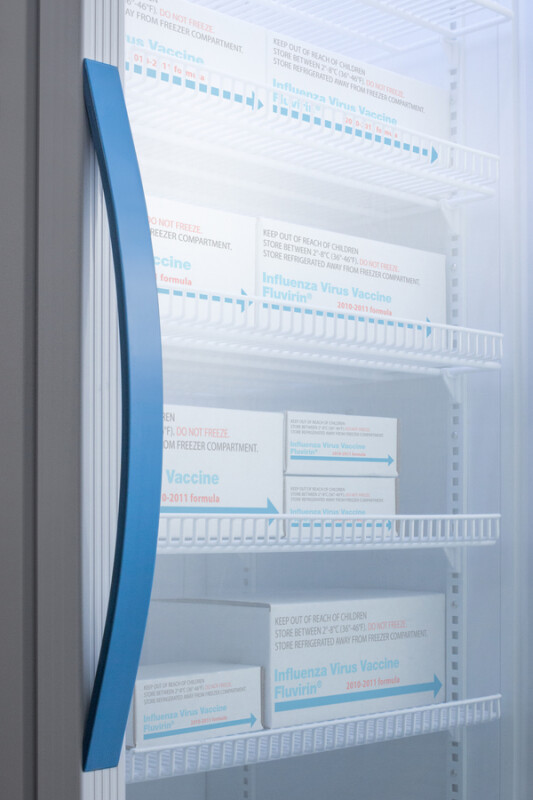

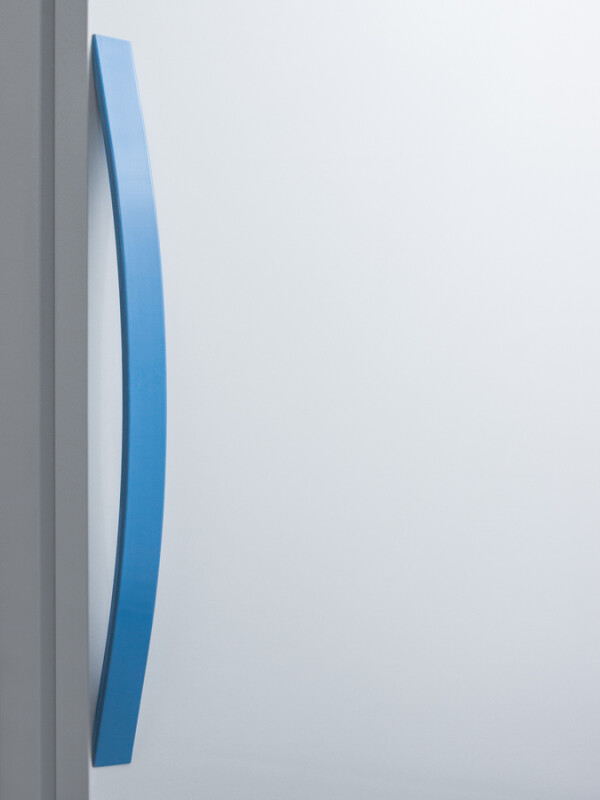

Antimicrobial silver ion-coated handle (refrigerator)

Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs

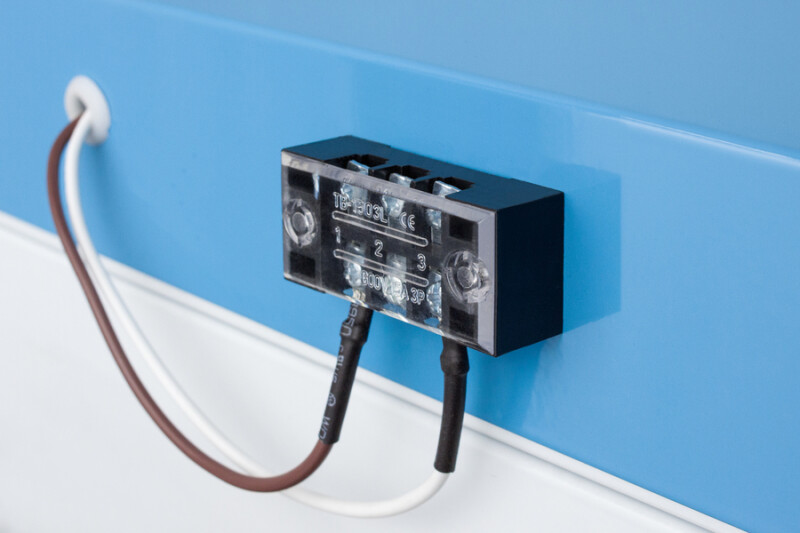

Remote alarm contacts (refrigerator)

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

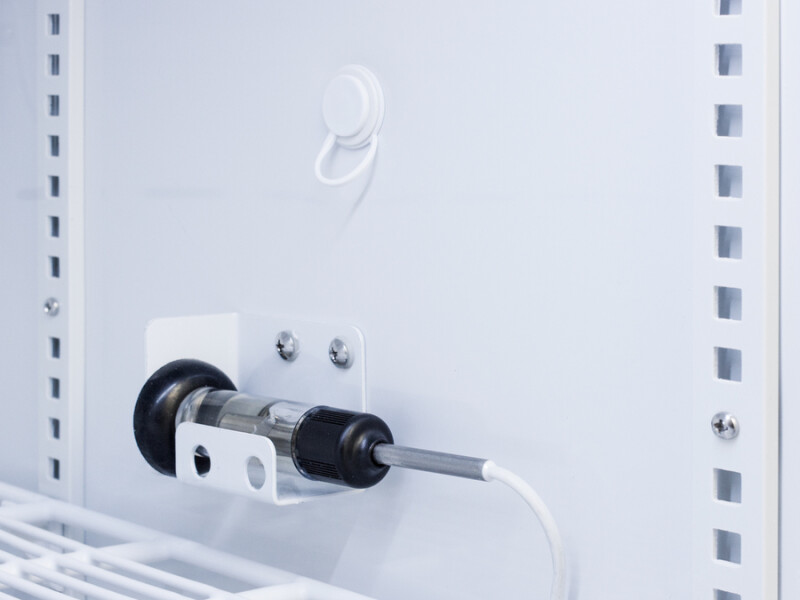

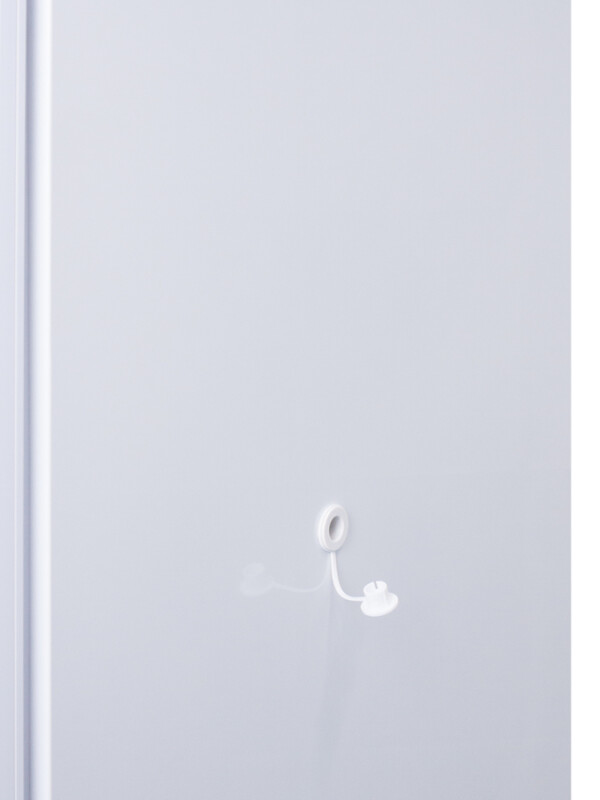

Access port (refrigerator)

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment

Adjustable temperature (refrigerator)

Intuitive microprocessor controls let you adjust the interior temperature between +2 to +8ºC

Self-closing door (refrigerator)

Added protection in busy settings; NOTE: door is not self-closing once reversed to an LHD swing

Temperature alarm (refrigerator)

Visual and audible alarms alert if the interior temperature rises or falls out of set range

Open door alarm (refrigerator)

Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

Reversible door (refrigerator)

User-reversible door affords users flexibility to choose a configuration that best meets their needs

One piece stainless steel countertop

Durable construction with an easy to clean design to ensure proper sanitation

Lift-up storage

Recessed open drawer with cover on unit's surface ideal for holding smaller items and disposables

Ships on one pallet

Casework cabinet and refrigerator ship together on one oversized pallet for easier shipping, with reinforced packaging for added protection

Extended refrigerator warranty

2 years parts and labor/5 years compressor

Fully assembled

Cabinetry comes fully assembled for easy setup in any space

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Optional fully assembled wall cabinets

12" or 18" wide wall cabinets in powder-coated metal for easy setup

Optional storage shelf

Add more storage convenience with the APSS48 Appliance Station, a stainless steel shelving system designed for easy installation on this unit

Optional water pump kit

If you do not have a water line, add accessory CKPUMPKIT to create a functioning sink with our water pump

Specifications

Overview

Height of Cabinet40.0" (102 cm)
Width47.25" (120 cm)
Depth24.38" (62 cm)
Depth with door at 90°44.25" (112 cm)
Capacity6.0 cu.ft. (170 L)
Defrost TypeAutomatic
DoorGlass
CabinetWhite
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Amps0.75
Voltage/Frequency115 V AC/60 Hz
Weight220.0 lbs. (100 kg)
Shipping Weight285.0 lbs. (129 kg)
Parts & Labor Warranty2 Years
Compressor Warranty5 Years
UPC761101089164

Kitchenette

Refrigerator IncludedARG6PV
Refrigerator Door SwingRHD
ReversibleYes

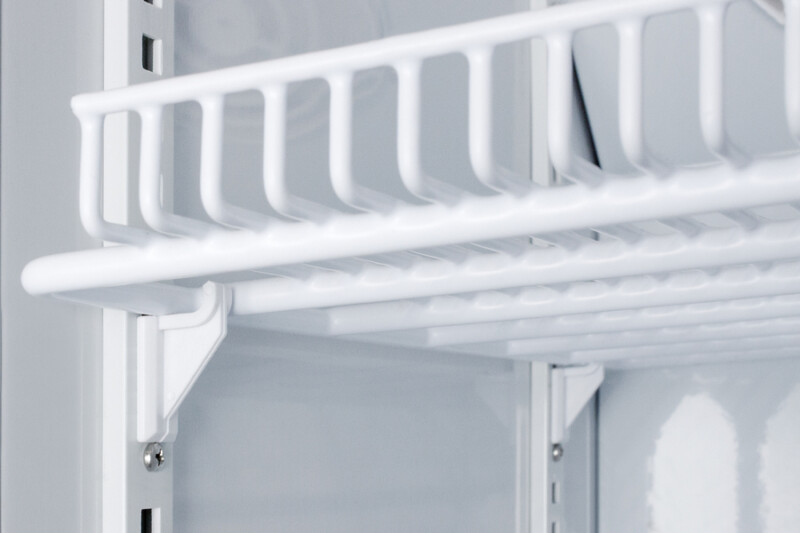

Adjustable ShelvesYes
Shelf TypeWire
Shelf Qty4
Thermostat TypeDigital
Interior LightYes
Refrigerant TypeR600a
Refrigerant Amount1.66 oz.
Temperature Range2 to 8ºC
Interior Height 124.5" (62 cm)
Interior Width 120.0" (51 cm)
Interior Depth 117.0" (43 cm)
Compressor Step Height6.5" (17 cm)
Compressor Step With20.0" (51 cm)
Compressor Step Depth5.0" (13 cm)
Sink Height5.88" (15 cm)
Sink Width16.75" (43 cm)
Sink Depth14.88" (38 cm)

Dimensions & Weight

Width47.25 in.
Height40 in.
Length24.38 in.
Weight220 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width52.25 in.
Shipping Height45 in.
Shipping Length29.38 in.
Shipping Weight285 lbs.
Total of Shipping Weight285 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement26.67 ft³
Dimensional Weight331.5 lbs.
Total of Cubes26.67 ft³
Total of Dimensional Weight331.5 lbs.
