24" Wide Performance Series All-Refrigerator/All-Freezer Combination - ARG6PVAFZ5PVBIAD

This product has been discontinued by the manufacture and is no longer available.

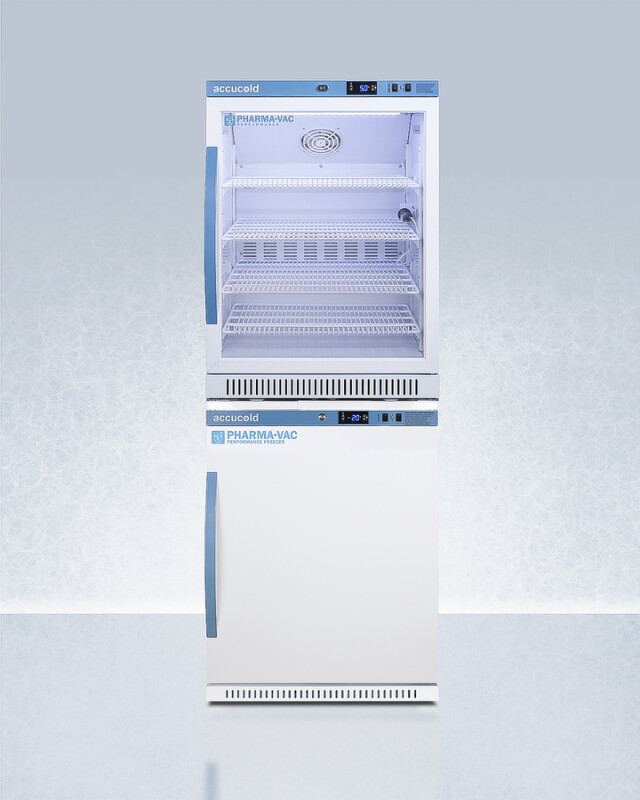

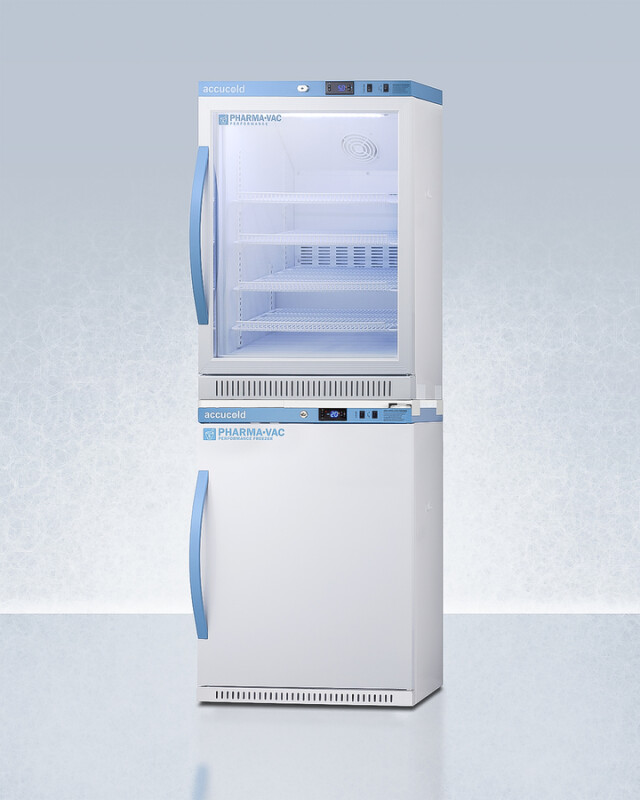

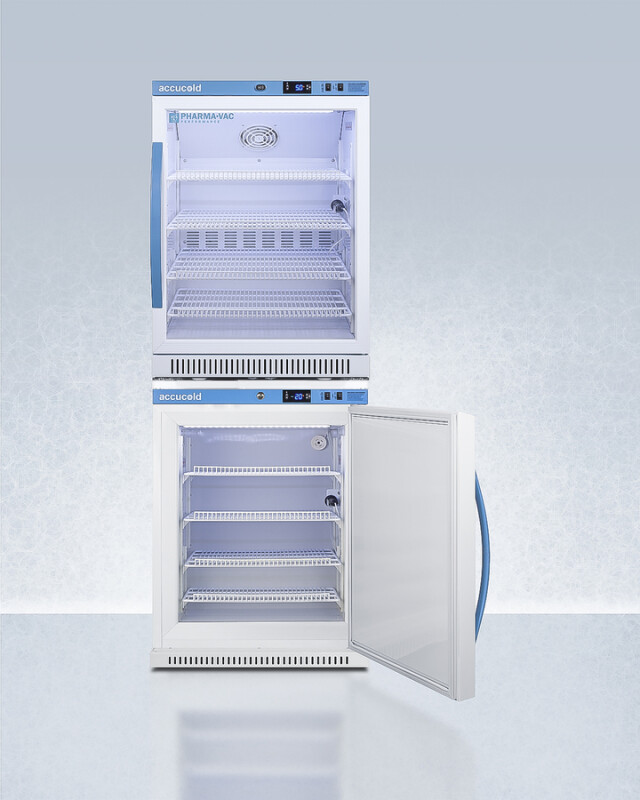

24" Wide Performance Series All-Refrigerator/All-Freezer Combination

Model: ARG6PVAFZ5PVBIAD

24" Wide Performance Series All-Refrigerator/All-Freezer Combination ARG6PVAFZ5PVBIAD, product image 1 of 1124" Wide Performance Series All-Refrigerator/All-Freezer Combination ARG6PVAFZ5PVBIAD, product image 2 of 1124" Wide Performance Series All-Refrigerator/All-Freezer Combination ARG6PVAFZ5PVBIAD, product image 3 of 1124" Wide Performance Series All-Refrigerator/All-Freezer Combination ARG6PVAFZ5PVBIAD, product image 4 of 1124" Wide Performance Series All-Refrigerator/All-Freezer Combination ARG6PVAFZ5PVBIAD, product image 5 of 1124" Wide Performance Series All-Refrigerator/All-Freezer Combination ARG6PVAFZ5PVBIAD, product image 6 of 1124" Wide Performance Series All-Refrigerator/All-Freezer Combination ARG6PVAFZ5PVBIAD, product image 7 of 1124" Wide Performance Series All-Refrigerator/All-Freezer Combination ARG6PVAFZ5PVBIAD, product image 8 of 1124" Wide Performance Series All-Refrigerator/All-Freezer Combination ARG6PVAFZ5PVBIAD, product image 9 of 1124" Wide Performance Series All-Refrigerator/All-Freezer Combination ARG6PVAFZ5PVBIAD, product image 10 of 1124" Wide Performance Series All-Refrigerator/All-Freezer Combination ARG6PVAFZ5PVBIAD, product image 11 of 11
24" Wide Performance Series All-Refrigerator/All-Freezer Combination ARG6PVAFZ5PVBIAD, thumbnail image 1 of 11
24" Wide Performance Series All-Refrigerator/All-Freezer Combination ARG6PVAFZ5PVBIAD, thumbnail image 2 of 11
24" Wide Performance Series All-Refrigerator/All-Freezer Combination ARG6PVAFZ5PVBIAD, thumbnail image 3 of 11
24" Wide Performance Series All-Refrigerator/All-Freezer Combination ARG6PVAFZ5PVBIAD, thumbnail image 4 of 11
24" Wide Performance Series All-Refrigerator/All-Freezer Combination ARG6PVAFZ5PVBIAD, thumbnail image 5 of 11
+6more

Color : White

24" Wide Performance Series All-Refrigerator/All-Freezer Combination ARG6PVAFZ5PVBIAD
White

Key Features

  • Performance Series Refrigerator-Freezer Combination

  • Purpose-built design

  • Space-saving design

  • +/-1ºC Variation

  • Antimicrobial silver ion-coated handles

  • Easy assembly

  • Temperature alarms

  • Adjustable temperature

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications

Features

Performance Series Refrigerator-Freezer Combination

Purpose-built all-refrigerator and all-freezer for vaccine storage in medical, pharmaceutical, and life science applications

Purpose-built design

Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines

Space-saving design

Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint

+/-1ºC Variation

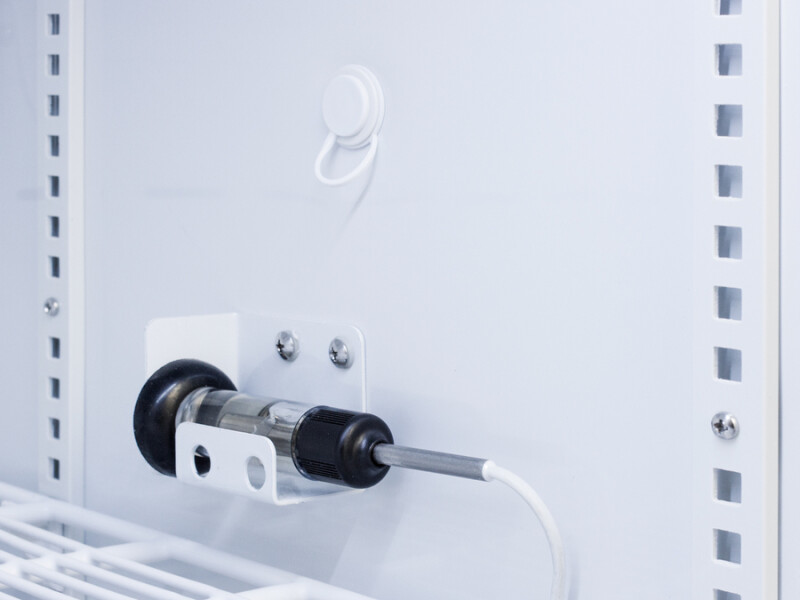

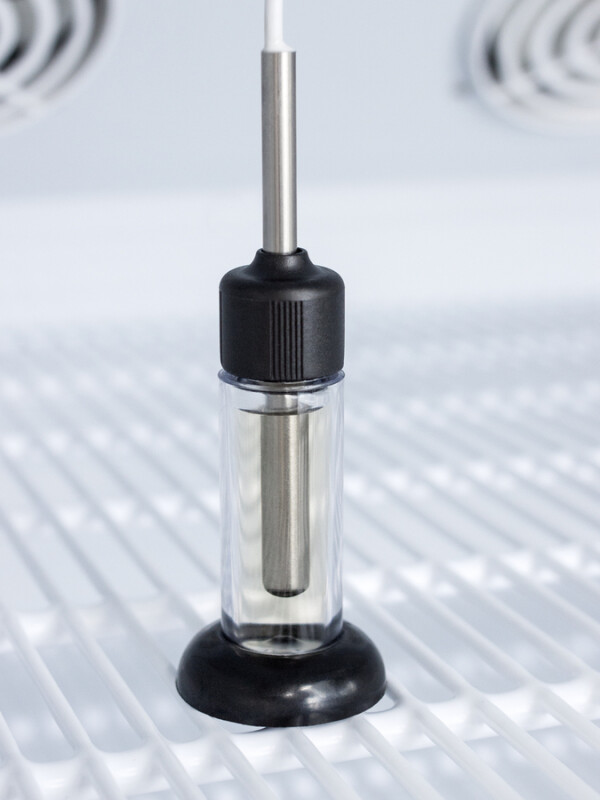

The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

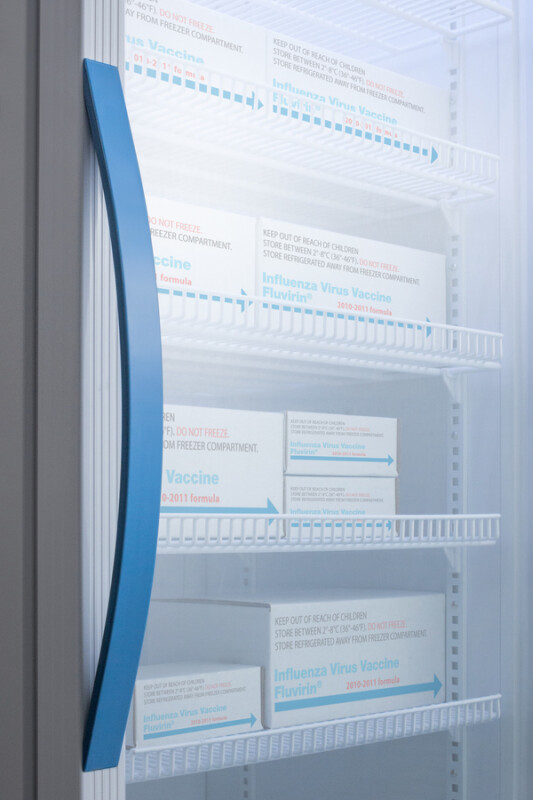

Antimicrobial silver ion-coated handles

Powder-coated handles with naturally occurring silver ions to help reduce the spread of germs

Easy assembly

Unit ships in three boxes for customer to install the StackRack on the bottom refrigerator/freezer and place and secure the other unit on top

Temperature alarms

Visual and audible alarms alert if the interior temperature rises or falls out of set range

Adjustable temperature

Intuitive controls let you adjust the interior temperature between +2 to +8ºC (refrigerator) and -30º to -10ºC (freezer)

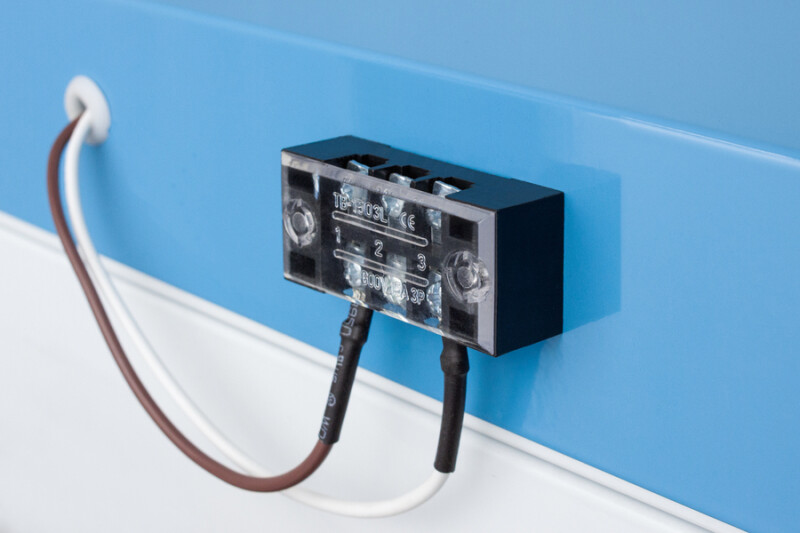

Remote alarm contacts

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Manual defrost (freezer)

Static cooling system for reduced temperature fluctuations

Automatic defrost with adjustable cycle defrost (refrigerator)

Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

Open door alarms

Alarms will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

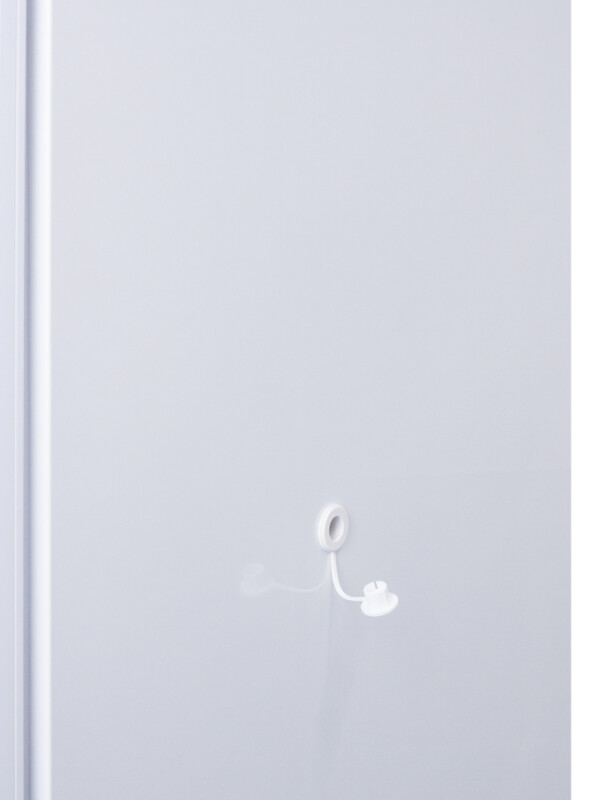

Access ports

Both units include a pre-installed probe hole to allow easier connection to user-provided monitoring equipment

Sensor failure alarms

Audible and visual alarms warn if the sensor is disrupted

Audible power failure alarms

Battery-powered alarms sound if the power connection is interrupted

Password protection

Control panels require password entry to adjust the parameters beyond the set point

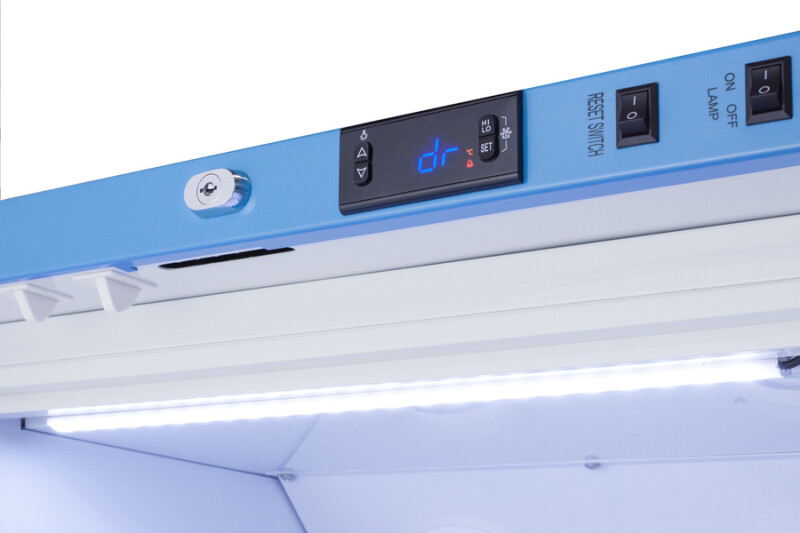

Microprocessor control panels

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Resettable min/max displays

Control panels provide a readout of the low and high temperatures in 15 minute increments

Factory-installed locks

Keyed lock conveniently located towards the top of the door for added security (2 keys included for each unit)

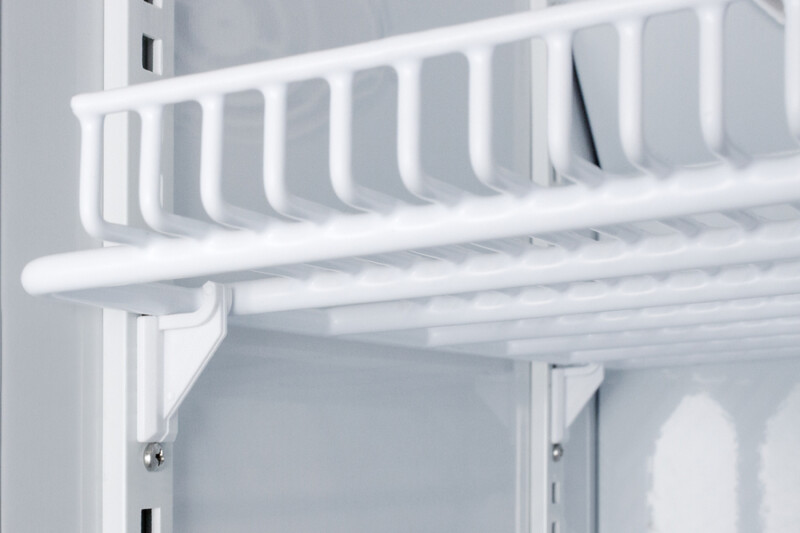

Adjustable plastic-coated wire shelves for improved circulation

Designed to accommodate a variety of sizes for flexible storage

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Interior light

Energy efficient LED lighting with internal on/off switch

Self-closing door

Added protection in busy settings; NOTE: door is not self-closing once reversed to an LHD swing

Magnetic door gaskets

Quality door gaskets ensure a tight seal for energy savings and improved performance

Extended warranty

2 years parts and labor/5 years compressor

Eco-Friendly (refrigerator)

Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Usage stickers

Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"

Versatile design

Compatible with Pyxis, Omnicell®, and AcuDose RX®

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Overview

Nominal Height64.0" (163 cm)
Height of Cabinet64.0" (163 cm)
Nominal Width24.0" (61 cm)
Width23.38" (59 cm)
Width with Door Open23.88" (61 cm)
Nominal Depth25.0" (64 cm)
Depth25.0" (64 cm)
Depth with Handle26.75" (68 cm)
Depth with door at 90°47.0" (119 cm)
Capacity9.88 cu.ft. (280 L)
DoorGlass
CabinetWhite
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Voltage/Frequency115 V AC/60 Hz
Parts & Labor Warranty2 Years
Compressor Warranty5 Years
UPC761101104140

Refrigerator-Freezer

Door SwingRHD
ReversibleFactory Reversible
Adjustable ShelvesYes
Interior LightYes
Refrigerator - Interior Height24.5" (62 cm)
Refrigerator - Interior Width20.0" (51 cm)
Refrigerator - Interior Depth17.0" (43 cm)
Refrigerator - Capacity6.0 cu.ft
Refrigerator - Shelf TypeWire
Refrigerator - Shelf Qty4
Refrigerator - Temperature Range2 to 8ºC
Refrigerator - Refrigerant TypeR600a
Refrigerator - Refrigerant Amount1.66 oz.
Freezer - Interior Height22.5" (57 cm)
Freezer - Interior Width18.0" (46 cm)
Freezer - Interior Depth18.0" (46 cm)
Freezer - Capacity3.88 cu.ft
Freezer - Shelf TypeWire
Freezer - Shelf Qty4
Thermostat TypeDigital
Fan TypeInterior
Freezer - Temperature Range-30 to -10ºC
Freezer - Refrigerant TypeR290a
Freezer - Refrigerant Amount1.73 oz.

Dimensions & Weight

Width23.38 in.
Height64 in.
Length25 in.
Weight-

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width28.38 in.
Shipping Height69 in.
Shipping Length30 in.
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement21.65 ft³
Dimensional Weight269.12 lbs.
Total of Cubes21.65 ft³
Total of Dimensional Weight269.12 lbs.
