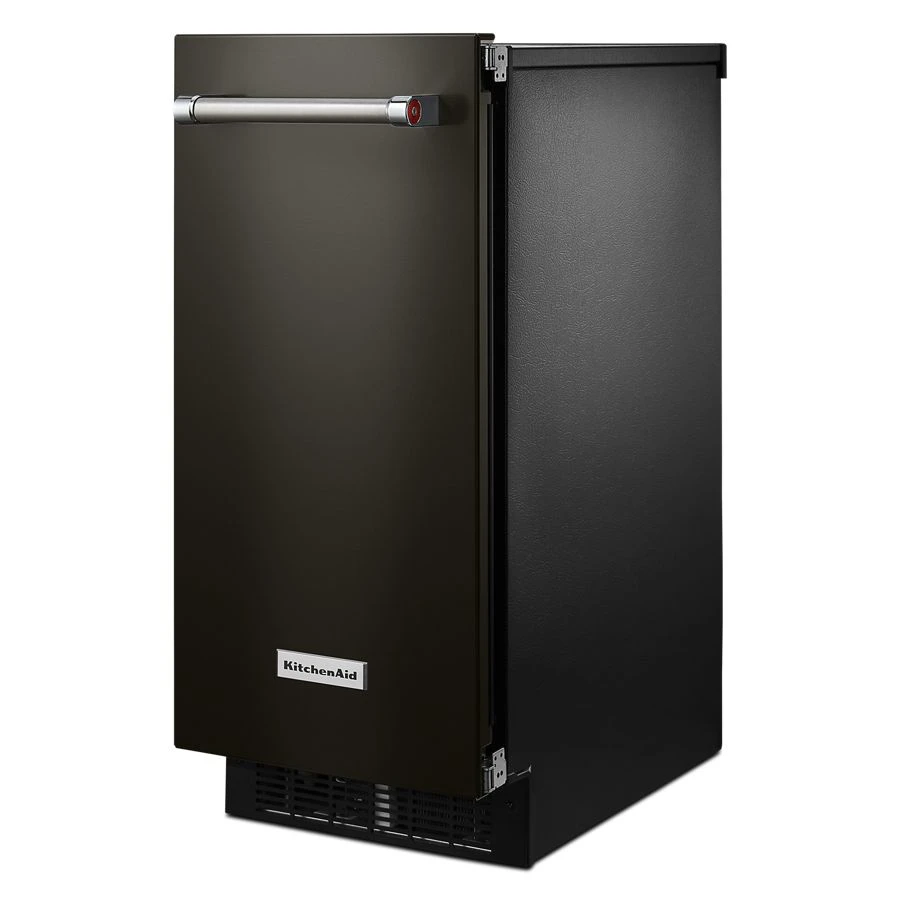

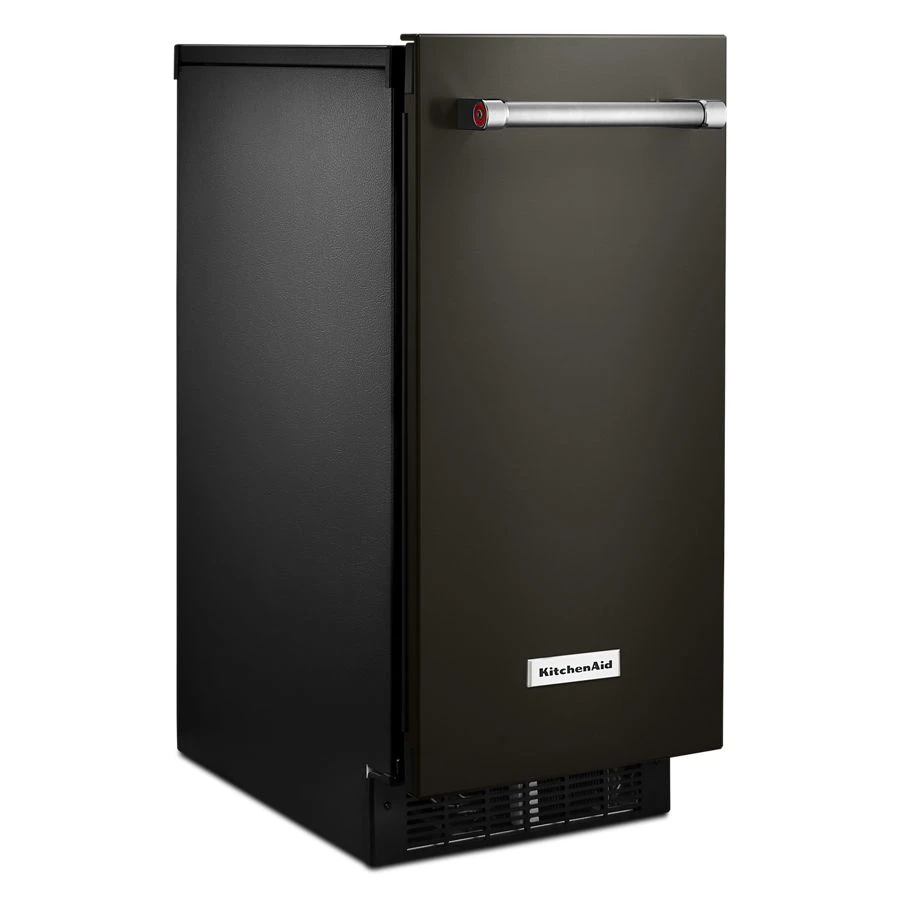

Kitchenaid® 15'' Automatic Ice Maker With Printshield™ Finish - KUIX535HBS
Kitchenaid® 15'' Automatic Ice Maker With Printshield™ Finish
Model: KUIX535HBS
Kitchenaid® 15'' Automatic Ice Maker With Printshield™ Finish
Model: KUIX535HBS
Color : Black Stainless Steel with PrintShield™ Finish
Key Features
Fully Flush Installation with Articulating Hinge
Filter-Ready
PrintShield™ Finish
Description
Documents
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Fully Flush Installation with Articulating Hinge
allows the ice maker's door to sit flush without protruding or leaving a gap between the ice maker and the adjoining cabinets. Articulating hinge design allows the door to open 90 degrees without swinging beyond its normal closed width, providing a built-in look that adds a touch of style to your kitchen or bar space.
Filter-Ready
provides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.
PrintShield™ Finish
resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
Specifications
Warranty
| Parts | 2 Year |
| Labor | 2 Year |

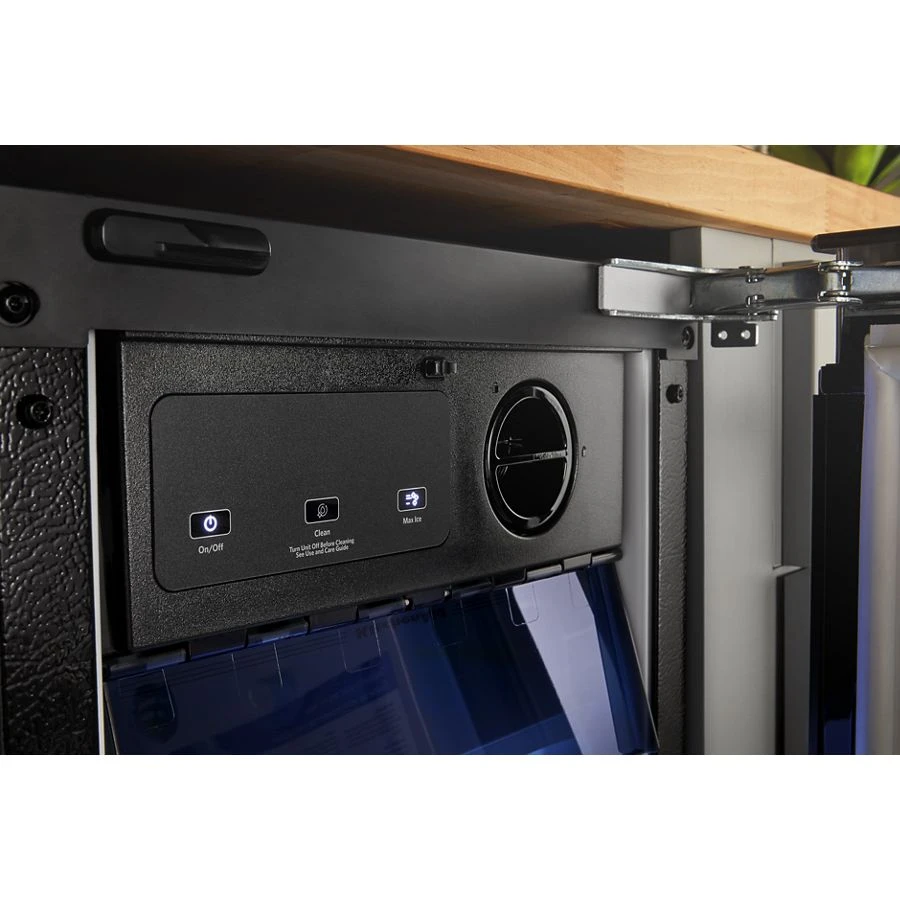

Controls
| Control Location | Interior Up Front |
| Control Type | Electronic Touch |
| Ambient Temperature Range | 55F to 110F |
Details
| Drain Connection | Rear Access 5/8in. OD |
| Drain Pump | Pump Included |
| Stainless Steel Cutting Grid | 3/4in. x 3/4in. Cubes |
| Water Inlet Connection | 1/4in. OD PEX Tubing |
| Ice Maker On/Off | Yes |
| Ice Capacity Storage | 25 lbs |
Certifications
| ADA Compliant | No |
| UL | Yes |

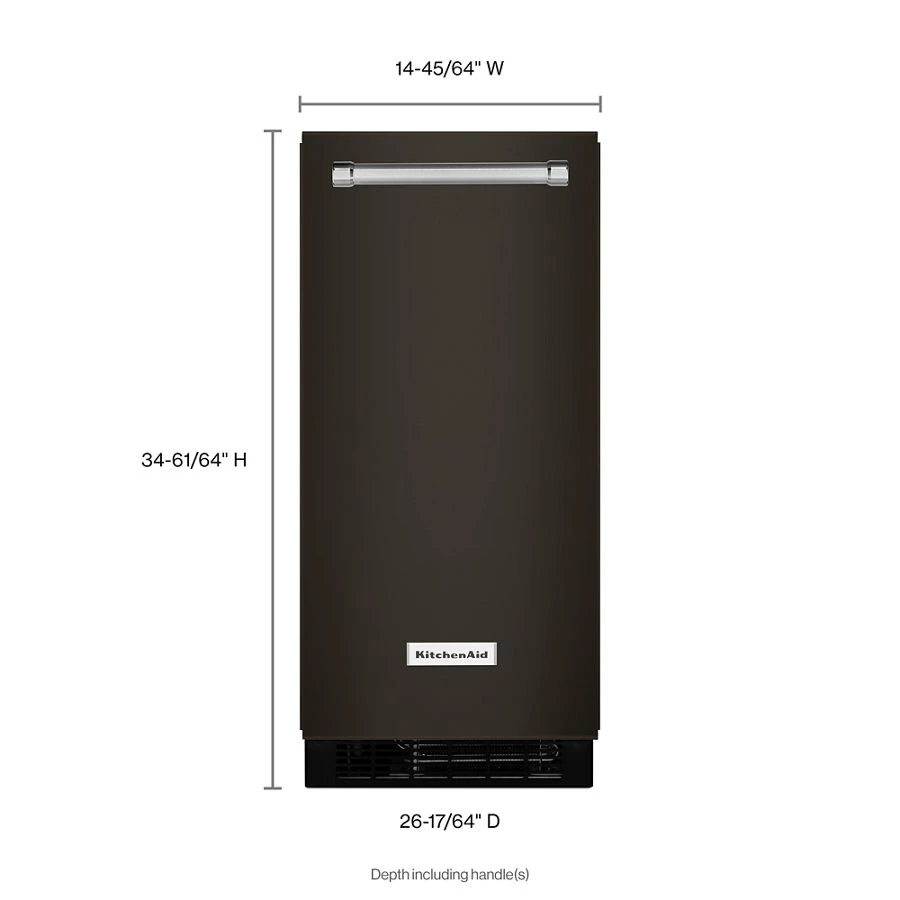

Dimensions & Weight
| Width | 17.25 in. |
| Height | 36.07 in. |
| Length | 28.37 in. |
| Weight | 107 lbs. |
| Cabinet Width (in) | 14 7/8 |
| Carton Depth | 28 3/8 |
| Carton Height | 36 1/8 |
| Carton Width | 17 1/4 |
| Cutout Depth (in) | 25 |
| Cutout Height (in) | 34 1/2 |
| Cutout Width (in) | 15 |
| Depth Closed Excluding Handles | 24 5/8 |
| Depth Closed Including Handles | 26 1/16 |
| Depth Excluding Doors | 22 1/16 |
| Depth With Door Open 90 Degree | 39 9/16 |
| Gross Weight | 107 lbs. |
| Height To Top Of Cabinet | 33 5/8 |
| Height To Top Of Door Hinge | 34 1/16 |
| Net Weight | 96.5 |
| Cabinet Width (IN,inches) | 14.8750 |
| Cutout Depth(IN,inches) | 25.0000 |
| Cutout Height(IN,inches) | 34.5000 |
| Cutout Width(IN,inches) | 15.0000 |
| Depth Closed Excluding Handles(IN,inches) | 24.0000 |
| Depth Closed Including Handles(IN,inches) | 25.3750 |
| Depth Excluding Doors(IN,inches) | 22.1250 |
| Depth With Door Open 90 Degree(IN,inches) | 39.5000 |
| Height To Top Of Cabinet(IN,inches) | 33.6250 |
| Height To Top Of Door Hinge(IN,inches) | 34.0625 |
| Net Weight(LB,pounds) | 96 |
| Carton Depth(IN,inches) | 28.3750 |
| Carton Height(IN,inches) | 36.1250 |
| Carton Width(IN,inches) | 17.2500 |
| Gross Weight(LB,pounds) | 107 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 20 in. |
| Shipping Height | 41.13 in. |
| Shipping Length | 31.06 in. |
| Shipping Weight | 147 lbs. |
| Total of Shipping Weight | 147 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 8.17 ft³ |
| Dimensional Weight | 101.62 lbs. |
| Total of Cubes | 8.17 ft³ |
| Total of Dimensional Weight | 101.62 lbs. |
Exterior Details
| Cabinet Finish | Textured |
| Cabinet Material | Prepainted Steel |
| Handle Location | Horizontal |
| Reversible Door | Yes |
| Door Opening Direction | Right |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Handle Type | Towel Bar |
Filter Details
| Water Filter Indicator/Reset | Yes |
| Water Filter Location | Interior |
| Water Filter Part Number | F2WC9I1 |
Freezer Details
| Defrost Type | Automatic Defrost |
Icemaker Details
| Ice Maker On/Off | Yes |
Refrigerator Details
| Liner Color | White |
Interior Details
| Interior Light | LED |
Electrical
| Amps | 15 |
| Volts | 115 |
Dimensions
| Cutout Depth | 25 in |
| Cutout Width | 15 in |
| Gross Weight | 107 lbs |
| Cutout Height | 34.5 in |
| Depth | 26.26 in, 26.0625 in |
| Height | 34.95 in |
| Height To Top Of Cabinet | 33.625 in |
| Height To Top Of Door Hinge | 34.063 in |
| Net Weight | 96.5 lbs |
| Width | 14.07 in |
Capacity
| Volume | 10.215 Cu.Ft. |
