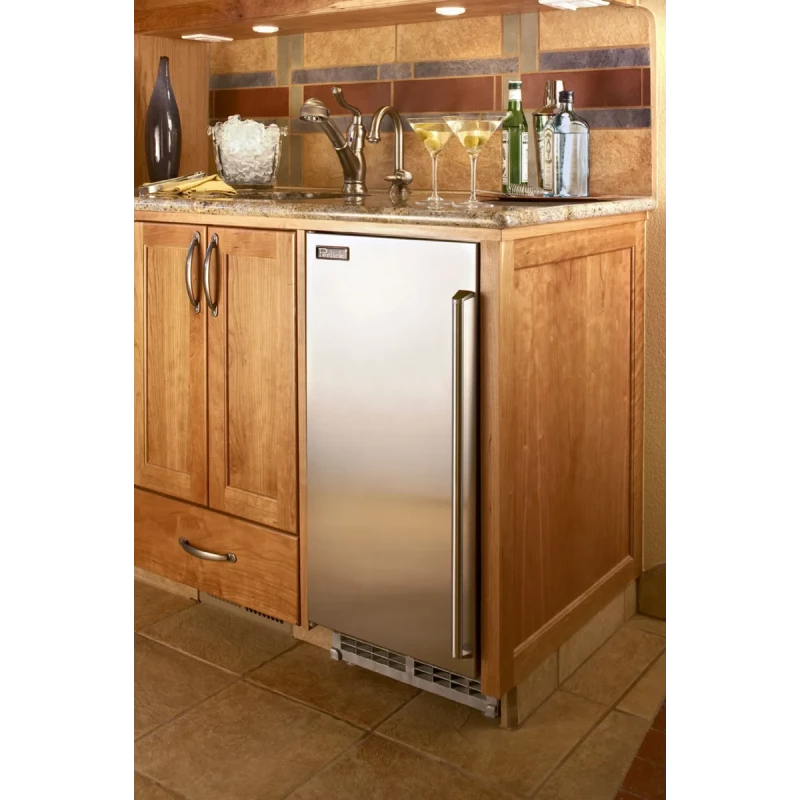

15 Inch Clear Ice Maker with 27 lb. Storage Capacity, 55 lbs. Production Capacity per 24 Hours, Forced Air Refrigeration System and Reversible Hinge - H50IMWAD
15 Inch Clear Ice Maker with 27 lb. Storage Capacity, 55 lbs. Production Capacity per 24 Hours, Forced Air Refrigeration System and Reversible Hinge
Model: H50IMWAD




15 Inch Clear Ice Maker with 27 lb. Storage Capacity, 55 lbs. Production Capacity per 24 Hours, Forced Air Refrigeration System and Reversible Hinge
Model: H50IMWAD
Key Features
32" height with leveling legs
Designed for maximum capacity while adhering to strict 34-inch counterheight
ADA-compliant requirements
Fully-integrated depth to allow flush fit with surrounding cabinetry
Zero-clearance hinging allows for abutment with surrounding cabinetry
With 3/4" wood overlay, the unit will stand flush with cabinetry
Best in Class 700 Btu commercial-grade compressor
Front-vented, RAPIDcool forced-air refrigeration system
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
32" height with leveling legs
Designed for maximum capacity while adhering to strict 34-inch counterheight
ADA-compliant requirements
Fully-integrated depth to allow flush fit with surrounding cabinetry
Zero-clearance hinging allows for abutment with surrounding cabinetry
With 3/4" wood overlay, the unit will stand flush with cabinetry
Best in Class 700 Btu commercial-grade compressor
Front-vented, RAPIDcool forced-air refrigeration system
Commercial-grade stainless steel interior
Maintenance-free automatic cycle free defrost
Industry Exclusive convertible door design allows all doors the ability to be converted to wood overlay from stainless steel
Low E, UV coated glass provides industry leading insulation and protection
Produces up to 55 pounds of ice per day and stores up to 27 pounds of ice
UL-approved for outdoor use
Quiet, efficient operation
Optional drain pump
Elegant stainless steel door and polished handle
Top-hat ice shape
Specifications
Dimensions & Weigth
| Width | 14.88 in. |
| Depth | 22.13 in. |
| Height | 32 in. |
| Depth without Door and Handle | 20 in. |
| Height of Cabinet Door | 29.50 in. |
| Height of Vent | 3.94 in. |
| Shipping Weight | 115 lbs. |
Features
| UL approval for outdoor use | Yes |
| Power switch accessible without panel removal | Yes |
| Front in, front out airflow | Yes |
| Optional drain pump | Yes |
| Ice production | 55 lbs. per 24 hours |
| Storage bin capacity | 27 lbs. |
| Built-in bin | Yes |
| Hermetic closed system | R-134A |
| Forced-air condenser | Yes |
| Front vented refrigeration | Yes |
Operating Limits
| Ambient Temp Range | 45-100°F |
| Water Temp Range | 45-95°F |
| Voltage Range | 104-127V |
| Water Pressure | 7-113 psig |
Electrical & Plumbing
| Electrical | 115V, 60 Hz., 1 phase AC |
| Max Fuse | 15 Amp |
| BSP Inlet | 3/4 in. |
| FPT Outlet | 1/2 in. |
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
| ADA Compliant | Yes |
