16.6 Cu. Ft. Top-Freezer Refrigerator - HTR17DBSWW

HotpointHotpoint brand logo
This product is discontinued and has been replaced by the model below.

16.6 Cu. Ft. Top-Freezer Refrigerator

Model: HTR17DBSWW

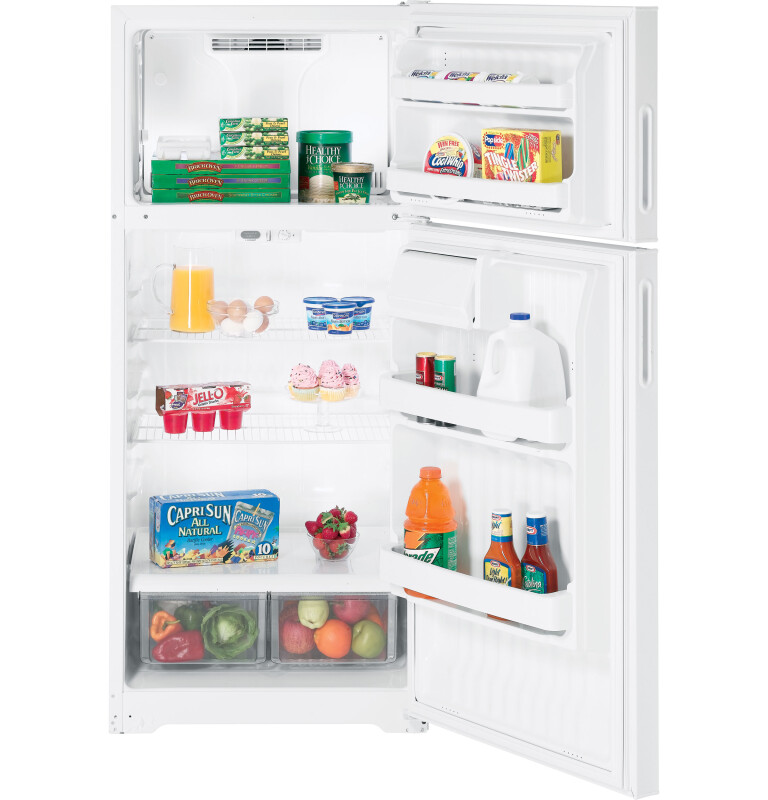

16.6 Cu. Ft. Top-Freezer Refrigerator HTR17DBSWW, product image 1 of 216.6 Cu. Ft. Top-Freezer Refrigerator HTR17DBSWW, product image 2 of 2
16.6 Cu. Ft. Top-Freezer Refrigerator HTR17DBSWW, thumbnail image 1 of 2
16.6 Cu. Ft. Top-Freezer Refrigerator HTR17DBSWW, thumbnail image 2 of 2

Color : White

16.6 Cu. Ft. Top-Freezer Refrigerator HTR17DBSWW
White
Replaced By

16 Cu. Ft. Garage Ready Top Freezer Refrigerator

Model: FRTE1622AW

Product - FRTE1622AW

$949.00

View Product

Key Features

  • Upfront temperature controls

  • Recessed handles

  • Adjustable wire shelves

  • Large door storage

  • Crisper drawers

  • Never clean condenser

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

Upfront temperature controls

Easy-to-use controls regulate both fresh food and freezer sections

Recessed handles

Flush with the surface and ideal for tight spaces

Adjustable wire shelves

Moveable racks can handle a variety of foods

Large door storage

Offers ideal space for storing large containers in the door, freeing up valuable shelf space

Crisper drawers

Provides the ideal environment for storing your fruits and vegetables

Never clean condenser

Sealed compartment keeps coils clean and simplifies maintenance

Certifications

California Prop 65 certification

California Prop 65

Specifications

WEIGHTS & DIMENSIONS

Overall Width28 in
Overall Depth29.125 in
Overall Height64.75 in
Height to Mid-Freezer54.375 in
Side Air Clearances0.75 in
Approximate Shipping Weight169 lb
Depth Without Handle29.125 in
Height to Top of Case64.25 in
Back Air Clearances1 in
Top Air Clearances1 in
Net Weight150 lb
Width w/Door Open 90 Degrees Less Handle28.625 in
Depth with Door Open 90°54.875 in
Width w/Door Open 90 Degrees Incl. Handle28.625 in
Case Depth Without Door25.875 in

FEATURES

Fresh Food FeaturesInterior Lighting - Single Level
Control TypeUpfront Temperature Controls
Exterior StyleFree-Standing
IcemakerOptional (IM4A Ready)
Fresh Food Cabinet Shelves2 Total - Wire
Fresh Food Cabinet Shelf Features2 Full-Width Adjustable
Freezer Door Shelves2 Full-Width Fixed
Defrost TypeFrost Free
Fresh Food Cabinet Drawers2 Clear
Freezer Features1 Ice Tray
Fresh Food Door Shelves2 Full-Width with Gallon Storage

APPEARANCE

Textured Steel CaseColor Matched
Adjustable RollersFront
HandleColor-Matched Recessed
Easy to Remove Door GasketsYes
Exterior DesignTextured Square Doors
Coil-Free BackYes
Door SwingReversible Hinges
Door StopsYes
Color AppearanceWhite

CAPACITY

Fresh Food Capacity12.54 cu ft
Shelf Area19.2 sq ft
Total Capacity (cubic feet)16.6 cu ft
Freezer Capacity4.1 cu ft

ECONOMICAL / QUIET

NeverClean™ CondensorYes
Quiet PackageDeluxe Quiet Design

ACCESSORIES

Optional Icemaker KitIM4A

POWER / RATINGS

Volts/Hertz/Amps120v; 60Hz; 15A

Other

Side Air Clearances0.75 in
Back Air Clearances1 in

Dimensions & Weight

Width28 in.
Height64.75 in.
Length29.13 in.
Weight150 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width33 in.
Shipping Height69.75 in.
Shipping Length34.13 in.
Shipping Weight190 lbs.
Total of Shipping Weight190 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement30.56 ft³
Dimensional Weight379.88 lbs.
Total of Cubes30.56 ft³
Total of Dimensional Weight379.88 lbs.

Warranty

Labor (Entire Appliance)1 Year
Parts (Entire Appliance)1 Year
