16.5 Cu. Ft. Top-Freezer Refrigerator - HTH17CBDRCC

HotpointHotpoint brand logo
This product is discontinued and has been replaced by the model below.

16.5 Cu. Ft. Top-Freezer Refrigerator

Model: HTH17CBDRCC

16.5 Cu. Ft. Top-Freezer Refrigerator HTH17CBDRCC, product image 1 of 416.5 Cu. Ft. Top-Freezer Refrigerator HTH17CBDRCC, product image 2 of 416.5 Cu. Ft. Top-Freezer Refrigerator HTH17CBDRCC, product image 3 of 416.5 Cu. Ft. Top-Freezer Refrigerator HTH17CBDRCC, product image 4 of 4
16.5 Cu. Ft. Top-Freezer Refrigerator HTH17CBDRCC, thumbnail image 1 of 4
16.5 Cu. Ft. Top-Freezer Refrigerator HTH17CBDRCC, thumbnail image 2 of 4
16.5 Cu. Ft. Top-Freezer Refrigerator HTH17CBDRCC, thumbnail image 3 of 4
16.5 Cu. Ft. Top-Freezer Refrigerator HTH17CBDRCC, thumbnail image 4 of 4

Color : Bisque

16.5 Cu. Ft. Top-Freezer Refrigerator HTH17CBDRCC
Bisque
Replaced By

16.6 Cu. Ft. Recessed Handle Top-Freezer Refrigerator

Model: GPE17CTNRWW

Product - GPE17CTNRWW

$899.00

View Product

Key Features

  • Upfront temperature controls

  • Adjustable wire shelves

  • Fixed gallon door bins

  • Crisper drawers

  • Never clean condenser

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

Upfront temperature controls

Easy-to-use controls regulate both fresh food and freezer sections

Adjustable wire shelves

Moveable racks can handle a variety of foods

Fixed gallon door bins

Milk and larger items are easily accommodated to allow for more fresh food space

Crisper drawers

Provides the ideal environment for storing your fruits and vegetables

Never clean condenser

Sealed compartment keeps coils clean and simplifies maintenance

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

ENERGY STARĀ® Qualified certification

ENERGY STARĀ® Qualified

Specifications

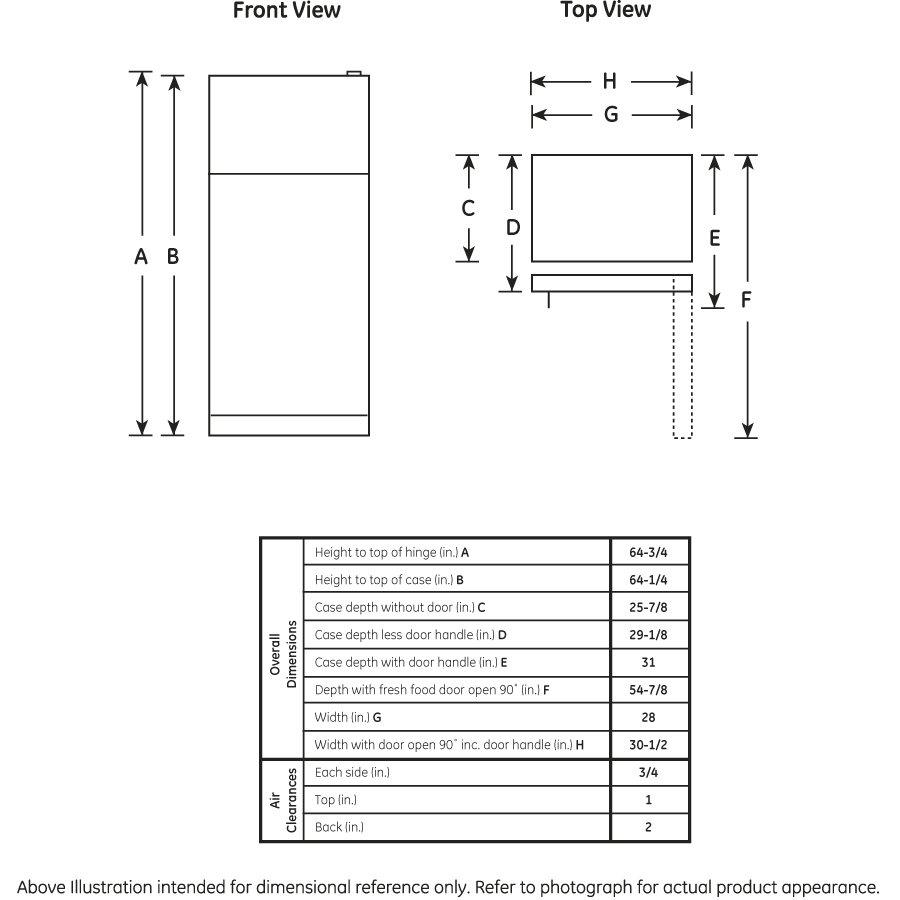

WEIGHTS & DIMENSIONS

Overall Width28 in
Overall Depth31 in
Overall Height64.75 in
Height to Mid-Freezer54.375 in
Side Air Clearances0.75 in
Approximate Shipping Weight169 lb
Depth Without Handle29.125 in
Height to Top of Case64.25 in
Back Air Clearances2 in
Top Air Clearances1 in
Net Weight150 lb
Width w/Door Open 90 Degrees Less Handle28.625 in
Depth with Door Open 90Ā°54.875 in
Width w/Door Open 90 Degrees Incl. Handle30.5 in
Case Depth Without Door25.875 in

FEATURES

Fresh Food FeaturesInterior Lighting - Single
Control TypeUpfront Temperature Controls
Exterior StyleFree-Standing
Performance FeaturesNever Clean Condenser
IcemakerOptional (IM4A Ready)
Freezer Door Shelves2 Fixed
Defrost TypeFrost Free
Fresh Food Cabinet DrawersWhite
Fresh Food Door FeaturesDairy Compartment
Leveling SystemLeveling Legs
Freezer Features1 Ice Tray
Fresh Food Cabinet Shelves2 Full-Width
Fresh Food Door Shelves2 Total

APPEARANCE

Textured Steel CaseGalvanized Door
HandleColor-Matched
Exterior DesignTextured Square Doors
Door SwingReversible Hinges
Color AppearanceBisque
Door StopsYes

CAPACITY

Fresh Food Capacity12.43 cu ft
Shelf Area19.2 sq ft
Total Capacity (cubic feet)16.5 cu ft
Freezer Capacity4.07 cu ft

ECONOMICAL / QUIET

Cabinet & Door LinerABS

ACCESSORIES

Optional Icemaker KitIM4A

POWER / RATINGS

Volts/Hertz/Amps120v; 60Hz; 15A

Other

Side Air Clearances0.75 in
Back Air Clearances2 in
Top Air Clearances1 in

Dimensions & Weight

Width28 in.
Height64.75 in.
Length31 in.
Weight150 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width33 in.
Shipping Height69.75 in.
Shipping Length36 in.
Shipping Weight190 lbs.
Total of Shipping Weight190 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement32.52 ftĀ³
Dimensional Weight404.34 lbs.
Total of Cubes32.52 ftĀ³
Total of Dimensional Weight404.34 lbs.

Warranty

Labor (Entire Appliance)1 Year
Parts (Entire Appliance)1 Year
