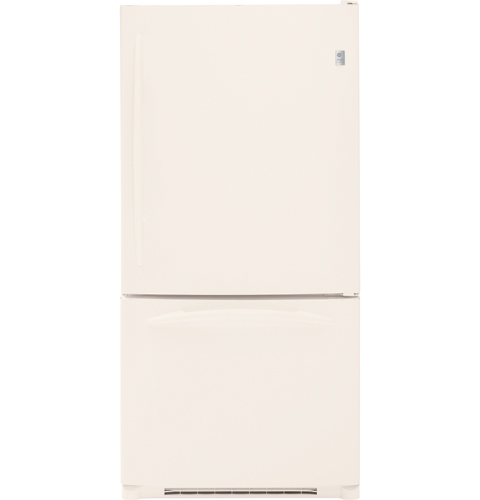

22.2 Cu. Ft. Bottom-Freezer Drawer Refrigerator - PDS22MBSCC

GE ProfileGE Profile brand logo
This product has been discontinued by the manufacture and is no longer available.

22.2 Cu. Ft. Bottom-Freezer Drawer Refrigerator

Model: PDS22MBSCC

22.2 Cu. Ft. Bottom-Freezer Drawer Refrigerator PDS22MBSCC22.2 Cu. Ft. Bottom-Freezer Drawer Refrigerator PDS22MBSCC22.2 Cu. Ft. Bottom-Freezer Drawer Refrigerator PDS22MBSCC22.2 Cu. Ft. Bottom-Freezer Drawer Refrigerator PDS22MBSCC
22.2 Cu. Ft. Bottom-Freezer Drawer Refrigerator PDS22MBSCC
22.2 Cu. Ft. Bottom-Freezer Drawer Refrigerator PDS22MBSCC
22.2 Cu. Ft. Bottom-Freezer Drawer Refrigerator PDS22MBSCC
22.2 Cu. Ft. Bottom-Freezer Drawer Refrigerator PDS22MBSCC

Color : Bisque on Bisque

22.2 Cu. Ft. Bottom-Freezer Drawer Refrigerator PDS22MBSCC
Bisque on Bisque

Key Features

  • Temperature management

  • Upfront, electronic touch temperature controls with digital temperature display

  • Interior lighting

  • Quick Space shelf

  • Adjustable humidity vegetable / fruit crispers

  • Self-closing drawer

  • Multi-level Slide 'n Storeā„¢ basket system

  • ShelfSaverā„¢ rack

Description

Enjoy even cooling throughout the fresh food section.Includes three full-extension baskets for tremendous storage flexibility and keeps contents perfectly in place.68 5/8 H x 32 7/8 W x 33 7/8 D

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

Temperature management

Enjoy even cooling throughout the fresh food section

Upfront, electronic touch temperature controls with digital temperature display

Clearly displays the exact temperature for the fresh food and freezer compartments

Interior lighting

Itā€™s easy to find your favorite foods under bright, clear lighting

Quick Space shelf

Quickly slides out of the way to make room for tall items

Adjustable humidity vegetable / fruit crispers

Provide easy storage and help foods stay fresh

Self-closing drawer

Self-closing hinges automatically pull the drawer shut when it's within one inch of the closed position

Multi-level Slide 'n Storeā„¢ basket system

Includes three full-extension baskets for tremendous storage flexibility and keeps contents perfectly in place

ShelfSaverā„¢ rack

Provides convenient storage for a 12-pack, two egg cartons or a 9" by 13" casserole dish

Certifications

California Prop 65 certification

California Prop 65

ENERGY STARĀ® Qualified certification

ENERGY STARĀ® Qualified

Specifications

FEATURES

Temperature Management FeaturesTurbo Cool setting
Fresh Food FeaturesSnugger Clips - 1
Sweet Spot ShelfYes
Dispenser FeaturesDoor Alarm
Control TypeUpfront Electronic Digital Temperature Display
Freezer Storage Baskets3 Wire, Slide-Out (2 Full-Width/1 Split)
Meat PanAdjustable Temperature
Exterior StyleFree-Standing
Vegetable / Fruit Crisper(s)2 Adjustable Humidity
IcemakerNon-Icemaker
Door LinerABS
Fresh Food Cabinet Shelves4 Total
Interior LightingGE RevealĀ®
Filter LocationUpper right corner
Easy-Out CrispersDrawer glides
DispenserNon-Dispenser
Fresh Food Cabinet Shelf FeaturesGlass
Defrost TypeFrost Guard
Fresh Food Door FeaturesGallon Storage
Leveling SystemYes
Fresh Food Door Bins5 (4 Adjustable Split; 1 Full-Width Fixed)
Freezer FeaturesInterior Lighting
Freezer FeaturesFreezer Drawer
Freezer FeaturesIntegrated Ice Storage Bin
Fresh Food Cabinet Shelf Features4 Split Adjustable
Fresh Food Cabinet Shelf Features1 Quick Space Shelf
Fresh Food Cabinet Shelf Features2 Slide-Out
Fresh Food Cabinet Shelf Features3 Spill Proof
Fresh Food FeaturesDairy Compartment
Temperature Management Features3 Electronic Sensors
Temperature Management FeaturesMultiflow Air Tower

APPEARANCE

Textured Steel CaseGalvanized Door
HandleColor-Matched
Easy to Remove Door GasketsYes
Door SwingReversible Hinges
Color AppearanceBisque on Bisque
Door StopsYes

CAPACITY

Fresh Food Capacity15.21 cu ft
Shelf Area27.66 sq ft
Freezer Capacity7.04 cu ft
Total Capacity (cubic feet)22.20 cu ft

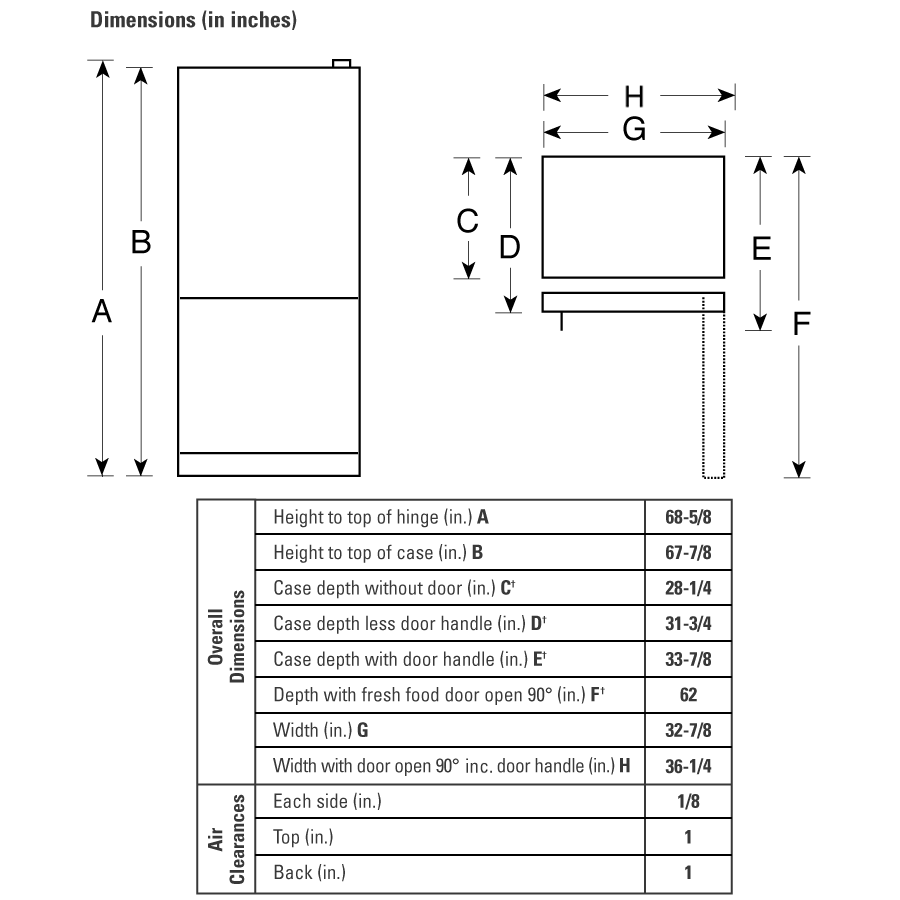

WEIGHTS & DIMENSIONS

Height to Top of Case67.875 in
Depth Without Handle31.75 in
Approximate Shipping Weight287 lb
Back Air Clearances1 in
Top Air Clearances1 in
Net Weight256 lb
Width w/Door Open 90 Degrees Less Handle34.125 in
Depth with Door Open 90Ā°62 in
Width w/Door Open 90 Degrees Incl. Handle36.25 in
Case Depth Without Door28.25 in
Overall Depth33 7/8 in
Overall Height68 5/8 in
Overall Width32 7/8 in
Side Air Clearances1/8 in

ECONOMICAL / QUIET

NeverCleanā„¢ CondensorYes
Cabinet LinerABS

ACCESSORIES

Optional Icemaker KitIM4A

POWER / RATINGS

Volts/Hertz/Amps120v; 60Hz; 15A

Other

Side Air Clearances0.125 in
Back Air Clearances1 in

Dimensions & Weight

Width32.88 in.
Height68.63 in.
Length33.88 in.
Weight256 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width37.88 in.
Shipping Height73.63 in.
Shipping Length38.88 in.
Shipping Weight296 lbs.
Total of Shipping Weight296 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement44.23 ftĀ³
Dimensional Weight549.81 lbs.
Total of Cubes44.23 ftĀ³
Total of Dimensional Weight549.81 lbs.
