22 Cu. Ft. Bottom Freezer Refrigerator - LDCS22220S

LGLG brand logo
This product has been discontinued by the manufacture and is no longer available.

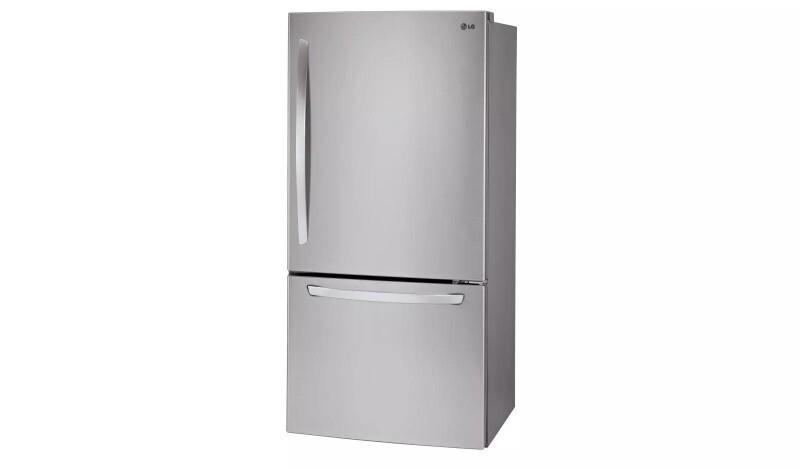

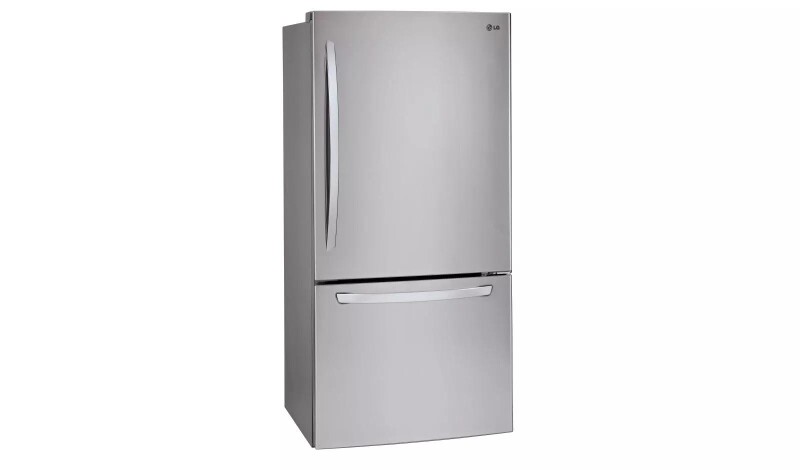

22 Cu. Ft. Bottom Freezer Refrigerator

Model: LDCS22220S

22 Cu. Ft. Bottom Freezer Refrigerator LDCS22220S22 Cu. Ft. Bottom Freezer Refrigerator LDCS22220S22 Cu. Ft. Bottom Freezer Refrigerator LDCS22220S22 Cu. Ft. Bottom Freezer Refrigerator LDCS22220S22 Cu. Ft. Bottom Freezer Refrigerator LDCS22220S22 Cu. Ft. Bottom Freezer Refrigerator LDCS22220S22 Cu. Ft. Bottom Freezer Refrigerator LDCS22220S22 Cu. Ft. Bottom Freezer Refrigerator LDCS22220S
22 Cu. Ft. Bottom Freezer Refrigerator LDCS22220S
22 Cu. Ft. Bottom Freezer Refrigerator LDCS22220S
22 Cu. Ft. Bottom Freezer Refrigerator LDCS22220S
22 Cu. Ft. Bottom Freezer Refrigerator LDCS22220S
22 Cu. Ft. Bottom Freezer Refrigerator LDCS22220S
+3more

360 View

360 icon

Color : Stainless Steel

22 Cu. Ft. Bottom Freezer Refrigerator LDCS22220S
Stainless Steel

Key Features

  • FT32568663_alignment

  • LARGEST CAPACITY*

  • Full bleed background desktop

  • Full bleed background mobile

  • module_type

  • Parent Module

  • Fresher is better.

  • FT30000260_M01A_alignment

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications

Features

FT32568663_alignment

align=image-top image-left&textColor=text-dark&textWidth=text-standard

LARGEST CAPACITY*

Full bleed background desktop

Get wise

Full bleed background mobile

Get wise

module_type

M03A

Parent Module

Fresher is better.

FT30000260_M01A_alignment

align=text-top&textColor=text-dark

Full bleed background desktop

Fresher is better.

Full bleed background mobile

Fresher is better.

module_type

M01A

Parent Module

module_type

M01A

Sophisticated style and Design.

FT00001094_M01A_alignment

align=text-top&textColor=text-dark

Full bleed background desktop

Sophisticated style and Design.

Full bleed background mobile

Sophisticated style and Design.

Parent Module

module_type

M01A

Peace of Mind

FT00001087_M01A_alignment

align=text-top&textColor=text-dark

Full bleed background desktop

Peace of Mind

Full bleed background mobile

Peace of Mind

Parent Module

module_type

M03A

Get wise

FT30018280_M03A_alignment

align=image-top image-right&textColor=text-dark&textWidth=text-wide

Full bleed background desktop

Get wise

Full bleed background mobile

Get wise

Parent Module

LARGEST CAPACITY*

Fresher is better.

Sophisticated style and Design.

Peace of Mind

Get wise

22 cu.ft., Largest Capacity

Smart Cooling System

SmartDiagnosis System

10-Year Manufacturer’s Limited Warranty on Linear Compressor

ENERGY STAR Qualified

Specifications

Warranty

Parts1 Year
Labor1 Year
Parts (Sealed System)5 Year
Labor (Sealed System)5 Year
Parts (Compressor)5 Year
Labor (Compressor)5 Year

FREEZER

Drawers2-Tier Organization
Ice BinYes
Freezer LightPremium LED
HandleVista
Ice MakerYes

REFRIGERATOR DOOR

No. of Shelves/Bin5 Total (3 Full, 1 Flip-Up + Dairy)
Door Bin ConstructionClear
Dairy CornerYes

DIMENSIONS/CLEARANCES/WEIGHTS

Depth with Handles34 7/8"
Depth without Handles33"
Depth without Door29"
Depth (Total with Door Open)59 1/2"
Height to Top of Case67 1/4"
Height to Top of Door Hinge68 1/2"
Width29 3/4"
Width (Door Open 90˚ with Handle)33 1/2"
Width (Door Open 90˚ without Handle)31 1/2"
Installation ClearanceSides 1/8", Top 1", Back 1"
Weight (Unit/Carton)235.4 lbs./255.4 lbs.
Carton Dimensions (WxHxD)32" x 70" x 38 "

CAPACITY

Refrigerator14.80 cu. ft.
Freezer7.30 cu. ft.
Total22.1 cu. ft.

FEATURES

Temperature Sensors6
Ice SystemFactory Installed Ice Maker
Linear CompressorYes
Display TypeMembrane (Green LED)
Temperature ControlsElectronic/Digital
Door AlarmYes
LoDecibel™ Quiet OperationYes
SmartDiagnosis™Yes
Daily Ice Production2.8 lbs / 3.1 lbs (IcePlus)
Ice Storage Capacity12 lbs
Smart Cooling® SystemYes
Multi-Air Flow CoolingYes
Hidden HingesYes
ENERGY STAR® QualifiedYes (589 kWh/Year)

MATERIALS AND FINISHES

Hidden HingesYes
SurfaceCoated Metal, Stainless Steel
BackFlush & Metal Cover Over Mechanical Parts
Available ColorsStainless Steel (S), White (W)
Contour DoorYes
HandlesMatching Commercial Handles

REFRIGERATOR

No. of Shelves2 Full
Shelf ConstructionSpillProtector™ Tempered Glass
Crisper Bins2-Humidity Crispers
Glide N’ Serve®Yes
Refrigerator LightPremium LED

SUMMARY

Door TypeBottom Freezer

Dimensions & Weight

Width29 in.
Height70 in.
Length38 in.
Weight235.4 lbs.
Carton Dimensions (WxHxD)32" x 70" x 38 "
Depth with Handles34 7/8"
Depth without Handles33"
Depth without Door29"
Depth (Total with Door Open)59 1/2"
Height to Top of Case67 1/4"
Height to Top of Door Hinge68 1/2"
Width (Door Open 90˚ with Handle)33 1/2"
Width (Door Open 90˚ without Handle)31 1/2"

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width37 in.
Shipping Height75 in.
Shipping Length43 in.
Shipping Weight275.4 lbs.
Total of Shipping Weight275.4 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement44.64 ft³
Dimensional Weight554.96 lbs.
Total of Cubes44.64 ft³
Total of Dimensional Weight554.96 lbs.
