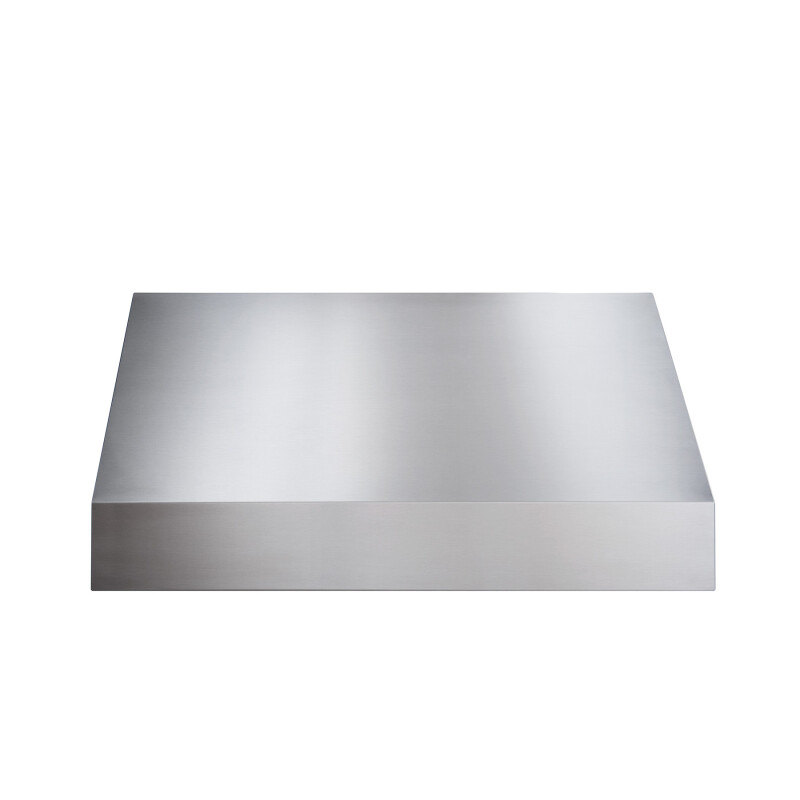

EPD61 Series 60-inch Pro-Style Outdoor Range Hood, 1290 Max Blower CFM - EPD6160SS
EPD61 Series 60-inch Pro-Style Outdoor Range Hood, 1290 Max Blower CFM
Model: EPD6160SS
EPD61 Series 60-inch Pro-Style Outdoor Range Hood, 1290 Max Blower CFM
Model: EPD6160SS
Color : Stainless Steel
Key Features
18" tall wall-mount design with deep 27" depth to handle the heat and size of outdoor grills
Powerful 1290 Max Blower CFM for quiet, dependable operation
3-speed rotary control for convenient range of ventilation choices
50-watt Halogen bulbs provide bright lighting: two in 36" and 42", three in 48" and 60" (not included)

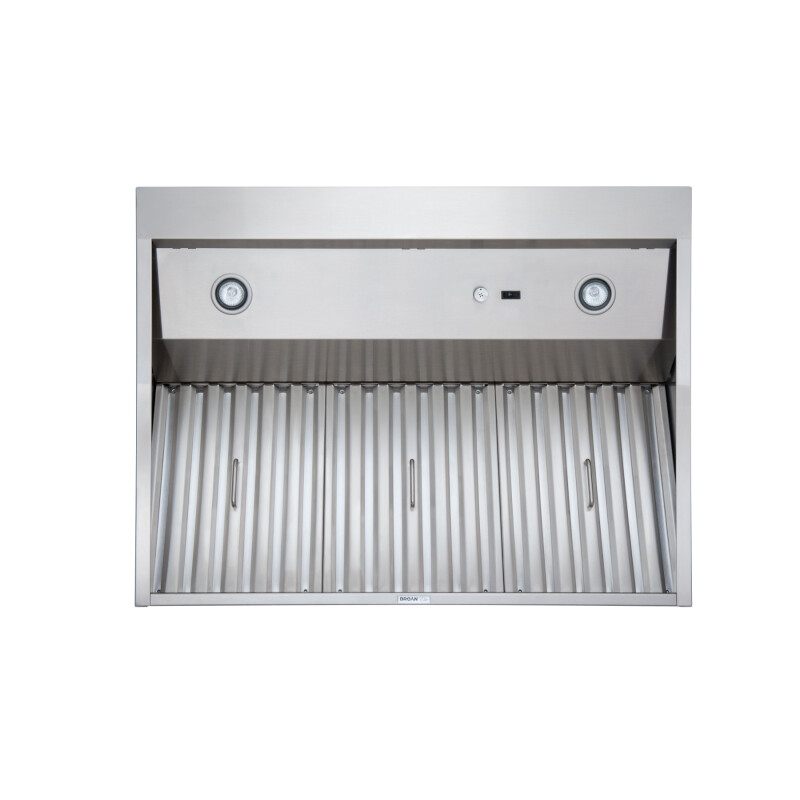

Professional style baffle filters capture grease typical to outdoor cooking; easy to remove grease rail makes clean up easier
Heat Sentry detects excessive heat and adjusts blower speed to High automatically to maintain optimum ventilation
HVI certification gives you confidence this hood meets rated specs
Optional 3" wall extension for greater coverage; eliminates expensive custom wall bump-outs
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
18" tall wall-mount design with deep 27" depth to handle the heat and size of outdoor grills
Powerful 1290 Max Blower CFM for quiet, dependable operation
3-speed rotary control for convenient range of ventilation choices
50-watt Halogen bulbs provide bright lighting: two in 36" and 42", three in 48" and 60" (not included)
Professional style baffle filters capture grease typical to outdoor cooking; easy to remove grease rail makes clean up easier
Heat Sentry detects excessive heat and adjusts blower speed to High automatically to maintain optimum ventilation
HVI certification gives you confidence this hood meets rated specs
Optional 3" wall extension for greater coverage; eliminates expensive custom wall bump-outs
Optional flue covers available to fit 8", 9" and 10" ceilings for standard or wall extension installation choices
Specifications
Other
| Filter Type | Stainless Steel Baffle |
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | Halogen |
| Sound Level (Sones) | 11 |
| Light Bulb Wattage | 50 |
| Light Levels | 1 |
| Switch Control Type | Rotary |
| Rated Voltage | 120 |
| Rated Amps | 9 |
| CFM | 1290 Max |
| Diameter | 10" Round |
| Vent Type | Ducted Only |
| Duct Direction | Vertical |
| Bulb (Recommended Type) | Halogen 50W, GU10 |
| Manufacturer Warranty | 1 Year |
| Wattage | 1080 |
Dimensions & Weight
| Width | 60 in. |
| Height | 18 in. |
| Length | - |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 65 in. |
| Shipping Height | 23 in. |
| Shipping Length | - |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
