Built-In 15" Compactor - GCG1700LII
Built-In 15" Compactor
Model: GCG1700LII
Built-In 15" Compactor
Model: GCG1700LII
Color : Custom Panels Required
Replaced By
Key Features
Fully integrated door for custom panels
Hidden controls
Built-in only
1.4 cu. ft. capacity
1/3 HP motor
Removable key lock
Automatic anti-jam
Removable drawer
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Fully integrated door for custom panels
Allows the compactor to virtually disappear into the cabinetry with a slide-in custom panel available from any cabinetmaker
Hidden controls
The controls are hidden behind the compactor door, lending a beautiful designer appearance
Built-in only
The compactor is built-in to adjacent cabinetry for an upscale appearance
1.4 cu. ft. capacity
Provides plenty of room for waste items or recyclables
1/3 HP motor
Powerful motor provides maximum compacting power
Removable key lock
Provides added safety by assuring the drawer remains locked during use
Automatic anti-jam
Operation is easy and reliable, even with a challenging load
Removable drawer
Makes it simple to empty and clean
Toe pedal opener
Hands-free toe pedal drawer makes it easy to open and load
Rear wheels
Allow easy movement and installation
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Cabinet Width | 15 in |
| Overall Depth | 23 in |

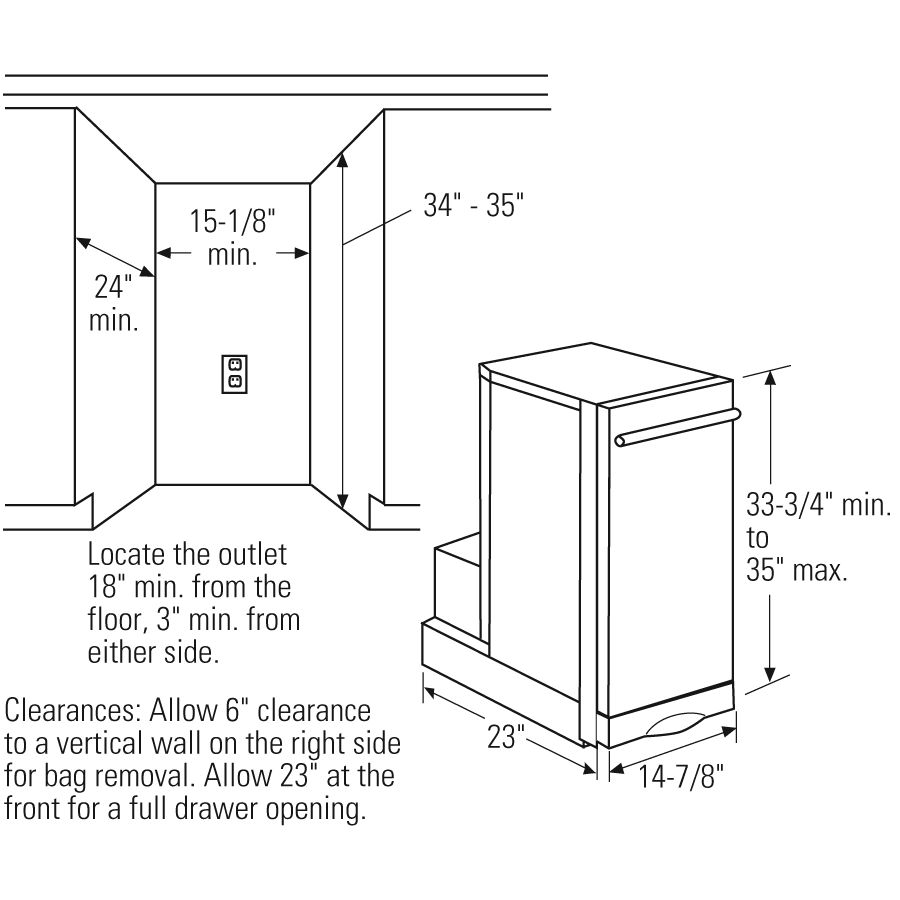

| Cutout Dimensions (w x h x d) (in.) | 15-1/8 x 34-1/4 x 24-3/4 |
| Height w/Legs Extended - Maximum Height | 35 in |
| Height w/ Legs Retracted - Minimum Height | 33.75 in |
| Overall Height | 33 3/4 in |
| Overall Width | 14 7/8 in |
FEATURES
| Motor Horsepower | 1/3 hp |
| Drive System | 2-point |
| Ram Force | 2300 lb |
| Requires Panels | TRUE |
| Compression Ratio (Avg.) | 75% Reduction or 4:1 |
| Compactor Features | Slide-Out Drawer |
| Construction | Heavy Gauge Steel |
| Style | Built-In |
| Leveling System | Leveling Legs with Rear Wheels |
| Control Location | Hidden |
| Cycle Time | Less than 30 seconds |
| Compactor Features | Side Release Bin |
| Compactor Features | Lock/Start Control w/Removable Key |
ACCESSORIES
| Optional Accessories - Compactor Bags | WC60X5017 (2 Included) |
APPEARANCE
| Panel Capability | 3/4" Panel |
| Color Appearance | Custom Panels Required |
POWER / RATINGS
| Volts/Hertz/Amps | 120V; 60Hz; 6.5A |
Other
| Cutout Dimensions (w x h x d) (in.) | 15-1/8 x 34-1/4 x 24-3/4 |
Dimensions & Weight
| Width | 14.88 in. |
| Height | 33.75 in. |
| Length | 23 in. |
| Weight | 128 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 19.88 in. |
| Shipping Height | 38.75 in. |
| Shipping Length | 28 in. |
| Shipping Weight | 168 lbs. |
| Total of Shipping Weight | 168 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 6.68 ft³ |
| Dimensional Weight | 83.07 lbs. |
| Total of Cubes | 6.68 ft³ |
| Total of Dimensional Weight | 83.07 lbs. |
CAPACITY
| Total Capacity (cubic feet) | 1.40 cu ft |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
