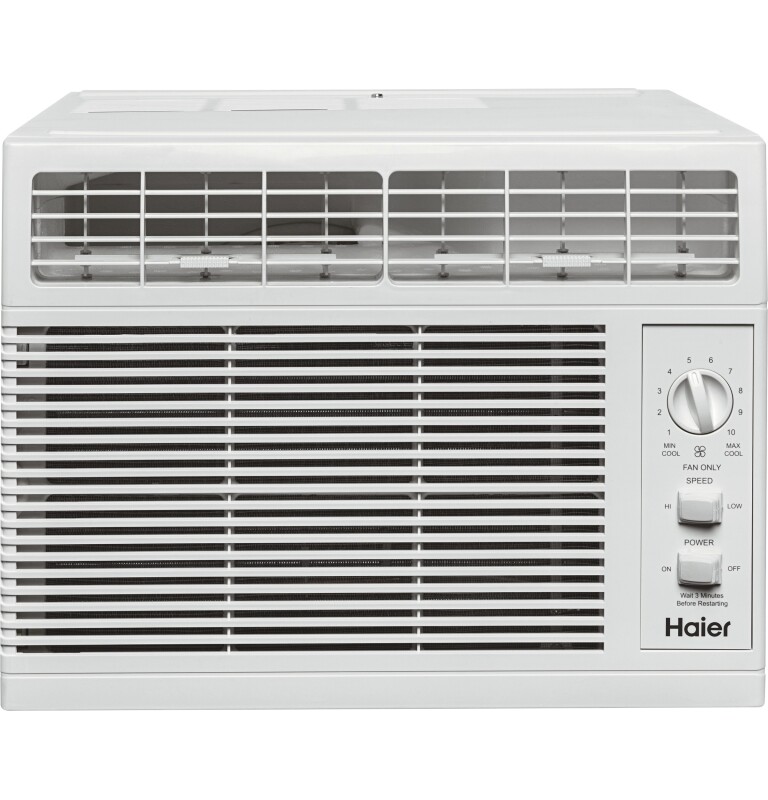

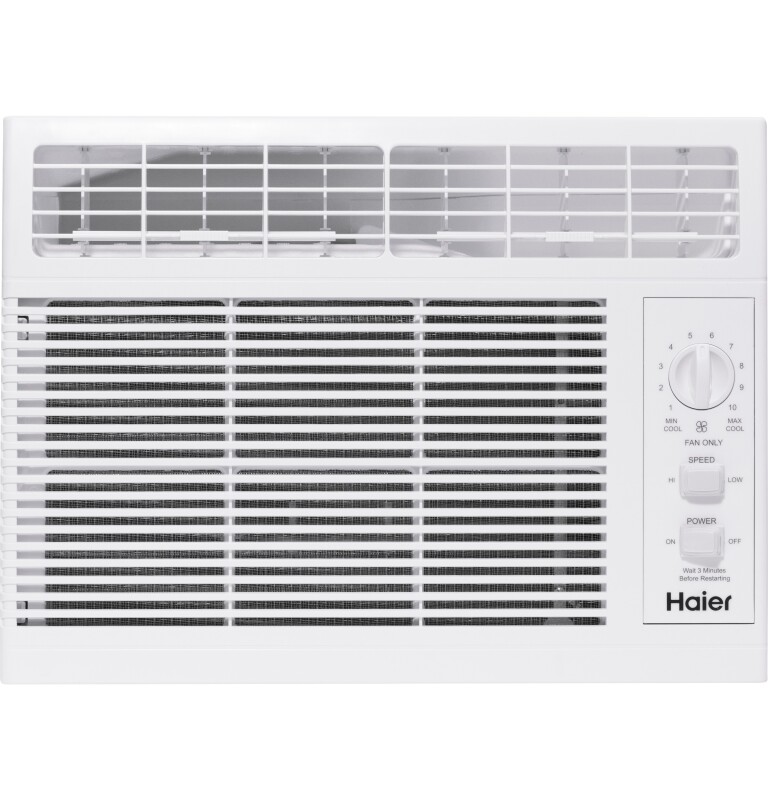

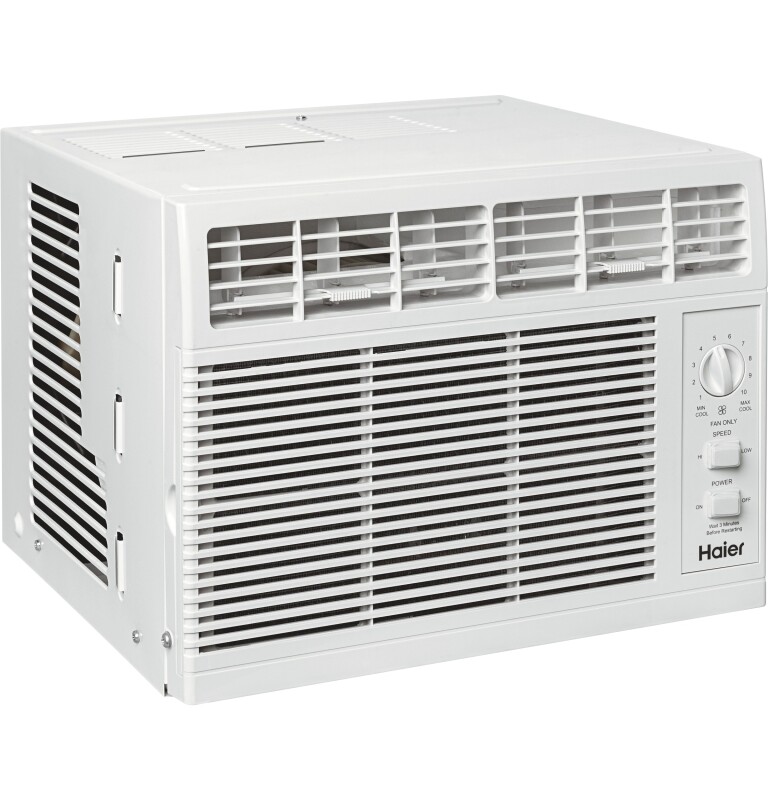

Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. - QHV05LZ

HaierHaier brand logo
This product is discontinued and has been replaced by the model below.

Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.

Model: QHV05LZ

Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHV05LZHaier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHV05LZHaier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHV05LZHaier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHV05LZHaier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHV05LZHaier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHV05LZ
Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHV05LZ
Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHV05LZ
Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHV05LZ
Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHV05LZ
Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHV05LZ
+1more

Color : Other

Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHV05LZ
Other
Replaced By

Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.

Model: QHEC05AC

Product - QHEC05AC
View Product

Key Features

  • Non-Ozone-Depleting Refrigerant

  • Adjustable Thermostat

  • 2 Cooling / 2 Fan Speeds

  • EZ Mount installation kit included

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

Non-Ozone-Depleting Refrigerant

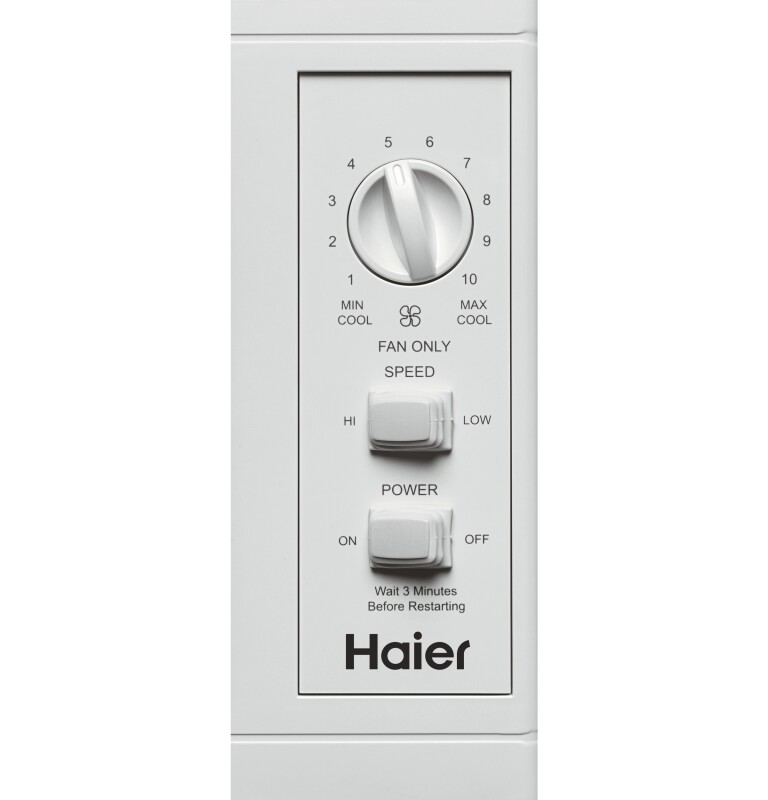

Adjustable Thermostat

Ensures accurate storage temperatures at the turn of a dial

2 Cooling / 2 Fan Speeds

Multiple speeds for personalized comfort

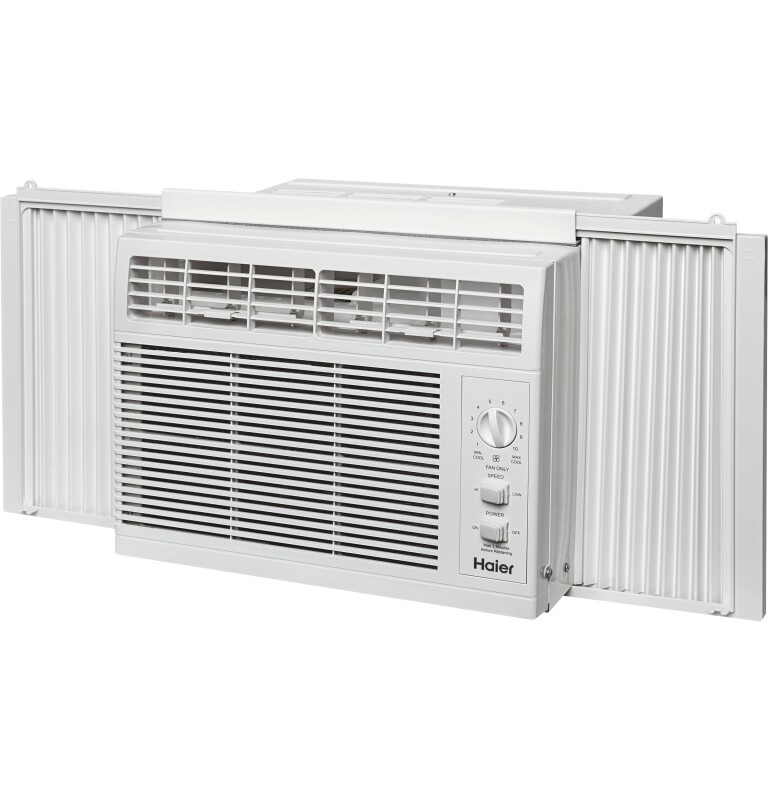

EZ Mount installation kit included

Easy installation without special tools

Certifications

UL certification

UL

Specifications

WEIGHTS & DIMENSIONS

Overall Width18.5 in
Overall Height12.44 in
Overall Depth15.33 in
Approximate Shipping Weight40.7 lb
Min./Max. Window Opening Width (in.)24-1/2 /36
Depth to Louvers5 in
Grille Depth1.125 in
Net Weight35.9 lb
Minimum Window Opening Height (in.)13.375 in

CAPACITY

Cooling BTUH (MAX)5050 Btu
Dehumidification (pts./hr.)1.2

FEATURES

Louver Style2-Way Adjustable
Fan Speed Selections2 Fan Only
Product TypeWindow
Refrigerant TypeR-410A - Non-Ozone-Depleting Refrigerant
Filter TypeSlide-Out
Chassis TypeFixed
Vent/Air Exchange ExhaustTop Air Discharge
Plug TypeParallel/NEMA 5-15
Mounting TypeEZ Mount
Thermostat TypeMechanical
Rotary CompressorYes
Unit TypeCool Only
Airflow (cfm) Roomside135/115

WARRANTY

Warranty NotesSee written warranty for full details
Parts WarrantyReturn to vendor
Labor WarrantyNo Warranty

POWER / RATINGS

Cooling - Rated Cooling Amps AHAM4.1
Cooling - Watts460
CEER11.1
Voltage (MAX)115 V

APPEARANCE

InstallationEZ Mount
Color AppearanceWhite

Dimensions & Weight

Width18.5 in.
Height12.44 in.
Length15.33 in.
Weight35.9 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width23.5 in.
Shipping Height17.44 in.
Shipping Length20.33 in.
Shipping Weight75.9 lbs.
Total of Shipping Weight75.9 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement2.04 ft³
Dimensional Weight25.38 lbs.
Total of Cubes2.04 ft³
Total of Dimensional Weight25.38 lbs.
