Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. - QHM05LX

HaierHaier brand logo
This product has been discontinued by the manufacture and is no longer available.

Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.

Model: QHM05LX

Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHM05LXHaier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHM05LXHaier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHM05LXHaier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHM05LXHaier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHM05LX
Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHM05LX
Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHM05LX
Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHM05LX
Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHM05LX
Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHM05LX

360 View

360 icon

Color : White

Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft.Haier 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. QHM05LX
White

Key Features

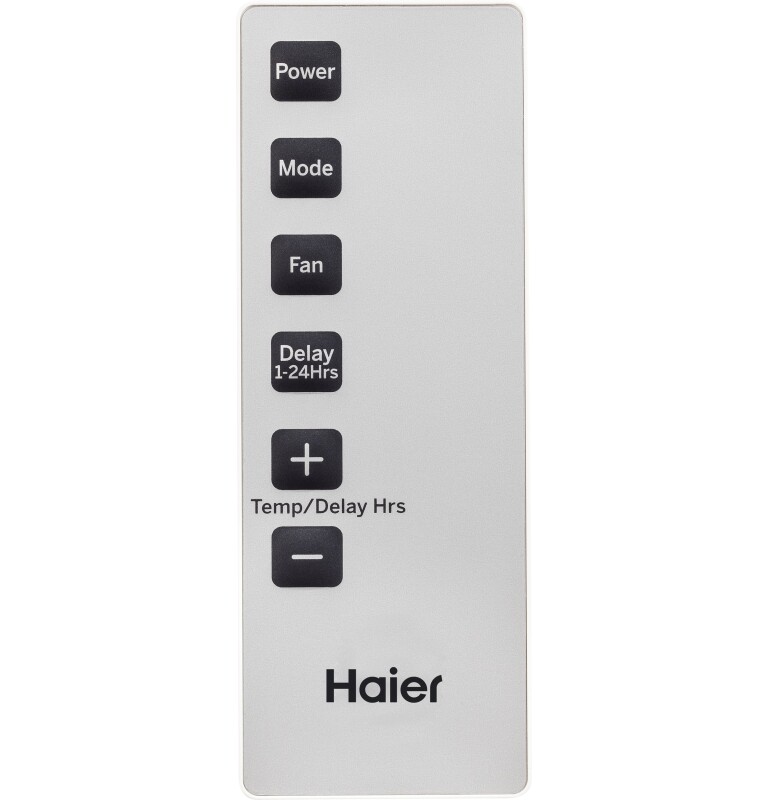

  • Electronic Digital Thermostat with Remote

  • 3 Cooling / Fan Speeds

  • EZ Mount installation kit included

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

Electronic Digital Thermostat with Remote

3 Cooling / Fan Speeds

Multiple speeds for personalized comfort

EZ Mount installation kit included

Easy installation without special tools

Certifications

AHAM certification

AHAM

CUL certification

CUL

California Prop 65 certification

California Prop 65

ENERGY STARĀ® Qualified certification

ENERGY STARĀ® Qualified

UL certification

UL

Specifications

WEIGHTS & DIMENSIONS

Overall Width18.5 in
Overall Height12.4375 in
Overall Depth15.34375 in
Approximate Shipping Weight49.1 lb
Min./Max. Window Opening Width (in.)24-1/2 /36
Depth to Louvers5 in
Grille Depth1.125 in
Net Weight46.6 lb
Minimum Window Opening Height (in.)13.375 in

CAPACITY

Cooling BTUH (MAX)5500 Btu
Dehumidification (pts./hr.)1.2

FEATURES

Louver Style4-Way Adjustable
Fan Speed Selections3 Fan Only
Product TypeWindow
Refrigerant TypeR-410A - Non-Ozone-Depleting Refrigerant
Filter TypeSlide-Out
Chassis TypeFixed
Vent/Air Exchange ExhaustTop Air Discharge
Plug TypeParallel/NEMA 5-15
Mounting TypeEZ Mount
Delay Timer24-Hour On/Off Timer
Unit FeaturesSleep Function
Remote ControlYes
Thermostat TypeElectronic
Rotary CompressorYes
Unit TypeCool Only
Airflow (cfm) Roomside175/155/140

WARRANTY

Warranty NotesSee written warranty for full details
Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance

POWER / RATINGS

Cooling - Rated Cooling Amps AHAM4.0
Cooling - Watts450
CEER12.1
Voltage (MAX)115 V

ECONOMICAL / QUIET

Energy SaverYes

APPEARANCE

InstallationEZ Mount
Color AppearanceWhite

Dimensions & Weight

Width18.5 in.
Height12.44 in.
Length15.34 in.
Weight46.6 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width23.5 in.
Shipping Height17.44 in.
Shipping Length20.34 in.
Shipping Weight86.6 lbs.
Total of Shipping Weight86.6 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement2.04 ftĀ³
Dimensional Weight25.4 lbs.
Total of Cubes2.04 ftĀ³
Total of Dimensional Weight25.4 lbs.
