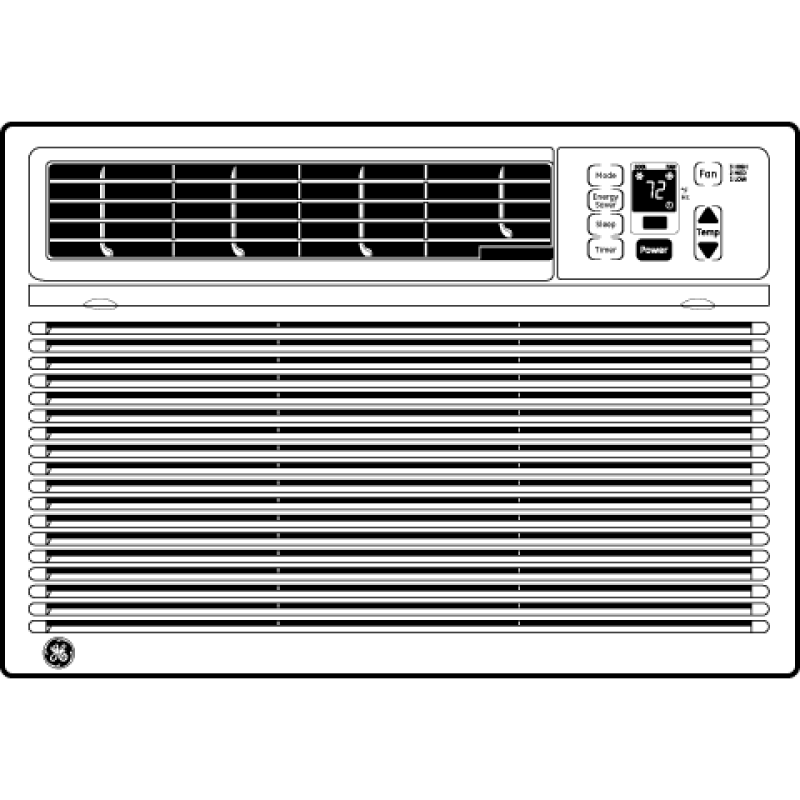

115 Volt Electronic Room Air Conditioner - ASQ12AL
115 Volt Electronic Room Air Conditioner
Model: ASQ12AL
115 Volt Electronic Room Air Conditioner
Model: ASQ12AL
Color : Gray
Key Features
3 cooling / 3 fan only speeds
12,000 BTU, 9.8 EER, 115 Volts
Electronic thermostat with remote
Energy Saver feature
Slide-out chassis
24 hour on/off timer
Power interruption restart
EZ Mount window installation
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
3 cooling / 3 fan only speeds
12,000 BTU, 9.8 EER, 115 Volts
Electronic thermostat with remote
Energy Saver feature
Slide-out chassis
24 hour on/off timer
Power interruption restart
EZ Mount window installation
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 22 in |
| Approximate Shipping Weight | 82 lb |
| Min./Max. Window Opening Width (in.) | 26/ 39 1/2 |
| Depth to Louvers | 7.21875 in |
| Net Weight | 71 lb |
| Minimum Window Opening Height (in.) | 15.375 in |
| Overall Depth | 21 1/2 in |
| Overall Height | 14 19/32 in |
Dimensions & Weight
| Width | 22 in. |
| Height | 14.59 in. |
| Length | 21.5 in. |
| Weight | 71 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 27 in. |
| Shipping Height | 19.59 in. |
| Shipping Length | 26.5 in. |
| Shipping Weight | 111 lbs. |
| Total of Shipping Weight | 111 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 3.99 ft³ |
| Dimensional Weight | 49.66 lbs. |
| Total of Cubes | 3.99 ft³ |
| Total of Dimensional Weight | 49.66 lbs. |
FEATURES
| Louver Style | 4-Way Air Direction |
| Fan Speed Selections | 3 Fan Only |
| Filter Type | Slide-Out |
| Chassis Type | Slide-Out |
| Vent/Air Exchange Exhaust | Top Discharge |
| Plug Type | Parallel/NEMA 5-15 |
| Mounting Type | EZ Mount |
| Delay Timer | 24-Hour On/Off |
| Remote Control | Yes |
| Thermostat Type | Electronic |
| Rotary Compressor | Yes |
| Outdoor Vent / Exhaust | Yes |
| Unit Type | Cool Only |
| Airflow (cfm) Roomside | 280 |
| Fan Speed Selections | 3 Cooling |
| Filter Type | Rigid Frame |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
POWER / RATINGS
| Cooling - Rated Cooling Amps AHAM | 11.4 |
| Cooling - Watts | 1230 |
| Voltage (MAX) | 115 V |
ECONOMICAL / QUIET
| Energy Saver | Yes |
APPEARANCE
| Installation | EZ Mount |
| Color Appearance | Light Cool Gray |
CAPACITY
| Cooling EER (BTUH / Watt) | 9.8 |
| Dehumidification (pts./hr.) | 3.4 |
| Cooling BTUH (MAX) | 12,000 Btu |
