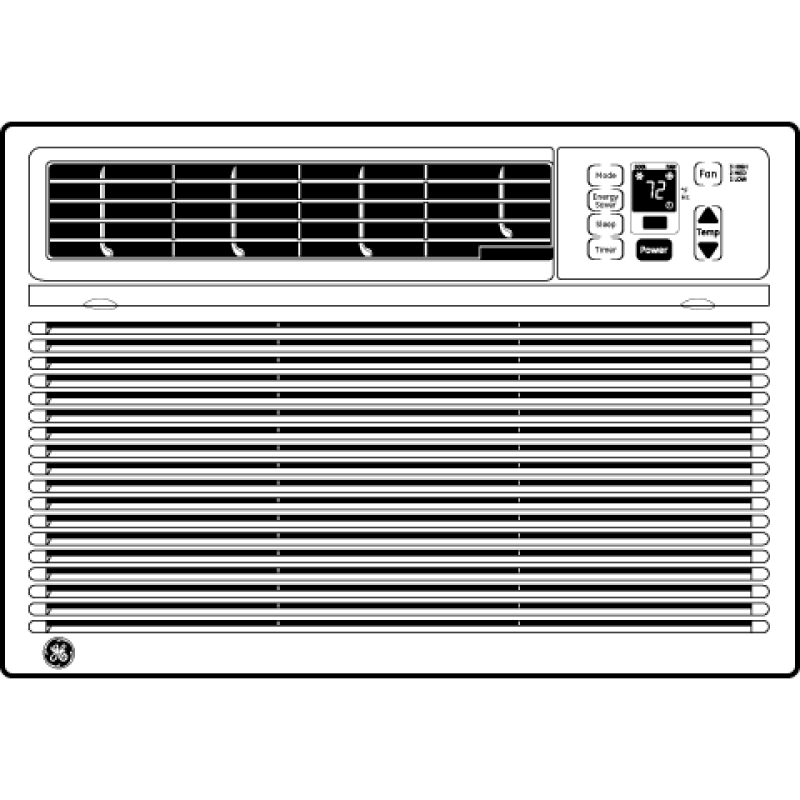

GE Deluxe 115 Volt Room Air Conditioner
Model: ASM05LL
Color : Gray
Key Features
ENERGY STAR® qualified
5,250 BTU, 10.7 EER, 115 Volts
3 cooling / 3 fan only speeds
Electronic thermostat with remote
Energy Saver feature
Fixed chassis
Power interruption restart
EZ Mount window installation
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
ENERGY STAR® qualified
5,250 BTU, 10.7 EER, 115 Volts
3 cooling / 3 fan only speeds
Electronic thermostat with remote
Energy Saver feature
Fixed chassis
Power interruption restart
EZ Mount window installation
24 hour on/off timer
Sleep function
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Depth | 18 in |
| Approximate Shipping Weight | 53 lb |
| Min./Max. Window Opening Width (in.) | 24-1/2 /36 |
| Depth to Louvers | 6.125 in |
| Net Weight | 47 lb |
| Minimum Window Opening Height (in.) | 13.5 in |
| Overall Height | 12 5/8 in |
| Overall Width | 19 5/16 in |
Dimensions & Weight
| Width | 19.31 in. |
| Height | 12.63 in. |
| Length | 18 in. |
| Weight | 47 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 24.31 in. |
| Shipping Height | 17.63 in. |
| Shipping Length | 23 in. |
| Shipping Weight | 87 lbs. |
| Total of Shipping Weight | 87 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 2.54 ft³ |
| Dimensional Weight | 31.57 lbs. |
| Total of Cubes | 2.54 ft³ |
| Total of Dimensional Weight | 31.57 lbs. |
FEATURES
| Louver Style | 4-Way Adjustable |
| Fan Speed Selections | 3 Fan Only |
| Filter Type | Slide-Out |
| Chassis Type | Fixed |
| Vent/Air Exchange Exhaust | Top Discharge |
| Mounting Type | EZ Mount |
| Delay Timer | 24-Hour On/Off |
| Remote Control | Yes |
| Thermostat Type | Electronic |
| Rotary Compressor | Yes |
| Outdoor Vent / Exhaust | Yes |
| Unit Type | Cool Only |
| Airflow (cfm) Roomside | 180 |
| Fan Speed Selections | 3 Cooling |
| Filter Type | Rigid Frame |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
POWER / RATINGS
| Cooling - Rated Cooling Amps AHAM | 4.6 |
| Cooling - Watts | 490 |
| Voltage (MAX) | 115 V |
ECONOMICAL / QUIET
| Energy Saver | Yes |
APPEARANCE
| Installation | EZ Mount |
| Color Appearance | Light Cool Gray |
CAPACITY
| Cooling EER (BTUH / Watt) | 10.7 |
| Dehumidification (pts./hr.) | 1.3 |
| Cooling BTUH (MAX) | 5,250 Btu |
