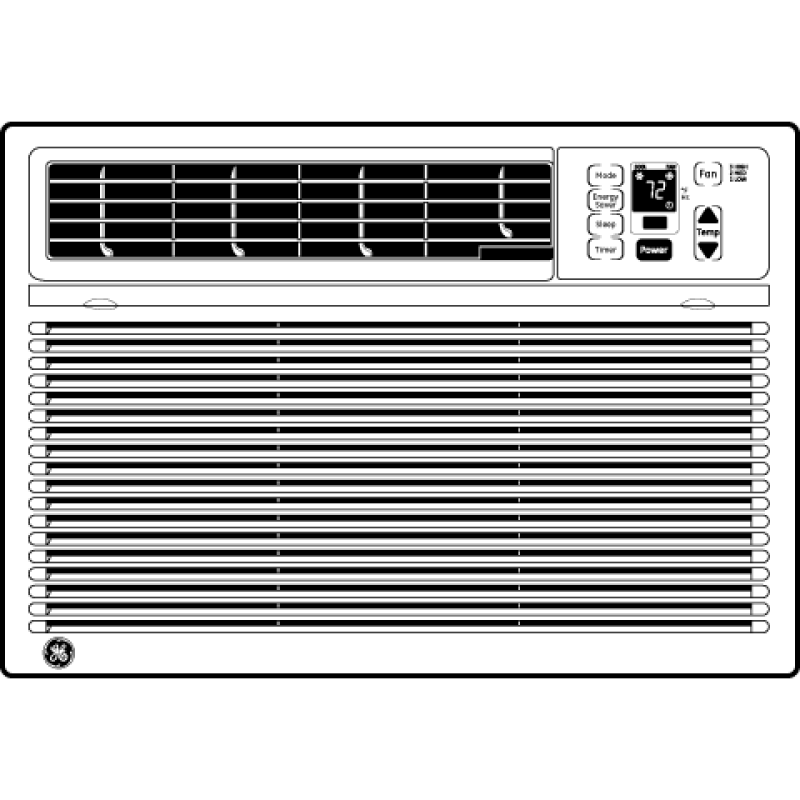

GE Deluxe 115 Volt Room Air Conditioner
Model: ASM05LK
Color : Gray
Key Features
5250 cooling BTU
10.7 E.E.R. (BTU/Watt)
1.3 dehumidification (pints/hr)
115 Volt outlet type
Delay timer (24-hour)
3 cooling / 3 fan only speeds
Electronic digital thermostat with remote
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
5250 cooling BTU
10.7 E.E.R. (BTU/Watt)
1.3 dehumidification (pints/hr)
115 Volt outlet type
Delay timer (24-hour)
3 cooling / 3 fan only speeds
Electronic digital thermostat with remote
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Depth | 18 in |
| Approximate Shipping Weight | 53 lb |
| Min./Max. Window Opening Width (in.) | 24-1/2 /36 |
| Depth to Louvers | 6.25 in |
| Net Weight | 47 lb |
| Minimum Window Opening Height (in.) | 13.5 in |
| Overall Height | 12.60 in |
| Overall Width | 19.30 in |
Dimensions & Weight
| Width | 19.3 in. |
| Height | 12.6 in. |
| Length | 18 in. |
| Weight | 47 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 24.3 in. |
| Shipping Height | 17.6 in. |
| Shipping Length | 23 in. |
| Shipping Weight | 87 lbs. |
| Total of Shipping Weight | 87 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 2.53 ft³ |
| Dimensional Weight | 31.49 lbs. |
| Total of Cubes | 2.53 ft³ |
| Total of Dimensional Weight | 31.49 lbs. |
FEATURES
| Louver Style | 4-Way Adjustable |
| Fan Speed Selections | 3 Fan Only |
| Chassis Type | Fixed |
| Plug Type | Parallel/Right Angle |
| Mounting Type | EZ Mount |
| Delay Timer | 24-Hour On/Off |
| Remote Control | Yes |
| Thermostat Type | Electronic |
| Rotary Compressor | Yes |
| Outdoor Vent / Exhaust | Yes |
| Unit Type | Cool Only |
| Filter Type | Rigid Frame |
| Airflow (cfm) Roomside | 180 |
| Filter Type | Slide-Out |
| Fan Speed Selections | 3 Cooling |
| Filter Type | Quick Clean |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | For models produced on or after January 1, 2006 |
POWER / RATINGS
| Cooling - Rated Cooling Amps AHAM | 4.6 |
| Cooling - Watts | 490 |
| Voltage (MAX) | 115 V |
ECONOMICAL / QUIET
| Energy Saver | Yes |
APPEARANCE
| Installation | EZ Mount |
| Color Appearance | Light Cool Gray |
CAPACITY
| Cooling EER (BTUH / Watt) | 10.7 |
| Dehumidification (pts./hr.) | 1.3 |
| Cooling BTUH (MAX) | 5,250 Btu |
