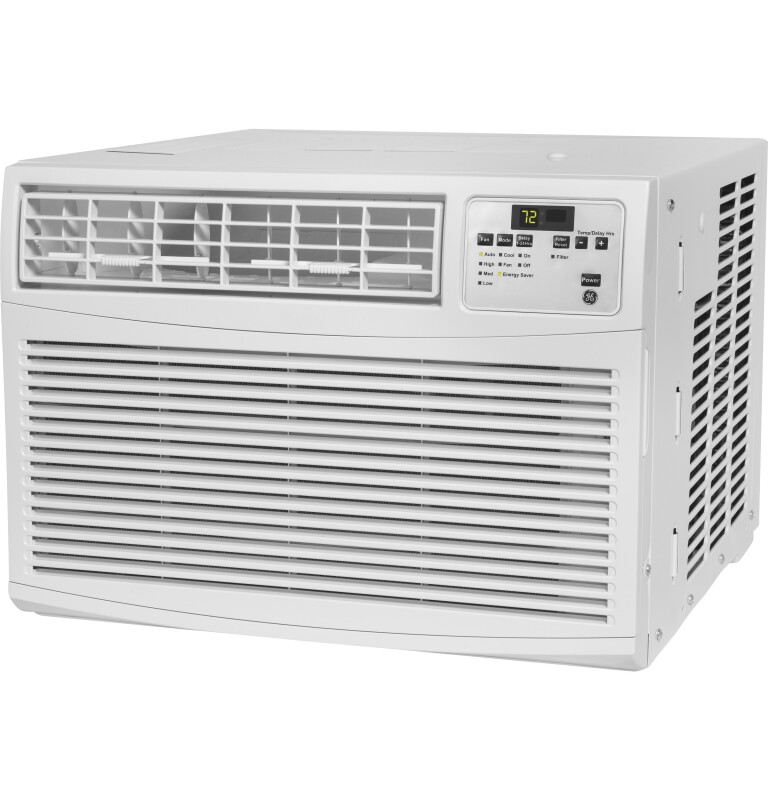

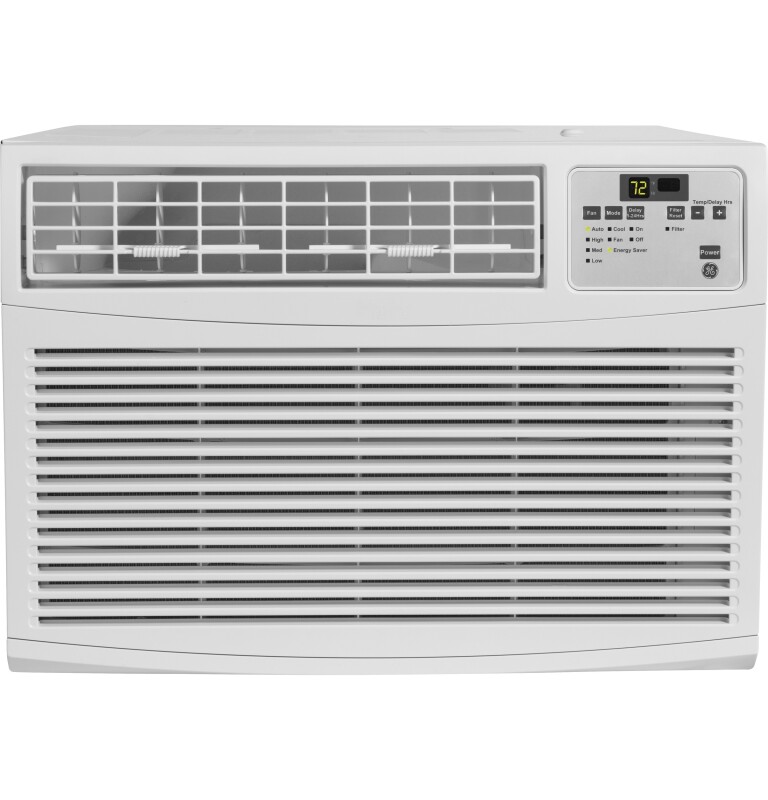

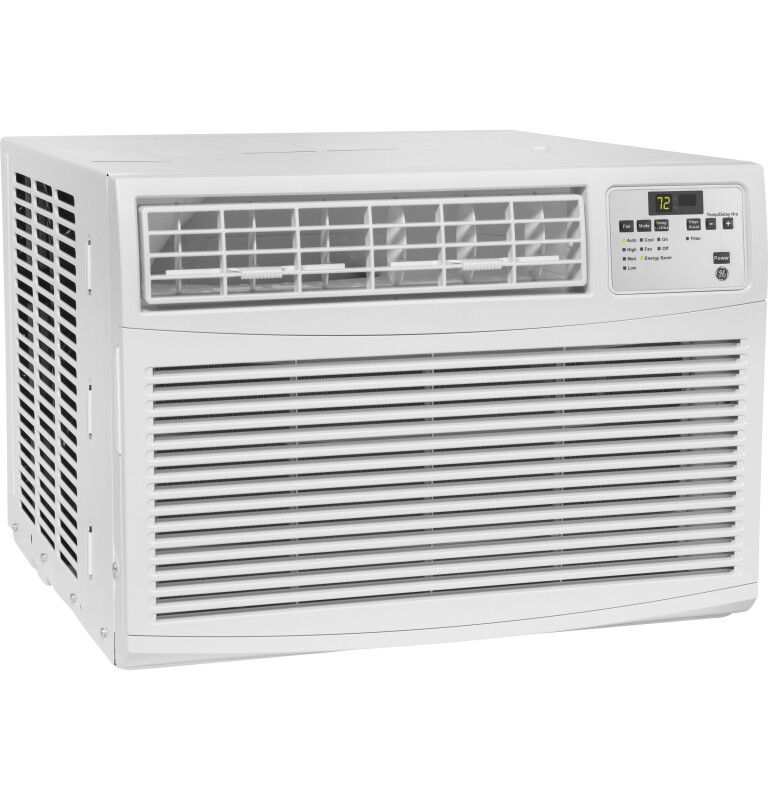

230 Volt Electronic Room Air Conditioner - AHH24DW
230 Volt Electronic Room Air Conditioner
Model: AHH24DW
230 Volt Electronic Room Air Conditioner
Model: AHH24DW
Color : White
Key Features
23,500 BTU, 10.3 CEER, 230 / 208 Volts
6,000 BTU, 12.1 CEER, 115 Volts
Electronic digital thermostat with remote
3 cooling / 3 fan speeds

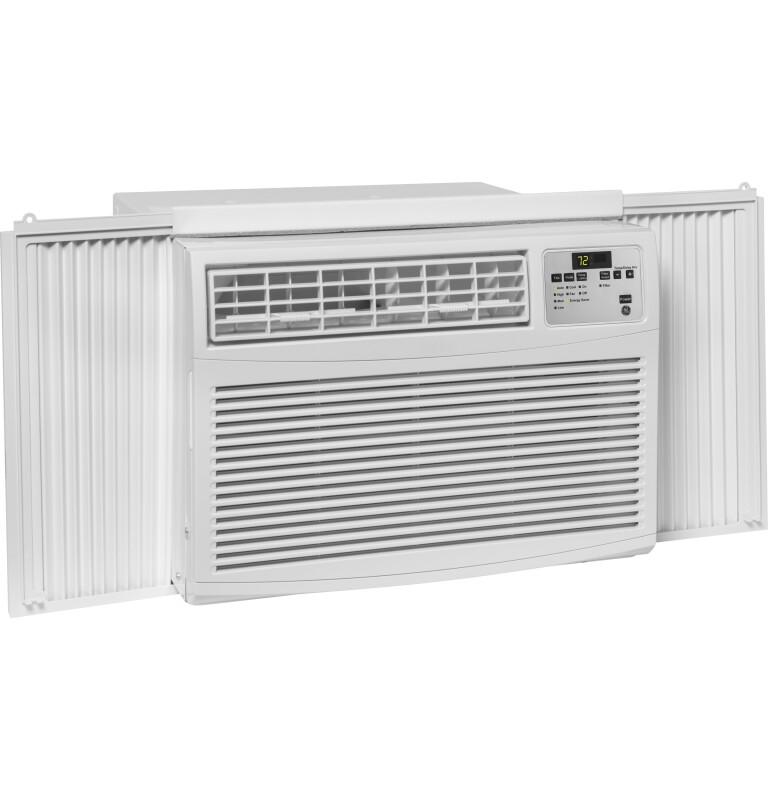

EZ Mount window installation kit included
Fixed chassis
Filter reminder light
Power interruption restart
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
23,500 BTU, 10.3 CEER, 230 / 208 Volts
6,000 BTU, 12.1 CEER, 115 Volts
Electronic digital thermostat with remote
3 cooling / 3 fan speeds
EZ Mount window installation kit included
Fixed chassis

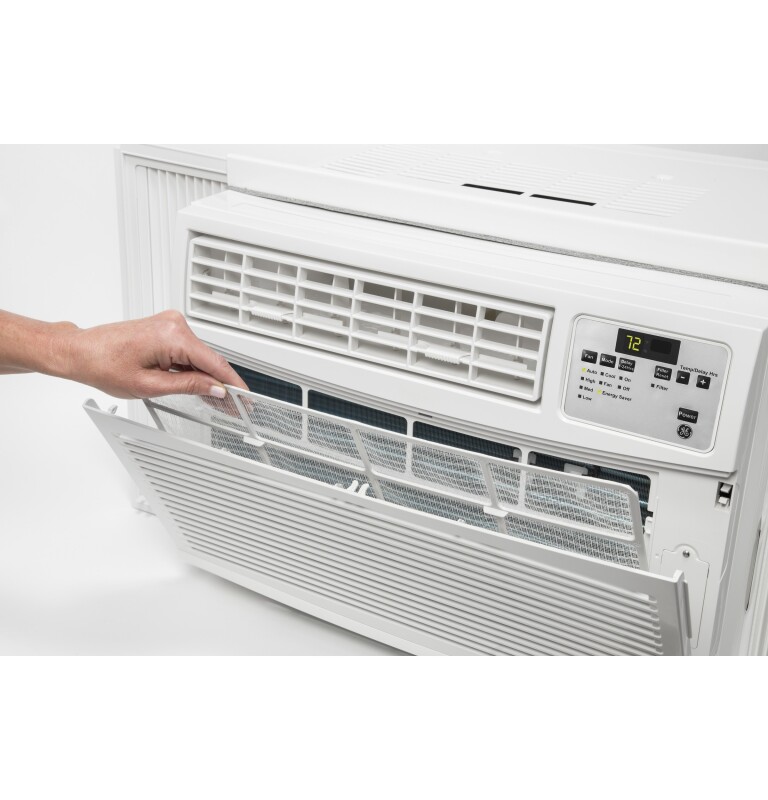

Filter reminder light
Prompts you when to clean the filter to ensure optimal performance
Power interruption restart
Energy Saver mode
Fan and compressor shut off temporarily when the room is cool enough, saving you time and money
ENERGY STARĀ® qualified
Certifications
AHAM
CUL
California Prop 65
ENERGY STARĀ® Qualified
UL
Specifications
FEATURES
| Remote Control | Yes |
| Thermostat Type | Electronic |
| Rotary Compressor | Yes |
| Louver Style | 4-Way Adjustable |
| Delay Timer | 24-Hour On/Off Timer |
| Filter Type | One Touch Lift-Out |
| Mounting Type | EZ Mount |
| Plug Type | Perpendicular/NEMA 6-20 |
| Unit Type | Cool Only |
| Refrigerant Type | R-410A - Non-Ozone-Depleting Refrigerant |
| Chassis Type | Slide-Out |
| Vent/Air Exchange Exhaust | Top Air Discharge |
| Fan Speed Selections | 3 Cooling |
| Fan Speed Selections | 3 Fan Only |
| Airflow (cfm) Roomside | 510/480/450 |
CAPACITY
| Cooling EER (BTUH / Watt) | 10.3 |
| Dehumidification (pts./hr.) | 7.2 |
| Cooling BTUH (MAX) | 23,500 Btu |
| Cooling BTUH (MIN) | 22,900 Btu |
WEIGHTS & DIMENSIONS
| Min./Max. Window Opening Width (in.) | 30/39 |
| Approximate Shipping Weight | 141.8 lb |
| Depth to Louvers | 9 in |
| Minimum Window Opening Height (in.) | 19.125 in |
| Net Weight | 122 lb |
| Overall Depth | 25 3/4 in |
| Overall Height | 18 in |
| Overall Width | 26 1/4 in |
| Grille Depth | 2 in |
POWER / RATINGS
| CEER | 10.3 |
| Cooling - Rated Cooling Amps AHAM | 10.0/10.7 |
| Cooling - Watts | 2250/2200 |
| Voltage (MAX) | 230 V |
| Voltage (MIN) | 208 V |
APPEARANCE
| Color Appearance | White |
| Installation | EZ Mount |
ECONOMICAL / QUIET
| Energy Saver | Yes |
Dimensions & Weight
| Width | 26.25 in. |
| Height | 18 in. |
| Length | 25.75 in. |
| Weight | 122 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 31.25 in. |
| Shipping Height | 23 in. |
| Shipping Length | 30.75 in. |
| Shipping Weight | 162 lbs. |
| Total of Shipping Weight | 162 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 7.04 ftĀ³ |
| Dimensional Weight | 87.53 lbs. |
| Total of Cubes | 7.04 ftĀ³ |
| Total of Dimensional Weight | 87.53 lbs. |
Warranty
| Parts (Replacement) | 1 Year |
