230/208 Volt Electronic Room Air Conditioner - AHH18DQ

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

230/208 Volt Electronic Room Air Conditioner

Model: AHH18DQ

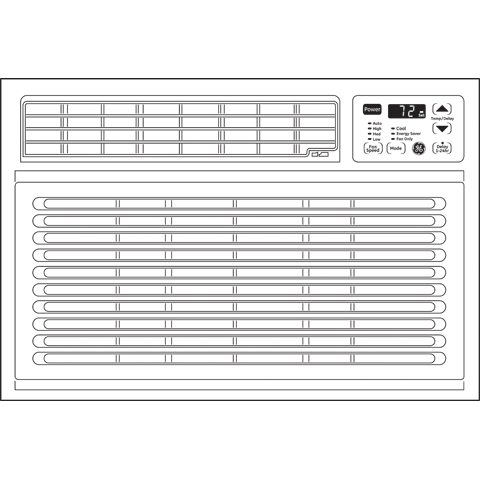

230/208 Volt Electronic Room Air Conditioner AHH18DQ, product image 1 of 2230/208 Volt Electronic Room Air Conditioner AHH18DQ, product image 2 of 2
230/208 Volt Electronic Room Air Conditioner AHH18DQ, thumbnail image 1 of 2
230/208 Volt Electronic Room Air Conditioner AHH18DQ, thumbnail image 2 of 2

Color : Other

230/208 Volt Electronic Room Air Conditioner AHH18DQ
Other

Key Features

  • 18,300 / 17,900 BTU, 10.7 EER, 230 / 208 Volts

  • Fits windows 28-3/8" - 38" wide, minimum height 17-3/8"

  • R-410A refrigerant

  • Electronic digital thermostat control

  • Remote control

  • Energy Saver feature

  • 24-hour timer

  • 3 cooling / 3 fan speeds

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

18,300 / 17,900 BTU, 10.7 EER, 230 / 208 Volts

Fits windows 28-3/8" - 38" wide, minimum height 17-3/8"

R-410A refrigerant

Electronic digital thermostat control

Remote control

Energy Saver feature

24-hour timer

3 cooling / 3 fan speeds

Slide-out chassis

EZ Mount window installation kit included

Certifications

CUL certification

CUL

California Prop 65 certification

California Prop 65

EEV certification

EEV

ENERGY STARĀ® Qualified certification

ENERGY STARĀ® Qualified

UL certification

UL

Specifications

FEATURES

Remote ControlYes
Thermostat TypeElectronic
Louver Style4-Way
Delay Timer24-Hour On/Off
Filter TypeOne Touch Lift-Out
Plug TypeTandem/NEMA 6-15
Refrigerant TypeR410A
Chassis TypeSlide-Out
Vent/Air Exchange ExhaustTop Discharge
Outdoor Vent / ExhaustYes
Fan Speed Selections3 Cooling
Fan Speed Selections3 Fan Only
Airflow (cfm) Roomside400/370/350

CAPACITY

Cooling EER (BTUH / Watt)10.7
Dehumidification (pts./hr.)4.2
Cooling BTUH (MAX)18,000 Btu

WEIGHTS & DIMENSIONS

Min./Max. Window Opening Width (in.)28-3/8 / 38
Approximate Shipping Weight120 lb
Depth to Louvers11.34375 in
Grille Depth2.125 in
Minimum Window Opening Height (in.)17.375 in
Net Weight109 lb
Overall Depth23 7/16 in
Overall Height16 3/4 in
Overall Width24 3/8 in

POWER / RATINGS

Cooling - Rated Cooling Amps AHAM8.1/8.8
Cooling - Watts1720/1680
Voltage (MAX)230 V
Voltage (MIN)208 V

APPEARANCE

Color AppearanceLight Cool Gray
InstallationEZ Mount

ECONOMICAL / QUIET

Energy SaverYes

Dimensions & Weight

Width24.38 in.
Height16.75 in.
Length23.44 in.
Weight109 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width29.38 in.
Shipping Height21.75 in.
Shipping Length28.44 in.
Shipping Weight149 lbs.
Total of Shipping Weight149 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement5.54 ftĀ³
Dimensional Weight68.84 lbs.
Total of Cubes5.54 ftĀ³
Total of Dimensional Weight68.84 lbs.
