This product has been discontinued by the manufacture and is no longer available.

GE 230/208 Volt Electronic Room Air Conditioner

Model: AHH18DP

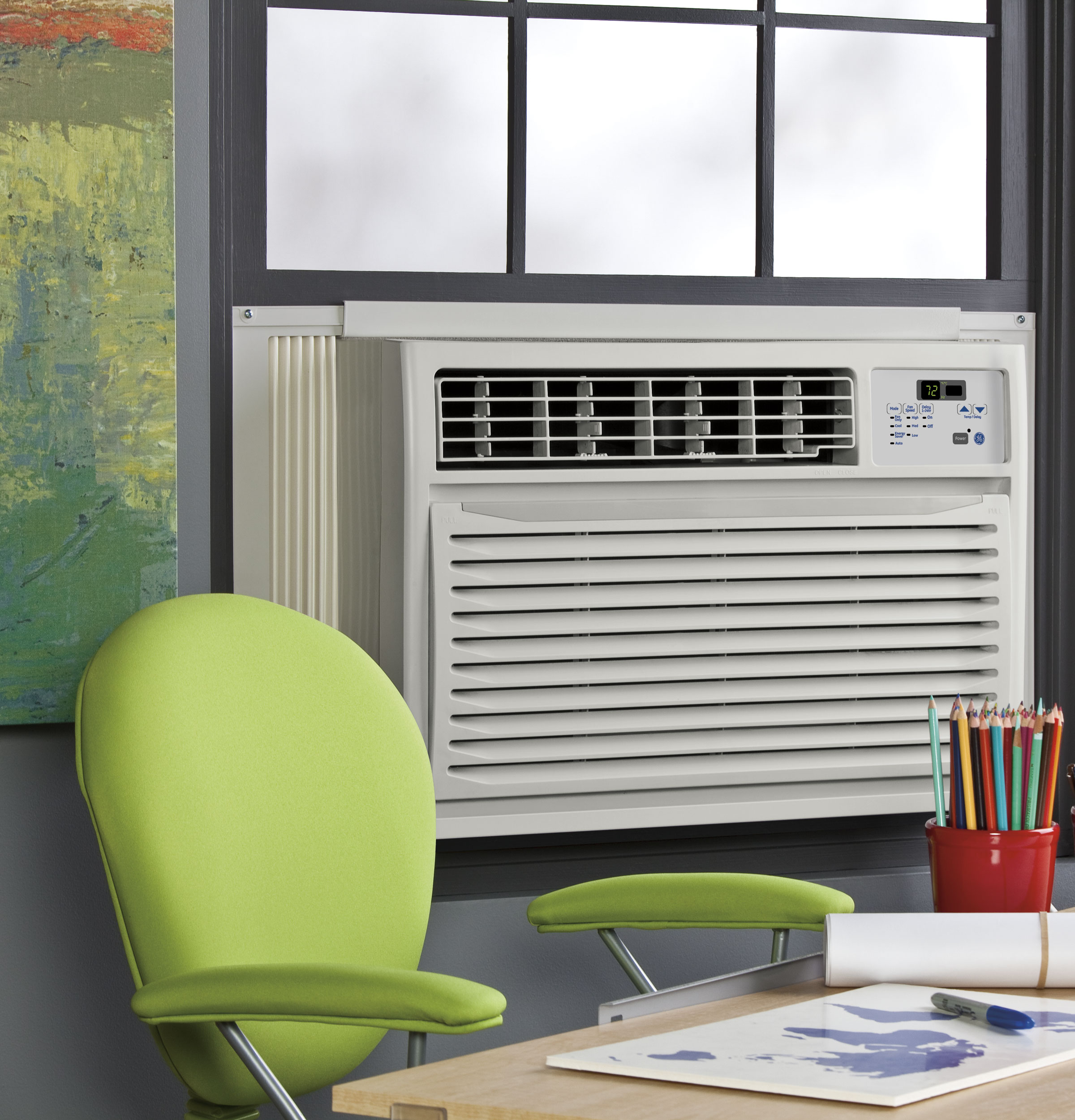

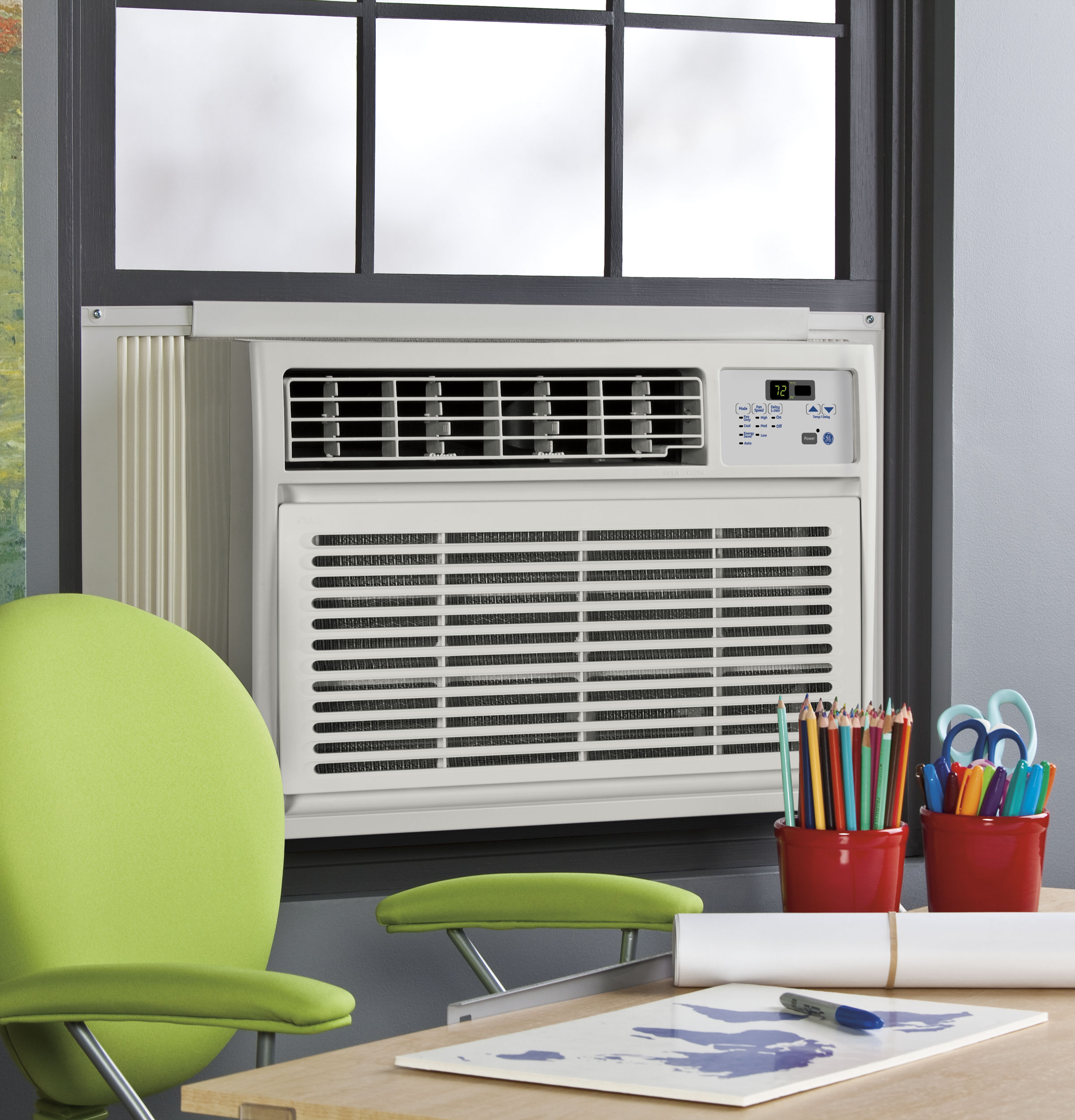

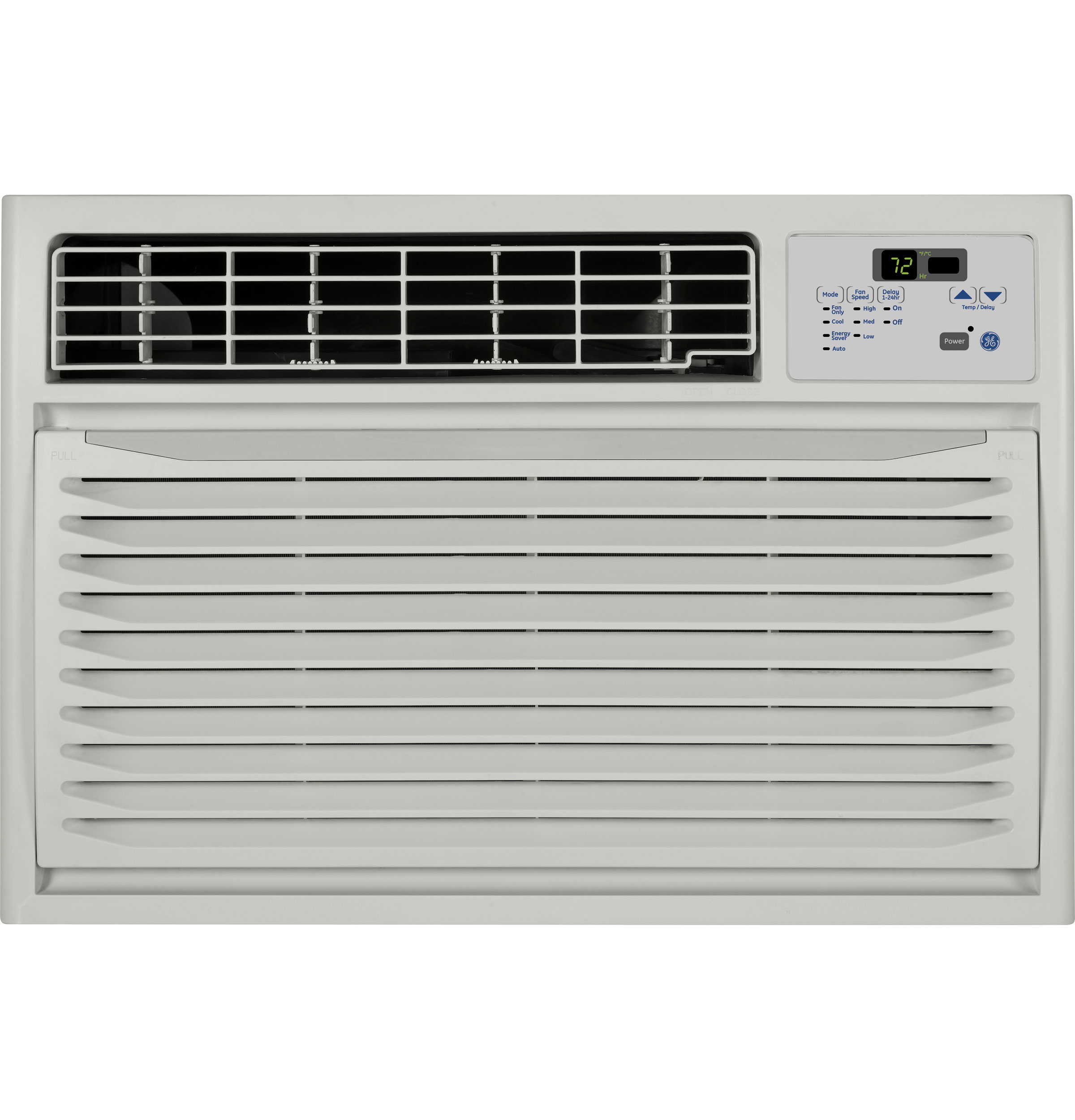

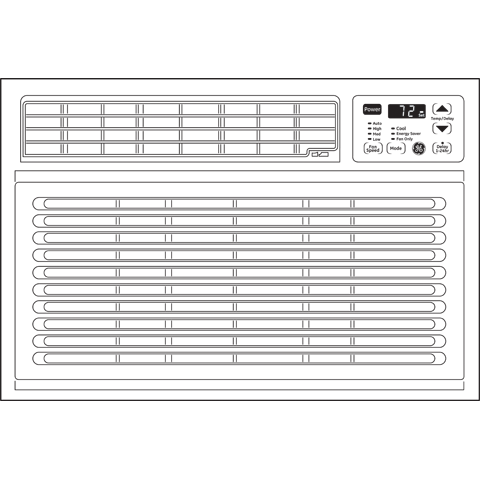

230/208 Volt Electronic Room Air Conditioner AHH18DP, product image 1 of 5230/208 Volt Electronic Room Air Conditioner AHH18DP, product image 2 of 5230/208 Volt Electronic Room Air Conditioner AHH18DP, product image 3 of 5230/208 Volt Electronic Room Air Conditioner AHH18DP, product image 4 of 5230/208 Volt Electronic Room Air Conditioner AHH18DP, product image 5 of 5
230/208 Volt Electronic Room Air Conditioner AHH18DP, thumbnail image 1 of 5
230/208 Volt Electronic Room Air Conditioner AHH18DP, thumbnail image 2 of 5
230/208 Volt Electronic Room Air Conditioner AHH18DP, thumbnail image 3 of 5
230/208 Volt Electronic Room Air Conditioner AHH18DP, thumbnail image 4 of 5
230/208 Volt Electronic Room Air Conditioner AHH18DP, thumbnail image 5 of 5

Color : Other

230/208 Volt Electronic Room Air Conditioner AHH18DP
Other

Key Features

  • 18,000 / 17,600 BTU, 10.7 E.E.R., 230 / 208 Volts

  • Fits windows 28-3/8" - 38" wide, minimum height 17-3/8"

  • R-410A refrigerant

  • Electronic digital thermostat control

  • Remote control

  • Energy Saver feature

  • 24-hour timer

  • 3 cooling / 3 fan speeds

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

18,000 / 17,600 BTU, 10.7 E.E.R., 230 / 208 Volts

Fits windows 28-3/8" - 38" wide, minimum height 17-3/8"

R-410A refrigerant

Electronic digital thermostat control

Remote control

Energy Saver feature

24-hour timer

3 cooling / 3 fan speeds

Slide-out chassis

EZ Mount window installation kit included

Certifications

CUL certification

CUL

California Prop 65 certification

California Prop 65

EEV certification

EEV

UL certification

UL

Specifications

FEATURES

Remote ControlYes
Thermostat TypeElectronic
Louver Style4-Way
Delay Timer24-Hour On/Off
Filter TypeSlide-Out
Refrigerant TypeR410A
Chassis TypeSlide-Out
Vent/Air Exchange ExhaustTop Discharge
Fan Speed Selections3 Cooling
Fan Speed Selections3 Fan Only
Airflow (cfm) Roomside470/390

CAPACITY

Cooling EER (BTUH / Watt)10.7
Dehumidification (pts./hr.)5.5
Cooling BTUH (MAX)18,000 Btu

WEIGHTS & DIMENSIONS

Min./Max. Window Opening Width (in.)28-3/8 / 38
Approximate Shipping Weight120 lb
Depth to Louvers10 in
Grille Depth1.0625 in
Minimum Window Opening Height (in.)17.375 in
Net Weight109 lb
Overall Depth23 7/16 in
Overall Height16 3/4 in
Overall Width24 3/8 in

POWER / RATINGS

Cooling - Rated Cooling Amps AHAM8.1/8.8
Cooling - Watts1690/1650
Voltage (MAX)230 V
Voltage (MIN)208 V

APPEARANCE

Color AppearanceLight Cool Gray
InstallationEZ Mount

ECONOMICAL / QUIET

Energy SaverYes

Dimensions & Weight

Width24.38 in.
Height16.75 in.
Length23.44 in.
Weight109 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width29.38 in.
Shipping Height21.75 in.
Shipping Length28.44 in.
Shipping Weight149 lbs.
Total of Shipping Weight149 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement5.54 ft³
Dimensional Weight68.84 lbs.
Total of Cubes5.54 ft³
Total of Dimensional Weight68.84 lbs.
