Home/Other/Air Conditioners/Window Mount Air Conditioners/AHB05LZ

5,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft., Black - AHB05LZ

GEGE brand logo
This product is discontinued and has been replaced by the model below.

5,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft., Black

Model: AHB05LZ

5,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft., Black AHB05LZ, product image 1 of 85,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft., Black AHB05LZ, product image 2 of 85,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft., Black AHB05LZ, product image 3 of 85,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft., Black AHB05LZ, product image 4 of 85,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft., Black AHB05LZ, product image 5 of 85,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft., Black AHB05LZ, product image 6 of 85,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft., Black AHB05LZ, product image 7 of 85,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft., Black AHB05LZ, product image 8 of 8
5,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft., Black AHB05LZ, thumbnail image 1 of 8
5,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft., Black AHB05LZ, thumbnail image 2 of 8
5,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft., Black AHB05LZ, thumbnail image 3 of 8
5,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft., Black AHB05LZ, thumbnail image 4 of 8
5,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft., Black AHB05LZ, thumbnail image 5 of 8
+3more

Color : Black

5,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft., Black AHB05LZ
Black
Replaced By

6,000 BTU Electronic Window Air Conditioner for Small Rooms up to 250 sq ft., Black

Model: AHEF06BC

Product - AHEF06BC

$249.00

View Product

Key Features

  • Cools Small Rooms

  • Maximum Comfort Cool

  • Eco Mode

  • Filter Reminder

  • Electronic Controls

  • Remote Control

  • EZ Mount Kit

  • Modern Appearance

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

Cools Small Rooms

5,000 BTU cooling capacity offers maximum comfort in rooms up to 150 square feet

Maximum Comfort Cool

Keep home comfortable and maximize AC efficiency with three cooling settings and fan speeds to choose from

Eco Mode

The air conditioner Eco Mode automatically turns off the fan and compressor when the room is cool enough, reducing your utility costs

Filter Reminder

Get a filter change reminder when the filter needs cleaning, so you can keep the unit performing at its best

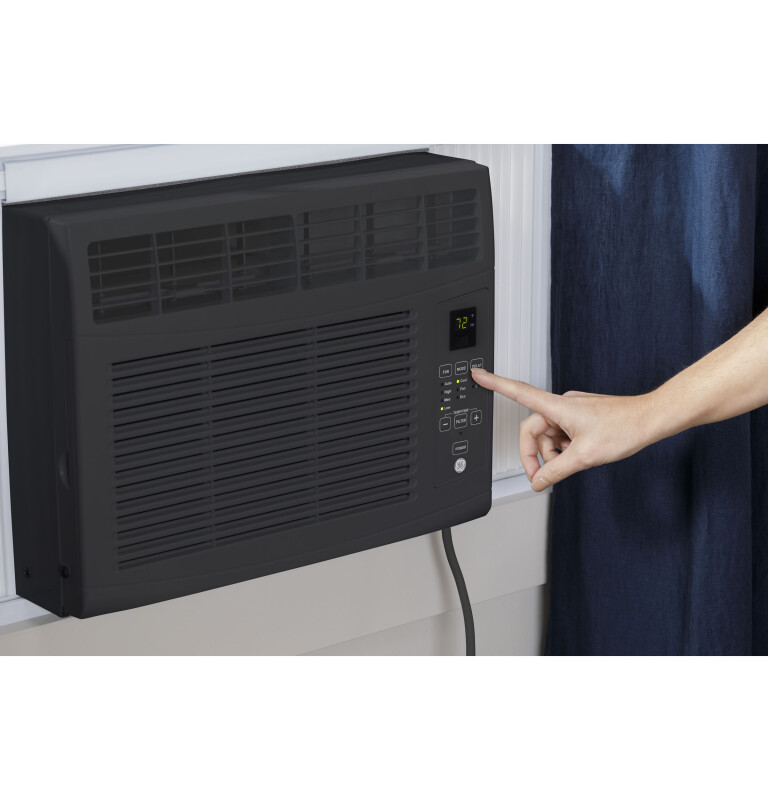

Electronic Controls

Program and adjust air conditioner settings with ease using simple digital controls

Remote Control

The unit comes with an included air conditioner remote, so you can adjust the unit from anywhere in the room

EZ Mount Kit

Make installation in a double hung window quick and easy with an included EZ Mount air conditioner installation kit

Modern Appearance

This modern air conditioner has a sleek and stylish black finish, giving you an alternative to standard white units

Adjustable Louvers

Two-way adjustable louvers make it easy to control where the air flows

Auto Restart

In the event of a power outage, the air conditioner restarts automatically with the last temperature settings

Voltage Type

This unit requires a 115 Volt outlet type

Certifications

AHAM certification

AHAM

CUL certification

CUL

California Prop 65 certification

California Prop 65

UL certification

UL

Specifications

FEATURES

Remote ControlYes
Thermostat TypeElectronic
Digital Time Temp DisplayYes
Rotary CompressorYes
Louver Style2-Way
Delay Timer24-Hour On/Off Timer
Filter TypeSlide-Out
Mounting TypeEZ Mount
Plug TypeParallel/NEMA 5-15
Power Cord Length72" Minimum
Product TypeWindow
Unit TypeCool Only
Room Air Conditioner FeaturesElectronic Control
Room Air Conditioner FeaturesEnergy Saver
Room Air Conditioner FeaturesOn/Off Timer
Room Air Conditioner FeaturesRemote Control
Refrigerant TypeR32
Area to Cool100-150
Chassis TypeFixed
Vent/Air Exchange ExhaustTop Air Discharge
Airflow Direction2-Way
Airflow DirectionTop
LCDI / AFCI power cordYes
Fan Speed Selections3 Cooling
Fan Speed Selections3 Fan Only
Airflow (cfm) Roomside135/115

POWER / RATINGS

Sound Level (Low/High)56/59 dbA
CEER11.0
Cooling - Rated Cooling Amps AHAM4.1
Cooling - Watts455
Voltage (MAX)115 V

WEIGHTS & DIMENSIONS

Min./Max. Window Opening Width (in.)21-7/8/36
Approximate Shipping Weight41.4 lb
Depth to Louvers6.25 in
Minimum Window Opening Height (in.)13.375 in
Net Weight36.6 lb
Overall Depth15 in
Overall Height12.5625 in
Overall Width16.4375 in
Grille Depth1.1875 in

CAPACITY

Dehumidification (pts./hr.)1.0
Cooling BTUH (MAX)5,050 Btu

APPEARANCE

Color AppearanceBlack
InstallationEZ Mount

Dimensions & Weight

Width16.44 in.
Height12.56 in.
Length15 in.
Weight36.6 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width21.44 in.
Shipping Height17.56 in.
Shipping Length20 in.
Shipping Weight76.6 lbs.
Total of Shipping Weight76.6 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.79 ft³
Dimensional Weight22.28 lbs.
Total of Cubes1.79 ft³
Total of Dimensional Weight22.28 lbs.

ECONOMICAL / QUIET

Sound Level (dBA)59 dBA (High)
Sound Level (dBA)56 dBA (Low)

Warranty

Parts (Replacement)1 Year
