230 Volt Electronic Room Air Conditioner - AEW24DX
This product has been discontinued by the manufacture and is no longer available.

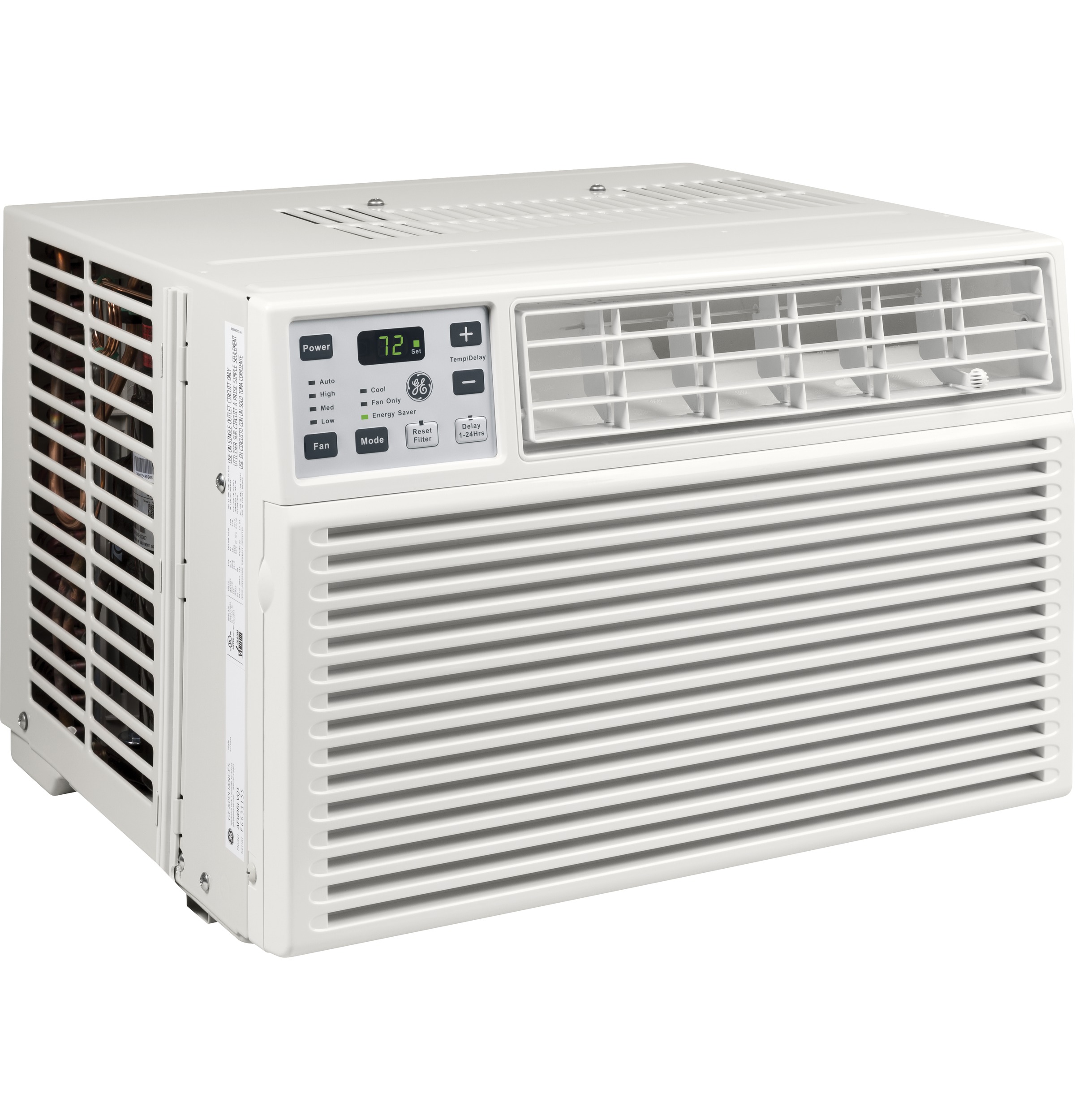

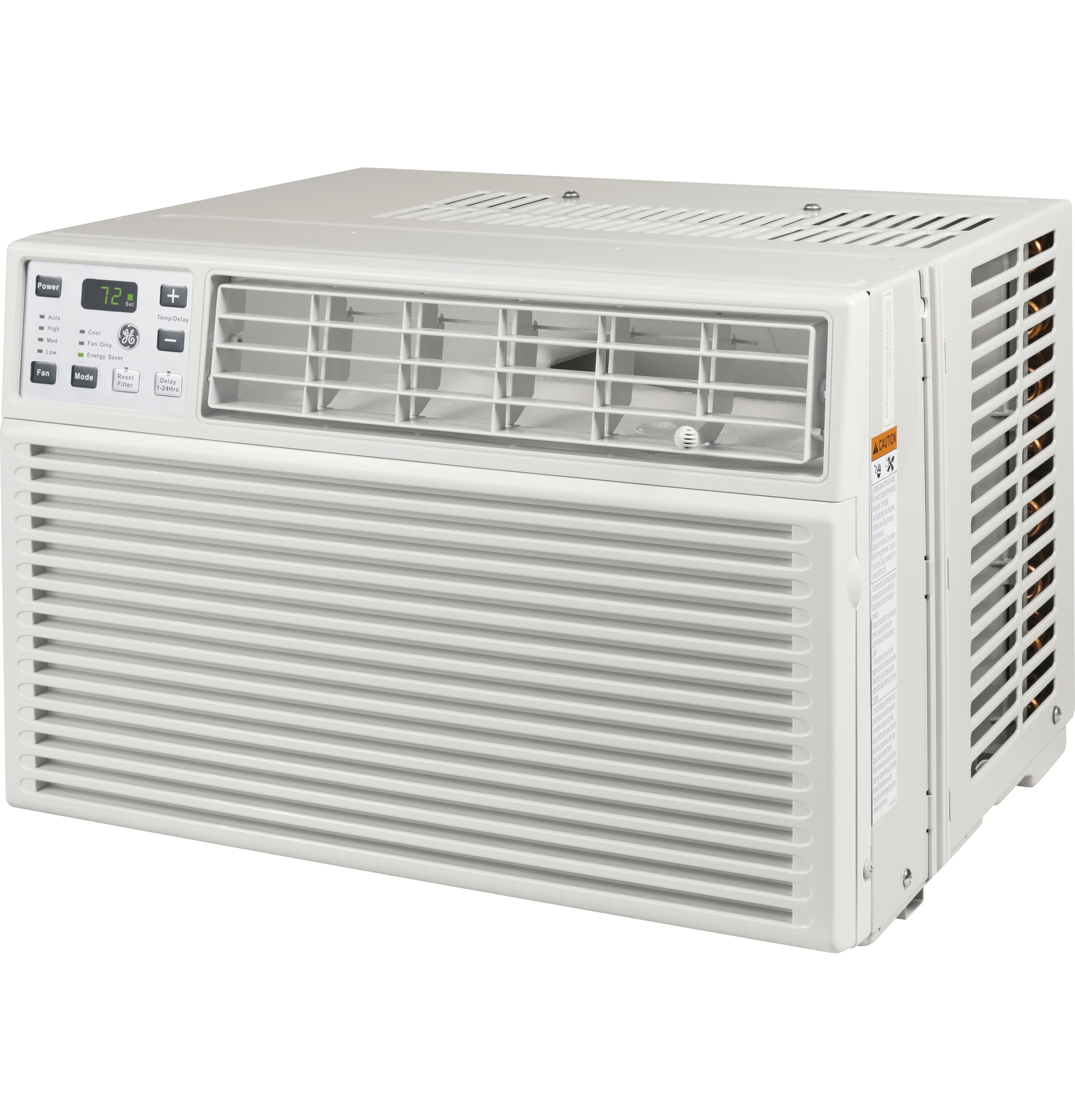

230 Volt Electronic Room Air Conditioner
Model: AEW24DX
This product has been discontinued by the manufacture and is no longer available.
230 Volt Electronic Room Air Conditioner
Model: AEW24DX
Color : Light Cool Gray
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Specifications
Specifications
FEATURES
| Remote Control | Yes |
| Thermostat Type | Electronic |
| Rotary Compressor | Yes |
| Louver Style | 4-Way Adjustable |
| Delay Timer | 24-Hour On/Off Timer |

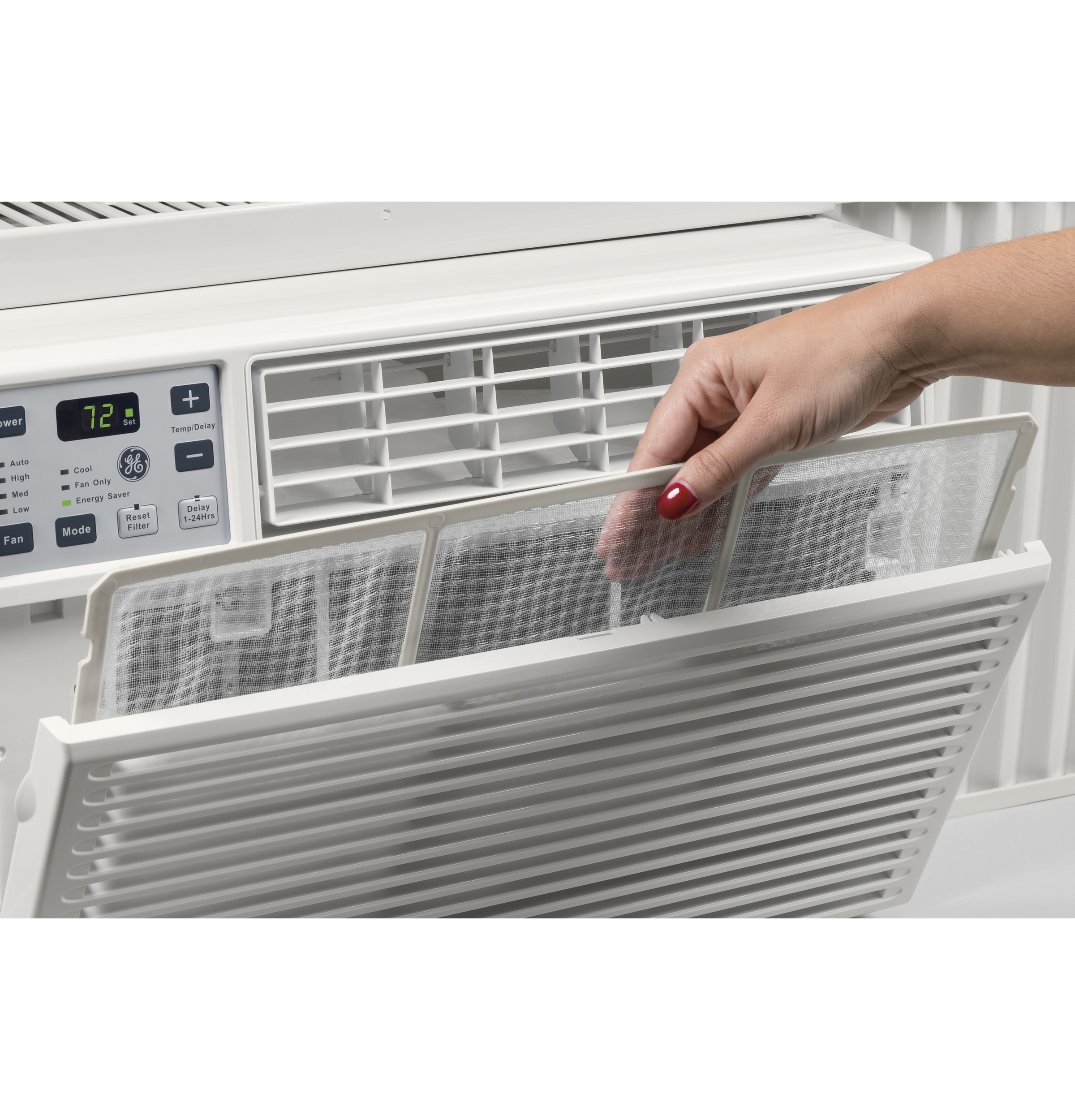

| Filter Type | One Touch Lift-Out |

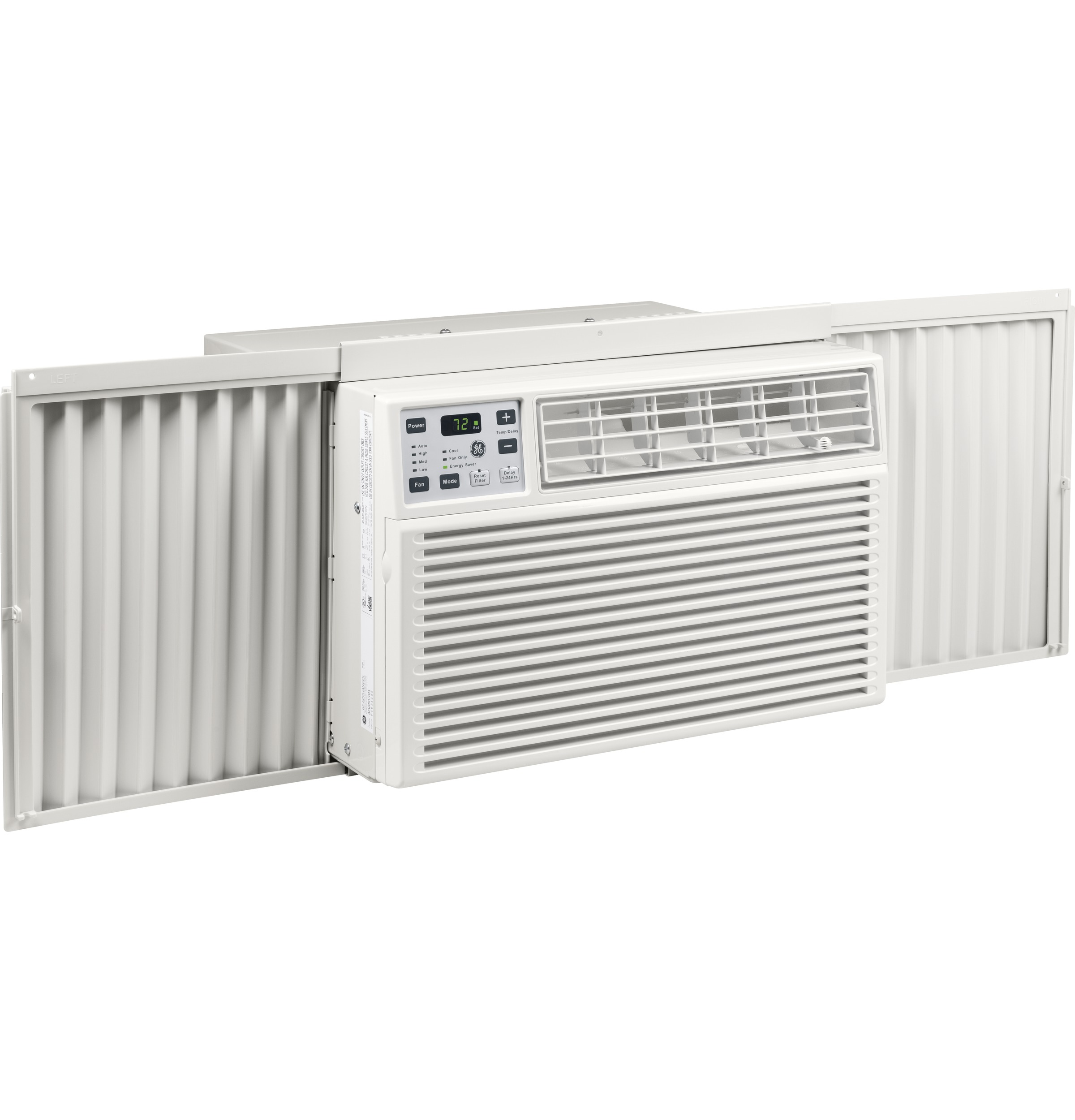

| Mounting Type | EZ Mount |
| Plug Type | Perpendicular/NEMA 6-20 |
| Product Type | Window |
| Unit Type | Cool Only |
| Refrigerant Type | R-410A - Non-Ozone-Depleting Refrigerant |
| Area to Cool | 1001-1500 |
| Chassis Type | Slide-Out |
| Vent/Air Exchange Exhaust | Top Air Discharge |
| Fan Speed Selections | 3 Cooling |
| Fan Speed Selections | 3 Fan Only |
| Airflow (cfm) Roomside | 510/420 |
WEIGHTS & DIMENSIONS
| Min./Max. Window Opening Width (in.) | 30/41 |
| Approximate Shipping Weight | 147 lb |
| Depth to Louvers | 7.125 in |
| Minimum Window Opening Height (in.) | 19.25 in |
| Net Weight | 130 lb |
| Overall Depth | 26 5/16 in |
| Overall Height | 18 5/8 in |
| Overall Width | 26 17/32 in |
| Grille Depth | 1.96875 in |
CAPACITY
| Dehumidification (pts./hr.) | 7.8 |
| Cooling BTUH (MAX) | 24,000 Btu |
| Cooling BTUH (MIN) | 23,900 Btu |
POWER / RATINGS
| CEER | 9.8 |
| Cooling - Rated Cooling Amps AHAM | 11.0/12.0 |
| Cooling - Watts | 2460/2430 |
| Voltage (MAX) | 230 V |
| Voltage (MIN) | 208 V |
APPEARANCE
| Color Appearance | Light Cool Gray |
| Installation | EZ Mount |
ECONOMICAL / QUIET
| Energy Saver | Yes |
Dimensions & Weight
| Width | 26.53 in. |
| Height | 18.63 in. |
| Length | 26.31 in. |
| Weight | 130 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 31.53 in. |
| Shipping Height | 23.63 in. |
| Shipping Length | 31.31 in. |
| Shipping Weight | 170 lbs. |
| Total of Shipping Weight | 170 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 7.52 ft³ |
| Dimensional Weight | 93.54 lbs. |
| Total of Cubes | 7.52 ft³ |
| Total of Dimensional Weight | 93.54 lbs. |
Warranty
| Parts (Entire Appliance) | 1 Year |
| Labor (Entire Appliance) | 1 Year |
