230 Volt Electronic Room Air Conditioner - AEL24DS

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

230 Volt Electronic Room Air Conditioner

Model: AEL24DS

230 Volt Electronic Room Air Conditioner AEL24DS, product image 1 of 2230 Volt Electronic Room Air Conditioner AEL24DS, product image 2 of 2
230 Volt Electronic Room Air Conditioner AEL24DS, thumbnail image 1 of 2
230 Volt Electronic Room Air Conditioner AEL24DS, thumbnail image 2 of 2

Color : Light Cool Gray

230 Volt Electronic Room Air Conditioner AEL24DS
Light Cool Gray

Key Features

  • 24,200 / 23,900 BTU, 9.8 EER, 9.4 CEER, 230 / 208 Volts

  • Fits windows 30" - 41" wide, minimum height 19-1/4"

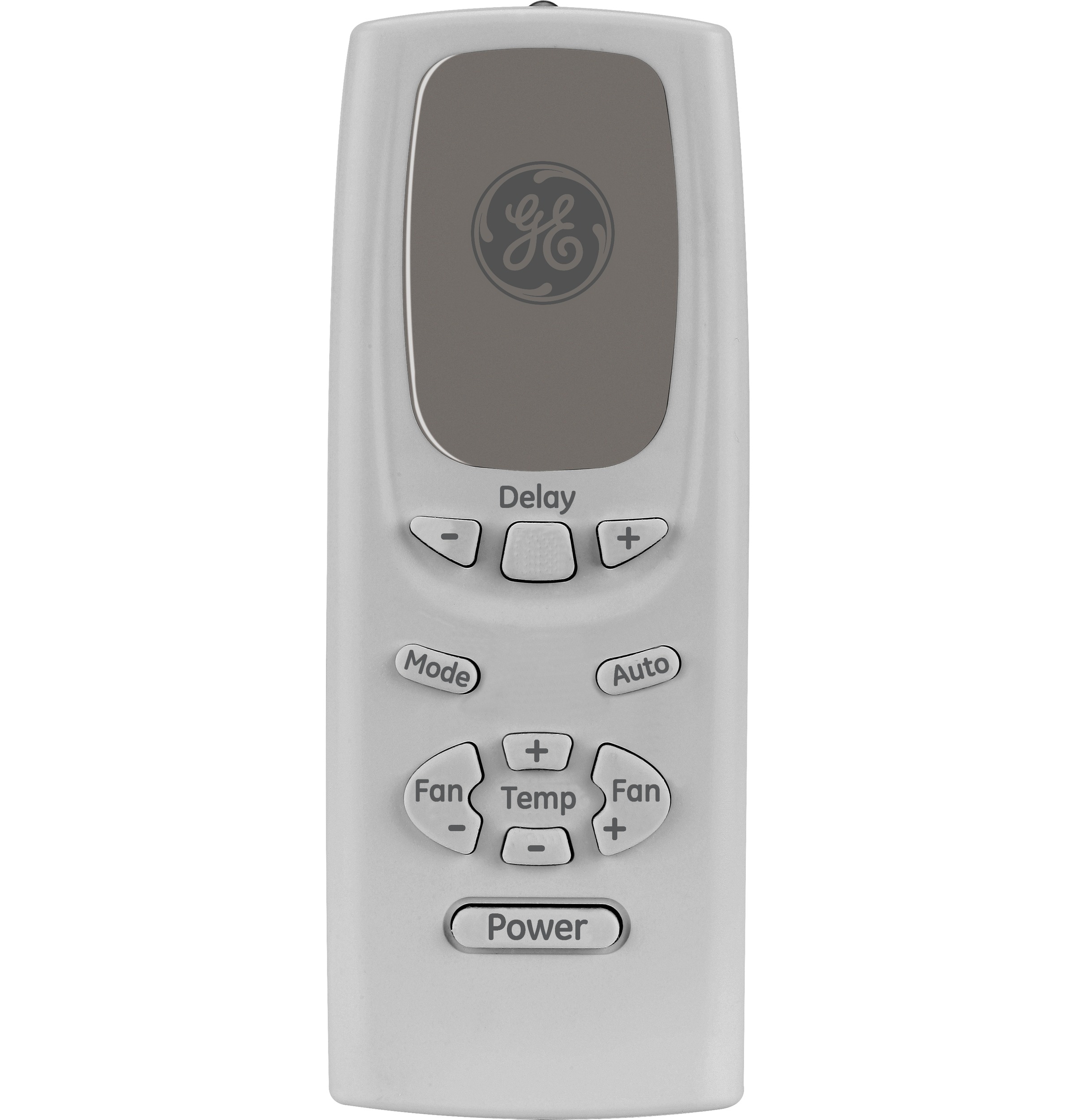

  • Electronic digital thermostat with remote

  • 3 cooling / 3 fan speeds

  • Non-ozone-depleting refrigerant (R-410A)

  • EZ Mount window kit with slide-out chassis

  • Energy Saver mode

  • Filter reminder light

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

24,200 / 23,900 BTU, 9.8 EER, 9.4 CEER, 230 / 208 Volts

Fits windows 30" - 41" wide, minimum height 19-1/4"

Electronic digital thermostat with remote

3 cooling / 3 fan speeds

Non-ozone-depleting refrigerant (R-410A)

EZ Mount window kit with slide-out chassis

Energy Saver mode

Fan and compressor shut off temporarily when the room is cool enough, saving you time and money

Filter reminder light

Prompts you when to clean the filter to ensure optimal performance

Power interruption restart

Certifications

AHAM certification

AHAM

CUL certification

CUL

California Prop 65 certification

California Prop 65

EEV certification

EEV

ENERGY STARĀ® Qualified certification

ENERGY STARĀ® Qualified

UL certification

UL

Specifications

FEATURES

Remote ControlYes
Thermostat TypeElectronic
Rotary CompressorYes
Louver Style4-Way Adjustable
Delay Timer24-Hour On/Off Timer
Filter TypeOne Touch Lift-Out
Mounting TypeEZ Mount
Unit FeaturesSelectable Thermostat on Remote
Plug TypePerpendicular/NEMA 6-20
Unit TypeCool Only
Refrigerant TypeR-410A - Non-Ozone-Depleting Refrigerant
Chassis TypeSlide-Out
Vent/Air Exchange ExhaustTop Air Discharge
Fan Speed Selections3 Cooling
Fan Speed Selections3 Fan Only
Airflow (cfm) Roomside470/390

CAPACITY

Cooling EER (BTUH / Watt)9.8
Dehumidification (pts./hr.)5.5
Cooling BTUH (MAX)24,200 Btu
Cooling BTUH (MIN)23,900 Btu

WEIGHTS & DIMENSIONS

Min./Max. Window Opening Width (in.)29/41
Approximate Shipping Weight152 lb
Depth to Louvers6.6875 in
Grille Depth1.9375 in
Minimum Window Opening Height (in.)19.25 in
Net Weight135 lb
Overall Depth26 5/16 in
Overall Height18 5/8 in
Overall Width23 17/32 in

POWER / RATINGS

CEER9.4
Cooling - Rated Cooling Amps AHAM11.0/12.0
Cooling - Watts1680/1650
Voltage (MAX)230 V
Voltage (MIN)208 V

APPEARANCE

Color AppearanceLight Cool Gray
InstallationEZ Mount

ECONOMICAL / QUIET

Energy SaverYes

Dimensions & Weight

Width23.53 in.
Height18.63 in.
Length26.31 in.
Weight135 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width28.53 in.
Shipping Height23.63 in.
Shipping Length31.31 in.
Shipping Weight175 lbs.
Total of Shipping Weight175 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement6.67 ftĀ³
Dimensional Weight82.96 lbs.
Total of Cubes6.67 ftĀ³
Total of Dimensional Weight82.96 lbs.

Warranty

Parts (Replacement)1 Year
