230 Volt Electronic Room Air Conditioner - AEL18DS
230 Volt Electronic Room Air Conditioner
Model: AEL18DS
230 Volt Electronic Room Air Conditioner
Model: AEL18DS
Color : Light Cool Gray
Key Features
18,250 / 17,800 BTU, 11.2 EER, 10.7 CEER, 230 / 208 Volts
Fits windows 26" - 41" wide, minimum height 18-1/2"

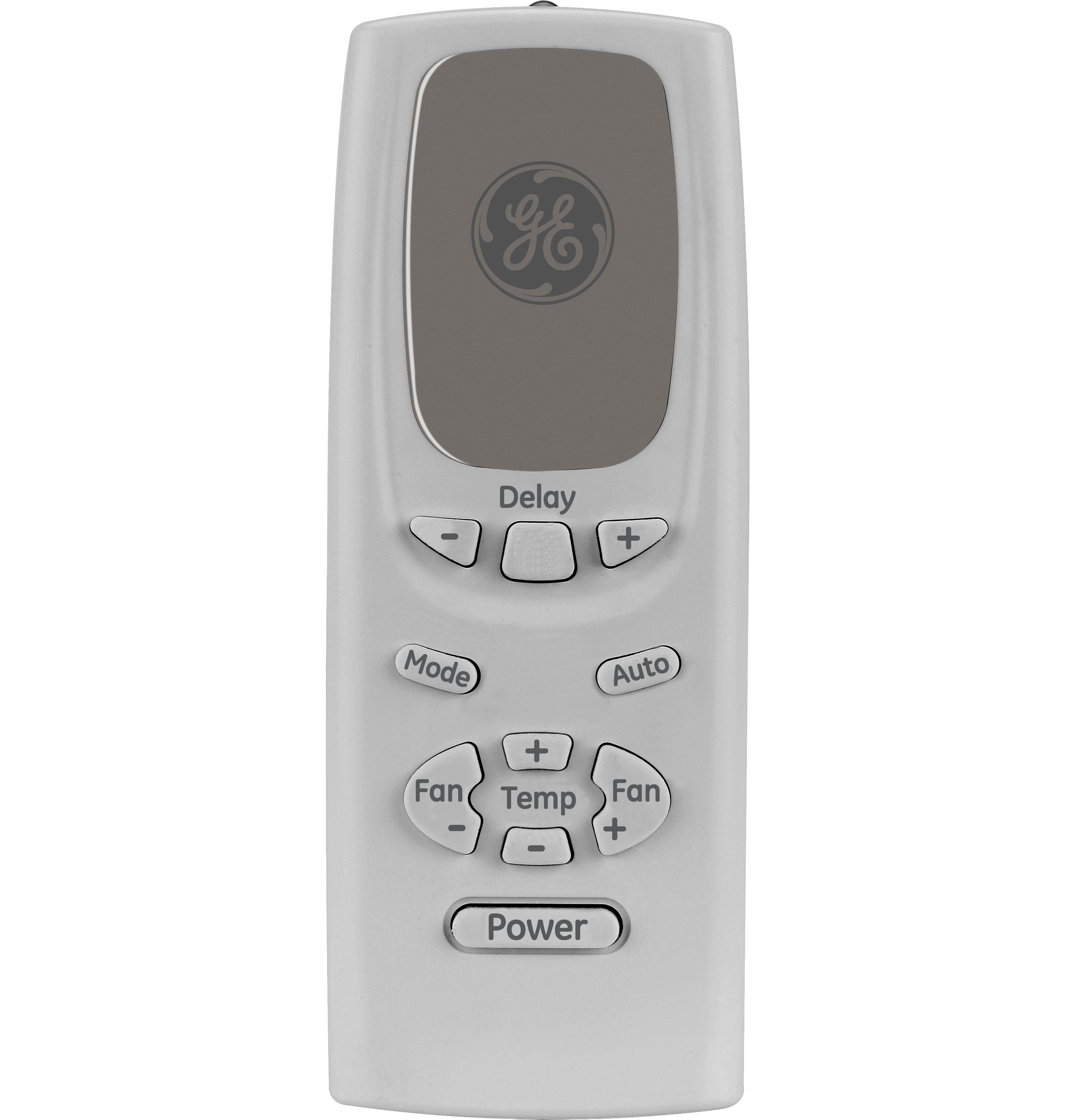

Electronic digital thermostat with remote
3 cooling / 3 fan speeds
Non-ozone-depleting refrigerant (R-410A)
EZ Mount window kit with slide-out chassis
Energy Saver mode
Filter reminder light
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
18,250 / 17,800 BTU, 11.2 EER, 10.7 CEER, 230 / 208 Volts
Fits windows 26" - 41" wide, minimum height 18-1/2"
Electronic digital thermostat with remote
3 cooling / 3 fan speeds
Non-ozone-depleting refrigerant (R-410A)
EZ Mount window kit with slide-out chassis
Energy Saver mode
Fan and compressor shut off temporarily when the room is cool enough, saving you time and money
Filter reminder light
Prompts you when to clean the filter to ensure optimal performance
Power interruption restart
Specifications
FEATURES
| Remote Control | Yes |
| Thermostat Type | Electronic |
| Rotary Compressor | Yes |
| Louver Style | 4-Way |
| Delay Timer | 24-Hour On/Off Timer |
| Filter Type | One Touch Lift-Out |
| Mounting Type | EZ Mount |
| Unit Features | Selectable Thermostat on Remote |
| Plug Type | Tandem/NEMA 6-15 |
| Unit Type | Cool Only |
| Refrigerant Type | R-410A - Non-Ozone-Depleting Refrigerant |
| Chassis Type | Slide-Out |
| Vent/Air Exchange Exhaust | Top Air Discharge |
| Fan Speed Selections | 3 Cooling |
| Fan Speed Selections | 3 Fan Only |
| Airflow (cfm) Roomside | 470/390 |
CAPACITY
| Cooling EER (BTUH / Watt) | 11.2 |
| Dehumidification (pts./hr.) | 5.5 |
| Cooling BTUH (MAX) | 18,250 Btu |
| Cooling BTUH (MIN) | 17,800 Btu |
WEIGHTS & DIMENSIONS
| Min./Max. Window Opening Width (in.) | 26/41 |
| Approximate Shipping Weight | 133 lb |
| Depth to Louvers | 6.6875 in |
| Grille Depth | 1.9375 in |
| Minimum Window Opening Height (in.) | 18.5 in |
| Net Weight | 117 lb |
| Overall Depth | 25 7/16 in |
| Overall Height | 17 25/32 in |
| Overall Width | 23 5/8 in |
POWER / RATINGS
| CEER | 10.7 |
| Cooling - Rated Cooling Amps AHAM | 7.2/7.8 |
| Cooling - Watts | 1680/1650 |
| Voltage (MAX) | 230 V |
| Voltage (MIN) | 208 V |
APPEARANCE
| Color Appearance | Light Cool Gray |
| Installation | EZ Mount |
ECONOMICAL / QUIET
| Energy Saver | Yes |
Dimensions & Weight
| Width | 23.63 in. |
| Height | 17.78 in. |
| Length | 25.44 in. |
| Weight | 117 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28.63 in. |
| Shipping Height | 22.78 in. |
| Shipping Length | 30.44 in. |
| Shipping Weight | 157 lbs. |
| Total of Shipping Weight | 157 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 6.18 ft³ |
| Dimensional Weight | 76.88 lbs. |
| Total of Cubes | 6.18 ft³ |
| Total of Dimensional Weight | 76.88 lbs. |
Warranty
| Parts (Replacement) | 1 Year |
