This product has been discontinued by the manufacture and is no longer available.

GE 230 Volt Electronic Room Air Conditioner

Model: AEH24DT

230 Volt Electronic Room Air Conditioner AEH24DT, product image 1 of 3230 Volt Electronic Room Air Conditioner AEH24DT, product image 2 of 3230 Volt Electronic Room Air Conditioner AEH24DT, product image 3 of 3
230 Volt Electronic Room Air Conditioner AEH24DT, thumbnail image 1 of 3
230 Volt Electronic Room Air Conditioner AEH24DT, thumbnail image 2 of 3
230 Volt Electronic Room Air Conditioner AEH24DT, thumbnail image 3 of 3

Color : Light Cool Gray

230 Volt Electronic Room Air Conditioner AEH24DT
Light Cool Gray

Key Features

  • 24,200 / 23,900 BTU, 9.8 EER, 230 / 208 Volts

  • Fits windows 30" - 41" wide, minimum height 19-1/4"

  • R-410A refrigerant

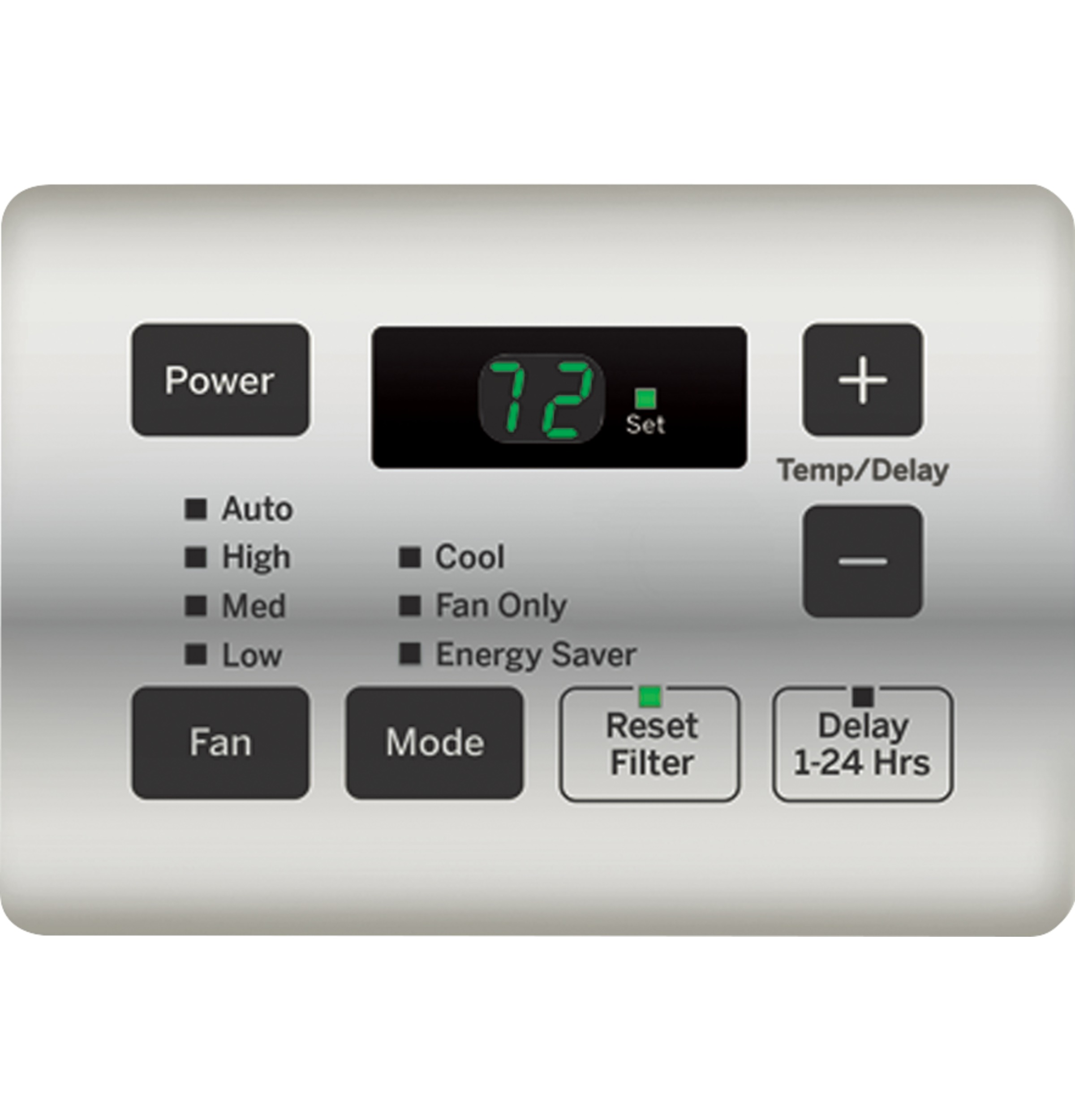

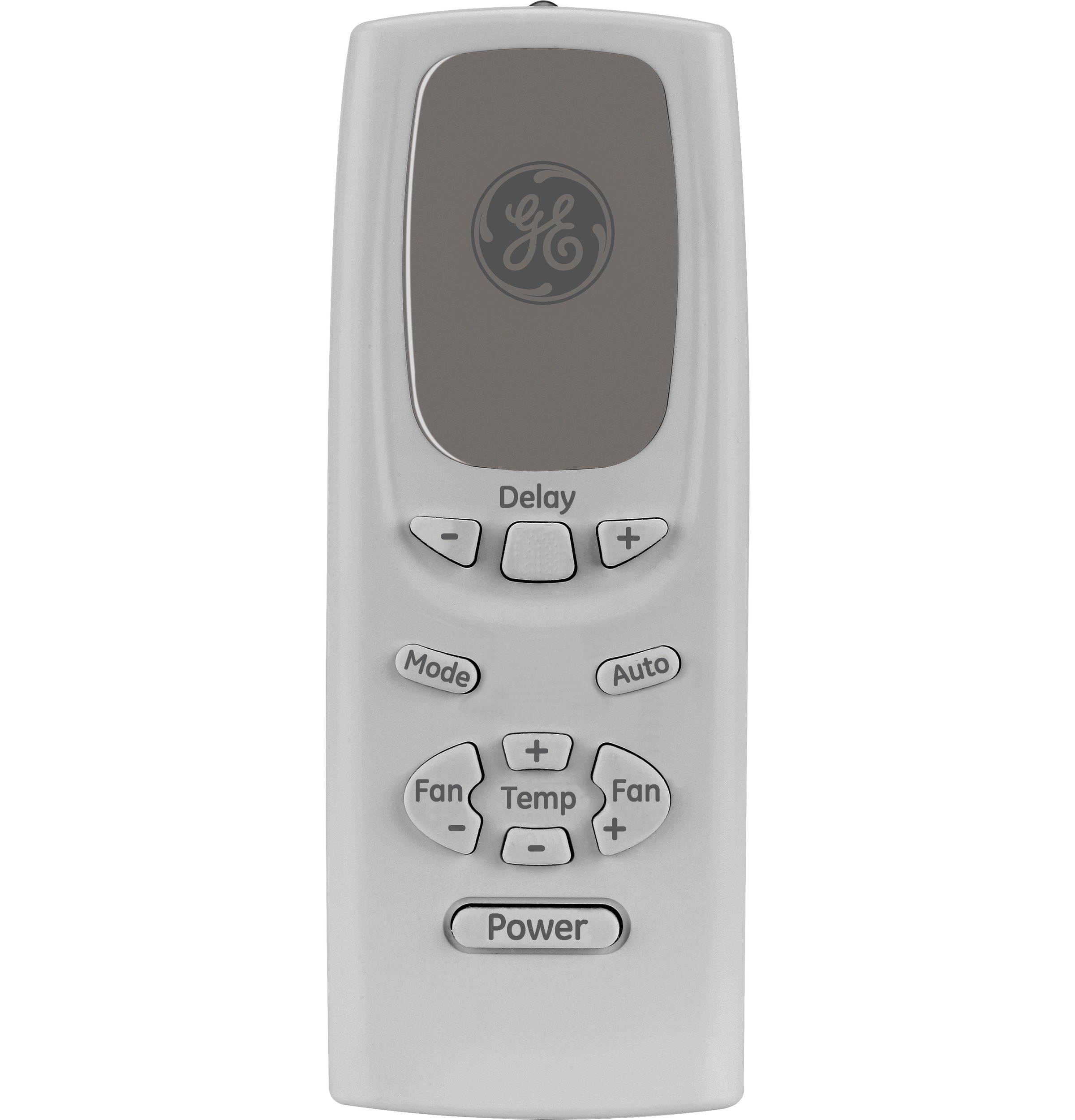

  • Electronic digital thermostat with remote

  • 3 cooling / 3 fan speeds

  • EZ Mount window installation kit included

  • Slide-out chassis

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

24,200 / 23,900 BTU, 9.8 EER, 230 / 208 Volts

Fits windows 30" - 41" wide, minimum height 19-1/4"

R-410A refrigerant

Electronic digital thermostat with remote

3 cooling / 3 fan speeds

EZ Mount window installation kit included

Slide-out chassis

Certifications

AHAM certification

AHAM

CUL certification

CUL

California Prop 65 certification

California Prop 65

UL certification

UL

Specifications

FEATURES

Fan Speed Selections3 Cooling
Fan Speed Selections3 Fan Only
Unit TypeCool Only
Vent/Air Exchange ExhaustTop Air Discharge
Remote ControlYes
Refrigerant TypeR-410A - Non-Ozone-Depleting Refrigerant
Unit FeaturesSelectable Thermostat on Remote
Delay Timer24-Hour On/Off Timer
Mounting TypeEZ Mount
Plug TypePerpendicular/NEMA 6-20
Filter TypeOne Touch Lift-Out
Louver Style4-Way Adjustable
Rotary CompressorYes
Chassis TypeSlide-Out
Thermostat TypeElectronic
Airflow (cfm) Roomside510/420

WEIGHTS & DIMENSIONS

Min./Max. Window Opening Width (in.)30/41
Approximate Shipping Weight145.5 lb
Depth to Louvers7.25 in
Minimum Window Opening Height (in.)19.25 in
Net Weight129 lb
Overall Depth26 5/16 in
Overall Height18 5/8 in
Overall Width26 17/32 in
Grille Depth1.96875 in

POWER / RATINGS

CEER9.8
Cooling - Rated Cooling Amps AHAM11.0/12.0
Cooling - Watts2460/2430
Voltage (MAX)230 V
Voltage (MIN)208 V

ECONOMICAL / QUIET

Energy SaverYes

APPEARANCE

InstallationEZ Mount
Color AppearanceLight Cool Gray

CAPACITY

Cooling EER (BTUH / Watt)9.8
Dehumidification (pts./hr.)7.8
Cooling BTUH (MAX)24,200 Btu
Cooling BTUH (MIN)23,900 Btu

Dimensions & Weight

Width26.53 in.
Height18.63 in.
Length26.31 in.
Weight129 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width31.53 in.
Shipping Height23.63 in.
Shipping Length31.31 in.
Shipping Weight169 lbs.
Total of Shipping Weight169 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement7.52 ft³
Dimensional Weight93.54 lbs.
Total of Cubes7.52 ft³
Total of Dimensional Weight93.54 lbs.

Warranty

Parts (Replacement)1 Year
