115 Volt Electronic Room Air Conditioner - AEH12AR

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

115 Volt Electronic Room Air Conditioner

Model: AEH12AR

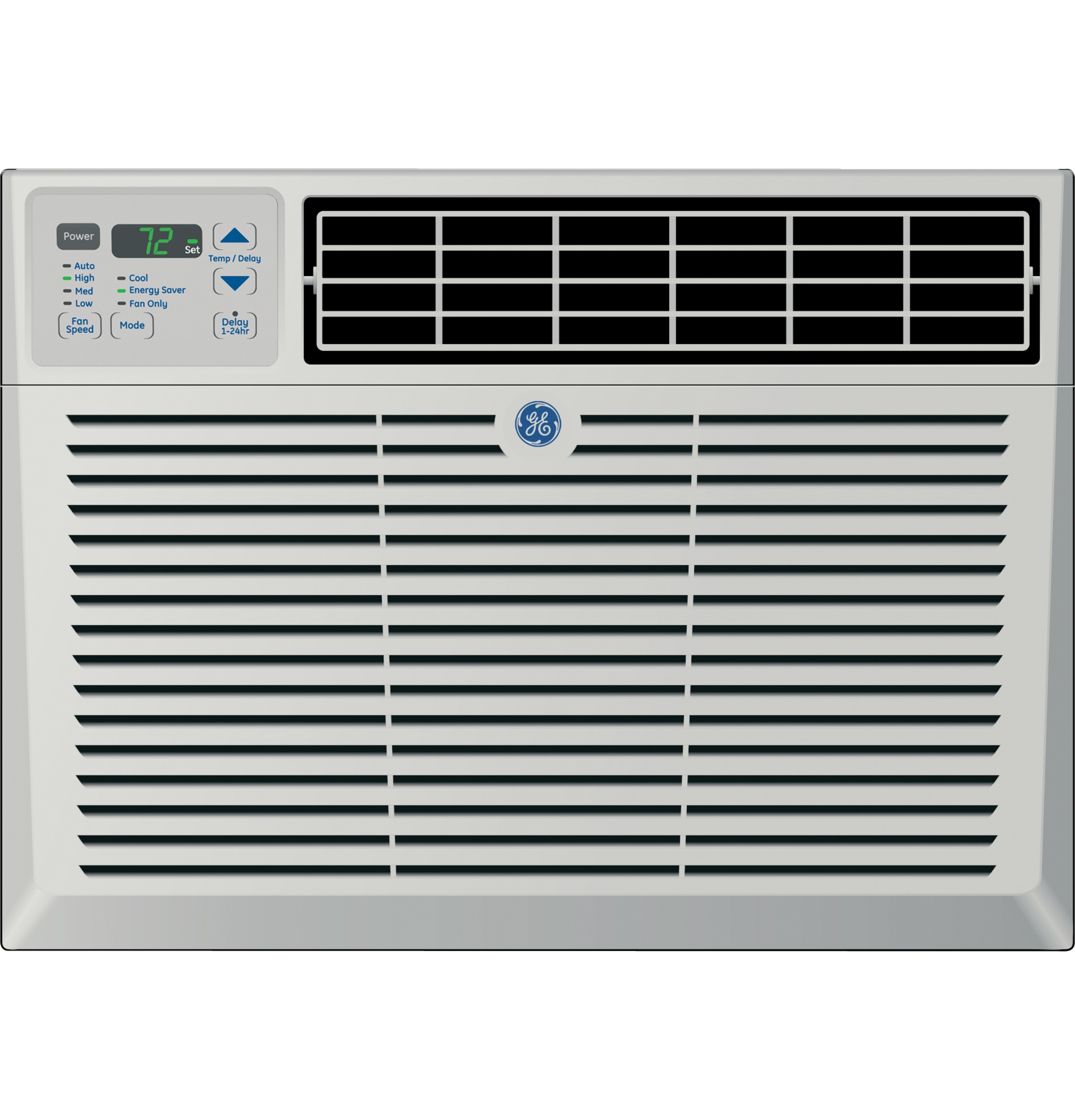

115 Volt Electronic Room Air Conditioner AEH12AR, product image 1 of 2115 Volt Electronic Room Air Conditioner AEH12AR, product image 2 of 2
115 Volt Electronic Room Air Conditioner AEH12AR, thumbnail image 1 of 2
115 Volt Electronic Room Air Conditioner AEH12AR, thumbnail image 2 of 2

Color : Other

115 Volt Electronic Room Air Conditioner AEH12AR
Other

Key Features

  • 12,200 BTU, 10.8 EER, 115 Volts

  • Fits windows 22 in. - 36 in. wide, minimum height 15-1/2 in.

  • R-410A refrigerant

  • Electronic digital thermostat control

  • Remote control

  • Energy Saver feature

  • 24-hour timer

  • 3 cooling / 3 fan speeds

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications

Features

12,200 BTU, 10.8 EER, 115 Volts

Fits windows 22 in. - 36 in. wide, minimum height 15-1/2 in.

R-410A refrigerant

Electronic digital thermostat control

Remote control

Energy Saver feature

24-hour timer

3 cooling / 3 fan speeds

Fixed chassis

EZ Mount window installation kit included

Specifications

FEATURES

Remote ControlYes
Thermostat TypeElectronic
Rotary CompressorYes
Louver Style4-Way
Delay Timer24-Hour On/Off
Filter TypeOne Touch Lift-Out
Unit FeaturesSelectable Thermostat on Remote
Plug TypeParallel/NEMA 5-15
Unit TypeCool Only
Refrigerant TypeR410A
Chassis TypeFixed
Vent/Air Exchange ExhaustTop Discharge
Fan Speed Selections3 Cooling
Fan Speed Selections3 Fan Only
Airflow (cfm) Roomside290/250

CAPACITY

Cooling EER (BTUH / Watt)10.8
Dehumidification (pts./hr.)3.5
Cooling BTUH (MAX)12,200 Btu

WEIGHTS & DIMENSIONS

Min./Max. Window Opening Width (in.)22 / 36
Approximate Shipping Weight75 lb
Depth to Louvers9 in
Grille Depth1.625 in
Minimum Window Opening Height (in.)15.5 in
Net Weight66 lb
Overall Depth21 1/4 in
Overall Height14 9/16 in
Overall Width19 1/32 in

POWER / RATINGS

Cooling - Rated Cooling Amps AHAM10.3
Cooling - Watts1130
Voltage (MAX)115 V

APPEARANCE

Color AppearanceLight Cool Gray
InstallationEZ Mount

ECONOMICAL / QUIET

Energy SaverYes

Dimensions & Weight

Width19.03 in.
Height14.56 in.
Length21.25 in.
Weight66 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width24.03 in.
Shipping Height19.56 in.
Shipping Length26.25 in.
Shipping Weight106 lbs.
Total of Shipping Weight106 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement3.41 ft³
Dimensional Weight42.37 lbs.
Total of Cubes3.41 ft³
Total of Dimensional Weight42.37 lbs.
