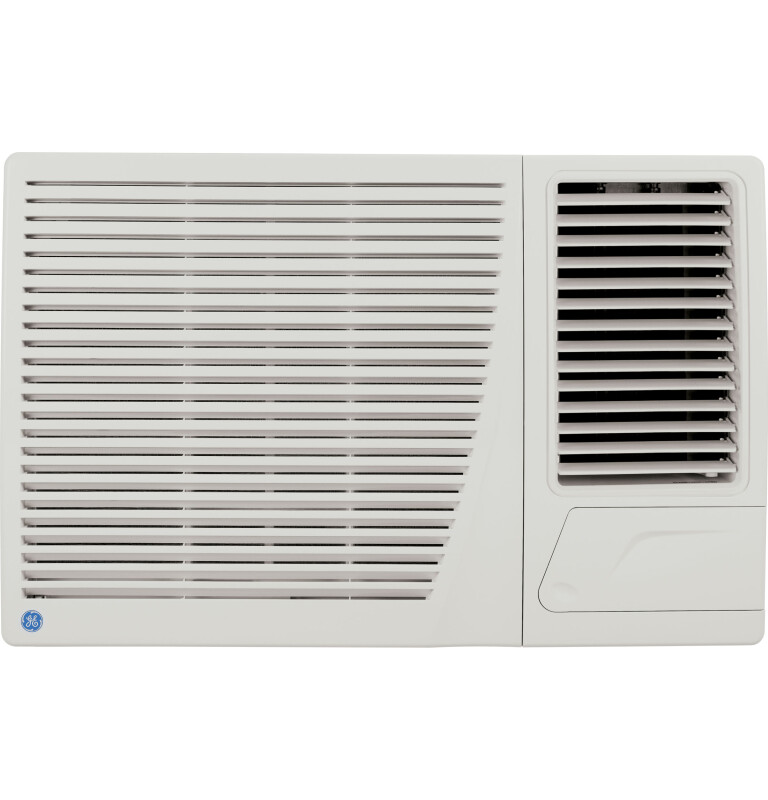

GE 230 Volt Heat/Cool Room Air Conditioner
Model: AEE23DM
Color : Gray
Key Features
23,700 / 23,100 BTU, 8.5 EER, 11,000 / 8,700 BTU Heat, 230 / 208 Volts
Adjustable thermostat
Multiple cooling / heating speeds
4-way adjustable air discharge
Easy-access filter
Slide-out chassis
EZ Mount window installation
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
23,700 / 23,100 BTU, 8.5 EER, 11,000 / 8,700 BTU Heat, 230 / 208 Volts
Adjustable thermostat
Multiple cooling / heating speeds
4-way adjustable air discharge
Easy-access filter
Slide-out chassis
EZ Mount window installation
Certifications
California Prop 65
Specifications
WARRANTY
| Warranty Notes | See written warranty for full details |
| Warranty Notes | Limited 1-Year |

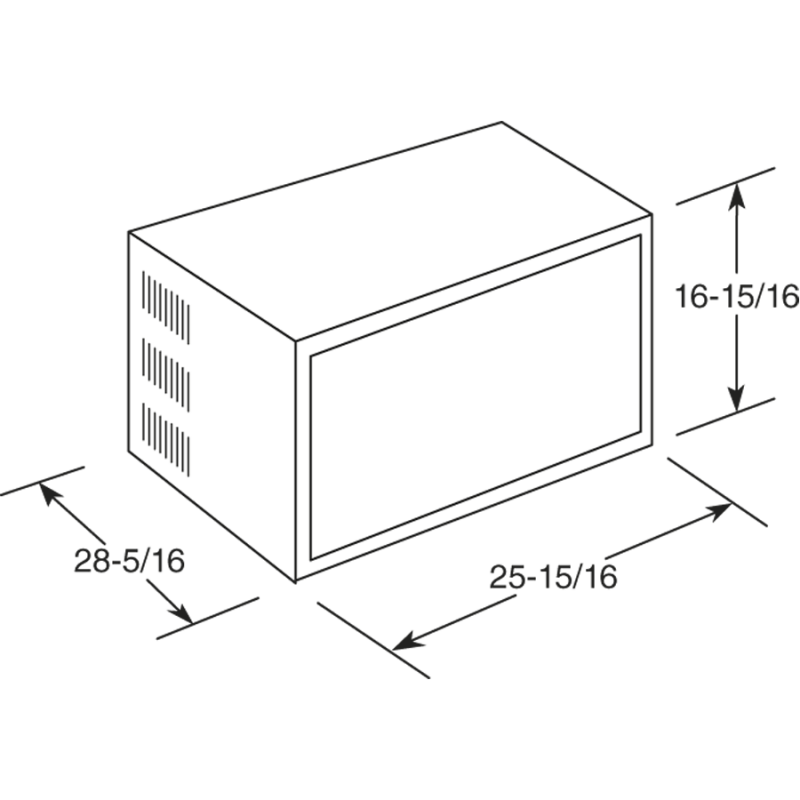

Dimensions & Weight
| Width | 25.94 in. |
| Height | 16.94 in. |
| Length | 30.5 in. |
| Weight | 165 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 30.94 in. |
| Shipping Height | 21.94 in. |
| Shipping Length | 35.5 in. |
| Shipping Weight | 205 lbs. |
| Total of Shipping Weight | 205 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 7.75 ft³ |
| Dimensional Weight | 96.4 lbs. |
| Total of Cubes | 7.75 ft³ |
| Total of Dimensional Weight | 96.4 lbs. |
FEATURES
| Filter Type | One Touch Lift-Out |
| Chassis Type | Slide-Out |
| Control Panel Door | Yes |
| Vent/Air Exchange Exhaust | Side Discharge |
| Plug Type | Perpendicular LCDI; 230/208V; 20 Amp |
| Mounting Type | EZ Mount |
| Heating - Electric - Input Watts | 3680/3030 |
| Thermostat Type | 7-Position |
| Rotary Compressor | Yes |
| Outdoor Vent / Exhaust | Yes |
| Unit Type | Heat / Cool Unit |
| Fan Speed Selections | 2 Cooling |
| Airflow (cfm) Roomside | 630/530 |
| Fan Speed Selections | 2 Heating |
| Fan Speed Selections | 1 Fan Only |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 183 lb |
| Min./Max. Window Opening Width (in.) | 30/41 |
| Depth to Louvers | 9 in |
| Grille Depth | 2.1875 in |
| Net Weight | 165 lb |
| Minimum Window Opening Height (in.) | 18 in |
| Overall Depth | 30 1/2 in |
| Overall Height | 16 15/16 in |
| Overall Width | 25 15/16 in |
POWER / RATINGS
| Cooling - Rated Cooling Amps AHAM | 13.0/14.0 |
| Cooling - Watts | 2790/2730 |
| Voltage (MIN) | 208 V |
| Voltage (MAX) | 230 V |
| Heating - Electric - Heater Amps | 16.0/15.6 |
APPEARANCE
| Installation | EZ Mount |
| Color Appearance | Light Cool Gray |
CAPACITY
| Cooling EER (BTUH / Watt) | 8.5/8.5 |
| Heating - Electric - BTUH - AHAM - 1R | 11,000/8,700 |
| Dehumidification (pts./hr.) | 4.6 |
| Cooling BTUH (MAX) | 23,700 Btu |
| Cooling BTUH (MIN) | 23,200 Btu |
