208-230v 24,000 Btu Single-zone Ductless Highwall Indoor Unit - HW24HN2DAB

This product has been discontinued by the manufacture and is no longer available.

208-230v 24,000 Btu Single-zone Ductless Highwall Indoor Unit

Model: HW24HN2DAB

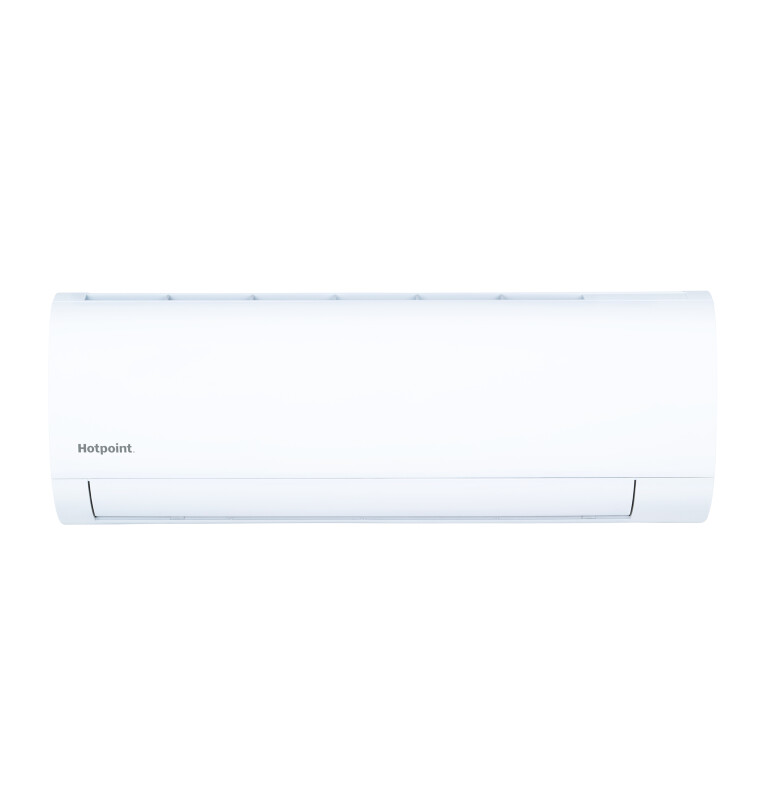

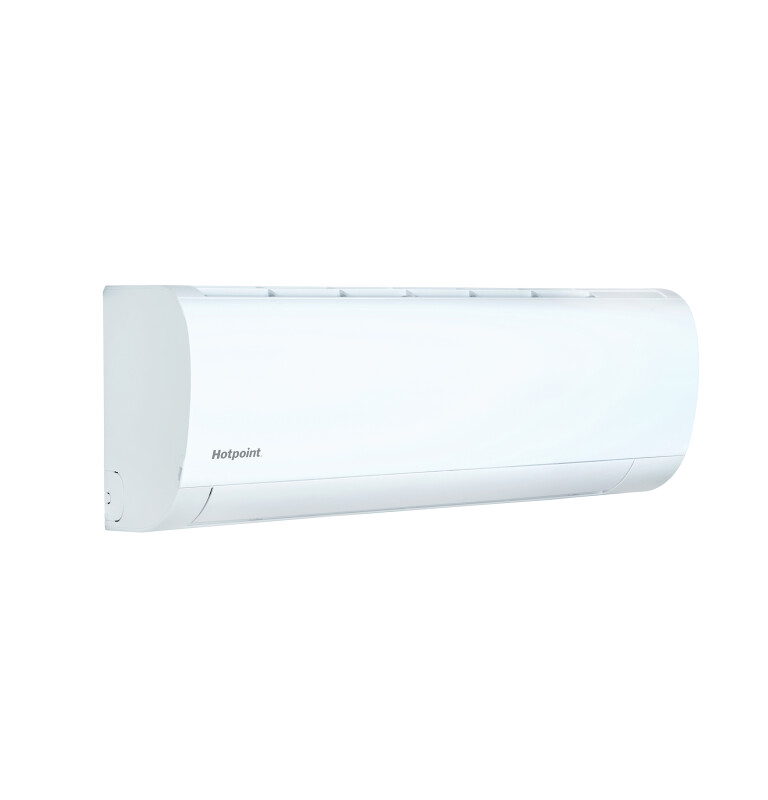

208-230v 24,000 Btu Single-zone Ductless Highwall Indoor Unit HW24HN2DAB, product image 1 of 3208-230v 24,000 Btu Single-zone Ductless Highwall Indoor Unit HW24HN2DAB, product image 2 of 3208-230v 24,000 Btu Single-zone Ductless Highwall Indoor Unit HW24HN2DAB, product image 3 of 3
208-230v 24,000 Btu Single-zone Ductless Highwall Indoor Unit HW24HN2DAB, thumbnail image 1 of 3
208-230v 24,000 Btu Single-zone Ductless Highwall Indoor Unit HW24HN2DAB, thumbnail image 2 of 3
208-230v 24,000 Btu Single-zone Ductless Highwall Indoor Unit HW24HN2DAB, thumbnail image 3 of 3

Color : White

208-230v 24,000 Btu Single-zone Ductless Highwall Indoor Unit HW24HN2DAB
White

Key Features

  • ODU Compatibility

  • Efficient Operation

  • Wi-Fi Connectivity

  • Easy to Install, Easy to Service

  • Federal & State Incentives

  • Worry-Free Warranty

  • See specification guide for full heating, cooling, and system details.

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications

Features

ODU Compatibility

Compatible with 1H24HN2DAB Outdoor Unit.

Efficient Operation

High-power turbo mode and warm start technology help heat and cool rooms more quickly, and an auto louver adjusts airflow upward when cooling and downward when heating.

Wi-Fi Connectivity

Hotpoint® systems connect seamlessly to the SmartHQ™ App from GE Appliances, giving homeowners more control over their comfort.

Easy to Install, Easy to Service

A mounting template and mounting plate with dimensions make installation a breeze, while an extended kickstand and easy-access control board let you service systems without removing casings. Plus, a two-way piping drain on the right and left sides makes installation easier and ensures units fit in more applications.

Federal & State Incentives

Possible eligibility for federal and state incentives makes Hotpoint the easy choice for price-conscious consumers.

Worry-Free Warranty

Unlock a 10-year limited parts warranty with registration; see warranty documentation for complete information.

See specification guide for full heating, cooling, and system details.

Specifications

Features

Product TypeSingle Zone
StyleHighwall
System24K Hotpoint
Unit TypeIndoor
Indoor Sound Level38, dBA, 44, dBA, 47, dBA, 50, dBA, 54 dBA
Outdoor Model To Complete Single Zone System1H24HN2DAB
SeriesHotpoint
Fan Speed Stages5 + Auto
Refrigerant TypeR32

Weights & Dimensions

Overall Depth9 1/2 in
Overall Height13 5/8 in
Overall Width43 1/2 in
Approximate Shipping Weight41 65/97 lb
Net Weight32 46/73 lb
Liquid O.d. Refrigerant Line1/4"
Suction O.d. Refrigerant Line1/2"

Power / Ratings

Voltage/hertz/phase208-230/60/1
Cooling Rated Capacity Btu/hr24,000

Claims & Certifications

24,000Yes

Warranty

Parts5 Year
