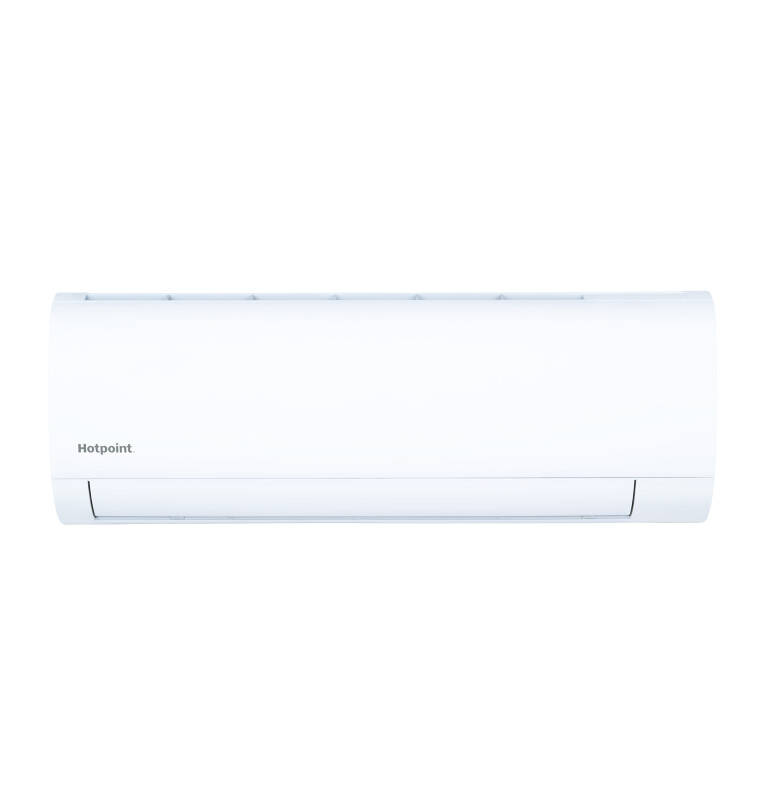

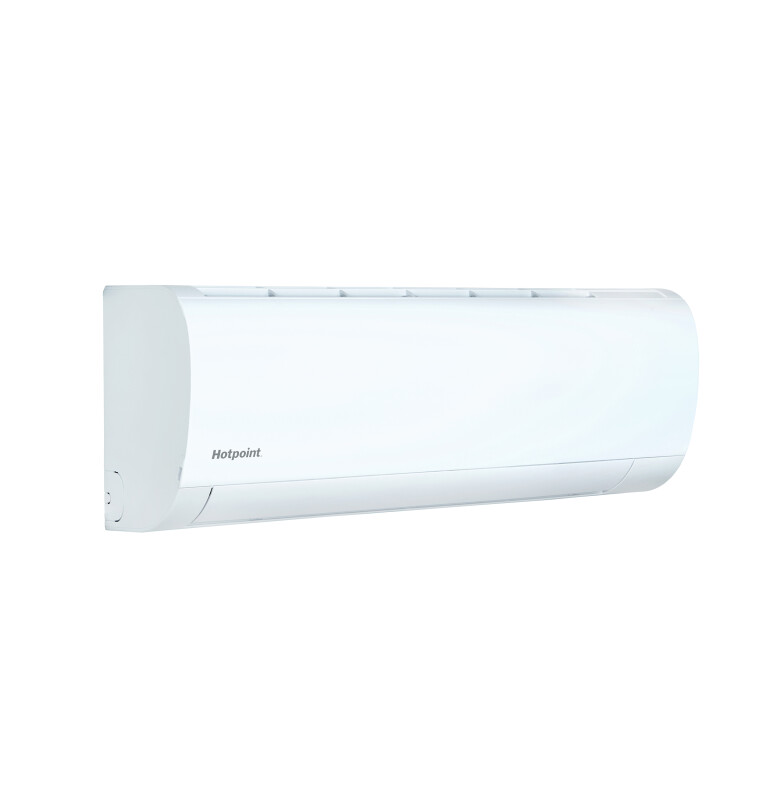

208-230v 9,000 Btu Single-zone Ductless Highwall Indoor Unit - HW09HN2DAB
208-230v 9,000 Btu Single-zone Ductless Highwall Indoor Unit
Model: HW09HN2DAB






208-230v 9,000 Btu Single-zone Ductless Highwall Indoor Unit
Model: HW09HN2DAB
Key Features
ODU Compatibility
Efficient Operation
Wi-Fi Connectivity
Easy to Install, Easy to Service
Federal & State Incentives
Worry-Free Warranty
See specification guide for full heating, cooling, and system details.
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
ODU Compatibility
Compatible with 1H09HN2DAB Outdoor Unit.
Efficient Operation
High-power turbo mode and warm start technology help heat and cool rooms more quickly, and an auto louver adjusts airflow upward when cooling and downward when heating.
Wi-Fi Connectivity
Hotpoint® systems connect seamlessly to the SmartHQ™ App from GE Appliances, giving homeowners more control over their comfort.
Easy to Install, Easy to Service
A mounting template and mounting plate with dimensions make installation a breeze, while an extended kickstand and easy-access control board let you service systems without removing casings. Plus, a two-way piping drain on the right and left sides makes installation easier and ensures units fit in more applications.
Federal & State Incentives
Possible eligibility for federal and state incentives makes Hotpoint the easy choice for price-conscious consumers.
Worry-Free Warranty
Unlock a 10-year limited parts warranty with registration; see warranty documentation for complete information.
See specification guide for full heating, cooling, and system details.
Specifications
Features
| Product Type | Single Zone |
| Style | Highwall |
| System | 9K Hotpoint |
| Unit Type | Indoor |
| Indoor Sound Level | 28, dBA, 32, dBA, 38, dBA, 43, dBA, 45 dBA |
| Outdoor Model To Complete Single Zone System | 1H09HN2DAB |
| Series | Hotpoint |
| Fan Speed Stages | 5 + Auto |
| Refrigerant Type | R32 |
Weights & Dimensions
| Overall Depth | 7 7/8 in |
| Overall Height | 11 in |
| Overall Width | 31 3/4 in |
| Approximate Shipping Weight | 24 39/83 lb |
| Net Weight | 18 37/50 lb |
| Liquid O.d. Refrigerant Line | 1/4" |
| Suction O.d. Refrigerant Line | 3/8" |
Power / Ratings
| Voltage/hertz/phase | 208-230/60/1 |
| Cooling Rated Capacity Btu/hr | 9,000 |
Claims & Certifications
| 9,000 | Yes |
Warranty
| Parts | 5 Year |
