Zoneline Premium Series Heat Pump Unit - AZ58H07EAC
Zoneline Premium Series Heat Pump Unit
Model: AZ58H07EAC
Zoneline Premium Series Heat Pump Unit
Model: AZ58H07EAC
Color : Warm Gray Beige
Key Features
7,100 BTU cooling capacity
13.0 E.E.R.
1.7 dehumidification (pints/hr)
6,400 BTUH (reverse cycle heat)
240 / 220 CFM indoor fan (high/low)
50 / 40 vent CFM
Highly featured electronic controls
30 Sound Transmission Class (STC)
Documents
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
7,100 BTU cooling capacity
13.0 E.E.R.
1.7 dehumidification (pints/hr)
6,400 BTUH (reverse cycle heat)
240 / 220 CFM indoor fan (high/low)
50 / 40 vent CFM
Highly featured electronic controls
Tactile Touch Pad Controls with LED
30 Sound Transmission Class (STC)
Reverse cycle defrost by monitoring operating conditions
Heat Sentinel
Electronic 7-step temperature limiting to prevent overcooling or overheating of room

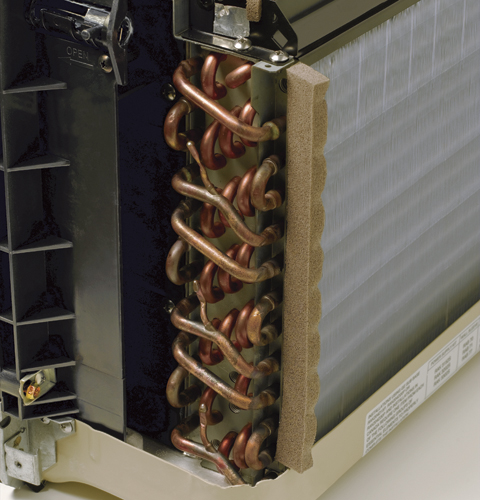

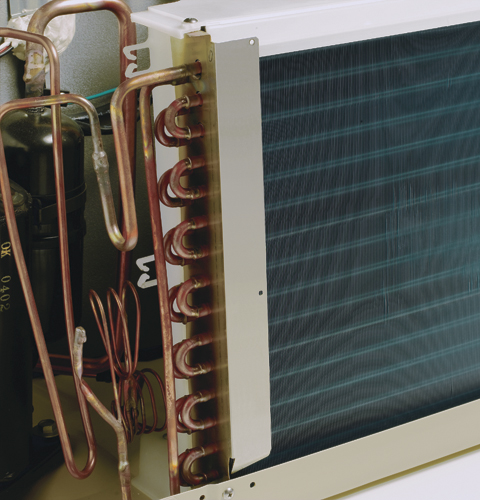

Corrosion-treated chassis
Extends life of the unit in SeaCoast areas
Certifications
California Prop 65
Specifications
FEATURES
| Automatic Emergency Heat | Yes |
| Staged Heating | 3-Stage |
| Self - Diagnostics | Yes |
| Weather Protected Electrical Components | Yes |
| Sensible Heat Ratio at 265 Volts | 75% |
| Heating - Reverse Cycle - COP | 3.5 |
| "SmartFan" Fan Cycle | Yes |
| Freeze Sentinel | Yes |
| Remote Control | Compatible |
| Discharge Grille | 2-position |
| Auto Frost Control Monitor | Yes |
| Central Desk Control Compatibility | Yes |
| Quick Heat Recovery | Yes |
| Electric Resistance Heat Lockout | Yes |
| Temperature Limiting | Electronic 7-Step |
| Service Indicator | Yes |
| Fan Motor | 2 |
| Control Type | Highly Featured Microcomputer; Tactile touch pad with LED |
| Stamped Aluminum Exterior Rear Grille | RAG60 |
| Heat Pump Heat Back-Up | Resistance; Supplemental |
| Fan Speed Selections | 2 Fan Only |
| Fan Speed Selections | Hi/Low/Auto Cooling |
| Fan Speed Selections | Hi/Low/Auto Heating |
| Corrosion Treated | Yes |
| Solid State Thermostat Control | Yes |
| Universal Heaters | Yes |
| Power Connection Kit | RAK5152/5172/5202/5302 |

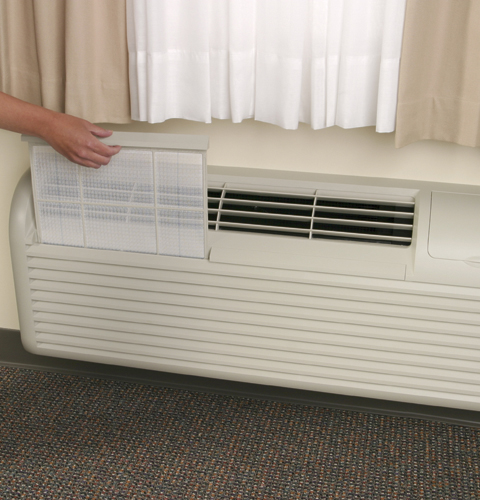

| Upfront Filter | Yes |

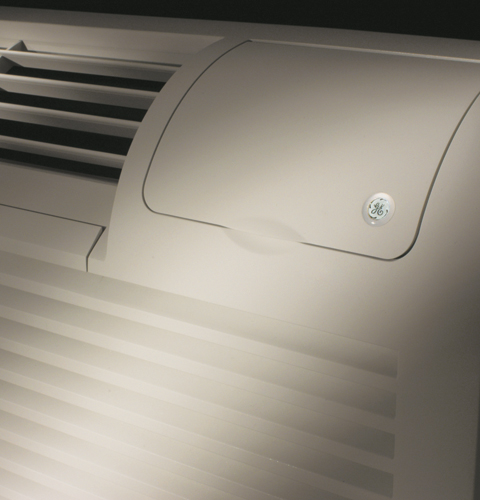

| Control Panel Door | Yes |
| Power Factor | 96 |
| Vent Control | 3-position |
| Sound Transmission Class (STC) | 29 |
| Room Occupancy Sensor | Compatible |
| Heat Sentinel | Yes |
| Louver Style | Reversible |
| Reverse Cycle Defrost | Yes |
| Rotary Compressor | Yes |
| Auto Power Recovery | Yes |
CAPACITY
| CFM Indoor Fan High | 240 |
| Vent CFM (high fan at zero ESP) | 50/40 |
| Cooling EER (BTUH / Watt) | 13.0 |
| CFM Indoor Fan Low | 220 |
| Heating - Reverse Cycle - BTUH | 6400 |
| Dehumidification (pts./hr.) | 1.7 |
| Cooling BTUH (MAX) | 7,100 Btu |
POWER / RATINGS
| Cooling - Amperes; L.R. | 16.0 |
| Heating - Reverse Cycle - Watts | 535 |
| Cooling - Amperes; F.L. - Cooling | 2.3 |
| Heating - Reverse Cycle - Amps | 2.2 |
| Cooling - Amperes | 2.3 |
| Cooling - Watts | 546 |
| Voltage (MAX) | 265 V |
ACCESSORIES
| Exterior Architectural Louvers | RAG61(Beige); RAG62(Maple); RAG63(Bittersweet) |
| SMC Wall Case | RAB77A4 |
| Insulated Wall Case | RAB71A |
| Extruded Aluminum Grille | RAG67 |
APPEARANCE
| Color Appearance | Warm Gray Beige |
Dimensions & Weight
| Width | 42 in. |
| Height | 16 in. |
| Length | 13.75 in. |
| Weight | 104 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 47 in. |
| Shipping Height | 21 in. |
| Shipping Length | 18.75 in. |
| Shipping Weight | 144 lbs. |
| Total of Shipping Weight | 144 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 5.35 ft³ |
| Dimensional Weight | 66.47 lbs. |
| Total of Cubes | 5.35 ft³ |
| Total of Dimensional Weight | 66.47 lbs. |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 120 lb |
| Net Weight | 104 lb |
| Overall Depth | 13 3/4 in |
| Overall Height | 16 in |
| Overall Width | 42 in |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Labor (Sealed System) | 5 Year |
| Parts | 5 Year |
