GE Zoneline Deluxe Series Cooling and Electric Heat Unit with Corrosion Protection, 230/208 Volt
Model: AZ41E07DAC
Color : Warm Gray Beige
Key Features
Cooling capacity
Energy efficiency
Dehumidification
Indoor fan CFM (high/low)
Fresh air vent CFM (fully open high fan)
Quiet operation
Corrosion resistant
Heat & Freeze Sentinels
Documents
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Cooling capacity
7,200/6,900 BTU
Energy efficiency
12.3/12.3 EER
Dehumidification
1.7 pints/hour
Indoor fan CFM (high/low)
290/218
Fresh air vent CFM (fully open high fan)
33
Quiet operation
Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
Corrosion resistant
Extends life of the unit in sea coast areas/corrosive environments
Heat & Freeze Sentinels
Keeps the room from overheating or freezing
Electronic temperature limiting
Prevents expensive over-cooling or over-heating of the room
Electronic touch controls with LED display
R-410A refrigerant
Certifications
California Prop 65
Specifications
CAPACITY
| Vent CFM (high fan at zero ESP) | 50/40 |
| Dehumidification (pts./hr.) | 1.7 |
| CFM Indoor Fan High | 290 |
| CFM Indoor Fan Low | 218 |
| Cooling EER (BTUH / Watt) | 12.3/12.3 |
| Cooling BTUH (MAX) | 7,200 Btu |
| Cooling BTUH (MIN) | 6,900 Btu |
FEATURES
| Fan Cycle Switch | Yes |
| Discharge Grille | 2-position |
| Heat - Cool | Yes |
| Rotary Compressor | Yes |
| Fan Motor | 2 |
| Temperature Limiting | Electronic 7-Step |
| Power Factor | 89 |
| Vent Control | 3-position |
| Manual Vent Control | Hidden |
| Louver Style | Reversible |
| Fan Speed Control | Yes |
| Filter Type | Rigid Frame |
| Filter Type | Slide-Out |
| Temperature Range | 60 - 85 F |
| Electronic Micro Computer Control | Yes |
| Zoneline Features | "Sleep" Mode |
| Zoneline Features | "Smart Fan" Fan Cycle Control |
| Zoneline Features | Auto Power Recovery |
| Zoneline Features | Automatic Indoor Frost Control |
| Zoneline Features | Central Desk Control Compatibility |
| Zoneline Features | Freeze Sentinel |
| Zoneline Features | Heat Sentinel |
| Zoneline Features | Power Cord (LDCI) included |
| Zoneline Features | Proportional - Integral ID Airflow |
| Zoneline Features | Random Twist/Length Segment Tangential Blower |
| Zoneline Features | Remote Thermostat Compatibility |
| Zoneline Features | Universal Heaters |
| Zoneline Features | Weather Protected Electrical Components |
| Sensible Heat Ratio | 80% |
| Chassis Type | Slide-In |
| Venting Features | Concealed Manual Vent Control |
| Venting Features | Outdoor Vent Control - 3 Positions |
| Venting Features | Vent Air Filter |
| Corrosion Treated | Yes |
| Control Type | Standard Microcomputer |
| Control Type | Tactile touch pad with LED Display |
| Fan Speed Selections | Hi/Low Cooling |
| Fan Speed Selections | Hi/Low Fan Only |
| Fan Speed Selections | Hi/Low Heating |
POWER / RATINGS
| Cooling - Amperes; F.L. - Cooling | 2.8/3.0 |
| Cooling - Amperes | 2.8/3.0 |
| Cooling - Watts | 580/560 |
| Cooling - Amperes; L.R. | 19.0 |
| Voltage (MAX) | 230 V |
| Voltage (MIN) | 208 V |
APPEARANCE
| Color Appearance | Warm Gray Beige |

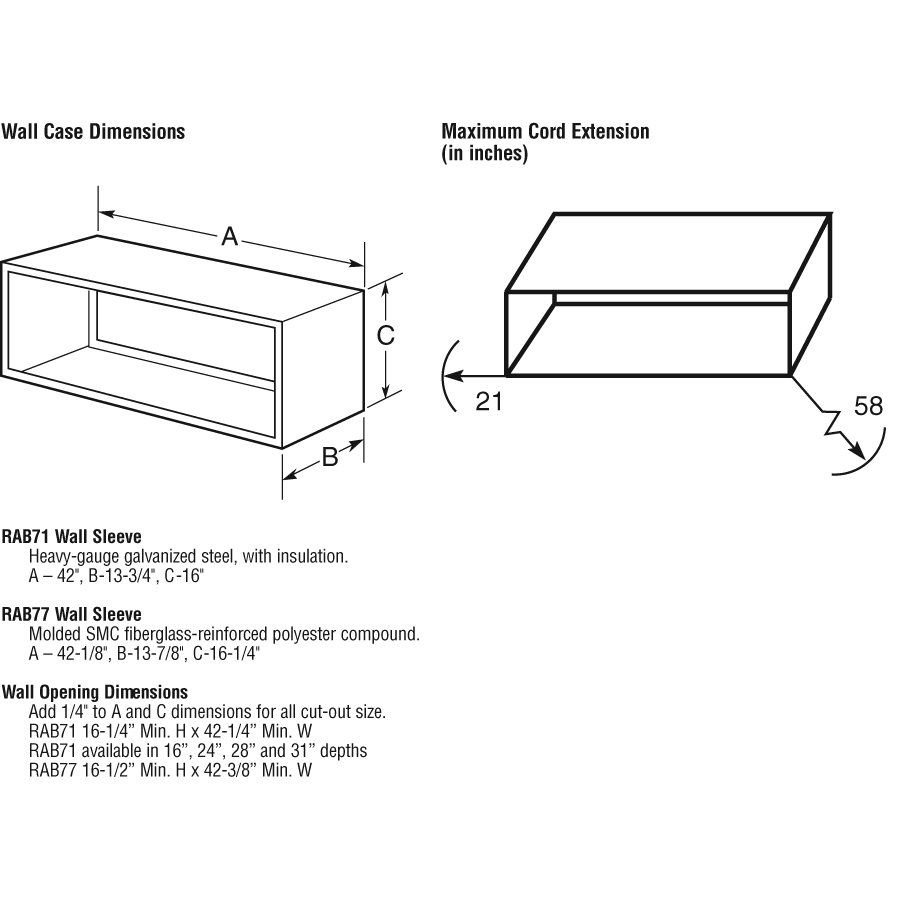

Dimensions & Weight
| Width | 42 in. |
| Height | 16 in. |
| Length | 20.88 in. |
| Weight | 91 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 47 in. |
| Shipping Height | 21 in. |
| Shipping Length | 25.88 in. |
| Shipping Weight | 131 lbs. |
| Total of Shipping Weight | 131 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 8.12 ft³ |
| Dimensional Weight | 100.92 lbs. |
| Total of Cubes | 8.12 ft³ |
| Total of Dimensional Weight | 100.92 lbs. |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 104.3 lb |
| Net Weight | 91.3 lb |
| Overall Depth | 20 7/8 in |
| Overall Depth (Excludes Sleeve) | 19.8125 in |
| Overall Height | 16 in |
| Overall Height (Excludes Sleeve) | 15.5 in |
| Overall Width | 42 in |
| Overall Width (Excludes Sleeve) | 40 in |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Labor (Sealed System) | 5 Year |
| Parts | 5 Year |
