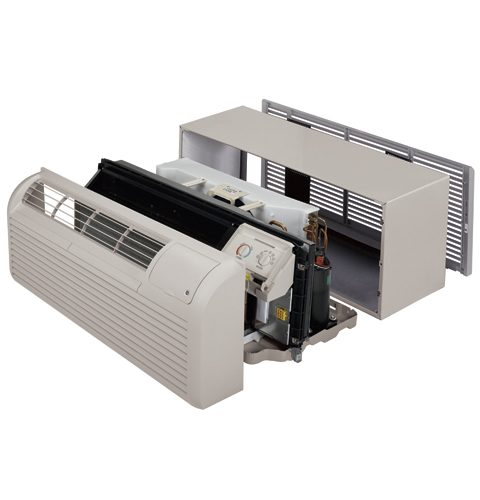

GE Zoneline Deluxe Series Heat Pump Unit
Model: AZ38H09DAD
Color : Warm Gray Beige
Key Features
9,000 / 8,800 BTU cooling capacity
12.0 / 12.0 E.E.R.
2.7 dehumidification (pints/hr)
8,400 / 8,200 BTU heating capacity
270 / 235 CFM indoor fan (high/low)
70 / 45 vent CFM
Standard microcomputer, rotary knobs
29 Sound Transmission Class (STC)
Documents
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
9,000 / 8,800 BTU cooling capacity
12.0 / 12.0 E.E.R.
2.7 dehumidification (pints/hr)
8,400 / 8,200 BTU heating capacity
270 / 235 CFM indoor fan (high/low)
70 / 45 vent CFM
Standard microcomputer, rotary knobs
29 Sound Transmission Class (STC)

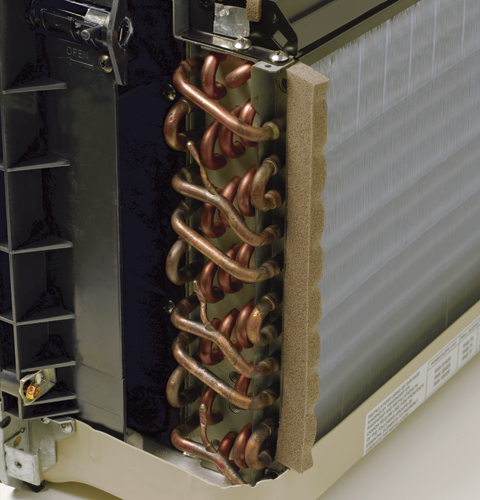

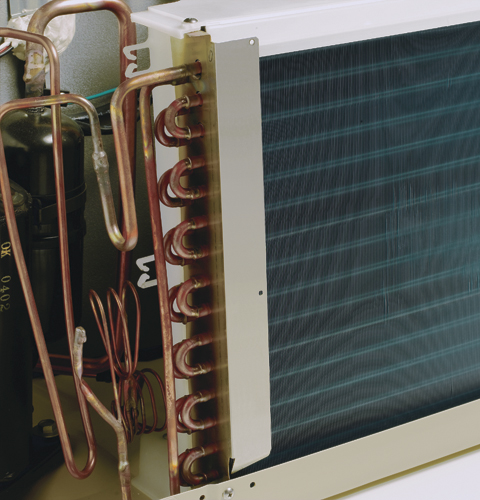

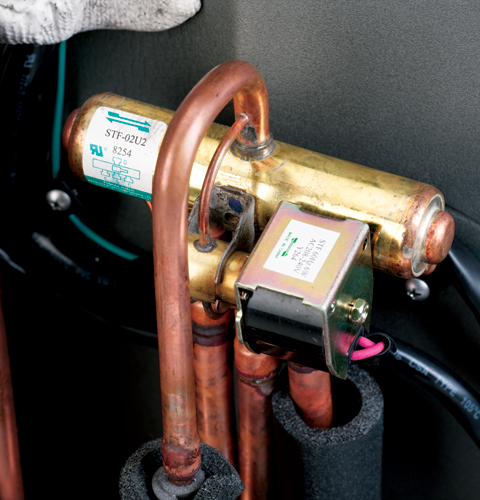

Reverse cycle heating
Heat Sentinel
Electronic 7-step temperature limiting to prevent overcooling or overheating of room

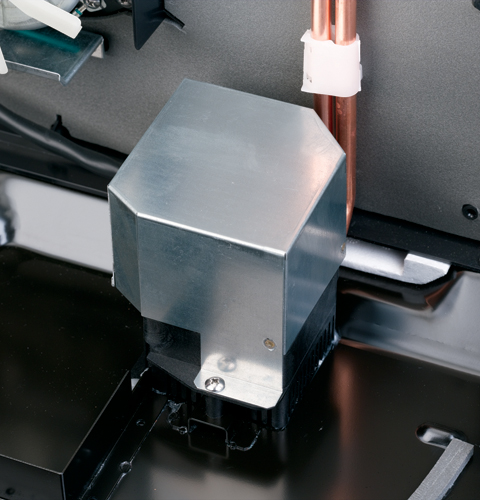

Internal condensate removal
Certifications
California Prop 65
Specifications
FEATURES

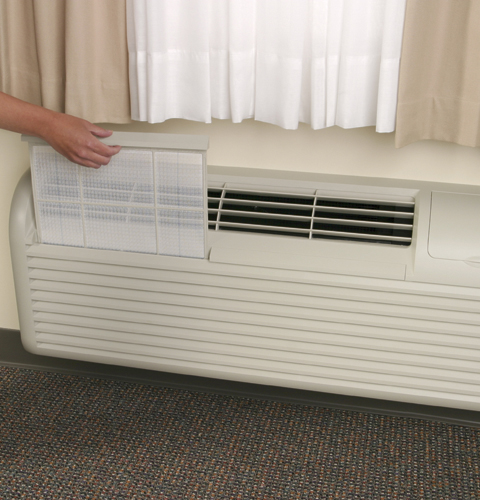

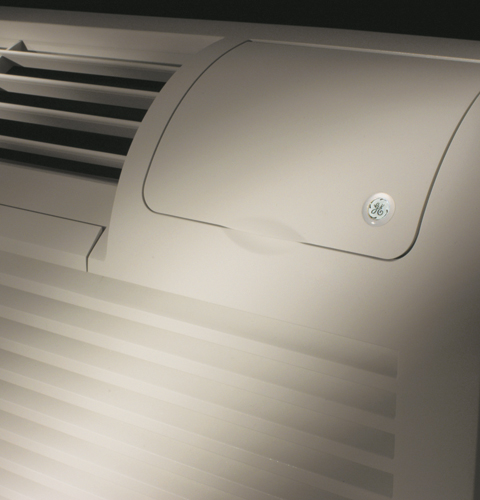

| Automatic Emergency Heat | Yes |
| Staged Heating | 3-Stage |
| Internal Condensate Removal (ICR) | Yes |
| Weather Protected Electrical Components | Yes |
| Heating - Reverse Cycle - COP | 3.6 |
| "SmartFan" Fan Cycle | Yes |
| Freeze Sentinel | Yes |
| Remote Control | Compatible |
| Discharge Grille | 2-position |
| Auto Frost Control Monitor | Yes |
| Central Desk Control Compatibility | Yes |
| Quick Heat Recovery | Yes |
| Electric Resistance Heat Lockout | Yes |
| Temperature Limiting | Electronic 7-Step |
| Fan Motor | 2 |
| Control Type | Standard Microcomputer; Rotary Knobs |
| Stamped Aluminum Exterior Rear Grille | RAG60 |
| Heat Pump Heat Back-Up | Resistance; Supplemental |
| Fan Speed Selections | 2 Fan Only |
| Fan Speed Selections | Hi/Low Cooling |
| Fan Speed Selections | Hi/Low Heating |
| Solid State Thermostat Control | Yes |
| Universal Heaters | Yes |
| Power Connection Kit | RAK3153/3203/3303 |
| Upfront Filter | Yes |
| Control Panel Door | Yes |
| Power Factor | 86/86 |
| Vent Control | 3-position |
| Sound Transmission Class (STC) | 29 |
| Room Occupancy Sensor | Compatible |
| Heat Sentinel | Yes |
| Louver Style | Reversible |
| Reverse Cycle Defrost | Yes |
| Rotary Compressor | Yes |
| Sensible Heat Ratio at 230 Volts | 67% |
| Auto Power Recovery | Yes |
CAPACITY
| CFM Indoor Fan High | 270 |
| Vent CFM (high fan at zero ESP) | 70/45 |
| Cooling EER (BTUH / Watt) | 12.0/12.0 |
| CFM Indoor Fan Low | 235 |
| Heating - Reverse Cycle - BTUH | 8400/8200 |
| Dehumidification (pts./hr.) | 2.7 |
| Cooling BTUH (MAX) | 9,000 Btu |
| Cooling BTUH (MIN) | 8,800 Btu |
POWER / RATINGS
| Cooling - Amperes; L.R. | 21.0 |
| Heating - Reverse Cycle - Watts | 685/670 |
| Cooling - Amperes; F.L. - Cooling | 3.8/4.1 |
| Heating - Reverse Cycle - Amps | 3.2/3.5 |
| Cooling - Amperes | 3.8/4.1 |
| Cooling - Watts | 750/735 |
| Voltage (MAX) | 230 V |
| Voltage (MIN) | 208 V |
ACCESSORIES
| Exterior Architectural Louvers | RAG61(Beige); RAG62(Maple); RAG63(Bittersweet) |

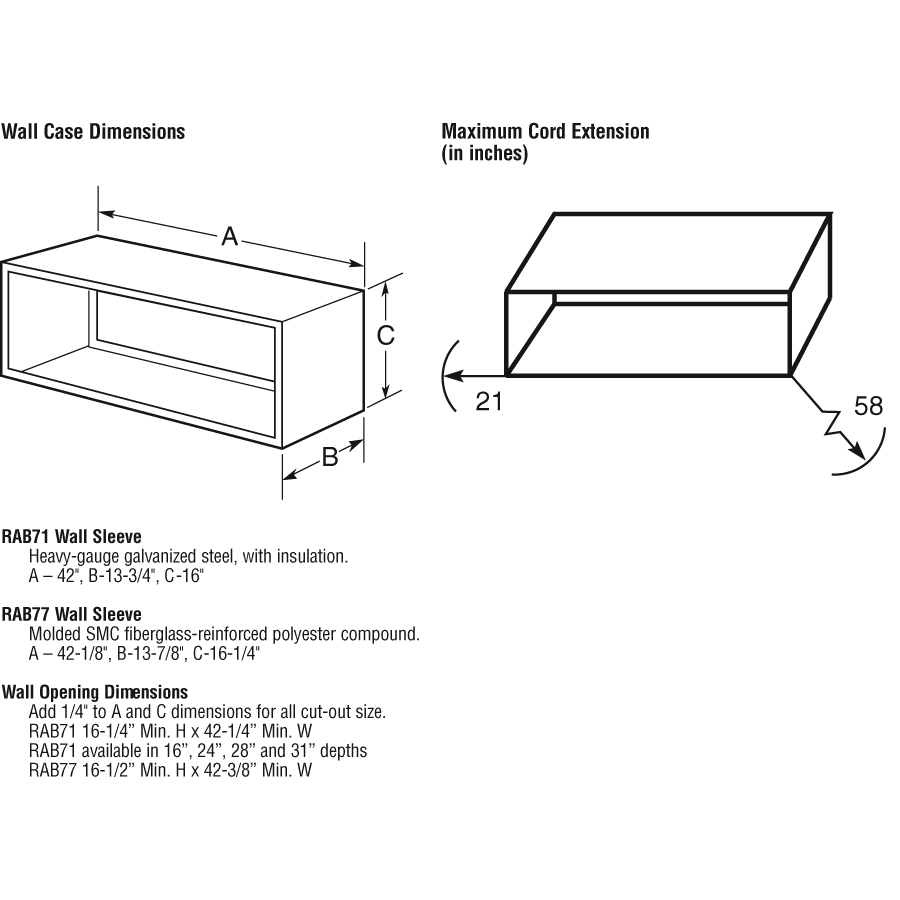

| SMC Wall Case | RAB77A4 |
| Insulated Wall Case | RAB71A |
| Duct Adaptor | RAK6052 |
| Extruded Aluminum Grille | RAG67 |
| Duct Extension | RAK601 |
APPEARANCE
| Color Appearance | Warm Gray Beige |
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
| Labor (Entire Appliance) | 1 Year |
| Labor (Sealed System) | 5 Year |
Dimensions & Weight
| Width | 42 in. |
| Height | 16 in. |
| Length | 13.75 in. |
| Weight | 108 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 47 in. |
| Shipping Height | 21 in. |
| Shipping Length | 18.75 in. |
| Shipping Weight | 148 lbs. |
| Total of Shipping Weight | 148 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 5.35 ft³ |
| Dimensional Weight | 66.47 lbs. |
| Total of Cubes | 5.35 ft³ |
| Total of Dimensional Weight | 66.47 lbs. |
WEIGHTS & DIMENSIONS
| Overall Depth | 13 3/4 in |
| Overall Height | 16 in |
| Overall Width | 42 in |
