Arctic Series 208-230V 18,000 BTU Single-Zone Ductless Highwall Indoor Unit - AW18EH2VHD

This product has been discontinued by the manufacture and is no longer available.

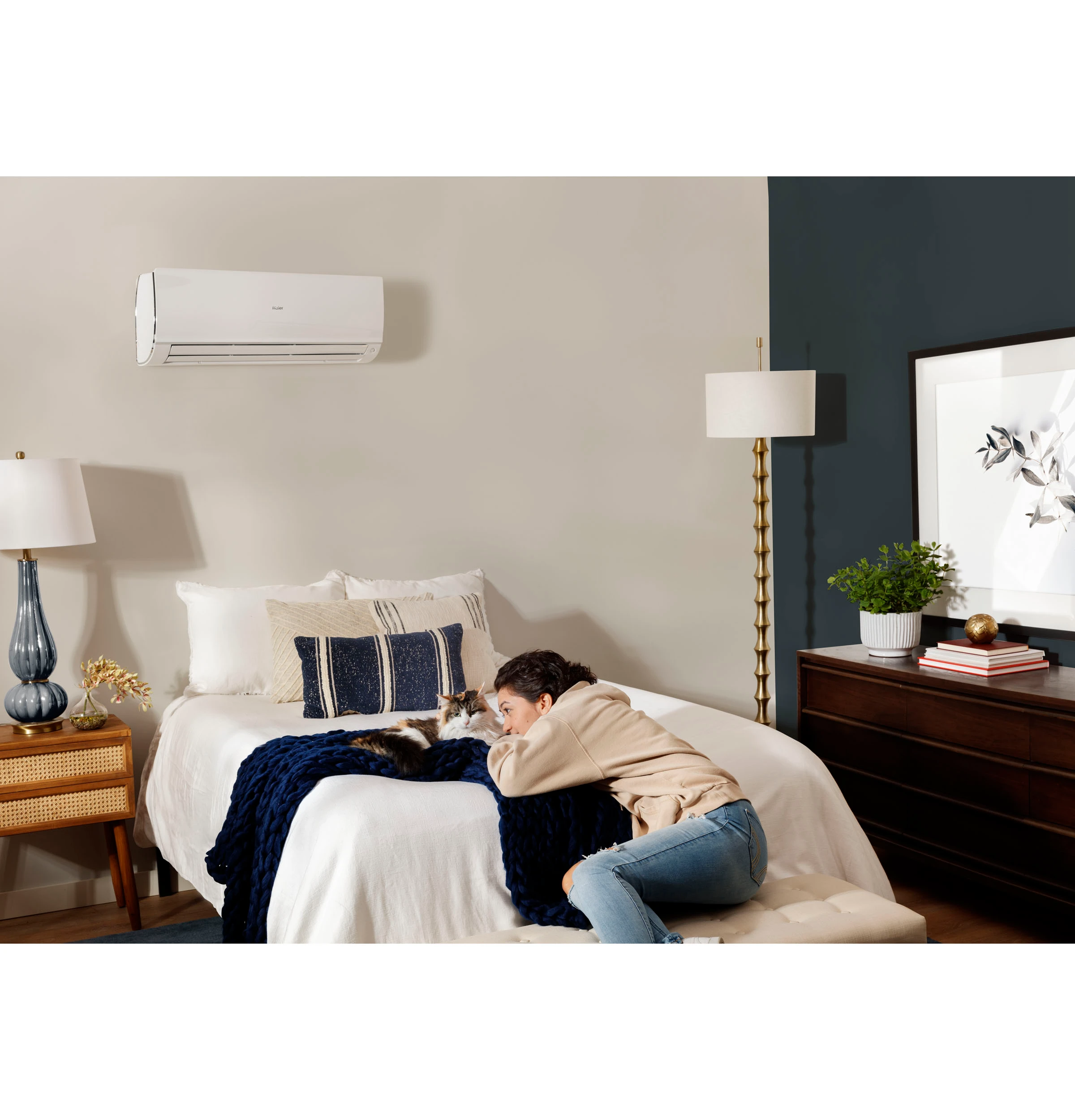

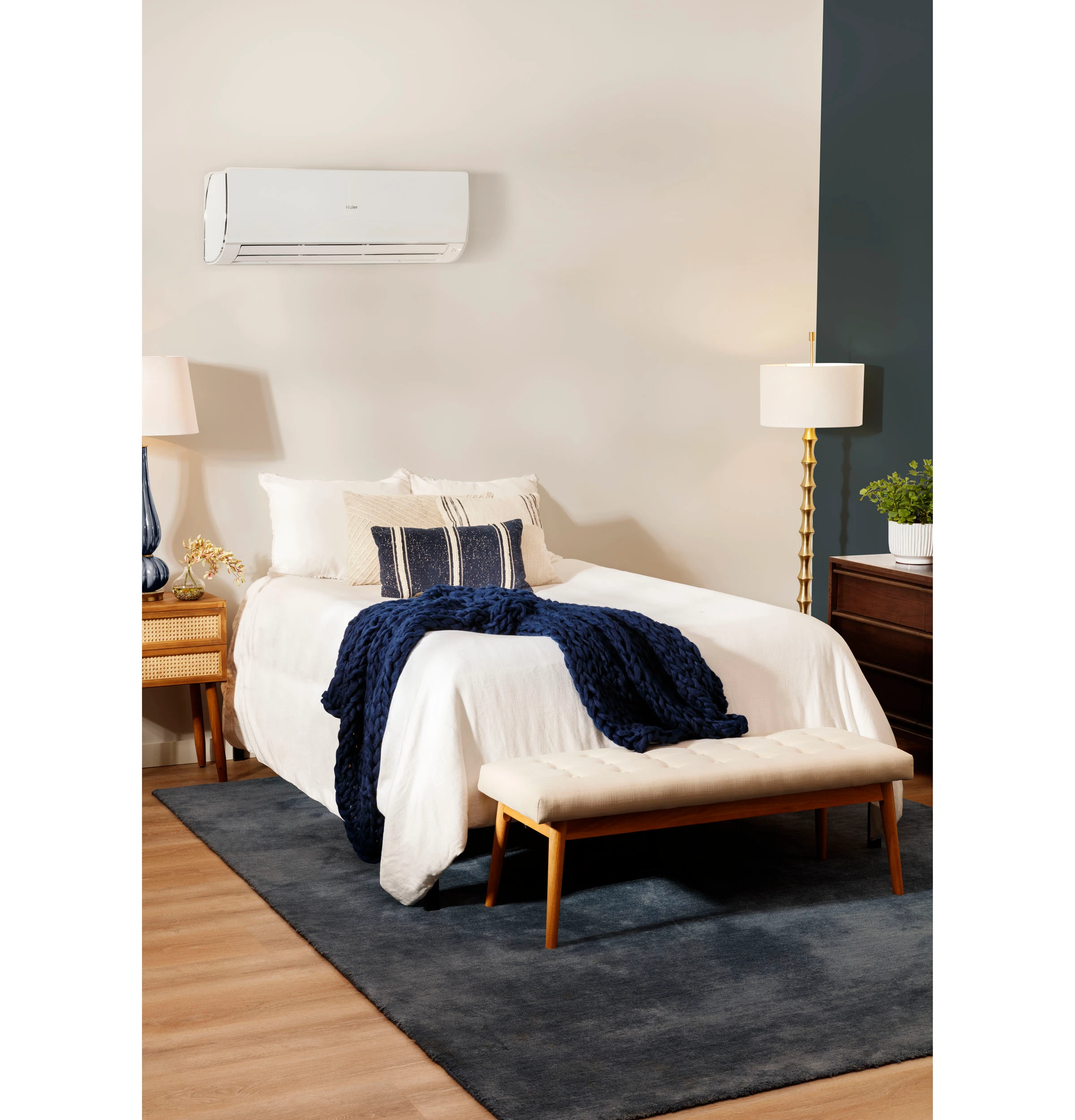

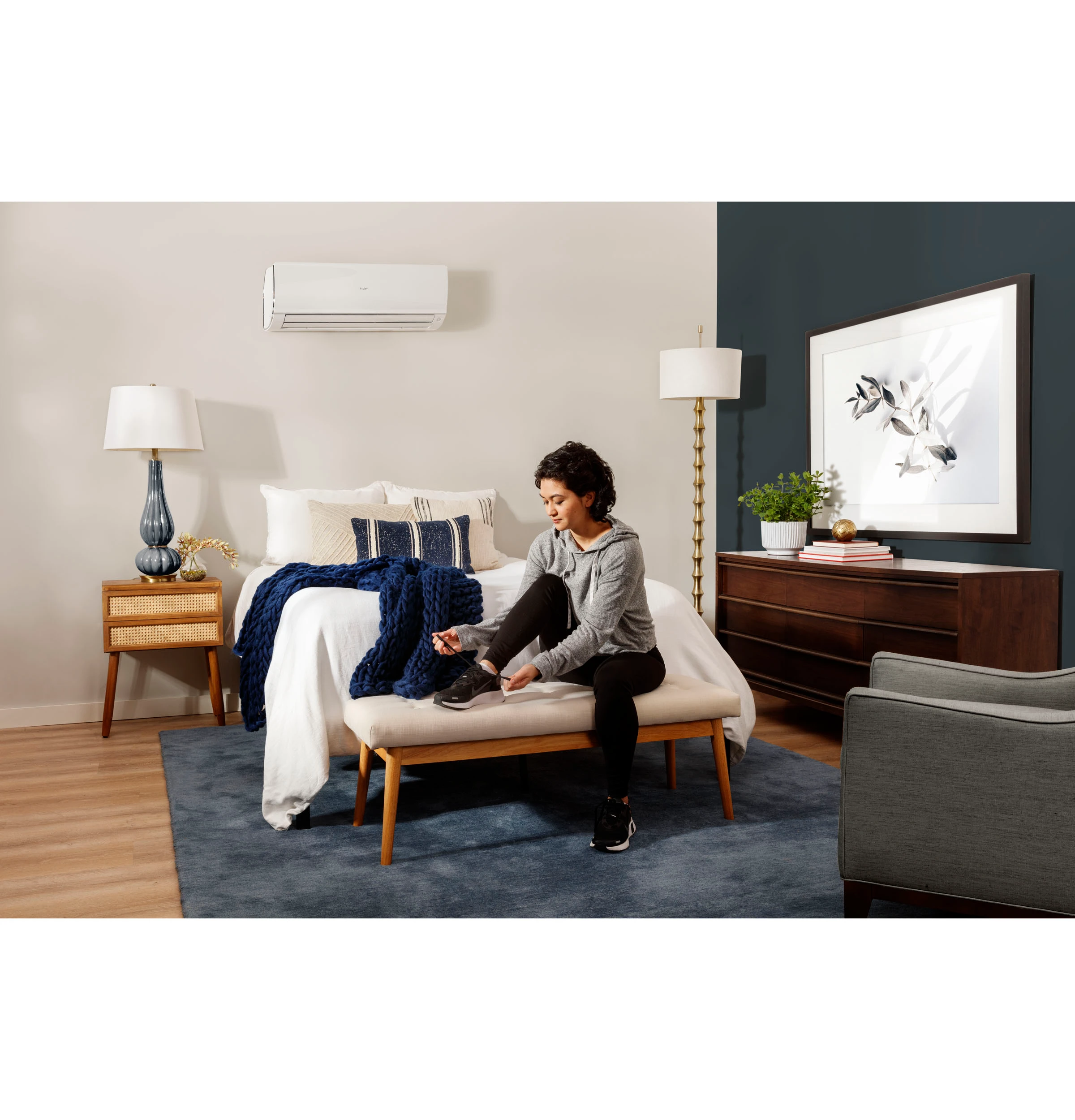

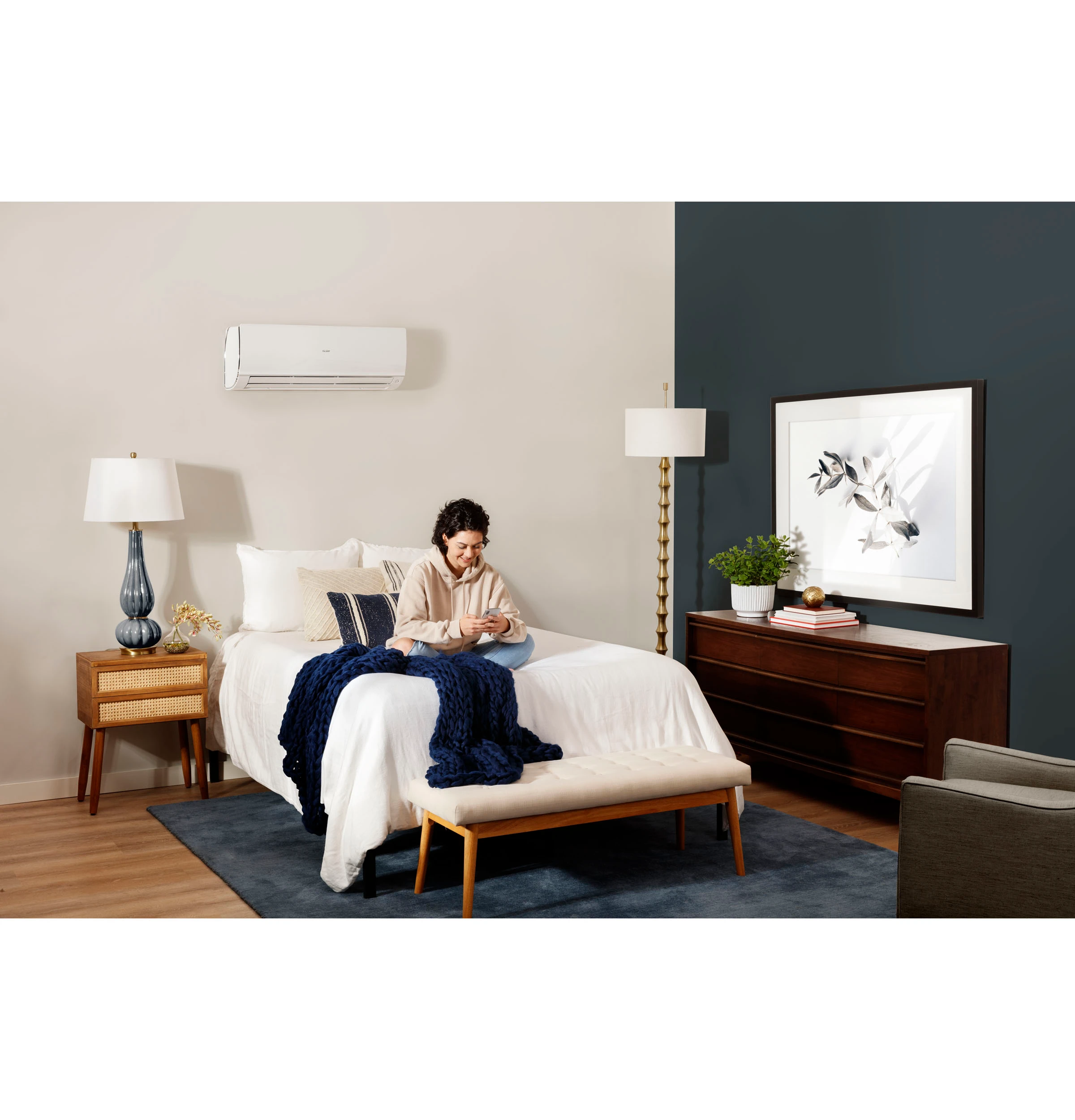

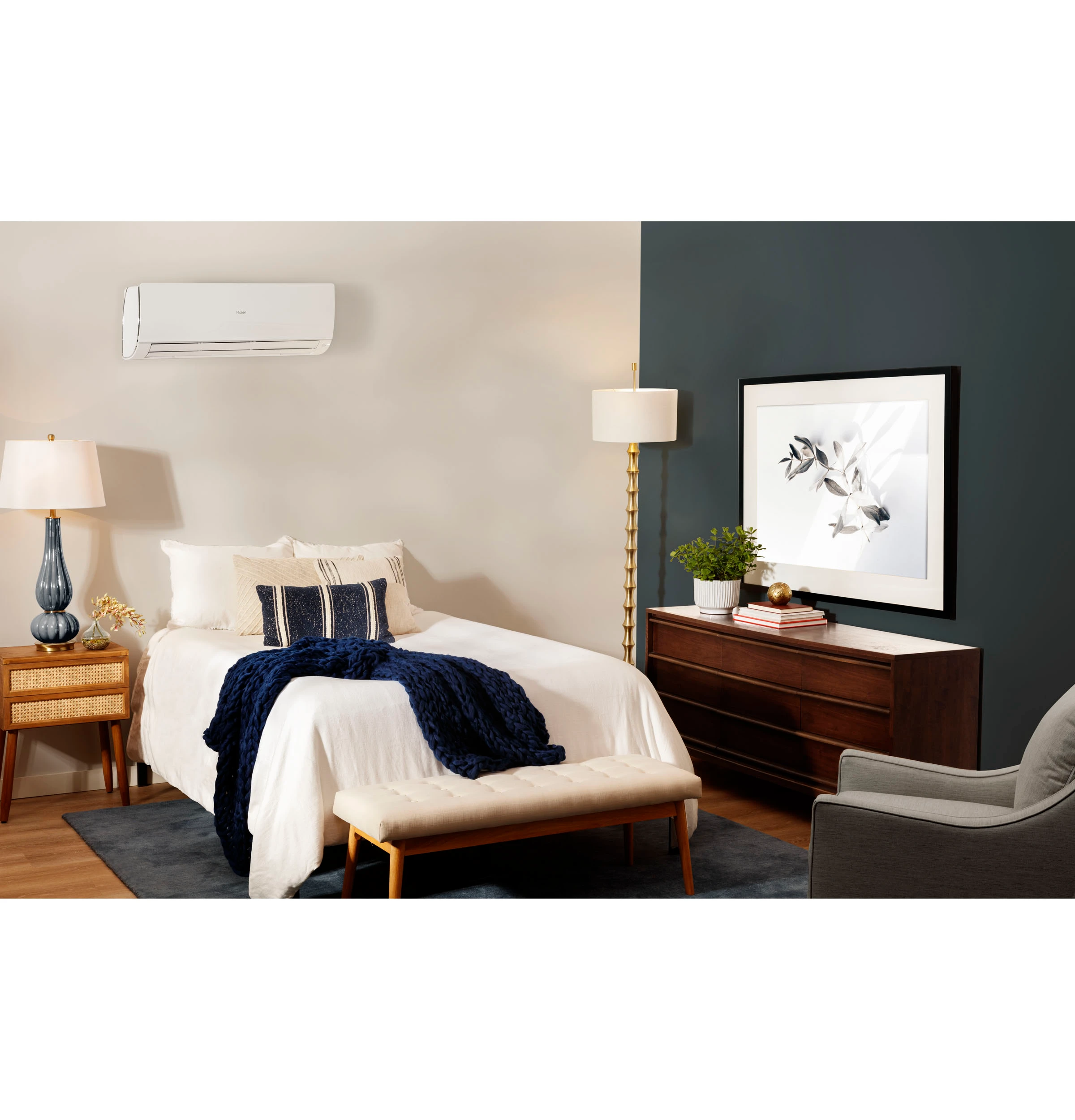

Arctic Series 208-230V 18,000 BTU Single-Zone Ductless Highwall Indoor Unit

Model: AW18EH2VHD

Arctic Series 208-230V 18,000 BTU Single-Zone Ductless Highwall Indoor Unit AW18EH2VHDArctic Series 208-230V 18,000 BTU Single-Zone Ductless Highwall Indoor Unit AW18EH2VHDArctic Series 208-230V 18,000 BTU Single-Zone Ductless Highwall Indoor Unit AW18EH2VHDArctic Series 208-230V 18,000 BTU Single-Zone Ductless Highwall Indoor Unit AW18EH2VHDArctic Series 208-230V 18,000 BTU Single-Zone Ductless Highwall Indoor Unit AW18EH2VHDArctic Series 208-230V 18,000 BTU Single-Zone Ductless Highwall Indoor Unit AW18EH2VHD
Arctic Series 208-230V 18,000 BTU Single-Zone Ductless Highwall Indoor Unit AW18EH2VHD
Arctic Series 208-230V 18,000 BTU Single-Zone Ductless Highwall Indoor Unit AW18EH2VHD
Arctic Series 208-230V 18,000 BTU Single-Zone Ductless Highwall Indoor Unit AW18EH2VHD
Arctic Series 208-230V 18,000 BTU Single-Zone Ductless Highwall Indoor Unit AW18EH2VHD
Arctic Series 208-230V 18,000 BTU Single-Zone Ductless Highwall Indoor Unit AW18EH2VHD
+1more

Color : Other

Arctic Series 208-230V 18,000 BTU Single-Zone Ductless Highwall Indoor Unit AW18EH2VHD
Other

Key Features

  • SmartHQ Home

  • Easy Install Features

  • Smart Sensor

  • 3-D Air Flow

  • Long Distance Air Supply

  • Warm Start

  • Quiet Mode

  • Blue Fin

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

SmartHQ Home

Built-In WiFi allows you to monitor status, adjust temperature, and set cooling and heating schedules from anywhere using your smartphone

Easy Install Features

Loaded with features installers love such as an easy installation clip and a quick mount wall bracket

Smart Sensor

Automatically changes to an energy saving temperature while you are away, then back to your regular setting when you return

3-D Air Flow

Designed to deliver air vertically and horizontally for even distribution and optimal comfort throughout the room

Long Distance Air Supply

Enjoy comfort made easy with a louver that adjusts airflow upward when cooling, or downward when heating

Warm Start

Get warm quickly with a fan that will not blow cold air during heating mode startup

Quiet Mode

Maintain comfort levels while minimizing indoor noise with quiet mode

Blue Fin

A special coating that whisks away condensate water

2-Way Piping Drain

Right or left side drain configuration simplifies installation

ODU Compatibility

Compatible with 1U18EH2VHE Outdoor Unit

See specification book for full heating, cooling, and system details

Certifications

ADA Compliant certification

ADA Compliant

Specifications

FEATURES

Outdoor Model to Complete Single Zone System1U18EH2VHE
Model TypeIndoor
Indoor Sound Level29
Indoor Sound Level35
Indoor Sound Level38
Indoor Sound Level41
Indoor Sound Level47
Outdoor Model to Complete Multi Zone SystemSingle Zone System Only
System18K Arctic
Product TypeSingle Zone
Fan Speed Stages5+ Auto
StyleHighwall
Short DescriptionArctic 18000 BTU Wall-Mounted Indoor
Vapor Refrigerant Line1/2"
Fan Speed Selections5 + Auto
SeriesArctic

POWER / RATINGS

Voltage/Hertz/Phase208-230/60/1
Cooling Rated Capacity BTU/Hr18,000

WARRANTY

Parts WarrantyLimited 5-Year Parts and Compressor. 10-Year Limited Parts and Compressor Warranty with Registration. See warranty documentation for complete information.

APPEARANCE

Color AppearanceWhite

Dimensions & Weight

Width44.38 in.
Height13.25 in.
Length9.06 in.
Weight34.2 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width49.38 in.
Shipping Height18.25 in.
Shipping Length14.06 in.
Shipping Weight74.2 lbs.
Total of Shipping Weight74.2 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement3.08 ft³
Dimensional Weight38.33 lbs.
Total of Cubes3.08 ft³
Total of Dimensional Weight38.33 lbs.
