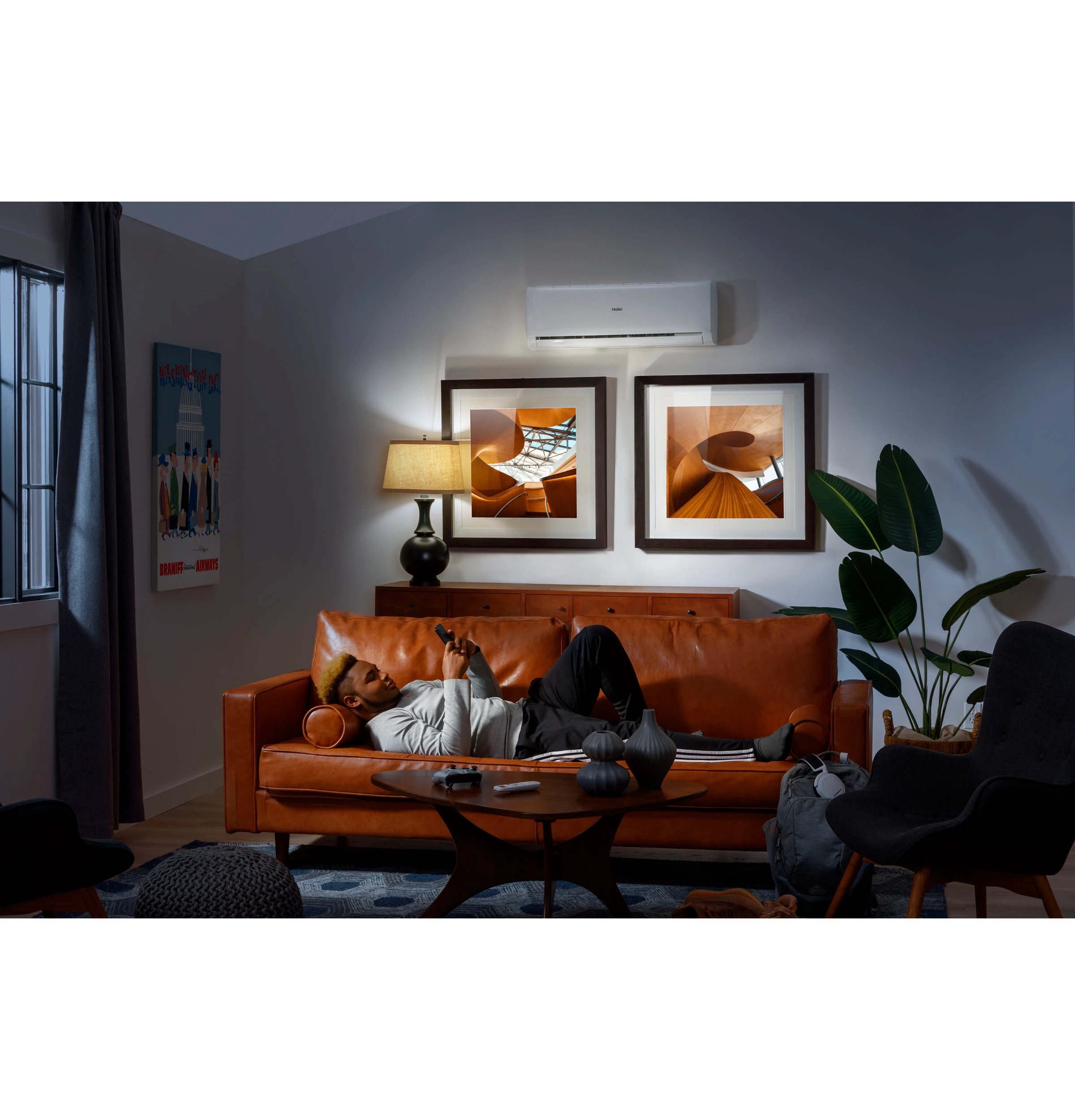

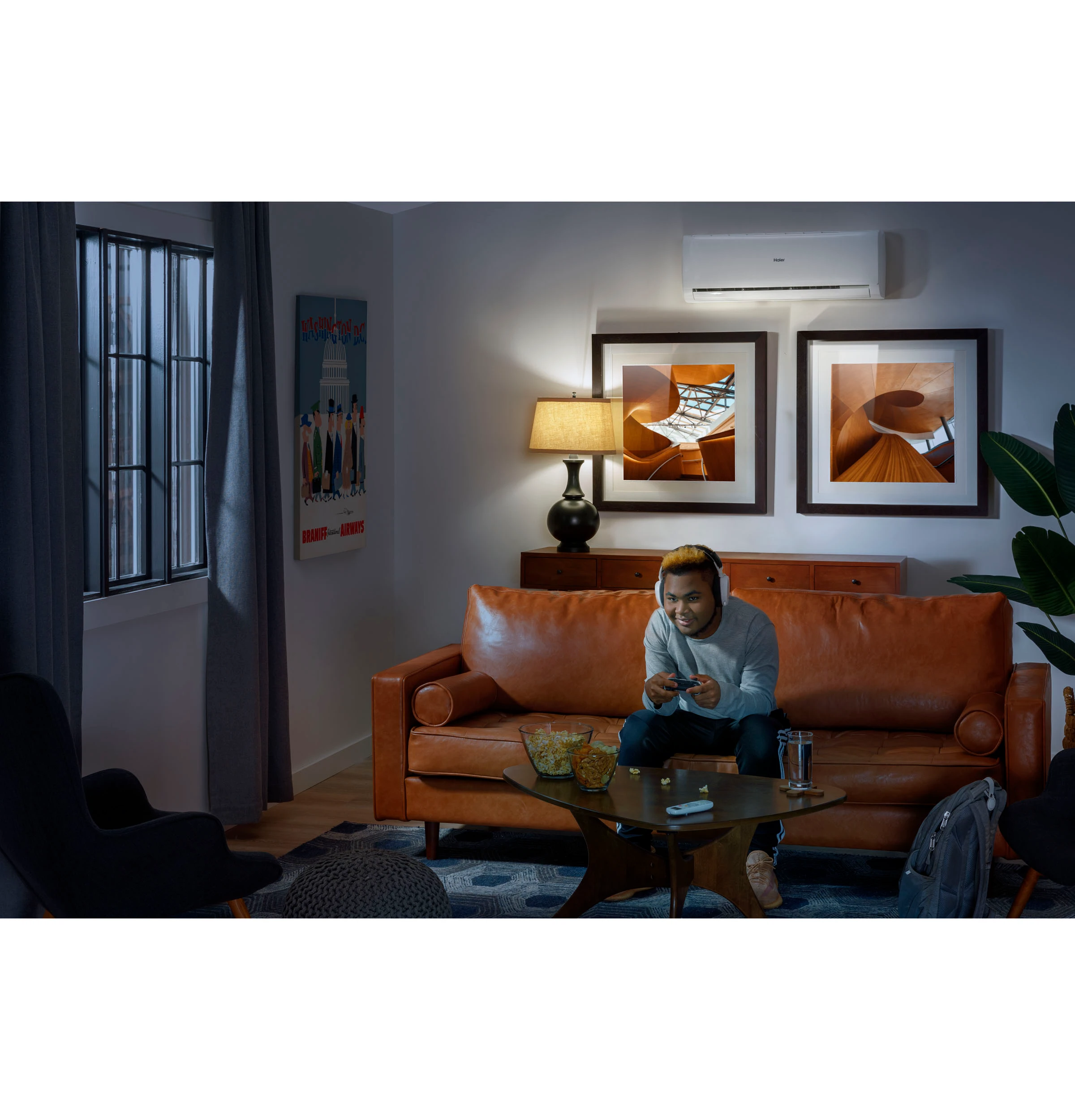

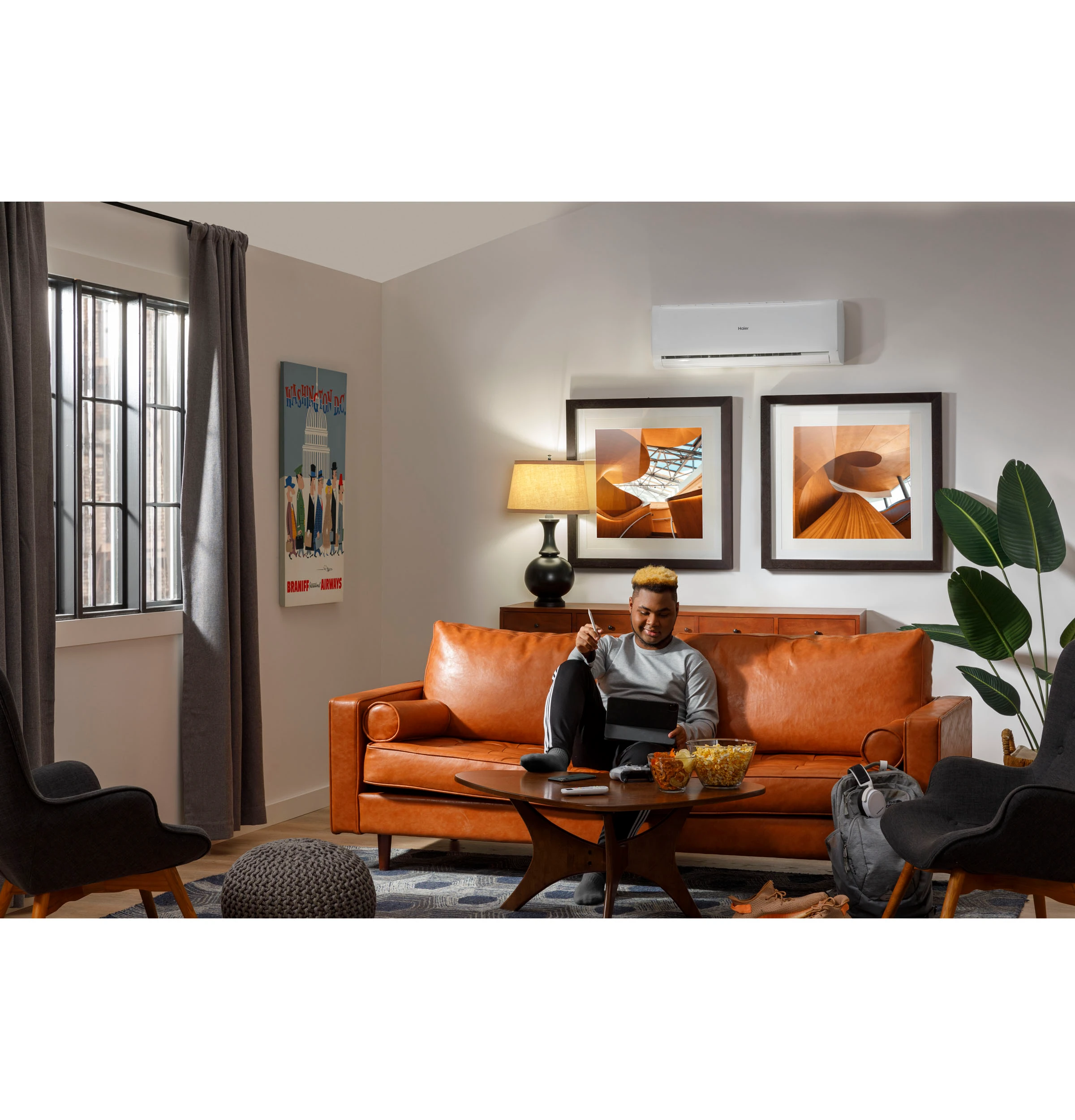

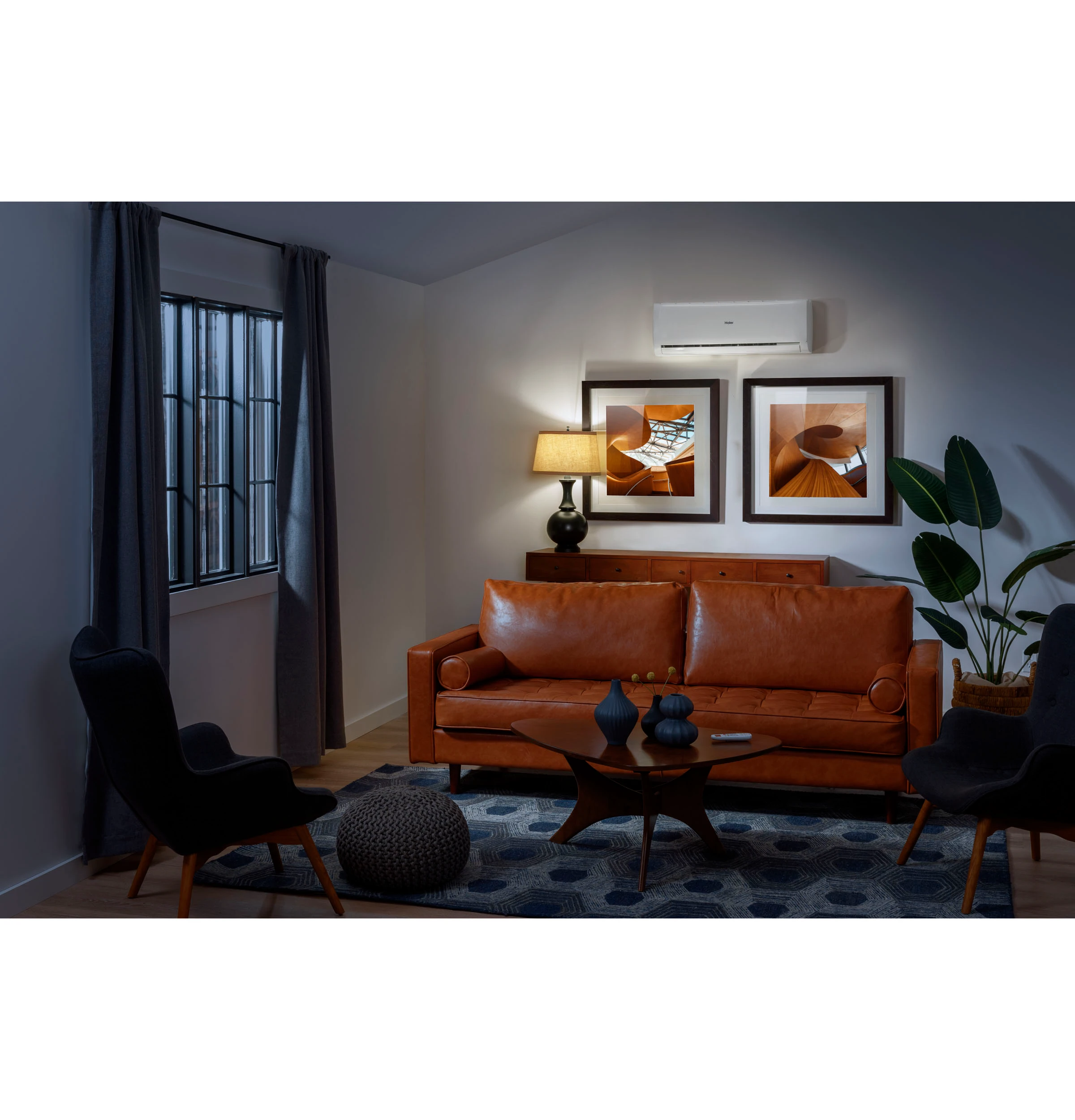

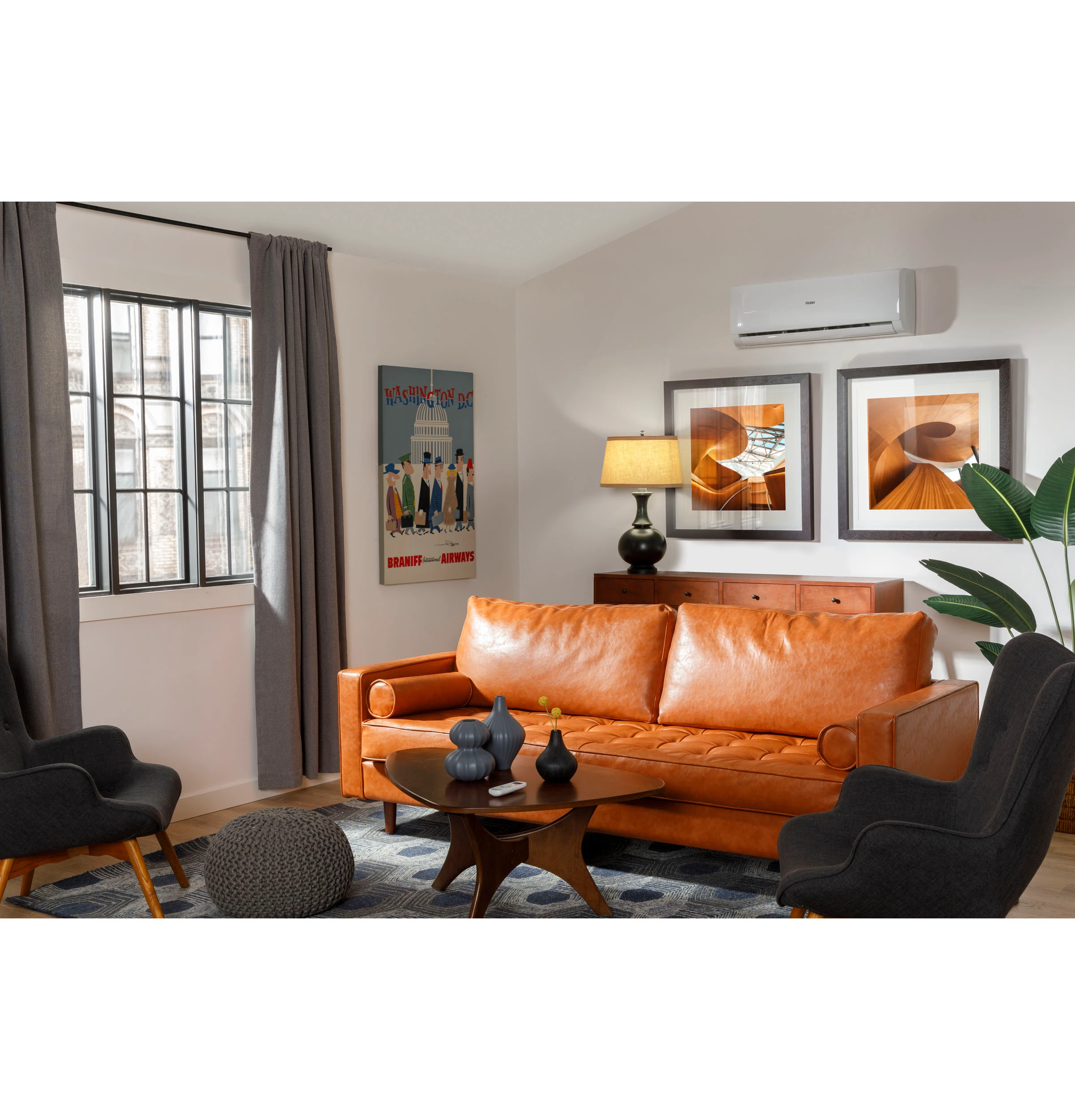

Tempo Series 208-230V 12,000 BTU Single Zone Ductless Highwall Indoor Unit - AW09TE2VHA
Tempo Series 208-230V 12,000 BTU Single Zone Ductless Highwall Indoor Unit
Model: AW09TE2VHA
Tempo Series 208-230V 12,000 BTU Single Zone Ductless Highwall Indoor Unit
Model: AW09TE2VHA
Color : Other
Key Features
SmartHQ Home
Easy Install Features
Auto Louver
Turbo Mode
Blue Fin
Warm Start
Child Lock
2-Way Piping Drain
Documents
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
SmartHQ Home
Built-In WiFi allows you to monitor status, adjust temperature, and set cooling and heating schedules from anywhere using your smartphone
Easy Install Features
Loaded with features installers love such as an easy installation clip and a quick mount wall bracket
Auto Louver
Automatically adjusts airflow upward when cooling, or downward when heating
Turbo Mode
Cools or heats the room quickly
Blue Fin
A special coating that whisks away condensate water
Warm Start
Ensures the fan will not cold air during heating mode startup
Child Lock
Ensures the fan will not cold air during heating mode startup
2-Way Piping Drain
Right or left side drain configuration simplifies installation
ODU Compatibility
Compatible with ASH109CRDWA Outdoor Unit
See specification book for full heating, cooling, and system details
Certifications
ADA Compliant
Specifications
FEATURES
| Outdoor Model to Complete Single Zone System | 1U09TE2VHA |
| Model Type | Indoor |
| Indoor Sound Level | 26 |
| Indoor Sound Level | 29 |
| Indoor Sound Level | 33 |
| Indoor Sound Level | 36 |
| Indoor Sound Level | 42 |
| Outdoor Model to Complete Multi Zone System | Single Zone System Only |
| System | 9K Tempo |
| Product Type | Single Zone |
| Fan Speed Stages | 5+ Auto |
| Style | Highwall |
| Fan Speeds CFM | 200 |
| Fan Speeds CFM | 242 |
| Fan Speeds CFM | 292 |
| Fan Speeds CFM | 332 |
| Fan Speeds CFM | 421 |
| Short Description | Tempo Single Zone 9000 BTU Wall-Mounted Indoor |
| Vapor Refrigerant Line | 3/8" |
| Fan Speed Selections | 5 + Auto |
| Series | Tempo |
POWER / RATINGS
| Voltage/Hertz/Phase | 208-230/60/1 |
| Cooling Rated Capacity BTU/Hr | 12,000 |
WARRANTY
| Parts Warranty | Limited 5-Year Parts and Compressor. 10-Year Limited Parts and Compressor Warranty with Registration. See warranty documentation for complete information. |
APPEARANCE
| Color Appearance | White |
Dimensions & Weight
| Width | 33.75 in. |
| Height | 11.88 in. |
| Length | 7.75 in. |
| Weight | 21.2 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 38.75 in. |
| Shipping Height | 16.88 in. |
| Shipping Length | 12.75 in. |
| Shipping Weight | 61.2 lbs. |
| Total of Shipping Weight | 61.2 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.8 ft³ |
| Dimensional Weight | 22.35 lbs. |
| Total of Cubes | 1.8 ft³ |
| Total of Dimensional Weight | 22.35 lbs. |
