Deluxe 230/208 Volt Room Air Conditioner Window Unit (12,000/11,800 BTUH) - AMD12DB

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

Deluxe 230/208 Volt Room Air Conditioner Window Unit (12,000/11,800 BTUH)

Model: AMD12DB

Deluxe 230/208 Volt Room Air Conditioner Window Unit (12,000/11,800 BTUH) AMD12DBDeluxe 230/208 Volt Room Air Conditioner Window Unit (12,000/11,800 BTUH) AMD12DBDeluxe 230/208 Volt Room Air Conditioner Window Unit (12,000/11,800 BTUH) AMD12DB
Deluxe 230/208 Volt Room Air Conditioner Window Unit (12,000/11,800 BTUH) AMD12DB
Deluxe 230/208 Volt Room Air Conditioner Window Unit (12,000/11,800 BTUH) AMD12DB
Deluxe 230/208 Volt Room Air Conditioner Window Unit (12,000/11,800 BTUH) AMD12DB

Color : Cameo White

Deluxe 230/208 Volt Room Air Conditioner Window Unit (12,000/11,800 BTUH) AMD12DB
Cameo White

Key Features

  • Contemporary white front

  • 12,000 / 11,800 BTU, 9.1 / 9.1 E.E.R., 230 / 208 Volts

  • Energy Saver switch for reduced energy consumption

  • 12-hour timer for delayed start or stop

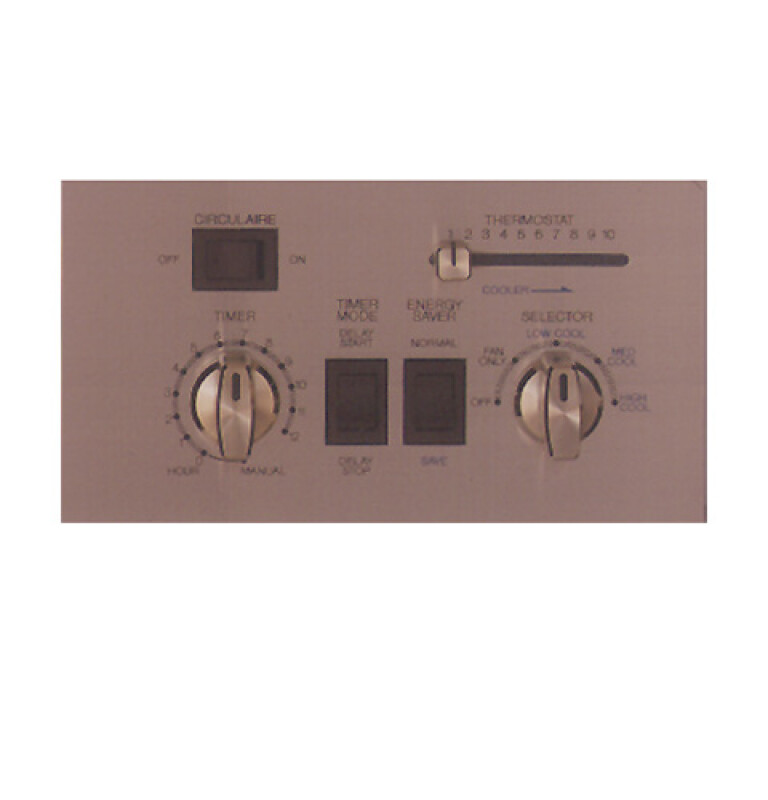

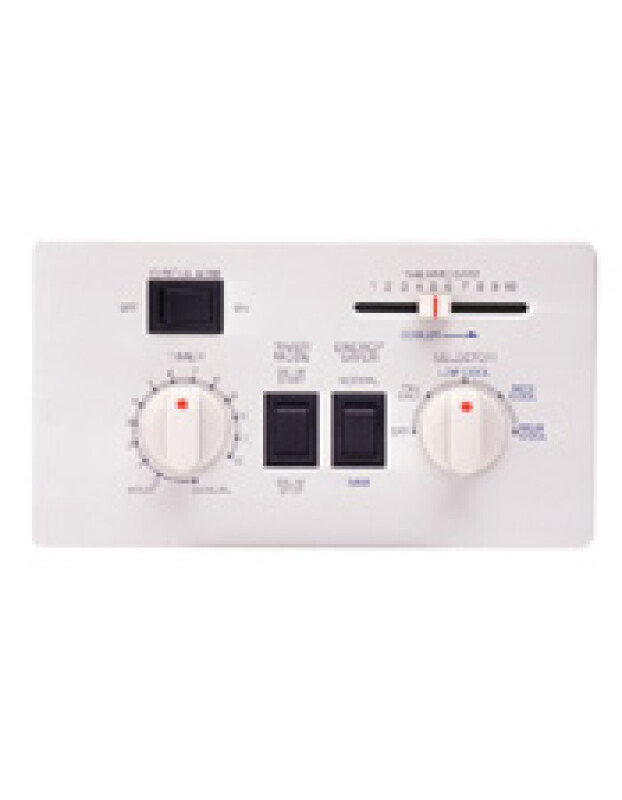

  • Hidden controls provide clean, contemporary appearance

  • Plug type - tandem

  • Exhaust for air exchange

  • Slide-out filter for easy cleaning

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

Contemporary white front

12,000 / 11,800 BTU, 9.1 / 9.1 E.E.R., 230 / 208 Volts

Energy Saver switch for reduced energy consumption

12-hour timer for delayed start or stop

Hidden controls provide clean, contemporary appearance

Plug type - tandem

Exhaust for air exchange

Slide-out filter for easy cleaning

EZ Mount window installation

Slide-out chassis

3 cooling / 1 fan only speeds

Certifications

California Prop 65 certification

California Prop 65

Specifications

Dimensions & Weight

Width22.06 in.
Height14.75 in.
Length23.63 in.
Weight93 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width27.06 in.
Shipping Height19.75 in.
Shipping Length28.63 in.
Shipping Weight133 lbs.
Total of Shipping Weight133 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement4.45 ft³
Dimensional Weight55.31 lbs.
Total of Cubes4.45 ft³
Total of Dimensional Weight55.31 lbs.

FEATURES

Fan Speed Selections3 Cooling
Filter TypeSlide-Out
Chassis TypeSlide-Out
Control Panel DoorYes
Vent/Air Exchange ExhaustExhaust
Plug TypeTandem
Mounting TypeEZ Mount
Delay Timer12-Hour
Thermostat TypeElectronic Slide
Unit TypeCool Only
Airflow (cfm) Roomside330
Fan Speed Selections1 Fan Only
Filter TypeQuick Clean

WEIGHTS & DIMENSIONS

Approximate Shipping Weight100 lb
Min./Max. Window Opening Width (in.)26-1/2 /41
Depth to Louvers9.4375 in
Net Weight93 lb
Minimum Window Opening Height (in.)15.75 in
Overall Depth23 5/8 in
Overall Height14 3/4 in
Overall Width22 1/16 in

POWER / RATINGS

Cooling - Rated Cooling Amps AHAM5.9/6.4
Cooling - Watts1315/1295
Voltage (MIN)208 V
Voltage (MAX)230 V

ECONOMICAL / QUIET

Energy SaverYes

APPEARANCE

InstallationEZ Mount
Color AppearanceCameo White

CAPACITY

Cooling EER (BTUH / Watt)9.1/9.1
Dehumidification (pts./hr.)3.6
Cooling BTUH (MAX)12,000 Btu
Cooling BTUH (MIN)11,800 Btu

Warranty

Labor (Sealed Refrigerating System)5 Year
Parts (Sealed Refrigerating System)5 Year
Labor (Entire Appliance)1 Year
Parts (Entire Appliance)1 Year
