"J" Series Built-In Room Air Conditioner with High Mount Controls - AJXH08AF
"J" Series Built-In Room Air Conditioner with High Mount Controls
Model: AJXH08AF
"J" Series Built-In Room Air Conditioner with High Mount Controls
Model: AJXH08AF
Color : Cameo White
Key Features
Decorative warm gray-beige front
8,200 BTU, 8.7 E.E.R., 115 Volts

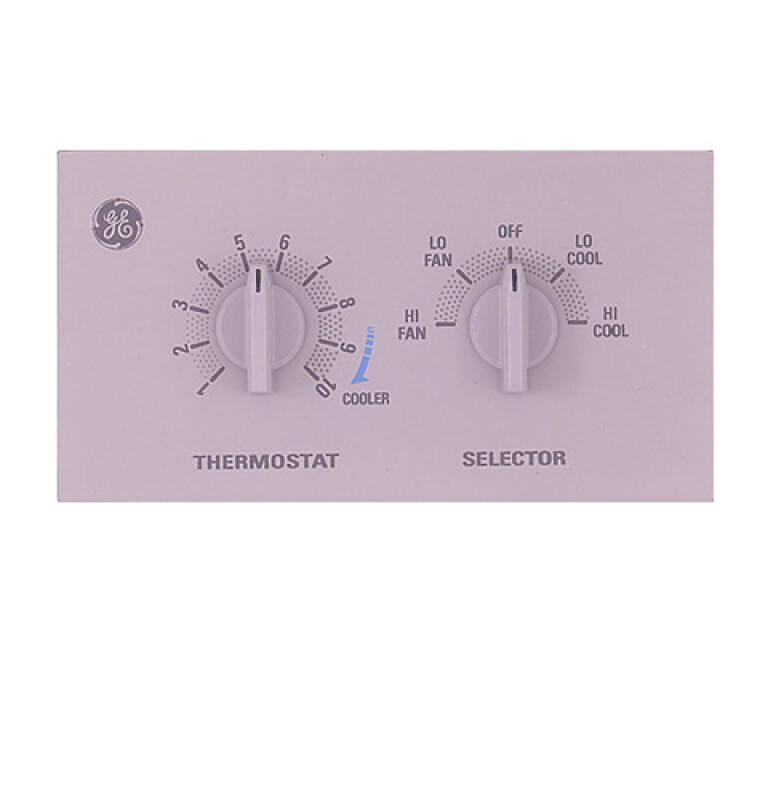

Easy-to-reach controls for high mount installation
Energy Saver switch for reduced energy consumption
10-position thermostat
2 cooling / 2 fan only speeds
Plug type - parallel
Window mounting kit - optional accessory
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Decorative warm gray-beige front
8,200 BTU, 8.7 E.E.R., 115 Volts
Easy-to-reach controls for high mount installation
Energy Saver switch for reduced energy consumption
10-position thermostat
2 cooling / 2 fan only speeds
Plug type - parallel
Window mounting kit - optional accessory
Wall case - optional accessory (RAB46 / 47 / 48)
Chassis only - without wall case and mounting kit
Slide-out chassis
Exhaust for air exchange
Slide-out filter for easy cleaning
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 26 in |
| Net Weight | 142 lb |
| Approximate Shipping Weight | 97 lb |
| Overall Depth | 16 7/8 in |
| Overall Height | 15 5/8 in |
Dimensions & Weight
| Width | 26 in. |
| Height | 15.63 in. |
| Length | 16.88 in. |
| Weight | 142 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 31 in. |
| Shipping Height | 20.63 in. |
| Shipping Length | 21.88 in. |
| Shipping Weight | 182 lbs. |
| Total of Shipping Weight | 182 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 3.97 ft³ |
| Dimensional Weight | 49.32 lbs. |
| Total of Cubes | 3.97 ft³ |
| Total of Dimensional Weight | 49.32 lbs. |
CAPACITY
| Dehumidification (pts./hr.) | 2.0 |
| Cooling EER (BTUH / Watt) | 8.7 |
FEATURES
| Style | Wall/High-Mount |
| Vent/Air Exchange Exhaust | Air Exchange Vent |
| Chassis Type | Slide-Out |
| Rotary Compressor | Yes |
| Unit Type | Cool Only |
| Fan Speed Selections | 2 Fan Only |
| Line Cord Recommended Circuit Prot. (time delay) | 15 Amps |
| Plug Type | Parallel |
| Optional Grill | RAG14 |
| Thermostat Type | 10-Position |
| Filter Type | Slide-Out |
| Louver Style | 4-Way Air Direction |
| Air Discharge | Slope |
| Airflow (cfm) Roomside | 270/240 |
| Fan Speed Selections | 2 Cooling |
APPEARANCE
| Installation | Optional |
| Color Appearance | Cameo White |
POWER / RATINGS
| Cooling - Rated Cooling Amps AHAM | 8.3 |
| Cooling - Watts | 940 |
| Voltage (MAX) | 115 V |
ACCESSORIES
| Wall Case | RAB46/47/48 Required At Additional Cost |
Warranty
| Parts (Sealed Refrigerating System) | 5 Year |
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
