"J Series" Cool Unit - AJM10AF
"J Series" Cool Unit
Model: AJM10AF
"J Series" Cool Unit
Model: AJM10AF
Color : White
Key Features
Decorative warm gray-beige front
10,200 BTU, 8.5 E.E.R., 115 Volts
Hidden Energy Saver switch for reduced energy consumption

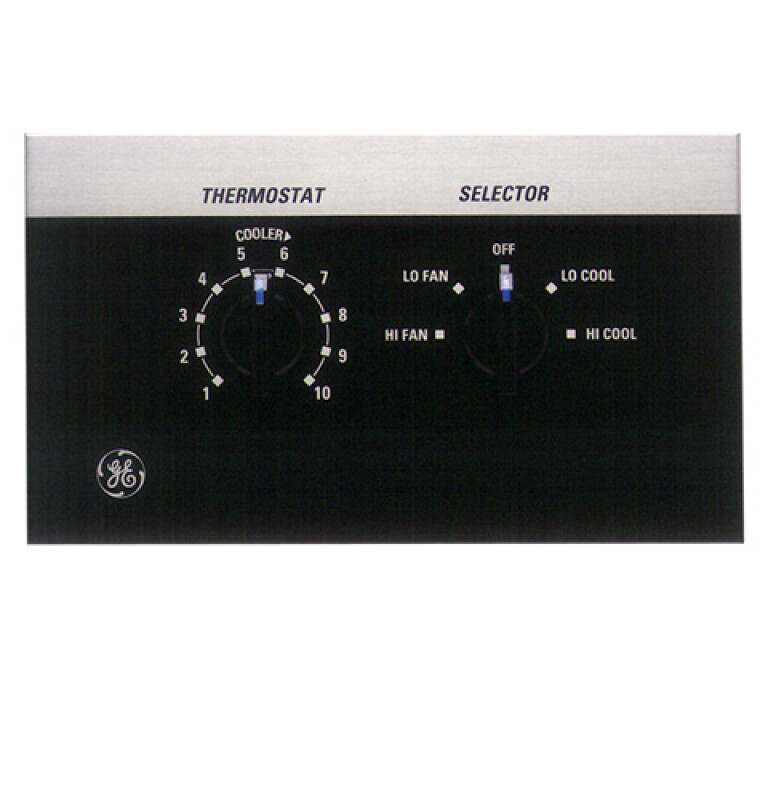

10-position thermostat
2 cooling / 2 fan only speeds
Slide-out filter for easy cleaning
Plug type - parallel
Window mounting kit - optional accessory
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Decorative warm gray-beige front
10,200 BTU, 8.5 E.E.R., 115 Volts
Hidden Energy Saver switch for reduced energy consumption
10-position thermostat
2 cooling / 2 fan only speeds
Slide-out filter for easy cleaning
Plug type - parallel
Window mounting kit - optional accessory
Wall case - optional accessory
Chassis only - without wall case and mounting kit
Slide-out chassis
Hidden exhaust control for air exchange
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 26 in |
| Approximate Shipping Weight | 101 lb |
| Net Weight | 91 lb |
| Overall Depth | 16 7/8 in |
| Overall Height | 15 5/8 in |
Dimensions & Weight
| Width | 26 in. |
| Height | 15.63 in. |
| Length | 16.88 in. |
| Weight | 91 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 31 in. |
| Shipping Height | 20.63 in. |
| Shipping Length | 21.88 in. |
| Shipping Weight | 131 lbs. |
| Total of Shipping Weight | 131 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 3.97 ft³ |
| Dimensional Weight | 49.32 lbs. |
| Total of Cubes | 3.97 ft³ |
| Total of Dimensional Weight | 49.32 lbs. |
FEATURES
| Louver Style | 4-Way Air Direction |
| Fan Speed Selections | 2 Fan Only |
| Optional Grill | RAG14 |
| Air Discharge | Slope |
| Line Cord Recommended Circuit Prot. (time delay) | 15 Amps |
| Filter Type | Slide-Out |
| Style | Wall Mount Only |
| Vent/Air Exchange Exhaust | Air Exchange Exhaust |
| Plug Type | Parallel |
| Thermostat Type | 10-Position |
| Rotary Compressor | Yes |
| Unit Type | Cool Only |
| Chassis Type | Slide-Out |
| Airflow (cfm) Roomside | 270/240 |
| Fan Speed Selections | 2 Cooling |
| Filter Type | Quick Clean |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | For models produced on or after January 1, 2006 |
POWER / RATINGS
| Cooling - Rated Cooling Amps AHAM | 10.6 |
| Cooling - Watts | 1200 |
| Voltage (MAX) | 115 V |
ECONOMICAL / QUIET
| Energy Saver | Yes |
ACCESSORIES
| Wall Case | RAB46/47/48 Required At Additional Cost |
APPEARANCE
| Installation | Optional |
| Color Appearance | Cameo White |
CAPACITY
| Cooling EER (BTUH / Watt) | 8.5 |
| Dehumidification (pts./hr.) | 2.7 |
| Cooling BTUH (MAX) | 10,200 Btu |
