"J Series" Built-In Heat/Cool Unit (9,800/9,600 BTUH) - AJHS10DC
"J Series" Built-In Heat/Cool Unit (9,800/9,600 BTUH)
Model: AJHS10DC
"J Series" Built-In Heat/Cool Unit (9,800/9,600 BTUH)
Model: AJHS10DC
Color : Cameo White
Key Features
Decorative warm gray-beige front
9,800 / 9,600 BTU (cooling), 11,600 / 9,500 BTU (resistance heating), 9,700 / 9,500 BTU (reverse cycle heating), 9.2/9.2 E.E.R., 230/208 Volts
Fan cycle switch for reduced energy consumption

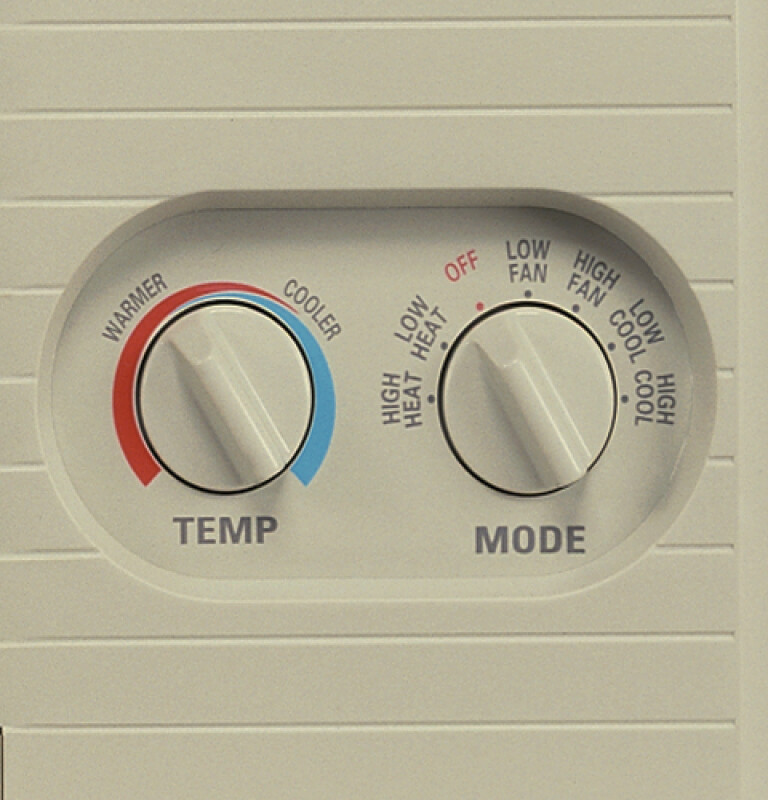

10-position thermostat
2 cooling / 2 fan only speeds
Includes two-stage heating thermostat
Plug type - perpendicular
Window mounting kit - optional accessory
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Decorative warm gray-beige front
9,800 / 9,600 BTU (cooling), 11,600 / 9,500 BTU (resistance heating), 9,700 / 9,500 BTU (reverse cycle heating), 9.2/9.2 E.E.R., 230/208 Volts
Fan cycle switch for reduced energy consumption
10-position thermostat
2 cooling / 2 fan only speeds
Includes two-stage heating thermostat
Plug type - perpendicular
Window mounting kit - optional accessory
Wall case - optional accessory (RAB46 / 47 / 48)
Chassis only - without wall case and mounting kit
Slide-out chassis
Exhaust for air exchange
Slide-out filter for easy cleaning
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 26 in |
| Approximate Shipping Weight | 93 lb |
| Net Weight | 84 lb |
| Overall Depth | 16 7/8 in |
| Overall Height | 15 5/8 in |
Dimensions & Weight
| Width | 26 in. |
| Height | 15.63 in. |
| Length | 16.88 in. |
| Weight | 84 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 31 in. |
| Shipping Height | 20.63 in. |
| Shipping Length | 21.88 in. |
| Shipping Weight | 124 lbs. |
| Total of Shipping Weight | 124 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 3.97 ft³ |
| Dimensional Weight | 49.32 lbs. |
| Total of Cubes | 3.97 ft³ |
| Total of Dimensional Weight | 49.32 lbs. |
FEATURES
| Louver Style | 4-Way Air Direction |
| Heating - Reverse Cycle - COP at 47° | 2.3/2.3 |
| Optional Grill | RAG14 |
| Air Discharge | Multi-Directional |
| Line Cord Recommended Circuit Prot. (time delay) | 20 Amps |
| Filter Type | Slide-Out |
| Style | Wall Mount Only |
| Chassis Type | Slide-Out |
| Vent/Air Exchange Exhaust | Air Exchange Exhaust |
| Plug Type | Perpendicular |
| Thermostat Type | 10-Position |
| Heating - Reverse Cycle - Rated Heating Amps - AHAM | 5.2/5.5 |
| Rotary Compressor | Yes |
| Unit Type | Heat Pump |
| Fan Speed Selections | 2 Fan Only |
| Airflow (cfm) Roomside | 250/210 |
| Fan Speed Selections | 2 Heating |
| Fan Speed Selections | 2 Cooling |
| Filter Type | Quick Clean |
POWER / RATINGS
| Cooling - Rated Cooling Amps AHAM | 5.3/5.6 |
| Heating - Reverse Cycle - Watts | 1140/1130 |
| Cooling - Watts | 1180/1160 |
| Voltage (MIN) | 208 V |
| Heating - Electric - Heater Watts | 3550/2930 |
| Voltage (MAX) | 230 V |
| Heating - Electric - Heater Amps | 15.5/14.2 |
ECONOMICAL / QUIET
| Energy Saver | Yes |
ACCESSORIES
| Wall Case | RAB46/47/48 Required At Additional Cost |
APPEARANCE
| Installation | Optional |
| Color Appearance | Cameo White |
CAPACITY
| Cooling EER (BTUH / Watt) | 9.2/9.2 |
| Heating - Electric - BTUH - AHAM - 1R | 11600/9500 |
| Dehumidification (pts./hr.) | 2.6 |
| Heating - Reverse Cycle - BTUH - AHAM - H.P. | 9700/9500 |
| Cooling BTUH (MAX) | 9,800 Btu |
| Cooling BTUH (MIN) | 9,600 Btu |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Labor (Sealed System) | 5 Year |
| Parts | 5 Year |
