GE115 Volt Built-In Room Air Heat/Cool Unit - AJHS08ASC
GE115 Volt Built-In Room Air Heat/Cool Unit
Model: AJHS08ASC
GE115 Volt Built-In Room Air Heat/Cool Unit
Model: AJHS08ASC
Color : Soft Gray
Key Features
8,400 BTUH cooling capacity
7,700 BTU pump
4,100 BTU strip
9.5 EER
115 Volt outlet type

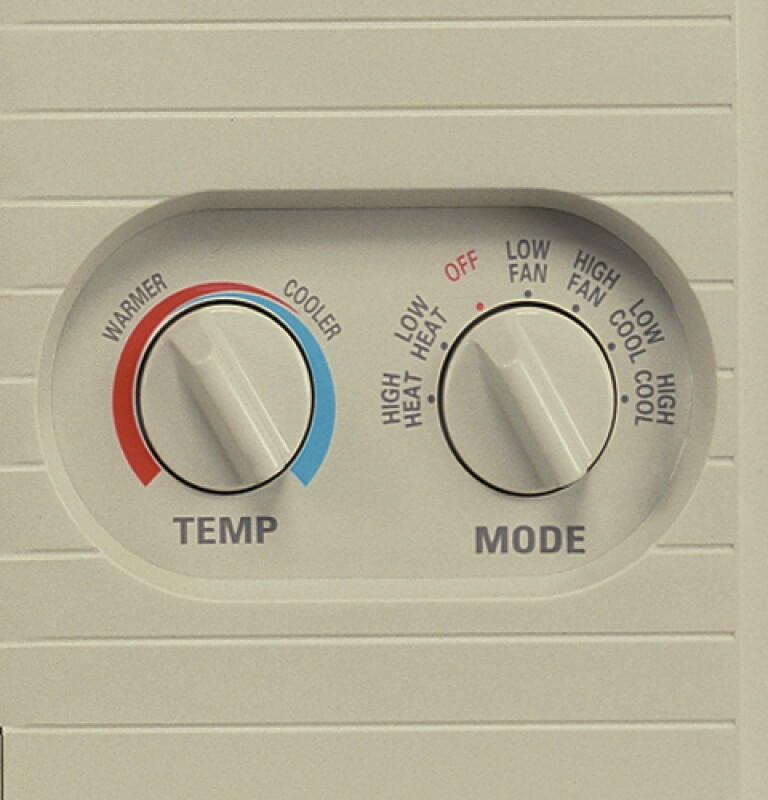

Mechanical controls
2 cooling / 2 heating / 2 fan only speeds
Upfront, washable air filter
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
8,400 BTUH cooling capacity
7,700 BTU pump
4,100 BTU strip
9.5 EER
115 Volt outlet type
Mechanical controls
2 cooling / 2 heating / 2 fan only speeds
Upfront, washable air filter
4-way air direction
Variable position thermostat
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
WEIGHTS & DIMENSIONS
| Overall Width | 26 in |
| Overall Depth | 16 7/8 in |
| Overall Height | 15 5/8 in |
Dimensions & Weight
| Width | 26 in. |
| Height | 15.63 in. |
| Length | 16.88 in. |
| Weight | 91 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 31 in. |
| Shipping Height | 20.63 in. |
| Shipping Length | 21.88 in. |
| Shipping Weight | 131 lbs. |
| Total of Shipping Weight | 131 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 3.97 ft³ |
| Dimensional Weight | 49.32 lbs. |
| Total of Cubes | 3.97 ft³ |
| Total of Dimensional Weight | 49.32 lbs. |
FEATURES
| Louver Style | 4-Way Air Direction |
| Control Type | Dial |
| Fan Speed Selections | 2 Fan Only |
| Indoor Product Features | Washable Air Filter |
| Air Discharge | Over / Under |
| Line Cord Recommended Circuit Prot. (time delay) | 15 Amps |
| Style | Thru-Wall or Window (Optional) |
| Chassis Type | Slide-Out |
| Plug Type | Parallel/Right Angle/NEMA 5-15P |
| Heating - Electric - Input Watts | 1380 |
| Thermostat Type | Variable Setting |
| Temperature Range | 62->85 F |
| Heating - Reverse Cycle - Rated Heating Amps - AHAM | 7.0 |
| Cord Length | 75" |
| Rotary Compressor | Yes |
| Heating - Reverse Cycle - COP | 3.0 |
| Outdoor Vent / Exhaust | Yes |
| Unit Type | Heat/Cool with Heat Pump |
| Filter Type | Rigid Frame |
| Airflow (cfm) Roomside | 237/212 |
| Filter Type | Slide-Out |
| Fan Speed Selections | 2 Cooling |
| Filter Type | Quick Clean |
POWER / RATINGS
| Hertz | 60 |
| Cooling - Rated Cooling Amps AHAM | 8.2 |
| Heating - Reverse Cycle - Watts | 755 |
| Cooling - Watts | 880 |
| Voltage (MAX) | 115 V |
| Heating - Electric - Heater Amps | 12.0 |
ECONOMICAL / QUIET
| Energy Saver | Yes |
ACCESSORIES
| Wall Case | Included |
APPEARANCE
| Installation | Standard Mount; Wall Case; Window Kit Available |
| Color Appearance | Soft Gray |
CAPACITY
| Cooling EER (BTUH / Watt) | 9.5 |
| Heating - Reverse Cycle - BTUH | 7700 |
| Heating - Electric - BTUH - AHAM - 1R | 4100 |
| Dehumidification (pts./hr.) | 2.1 |
| Heating - Reverse Cycle - BTUH - AHAM - H.P. | 7700 |
| Cooling BTUH (MAX) | 8,400 Btu |
