115 Volt "J" Series Built-In Heat Pump - AJHS08ASA
115 Volt "J" Series Built-In Heat Pump
Model: AJHS08ASA
115 Volt "J" Series Built-In Heat Pump
Model: AJHS08ASA
Color : Gray
Replaced By
Key Features
8,000 BTU (cooling), 4,00 BTU (electric heat), 7,700 (reverse heat), 115 Volts
9.2 EER

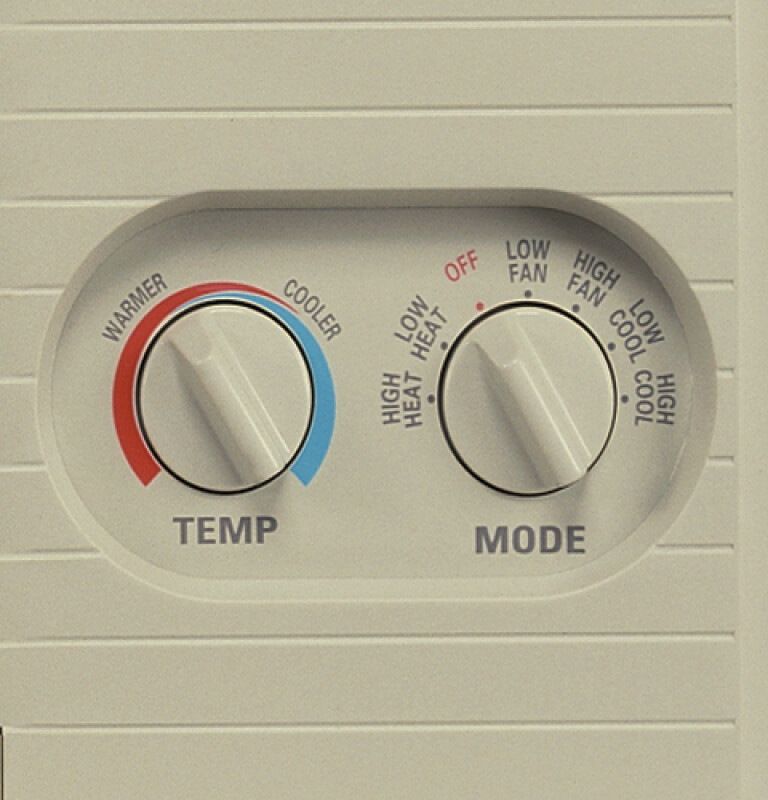

Mechanical controls with variable setting thermostat
2 cooling / 2 heating fan speeds (2 fan positions)
Slide-out chassis
870 cooling Watts / 7.9 cooling Amps
Rotary compressor
Plug type - parallel
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
8,000 BTU (cooling), 4,00 BTU (electric heat), 7,700 (reverse heat), 115 Volts
9.2 EER
Mechanical controls with variable setting thermostat
2 cooling / 2 heating fan speeds (2 fan positions)
Slide-out chassis
870 cooling Watts / 7.9 cooling Amps
Rotary compressor
Plug type - parallel
230 CFM indoor fan (high)
Hidden controls provide clean, contemporary appearance
Slide-out filter
Exhaust for air exchange
2.0 dehumidification (pints/hr)
Fan cycle switch for reduced energy consumption
Standard window mounting
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 26 in |
| Approximate Shipping Weight | 107 lb |
| Min./Max. Window Opening Width (in.) | 31/42 |
| Net Weight | 98 lb |
| Minimum Window Opening Height (in.) | 17 in |
| Overall Depth | 16 7/8 in |
| Overall Height | 15 5/8 in |
Dimensions & Weight
| Width | 26 in. |
| Height | 15.63 in. |
| Length | 16.88 in. |
| Weight | 98 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 31 in. |
| Shipping Height | 20.63 in. |
| Shipping Length | 21.88 in. |
| Shipping Weight | 138 lbs. |
| Total of Shipping Weight | 138 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 3.97 ft³ |
| Dimensional Weight | 49.32 lbs. |
| Total of Cubes | 3.97 ft³ |
| Total of Dimensional Weight | 49.32 lbs. |
FEATURES
| Louver Style | Adjustable |
| Heating - Reverse Cycle - COP at 47° | 3.0 |
| Air Discharge | Multi-Directional |
| Line Cord Recommended Circuit Prot. (time delay) | 15 Amps |
| Filter Type | Slide-Out |
| Style | Window/Wall Mount |
| Chassis Type | Slide-Out |
| Vent/Air Exchange Exhaust | Air Exchange Exhaust |
| Plug Type | Parallel |
| Thermostat Type | Variable Setting |
| Heating - Reverse Cycle - Rated Heating Amps - AHAM | 6.8 |
| Rotary Compressor | Yes |
| Unit Type | Heat Pump |
| Fan Speed Selections | 2 Fan Only |
| Airflow (cfm) Roomside | 230/190 |
| Fan Speed Selections | 2 Heating |
| Fan Speed Selections | 2 Cooling |
| Filter Type | Quick Clean |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | For models produced on or after January 1, 2006 |
POWER / RATINGS
| Cooling - Rated Cooling Amps AHAM | 7.9 |
| Heating - Reverse Cycle - Watts | 1200 |
| Cooling - Watts | 870 |
| Heating - Electric - Heater Watts | 750 |
| Voltage (MAX) | 115 V |
| Heating - Electric - Heater Amps | 12.0 |
ACCESSORIES
| Wall Case | Included |
CAPACITY
| Cooling EER (BTUH / Watt) | 9.2 |
| Heating - Electric - BTUH - AHAM - 1R | 4100 |
| Dehumidification (pts./hr.) | 2.0 |
| Heating - Reverse Cycle - BTUH - AHAM - H.P. | 7700 |
| Cooling BTUH (MAX) | 8,000 Btu |
APPEARANCE
| Color Appearance | Grey-Beige |
