"J Series" Window/Built-In Heat/Cool Unit (9,900/9,700 BTUH) - AJES10DS

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

"J Series" Window/Built-In Heat/Cool Unit (9,900/9,700 BTUH)

Model: AJES10DS

"J Series" Window/Built-In Heat/Cool Unit (9,900/9,700 BTUH) AJES10DS"J Series" Window/Built-In Heat/Cool Unit (9,900/9,700 BTUH) AJES10DS
"J Series" Window/Built-In Heat/Cool Unit (9,900/9,700 BTUH) AJES10DS
"J Series" Window/Built-In Heat/Cool Unit (9,900/9,700 BTUH) AJES10DS

Color : Grey-Beige

"J Series" Window/Built-In Heat/Cool Unit (9,900/9,700 BTUH) AJES10DS
Grey-Beige

Key Features

  • Decorative warm gray-beige front

  • 9,900 / 9,700 BTU (cooling), 11,600 / 9,500 BTU (electric heat), 9.2/9.2 E.E.R., 230/208 Volts

  • Fan cycle switch for reduced energy consumption

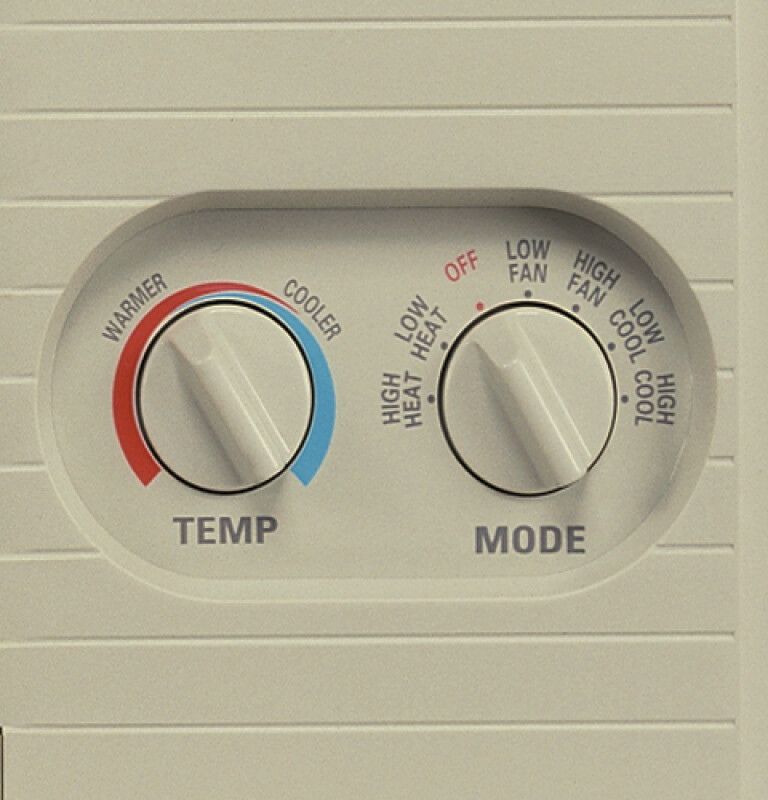

  • 10-position thermostat

  • 2 cooling / 2 heating / 2 fan only speeds

  • Standard installation

  • Plug type - perpendicular

  • Slide-out chassis

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

Decorative warm gray-beige front

9,900 / 9,700 BTU (cooling), 11,600 / 9,500 BTU (electric heat), 9.2/9.2 E.E.R., 230/208 Volts

Fan cycle switch for reduced energy consumption

10-position thermostat

2 cooling / 2 heating / 2 fan only speeds

Standard installation

Plug type - perpendicular

Slide-out chassis

Exhaust for air exchange

Slide-out filter for easy cleaning

Certifications

California Prop 65 certification

California Prop 65

Specifications

WEIGHTS & DIMENSIONS

Overall Width26 in
Approximate Shipping Weight117 lb
Min./Max. Window Opening Width (in.)31/42
Net Weight108 lb
Minimum Window Opening Height (in.)17 in
Overall Depth16 7/8 in
Overall Height15 5/8 in

FEATURES

Louver StyleAdjustable
Air DischargeMulti-Directional
Line Cord Recommended Circuit Prot. (time delay)20 Amps
Filter TypeSlide-Out
StyleWindow/Wall Mount
Chassis TypeSlide-Out
Vent/Air Exchange ExhaustAir Exchange Exhaust
Plug TypePerpendicular
Thermostat Type10-Position
Rotary CompressorYes
Unit TypeHeat / Cool Unit
Fan Speed Selections2 Fan Only
Airflow (cfm) Roomside250/210
Fan Speed Selections2 Heating
Fan Speed Selections2 Cooling
Filter TypeQuick Clean

POWER / RATINGS

Cooling - Rated Cooling Amps AHAM4.9/5.3
Cooling - Watts1075/1055
Voltage (MIN)208 V
Heating - Electric - Heater Watts3400/2780
Voltage (MAX)230 V
Heating - Electric - Heater Amps16.0

ECONOMICAL / QUIET

Energy SaverYes

ACCESSORIES

Wall CaseN/A

APPEARANCE

InstallationStandard Mount
Color AppearanceGrey-Beige

CAPACITY

Cooling EER (BTUH / Watt)9.2/9.2
Heating - Electric - BTUH - AHAM - 1R11600/9500
Dehumidification (pts./hr.)2.6
Cooling BTUH (MAX)9,900 Btu
Cooling BTUH (MIN)9,700 Btu

Dimensions & Weight

Width26 in.
Height15.63 in.
Length16.88 in.
Weight108 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width31 in.
Shipping Height20.63 in.
Shipping Length21.88 in.
Shipping Weight148 lbs.
Total of Shipping Weight148 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement3.97 ft³
Dimensional Weight49.32 lbs.
Total of Cubes3.97 ft³
Total of Dimensional Weight49.32 lbs.

Warranty

Labor (Sealed Refrigerating System)5 Year
Parts (Sealed Refrigerating System)5 Year
Labor (Entire Appliance)1 Year
Parts (Entire Appliance)1 Year
