230/208 Volt Built-In "J" Series Heat and Cool Unit - AJES10DCA
230/208 Volt Built-In "J" Series Heat and Cool Unit
Model: AJES10DCA
230/208 Volt Built-In "J" Series Heat and Cool Unit
Model: AJES10DCA
Color : Gray
Replaced By
Key Features
9,900 / 9,700 BTU, 230/208 Volts
9.2 / 9.2 EER.

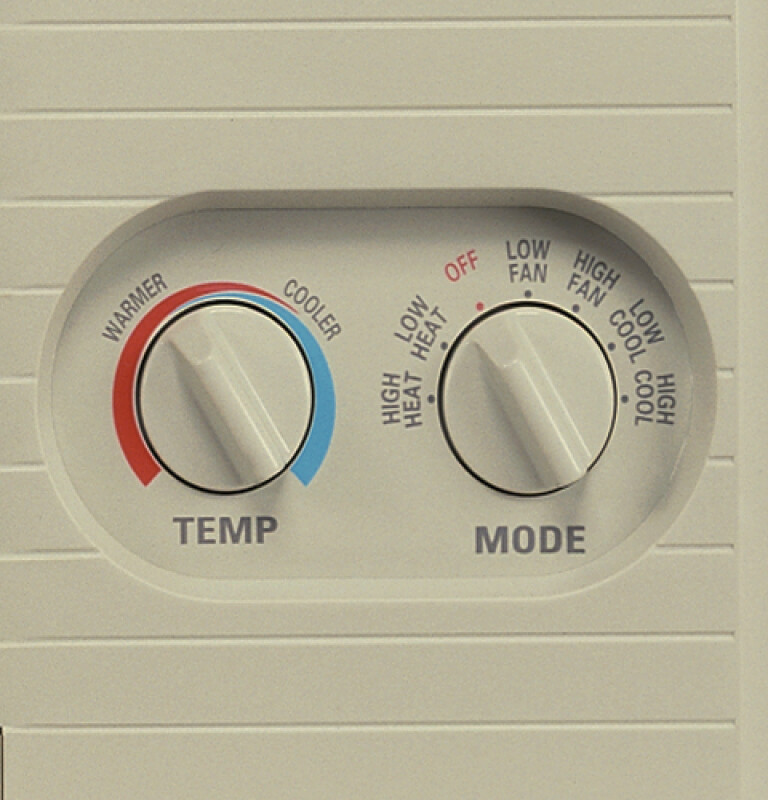

Mechanical controls with variable setting thermostat
2 cooling / 2 heating / 2 fan only speeds
Slide-out chassis
Electric resistance heating: 11,600 / 9,480 BTU, 15.5 / 14.0 Amps, 3400 / 2780 Watts
1075/1055 cooling Watts / 4.9/5.3 cooling Amps
Optional wall mount installation kit
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
9,900 / 9,700 BTU, 230/208 Volts
9.2 / 9.2 EER.
Mechanical controls with variable setting thermostat
2 cooling / 2 heating / 2 fan only speeds
Slide-out chassis
Electric resistance heating: 11,600 / 9,480 BTU, 15.5 / 14.0 Amps, 3400 / 2780 Watts
1075/1055 cooling Watts / 4.9/5.3 cooling Amps
Optional wall mount installation kit
250 / 210 CFM indoor fan (high/low)
Plug type - perpendicular
Rotary compressor
2.6 dehumidification (pints/hr)
Fan cycle switch for reduced energy consumption
Exhaust for air exchange
Slide-out filter for easy cleaning
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 26 in |
| Approximate Shipping Weight | 93 lb |
| Net Weight | 84 lb |
| Overall Depth | 16 7/8 in |
| Overall Height | 15 5/8 in |
Dimensions & Weight
| Width | 26 in. |
| Height | 15.63 in. |
| Length | 16.88 in. |
| Weight | 84 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 31 in. |
| Shipping Height | 20.63 in. |
| Shipping Length | 21.88 in. |
| Shipping Weight | 124 lbs. |
| Total of Shipping Weight | 124 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 3.97 ft³ |
| Dimensional Weight | 49.32 lbs. |
| Total of Cubes | 3.97 ft³ |
| Total of Dimensional Weight | 49.32 lbs. |
FEATURES
| Louver Style | 4-Way Air Direction |
| Optional Grill | RAG14-Architectural Grill / RAG13 Stamped Aluminum (inc. at no extra cost) |
| Air Discharge | Multi-Directional |
| Line Cord Recommended Circuit Prot. (time delay) | 20 Amps |
| Filter Type | Slide-Out |
| Style | Wall Mount Only |
| Chassis Type | Slide-Out |
| Vent/Air Exchange Exhaust | Air Exchange Exhaust |
| Plug Type | Perpendicular |
| Thermostat Type | Variable Setting |
| Rotary Compressor | Yes |
| Unit Type | Heat / Cool Unit |
| Fan Speed Selections | 2 Fan Only |
| Airflow (cfm) Roomside | 250/210 |
| Fan Speed Selections | 2 Heating |
| Fan Speed Selections | 2 Cooling |
| Filter Type | Quick Clean |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | For models produced on or after January 1, 2006 |
POWER / RATINGS
| Cooling - Rated Cooling Amps AHAM | 4.9/5.3 |
| Cooling - Watts | 1075/1055 |
| Voltage (MIN) | 208 V |
| Heating - Electric - Heater Watts | 3400/2780 |
| Voltage (MAX) | 230 V |
| Heating - Electric - Heater Amps | 15.5/14.0 |
ACCESSORIES
| Wall Case | RAB46/47/48 Required At Additional Cost |
CAPACITY
| Cooling EER (BTUH / Watt) | 9.2/9.2 |
| Heating - Electric - BTUH - AHAM - 1R | 11600/9480 |
| Dehumidification (pts./hr.) | 2.6 |
| Cooling BTUH (MAX) | 9,900 Btu |
| Cooling BTUH (MIN) | 9,700 Btu |
APPEARANCE
| Color Appearance | Grey-Beige |
