115 Volt "J Series" Built-In Heat/Cool Unit - AJES08ASA
115 Volt "J Series" Built-In Heat/Cool Unit
Model: AJES08ASA
115 Volt "J Series" Built-In Heat/Cool Unit
Model: AJES08ASA
Color : Grey-Beige
Replaced By
Key Features
8,000 BTU (cooling), 4,100 BTU (electric heat), 115 Volts
9.2 EER

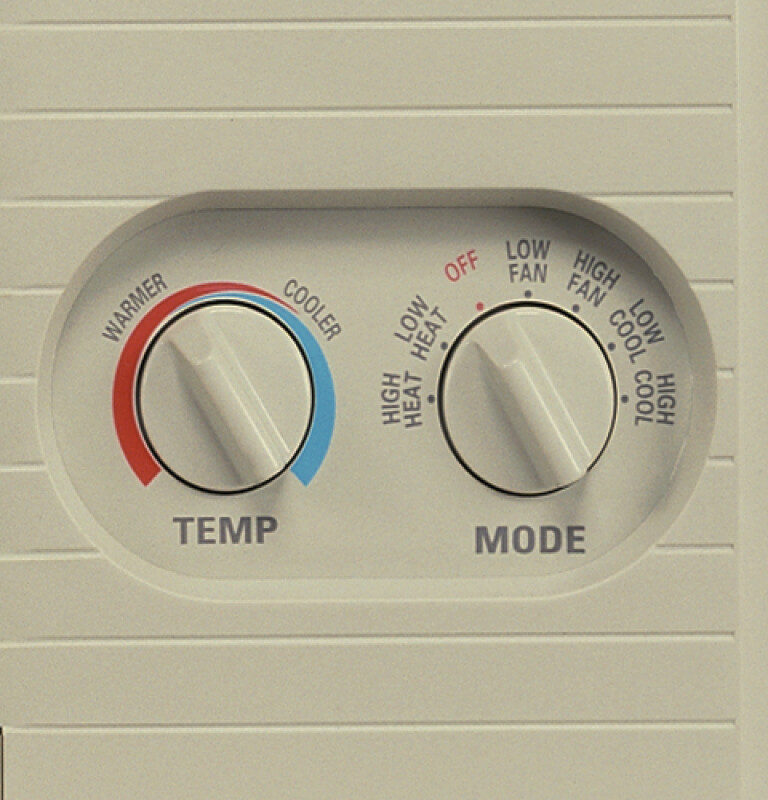

Mechanical controls with variable setting thermostat
2 cooling / 2 heating fan speeds (2 fan positions)
Slide-out chassis
2.0 dehumidification (pints/hr)
250 CFM
Rotary compressor
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
8,000 BTU (cooling), 4,100 BTU (electric heat), 115 Volts
9.2 EER
Mechanical controls with variable setting thermostat
2 cooling / 2 heating fan speeds (2 fan positions)
Slide-out chassis
2.0 dehumidification (pints/hr)
250 CFM
Rotary compressor
Hidden controls provide clean, contemporary appearance
Standard window mounting
870 cooling Watts / 7.9 cooling Amps
Exhaust for air exchange
Fan cycle switch for reduced energy consumption
Plug type - parallel
Slide-out filter
Certifications
ADA Compliant
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 26 in |
| Approximate Shipping Weight | 105 lb |
| Min./Max. Window Opening Width (in.) | 31/42 |
| Net Weight | 96 lb |
| Minimum Window Opening Height (in.) | 17 in |
| Overall Depth | 16 7/8 in |
| Overall Height | 15 5/8 in |
Dimensions & Weight
| Width | 26 in. |
| Height | 15.63 in. |
| Length | 16.88 in. |
| Weight | 96 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 31 in. |
| Shipping Height | 20.63 in. |
| Shipping Length | 21.88 in. |
| Shipping Weight | 136 lbs. |
| Total of Shipping Weight | 136 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 3.97 ft³ |
| Dimensional Weight | 49.32 lbs. |
| Total of Cubes | 3.97 ft³ |
| Total of Dimensional Weight | 49.32 lbs. |
FEATURES
| Louver Style | Adjustable |
| Air Discharge | Multi-Directional |
| Line Cord Recommended Circuit Prot. (time delay) | 15 Amps |
| Filter Type | Slide-Out |
| Style | Window/Wall Mount |
| Chassis Type | Slide-Out |
| Vent/Air Exchange Exhaust | Air Exchange Exhaust |
| Plug Type | Parallel |
| Thermostat Type | Variable Setting |
| Rotary Compressor | Yes |
| Unit Type | Heat / Cool Unit |
| Fan Speed Selections | 2 Fan Only |
| Airflow (cfm) Roomside | 250/210 |
| Fan Speed Selections | 2 Heating |
| Fan Speed Selections | 2 Cooling |
| Filter Type | Quick Clean |
POWER / RATINGS
| Cooling - Rated Cooling Amps AHAM | 7.9 |
| Cooling - Watts | 870 |
| Heating - Electric - Heater Watts | 1200 |
| Voltage (MAX) | 115 V |
| Heating - Electric - Heater Amps | 12.0 |
ACCESSORIES
| Wall Case | Included |
APPEARANCE
| Installation | Standard Mount |
| Color Appearance | Grey-Beige |
CAPACITY
| Cooling EER (BTUH / Watt) | 9.2 |
| Heating - Electric - BTUH - AHAM - 1R | 4100 |
| Dehumidification (pts./hr.) | 2.0 |
| Cooling BTUH (MAX) | 8,000 Btu |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Labor (Sealed System) | 5 Year |
| Parts | 5 Year |
