230/208 Volt Built-In Heat/Cool Room Air Conditioner - AJEQ10DCE
230/208 Volt Built-In Heat/Cool Room Air Conditioner
Model: AJEQ10DCE
230/208 Volt Built-In Heat/Cool Room Air Conditioner
Model: AJEQ10DCE
Color : Soft Gray
Replaced By
Key Features
10,000 / 9,800 cooling BTU
11,200 / 9,200 resistance heat BTU
3470 / 2850 Watts heat
9.4 / 9.4 EER
R-410A refrigerant
Electronic controls with remote
Electronic digital thermostat control
4-way air direction
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
10,000 / 9,800 cooling BTU
11,200 / 9,200 resistance heat BTU
3470 / 2850 Watts heat
9.4 / 9.4 EER
R-410A refrigerant
Electronic controls with remote
Electronic digital thermostat control
4-way air direction
Upfront, washable air filter
2 cooling / 2 heating / 2 fan only speeds
Certifications
ADA Compliant
AHAM
CUL
California Prop 65
EEV
UL
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
| Labor (Entire Appliance) | 1 Year |
| Labor (Sealed System) | 5 Year |

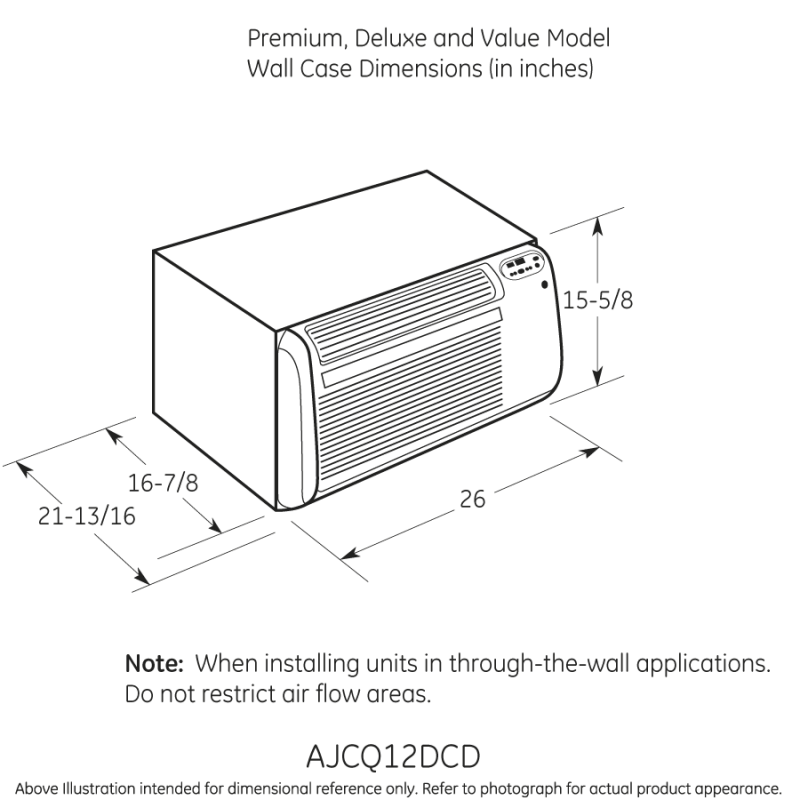

WEIGHTS & DIMENSIONS
| Overall Width | 26 in |
| Approximate Shipping Weight | 92 lb |
| Overall Height (Excludes Sleeve) | 14.875 in |
| Overall Depth (Excludes Sleeve) | 19.90625 in |
| Overall Width (Excludes Sleeve) | 24.8125 in |
| Net Weight | 79 lb |
| Overall Depth | 21 13/16 in |
| Overall Height | 15 5/8 in |
Dimensions & Weight
| Width | 26 in. |
| Height | 15.63 in. |
| Length | 21.81 in. |
| Weight | 79 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 31 in. |
| Shipping Height | 20.63 in. |
| Shipping Length | 26.81 in. |
| Shipping Weight | 119 lbs. |
| Total of Shipping Weight | 119 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 5.13 ft³ |
| Dimensional Weight | 63.75 lbs. |
| Total of Cubes | 5.13 ft³ |
| Total of Dimensional Weight | 63.75 lbs. |
FEATURES
| Louver Style | 4-Way Air Direction |
| Control Type | Electronic |
| Fan Speed Selections | 2 Fan Only |
| Refrigerant Type | R410A |
| Air Discharge | Over / Under |
| Style | Thru-Wall |
| Chassis Type | Slide-Out |
| Plug Type | Perpendicular/Right Angle LCDI |
| Heating - Electric - Input Watts | 3470/2850 |
| Thermostat Type | Electronic Digital |
| Temperature Range | 60->85 F |
| Cord Length | 68" |
| Rotary Compressor | Yes |
| Outdoor Vent / Exhaust | Yes |
| Unit Type | Heat / Cool Unit |
| Filter Type | Rigid Frame |
| Airflow (cfm) Roomside | 285/245, 275/235 |
| Room Air Conditioner Features | Batteries Included |
| Filter Type | Washable |
| Room Air Conditioner Features | Smart Fan Switch |
| Fan Speed Selections | 2 Cooling/Heating |
| Filter Type | EZ Slide-Out |
| Room Air Conditioner Features | 24 Hr. Timer |
| Room Air Conditioner Features | Remote Control |
| Room Air Conditioner Features | Improved Corrosion Package |
| Room Air Conditioner Features | Power Interruption Restart |
POWER / RATINGS
| Hertz | 60 |
| Cooling - Rated Cooling Amps AHAM | 4.9/5.3 |
| Cooling - Watts | 1060/1040 |
| Voltage/Hertz/Phase | 230-208/60/1 |
| Voltage (MIN) | 208 V |
| Voltage (MAX) | 230 V |
| Heating - Electric - Heater Amps | 15.1/14.0 |
ACCESSORIES
| Wall Case | RAB46A/RAB48B Required At Additional Cost |
APPEARANCE
| Installation | Wall Mounted |
| Color Appearance | Soft Gray |
CAPACITY
| Cooling EER (BTUH / Watt) | 9.4/9.4 |
| Heating - Electric - BTUH - AHAM - 1R | 11200/9200 |
| Dehumidification (pts./hr.) | 2.7/2.7 |
| Cooling BTUH (MAX) | 10,000 Btu |
| Cooling BTUH (MIN) | 9,800 Btu |
