230/208 Volt Built-In Room Air Heat/Cool Unit - AJEQ09DCD
230/208 Volt Built-In Room Air Heat/Cool Unit
Model: AJEQ09DCD
230/208 Volt Built-In Room Air Heat/Cool Unit
Model: AJEQ09DCD
Color : Soft Gray
Replaced By
Key Features
8,900 / 8,700 BTU
11,600 / 9500 resistance heat BTU
3670 / 3010 Watts heat
9.5 / 9.5 EER
Electronic controls with remote
Electronic digital thermostat control
4-way air direction
Upfront, washable air filter
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
8,900 / 8,700 BTU
11,600 / 9500 resistance heat BTU
3670 / 3010 Watts heat
9.5 / 9.5 EER
Electronic controls with remote
Electronic digital thermostat control
4-way air direction
Upfront, washable air filter
2 cooling / 2 heating / 2 fan only speeds
Certifications
ADA Compliant
AHAM
CUL
California Prop 65
EEV
UL
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
| Labor (Entire Appliance) | 1 Year |
| Labor (Sealed System) | 5 Year |

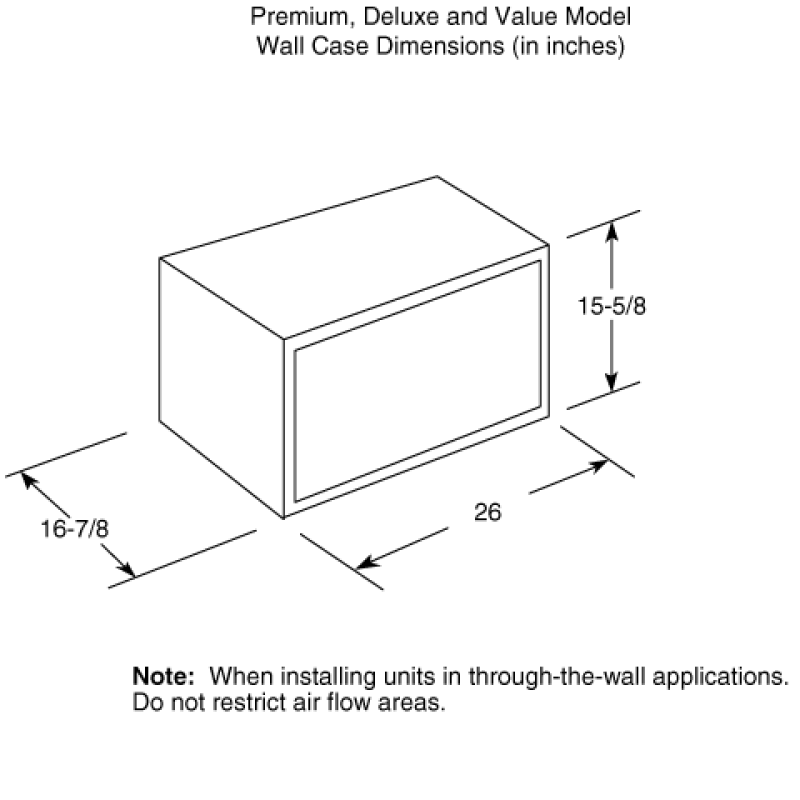

WEIGHTS & DIMENSIONS
| Overall Width | 26 in |
| Approximate Shipping Weight | 72 lb |
| Overall Height (Excludes Sleeve) | 14.875 in |
| Overall Depth (Excludes Sleeve) | 19.875 in |
| Overall Width (Excludes Sleeve) | 24.75 in |
| Net Weight | 65 lb |
| Overall Depth | 16 7/8 in |
| Overall Height | 15 5/8 in |
Dimensions & Weight
| Width | 26 in. |
| Height | 15.63 in. |
| Length | 16.88 in. |
| Weight | 65 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 31 in. |
| Shipping Height | 20.63 in. |
| Shipping Length | 21.88 in. |
| Shipping Weight | 105 lbs. |
| Total of Shipping Weight | 105 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 3.97 ft³ |
| Dimensional Weight | 49.32 lbs. |
| Total of Cubes | 3.97 ft³ |
| Total of Dimensional Weight | 49.32 lbs. |
FEATURES
| Louver Style | 4-Way Air Direction |
| Control Type | Electronic |
| Fan Speed Selections | 2 Fan Only |
| Refrigerant Type | R410A |
| Air Discharge | Over / Under |
| Style | Thru-Wall or Window (Optional) |
| Chassis Type | Slide-Out |
| Plug Type | Perpendicular/Right Angle LCDI |
| Heating - Electric - Input Watts | 3670/3010 |
| Thermostat Type | Electronic Digital |
| Cord Length | 68" |
| Rotary Compressor | Yes |
| Outdoor Vent / Exhaust | Yes |
| Unit Type | Heat / Cool Unit |
| Filter Type | Rigid Frame |
| Airflow (cfm) Roomside | 311/268, 293/244 |
| Room Air Conditioner Features | Energy Saver |
| Filter Type | Washable |
| Room Air Conditioner Features | Timer |
| Fan Speed Selections | 2 Cooling |
| Filter Type | EZ Slide-Out |
| Room Air Conditioner Features | Smart Fan Switch |
| Room Air Conditioner Features | Remote Control |
| Room Air Conditioner Features | Batteries Included |
| Room Air Conditioner Features | Improved Corrosion Package |
| Room Air Conditioner Features | Power Interruption Restart |
POWER / RATINGS
| Hertz | 60 |
| Cooling - Rated Cooling Amps AHAM | 4.2/4.6 |
| Cooling - Watts | 935/915 |
| Voltage/Hertz/Phase | 230-208/60/1 |
| Voltage (MIN) | 208 V |
| Voltage (MAX) | 230 V |
| Heating - Electric - Heater Amps | 16.0/14.5 |
ACCESSORIES
| Wall Case | RAB46/47/48 ; Optional |
APPEARANCE
| Installation | Optional Window Kit |
| Color Appearance | Soft Gray |
CAPACITY
| Cooling EER (BTUH / Watt) | 9.4/9.4 |
| Heating - Electric - BTUH - AHAM - 1R | 11600/9500 |
| Dehumidification (pts./hr.) | 2.5/2.5 |
| Cooling BTUH (MAX) | 8,900 Btu |
| Cooling BTUH (MIN) | 8,700 Btu |
