115 Volt Built-In Heat/Cool Room Air Conditioner - AJEQ08ACF
115 Volt Built-In Heat/Cool Room Air Conditioner
Model: AJEQ08ACF
115 Volt Built-In Heat/Cool Room Air Conditioner
Model: AJEQ08ACF
Color : Soft Gray
Replaced By
Key Features
8,200 cooling BTU
3,900 resistance heat BTU
9.8 CEER
115 Volt outlet type
R-410A refrigerant

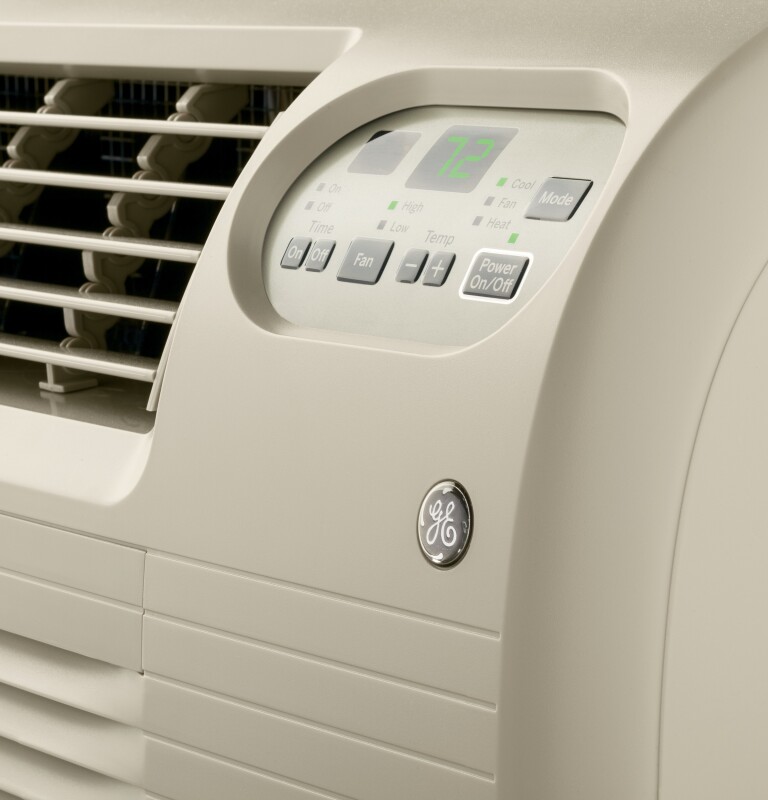

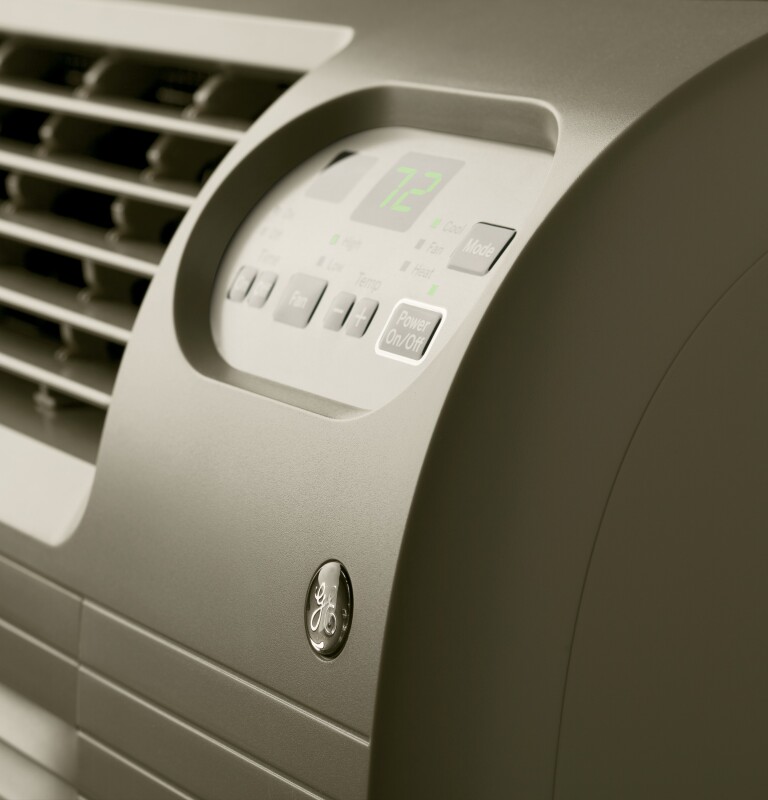

Electronic controls with remote
Electronic digital thermostat with remote
4-way air direction
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
8,200 cooling BTU
3,900 resistance heat BTU
9.8 CEER
115 Volt outlet type
R-410A refrigerant
Electronic controls with remote
Electronic digital thermostat with remote
4-way air direction
Upfront, washable air filter
2 cooling / 2 heating / 2 fan only speeds
1250 Watts heat
Power interruption restart
Restarts the unit at the setting prior to the loss of power
Certifications
ADA Compliant
AHAM
CUL
California Prop 65
EEV
UL
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
| Labor (Entire Appliance) | 1 Year |
| Labor (Sealed System) | 5 Year |
| Parts (Entire Appliance) | 2 Year |

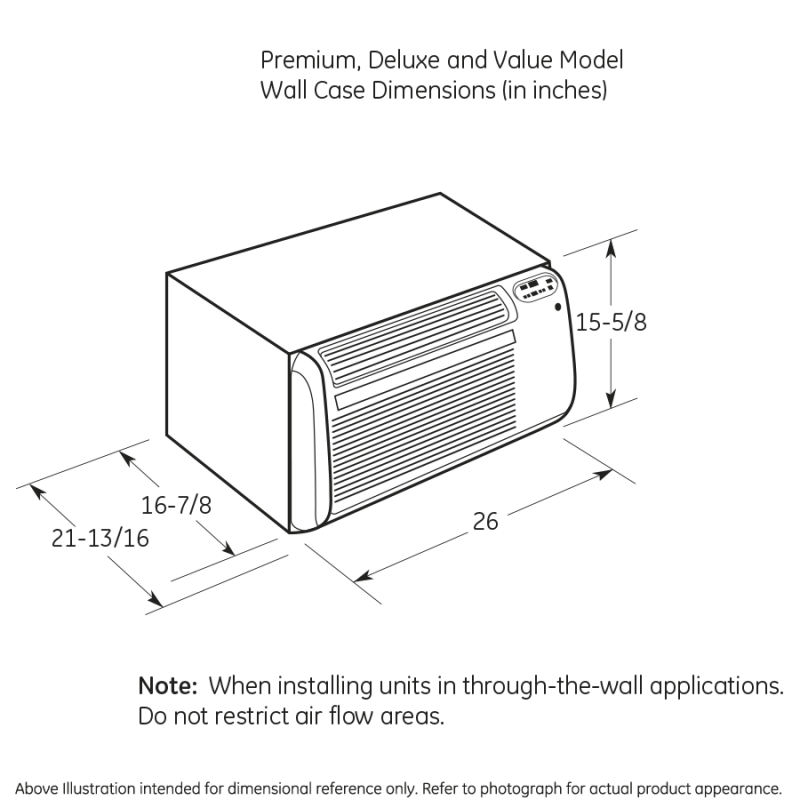

WEIGHTS & DIMENSIONS
| Overall Width | 26 in |
| Approximate Shipping Weight | 86 lb |
| Overall Height (Excludes Sleeve) | 14.875 in |
| Overall Depth (Excludes Sleeve) | 19.90625 in |
| Overall Width (Excludes Sleeve) | 24.8125 in |
| Net Weight | 73 lb |
| Overall Depth | 21 13/16 in |
| Overall Height | 15 5/8 in |
Dimensions & Weight
| Width | 26 in. |
| Height | 15.63 in. |
| Length | 21.81 in. |
| Weight | 73 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 31 in. |
| Shipping Height | 20.63 in. |
| Shipping Length | 26.81 in. |
| Shipping Weight | 113 lbs. |
| Total of Shipping Weight | 113 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 5.13 ft³ |
| Dimensional Weight | 63.75 lbs. |
| Total of Cubes | 5.13 ft³ |
| Total of Dimensional Weight | 63.75 lbs. |
FEATURES
| Louver Style | 4-Way Air Direction |
| Control Type | Electronic |
| Fan Speed Selections | 2 Fan Only |
| Refrigerant Type | R410A |
| Product Type | Built-In |
| Air Discharge | Over / Under |
| Style | Thru-Wall |
| Chassis Type | Slide-Out |
| Plug Type | Parallel/Right Angle LCDI |
| Heating - Electric - Input Watts | 1250 |
| Thermostat Type | Electronic Digital |
| Temperature Range | 60->85 F |
| Cord Length | 75" |
| Rotary Compressor | Yes |
| Outdoor Vent / Exhaust | Yes |
| Unit Type | Heat / Cool Unit |
| Filter Type | Rigid Frame |
| Airflow (cfm) Roomside | 265/225 |
| Room Air Conditioner Features | Batteries Included |
| Filter Type | Washable |
| Room Air Conditioner Features | Remote Control |
| Fan Speed Selections | 2 Cooling/Heating |
| Filter Type | EZ Slide-Out |
| Room Air Conditioner Features | Fan Cycle Continuous |
| Room Air Conditioner Features | 24 Hr. Timer |
| Room Air Conditioner Features | Improved Corrosion Package |
| Room Air Conditioner Features | Power Interruption Restart |
POWER / RATINGS
| Hertz | 60 |
| Cooling - Rated Cooling Amps AHAM | 7.4 |
| Cooling - Watts | 820 |
| Voltage/Hertz/Phase | 115/60/1 |
| CEER | 9.8 |
| Voltage (MAX) | 115 V |
| Heating - Electric - Heater Amps | 11.0 |
ACCESSORIES
| Wall Case | RAB46A/RAB48B Required At Additional Cost |
APPEARANCE
| Installation | Wall Mounted |
| Color Appearance | Soft Gray |
CAPACITY
| Heating - Electric - BTUH - AHAM - 1R | 3900 |
| Dehumidification (pts./hr.) | 1.9 |
| Cooling BTUH (MAX) | 8,200 Btu |
