230/208 Volt Built-In Cool-Only Room Air Conditioner - AJCQ12DCH

This product has been discontinued by the manufacture and is no longer available.

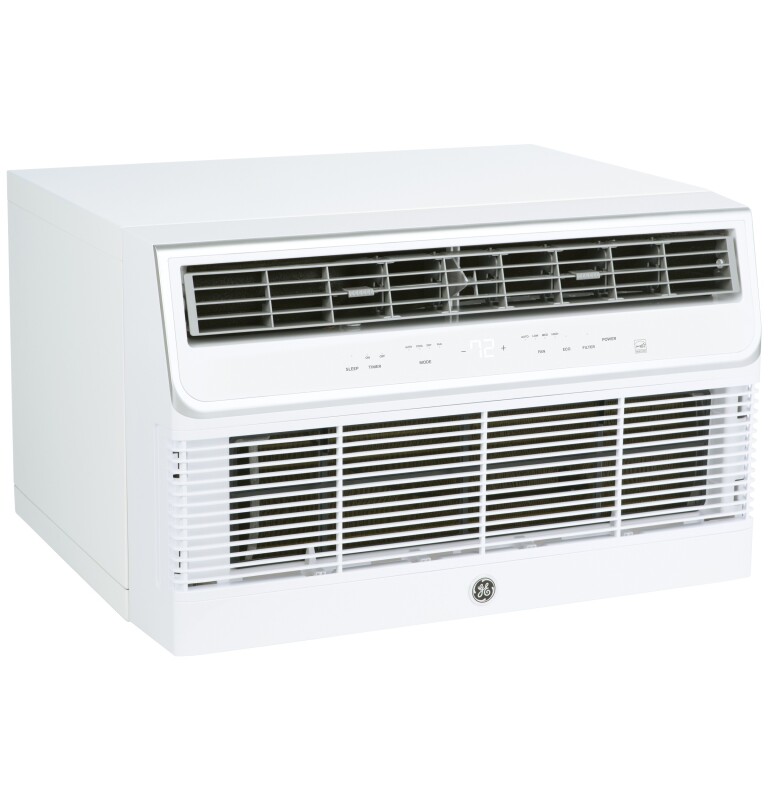

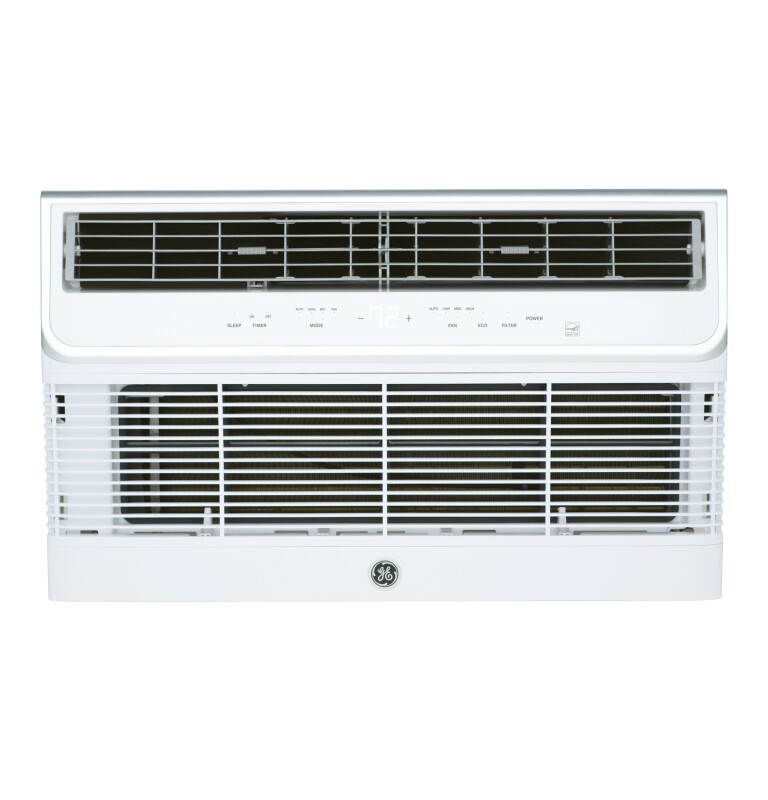

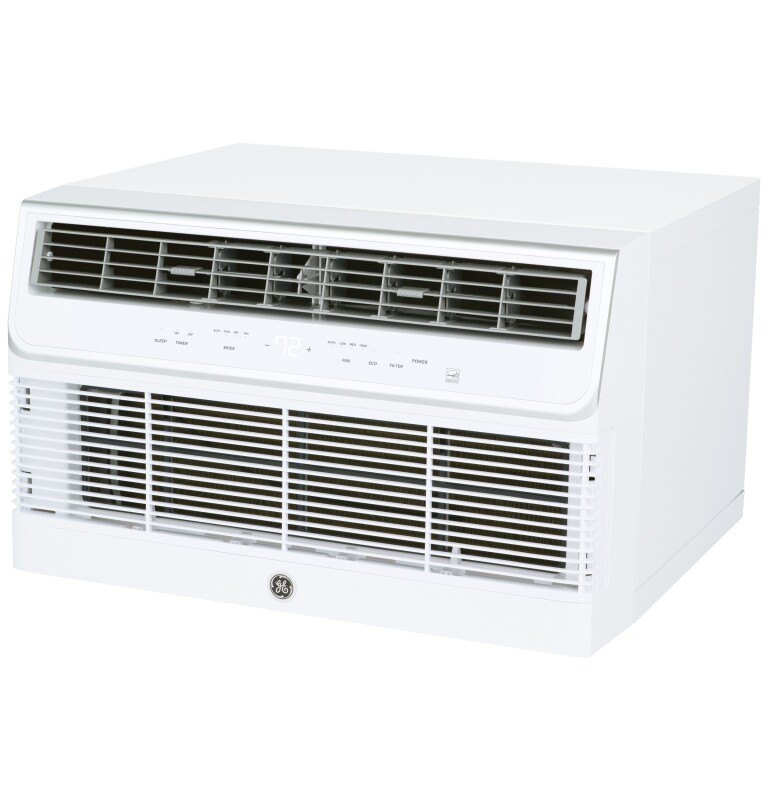

230/208 Volt Built-In Cool-Only Room Air Conditioner

Model: AJCQ12DCH

230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ12DCH, product image 1 of 15230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ12DCH, product image 2 of 15230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ12DCH, product image 3 of 15230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ12DCH, product image 4 of 15230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ12DCH, product image 5 of 15230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ12DCH, product image 6 of 15230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ12DCH, product image 7 of 15230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ12DCH, product image 8 of 15230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ12DCH, product image 9 of 15230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ12DCH, product image 10 of 15230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ12DCH, product image 11 of 15230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ12DCH, product image 12 of 15230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ12DCH, product image 13 of 15230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ12DCH, product image 14 of 15230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ12DCH, product image 15 of 15
230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ12DCH, thumbnail image 1 of 15
230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ12DCH, thumbnail image 2 of 15
230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ12DCH, thumbnail image 3 of 15
230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ12DCH, thumbnail image 4 of 15
230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ12DCH, thumbnail image 5 of 15
+10more

Color : White

230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ12DCH
White

Key Features

  • True Built In Design

  • Premium Finish

  • Electronic Cap Touch Controls

  • Large LCD Auto-Dimming Display

  • Slim Room Front

  • ECO Mode

  • Dry Mode

  • Auto Mode

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

True Built In Design

The ultimate fit & finish for more usable space and the best in built-in installation. Sleeve and chassis are perfectly integrated, creating a seamless fit without leaks or gaps

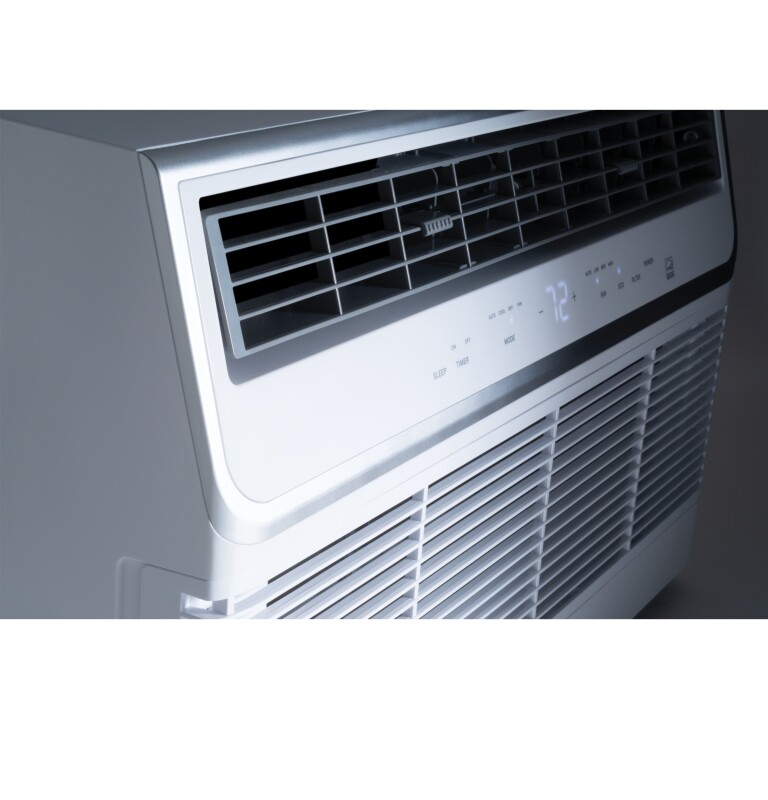

Premium Finish

Bright, clean color & a decorative metallic silver accent encasing the air discharge louver, provide an overall sleek appearance

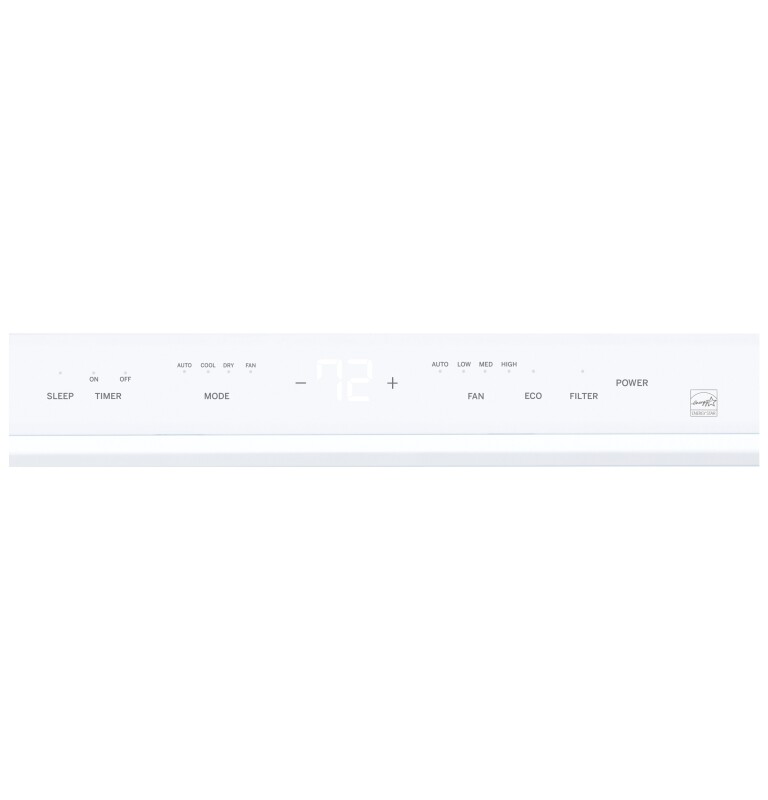

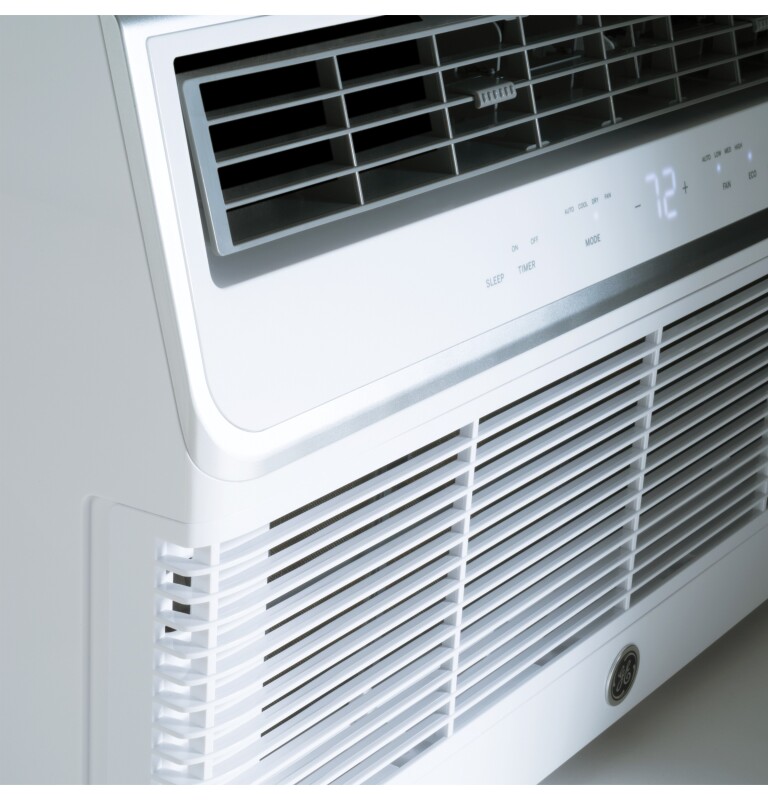

Electronic Cap Touch Controls

Controls offer a high-end and smooth to-the-touch panel

Large LCD Auto-Dimming Display

Intuitive & large white LCD display can be easily seen from anywhere in the room. Convenient Auto-Dimming feature provides ambient lighting during the night

Slim Room Front

A slim room front provides more usable space in the room. It’s the sleekest design in the industry

ECO Mode

Innovative mode where the fan cycles off during cooling intervals, creating energy savings while keeping the room comfortable

Dry Mode

Designed for humid environments, it helps provide a dryer & more comfortable atmosphere with room-air dehumidification

Auto Mode

Automatically select heating or cooling mode and fan speed to maintain the current temperature setpoint. It monitors the room temperature for optimal comfort

6-Way Directional Airflow

Direct where the air flows with up to 6 directional vents—cooling and/or heating the areas of the room that need it the most

Washable Filter

Easy to remove and rinse clean, the filter helps remove dust and other particles from transmitting in the air—providing a cleaner environment

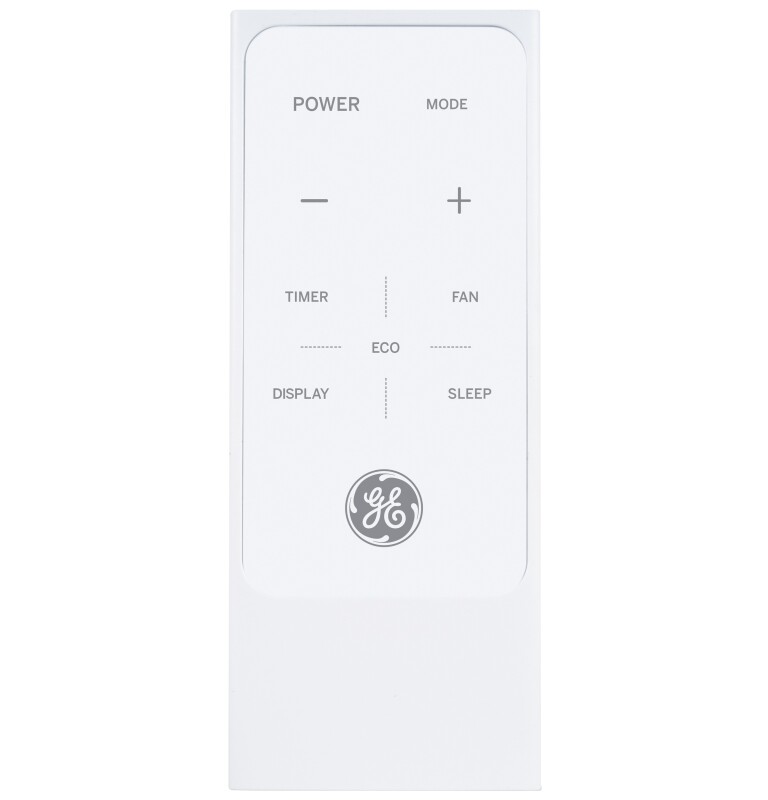

Remote Control Included

Slim, intuitive and easy to use, the remote control enables adjusting temperatures and settings conveniently from anywhere in the room

Quiet Performance

Designed & engineered by GE Appliances for ultra-quiet comfort

Commercial Grade

Designed for durability with high-grade components and tested for long performance

Certifications

ADA Compliant certification

ADA Compliant

CUL certification

CUL

AHAM certification

AHAM

California Prop 65 certification

California Prop 65

EEV certification

EEV

ENERGY STARĀ® Qualified certification

ENERGY STARĀ® Qualified

UL certification

UL

Specifications

WEIGHTS & DIMENSIONS

Overall Width26 in
Approximate Shipping Weight92 lb
Depth to Louvers5 in
Overall Height (Excludes Sleeve)14.875 in
Overall Depth (Excludes Sleeve)19.90625 in
Overall Width (Excludes Sleeve)24.8125 in
Net Weight92 lb
Overall Depth21 13/16 in
Overall Height15 5/8 in

Dimensions & Weight

Width26 in.
Height15.63 in.
Length21.81 in.
Weight92 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width31 in.
Shipping Height20.63 in.
Shipping Length26.81 in.
Shipping Weight132 lbs.
Total of Shipping Weight132 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement5.13 ft³
Dimensional Weight63.75 lbs.
Total of Cubes5.13 ft³
Total of Dimensional Weight63.75 lbs.

FEATURES

Louver Style6-Way
Control TypeElectronic
Fan Speed Selections3 Fan Only
Optional GrillRAG13/RAG13A/RAG14E
Product TypeBuilt-In
Refrigerant TypeR410A
Air DischargeOver / Under
StyleThru-Wall
Chassis TypeSlide-In
Plug TypeTandem/Right Angle/LCDI
Remote ControlYes
Thermostat TypeElectronic Digital
Temperature Range60->85 F
Cord Length68"

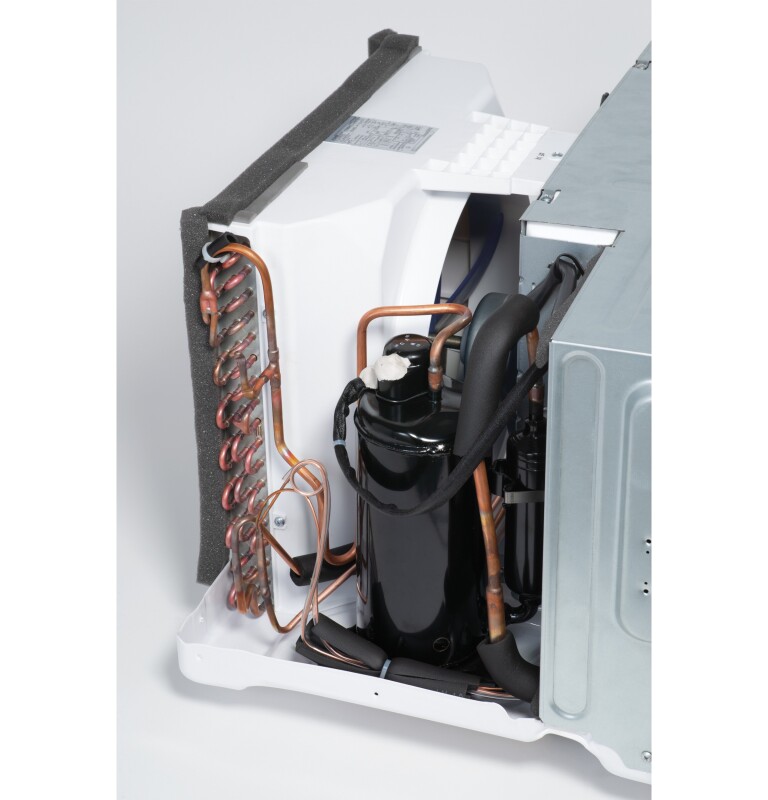

Rotary CompressorYes
Outdoor Vent / ExhaustYes
Unit TypeCool Only
Filter TypeTilt-Out
Airflow (cfm) Roomside270/250/230, 260/240/220
Room Air Conditioner FeaturesBatteries Included
Filter TypeWashable
Room Air Conditioner FeaturesSmart Fan Switch
Fan Speed Selections3 Cooling
Filter TypeRigid
Room Air Conditioner FeaturesEnergy Saver
Room Air Conditioner Features24 Hr. Timer
Room Air Conditioner FeaturesFilter Reminder Function
Room Air Conditioner FeaturesRemote Control

POWER / RATINGS

Cooling - Rated Cooling Amps AHAM5.3/5.7
Cooling - Watts1130/1110
Voltage/Hertz/Phase230-208/60/1
CEER10.5

ACCESSORIES

Wall CaseRAB46/47/48/26 Required At Additional Cost

APPEARANCE

InstallationWall Mounted
Color AppearanceWhite

CAPACITY

Cooling EER (BTUH / Watt)10.5
Dehumidification (pts./hr.)3.4/3.4
Cooling BTUH (MAX)12,000 Btu
Cooling BTUH (MIN)11,700 Btu

Warranty

Labor (Sealed System)5 Year
Parts (Entire Appliance)2 Year
Labor (Entire Appliance)1 Year
