230/208 Volt Built-In Room Air Cool Unit - AJCQ10DCD

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

230/208 Volt Built-In Room Air Cool Unit

Model: AJCQ10DCD

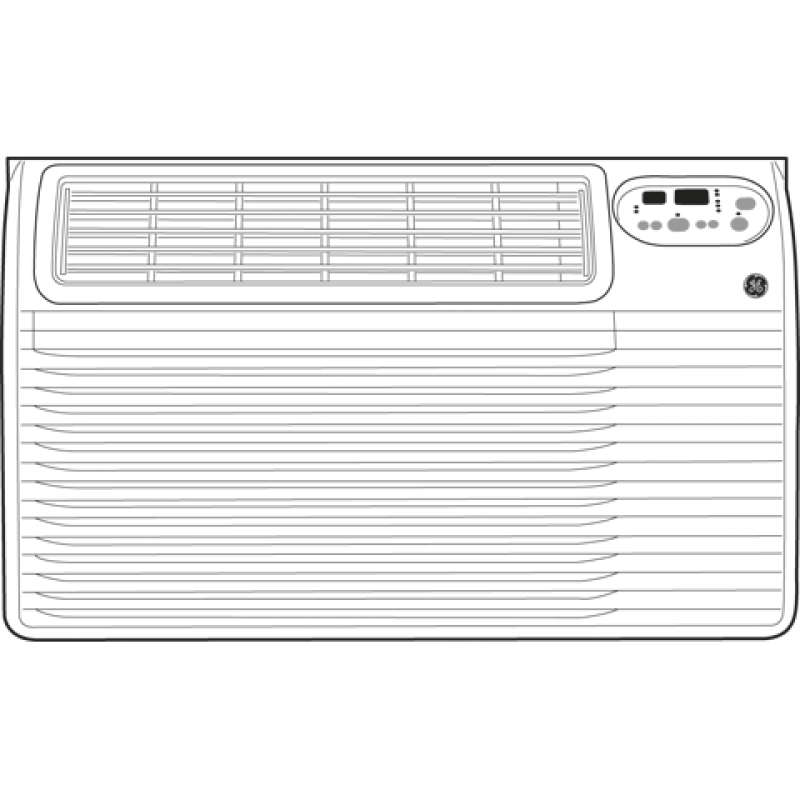

230/208 Volt Built-In Room Air Cool Unit AJCQ10DCD, product image 1 of 3230/208 Volt Built-In Room Air Cool Unit AJCQ10DCD, product image 2 of 3230/208 Volt Built-In Room Air Cool Unit AJCQ10DCD, product image 3 of 3
230/208 Volt Built-In Room Air Cool Unit AJCQ10DCD, thumbnail image 1 of 3
230/208 Volt Built-In Room Air Cool Unit AJCQ10DCD, thumbnail image 2 of 3
230/208 Volt Built-In Room Air Cool Unit AJCQ10DCD, thumbnail image 3 of 3

Color : Soft Gray

230/208 Volt Built-In Room Air Cool Unit AJCQ10DCD
Soft Gray

Key Features

  • 10,400 / 10,200 cooling BTU

  • 9.4 / 9.4 EER

  • ENERGY STAR® qualified

  • Electronic controls with remote

  • Electronic digital thermostat control

  • 4-way air direction

  • Upfront, washable air filter

  • 3 cool / 3 fan speeds

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

10,400 / 10,200 cooling BTU

9.4 / 9.4 EER

ENERGY STAR® qualified

Electronic controls with remote

Electronic digital thermostat control

4-way air direction

Upfront, washable air filter

3 cool / 3 fan speeds

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year
Labor (Entire Appliance)1 Year
Labor (Sealed System)5 Year

WEIGHTS & DIMENSIONS

Overall Width26 in
Approximate Shipping Weight85 lb
Overall Height (Excludes Sleeve)14.875 in
Overall Depth (Excludes Sleeve)19.875 in
Overall Width (Excludes Sleeve)24.75 in
Net Weight73 lb
Overall Depth21 13/16 in
Overall Height15 5/8 in

Dimensions & Weight

Width26 in.
Height15.63 in.
Length21.81 in.
Weight73 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width31 in.
Shipping Height20.63 in.
Shipping Length26.81 in.
Shipping Weight113 lbs.
Total of Shipping Weight113 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement5.13 ft³
Dimensional Weight63.75 lbs.
Total of Cubes5.13 ft³
Total of Dimensional Weight63.75 lbs.

FEATURES

Louver Style4-Way Air Direction
Control TypeElectronic
Fan Speed Selections3 Fan Only
Refrigerant TypeR410A
Air DischargeOver / Under
StyleThru-Wall or Window (Optional)
Chassis TypeSlide-Out
Plug TypeTandem/Right Angle/LCDI
Thermostat TypeElectronic Digital
Cord Length68"
Rotary CompressorYes
Outdoor Vent / ExhaustYes
Unit TypeCool Only
Filter TypeRigid Frame
Airflow (cfm) Roomside314/283/208, 300/258/177
Room Air Conditioner FeaturesBatteries Included
Filter TypeWashable
Room Air Conditioner FeaturesSmart Fan Switch
Fan Speed Selections3 Cooling
Filter TypeEZ Slide-Out
Room Air Conditioner Features24 Hr. Timer
Room Air Conditioner FeaturesSleep Auto 8 Hr. Timer
Room Air Conditioner FeaturesRemote Control
Room Air Conditioner FeaturesSleep Mode
Room Air Conditioner FeaturesPower Interruption Restart

POWER / RATINGS

Hertz60
Cooling - Rated Cooling Amps AHAM5.0/5.4
Cooling - Watts1100/1085
Voltage/Hertz/Phase230-208/60/1
Voltage (MIN)208 V
Voltage (MAX)230 V

ACCESSORIES

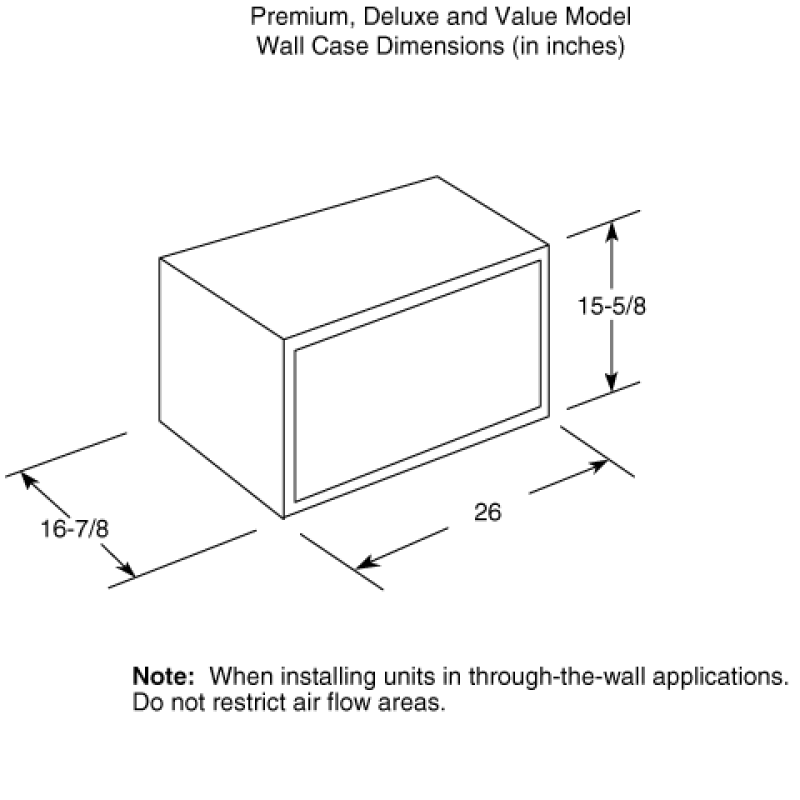

Wall CaseRAB46/47/48 Required At Additional Cost

APPEARANCE

InstallationWall Mounted
Color AppearanceSoft Gray
InstallationOptional Window Kit

CAPACITY

Cooling EER (BTUH / Watt)9.4/9.4
Dehumidification (pts./hr.)2.9/2.9
Cooling BTUH (MAX)10,400 Btu
Cooling BTUH (MIN)10,200 Btu
