230/208 Volt Built-In Cool-Only Room Air Conditioner - AJCQ09DCG

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

230/208 Volt Built-In Cool-Only Room Air Conditioner

Model: AJCQ09DCG

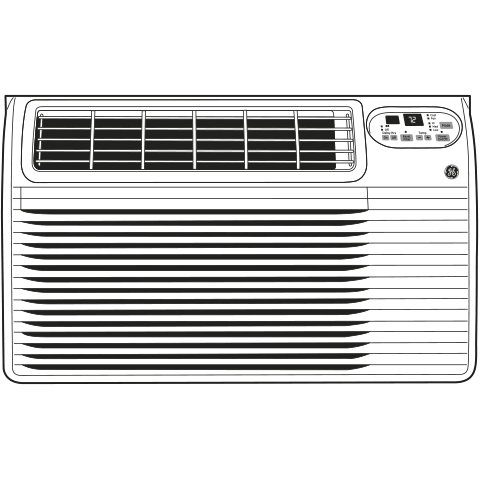

230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ09DCG, product image 1 of 2230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ09DCG, product image 2 of 2
230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ09DCG, thumbnail image 1 of 2
230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ09DCG, thumbnail image 2 of 2

Color : Soft Gray

230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ09DCG
Soft Gray

Key Features

  • 9,400 / 9,200 cooling BTU

  • 10.6 / 10.6 CEER

  • R-410A refrigerant

  • Electronic controls with remote

  • Electronic digital thermostat control

  • Filter reset

  • 4-way air direction

  • Upfront, washable air filter

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

9,400 / 9,200 cooling BTU

10.6 / 10.6 CEER

R-410A refrigerant

Electronic controls with remote

Electronic digital thermostat control

Filter reset

4-way air direction

Upfront, washable air filter

3 cool / 3 fan speeds

Power interruption restart

Restarts the unit at the setting prior to the loss of power

ENERGY STARĀ® qualified

Certifications

ADA Compliant certification

ADA Compliant

AHAM certification

AHAM

CUL certification

CUL

California Prop 65 certification

California Prop 65

EEV certification

EEV

ENERGY STARĀ® Qualified certification

ENERGY STARĀ® Qualified

UL certification

UL

Specifications

Warranty

Parts1 Year
Labor1 Year
Parts (Sealed Refrigerating System)5 Year
Labor (Sealed System)5 Year
Labor (Entire Appliance)2 Year
Parts (Entire Appliance)2 Year

WEIGHTS & DIMENSIONS

Overall Width26 in
Approximate Shipping Weight84 lb
Overall Height (Excludes Sleeve)14.875 in
Overall Depth (Excludes Sleeve)19.90625 in
Overall Width (Excludes Sleeve)24.8125 in
Net Weight71 lb
Overall Depth21 13/16 in
Overall Height15 5/8 in

FEATURES

Louver Style4-Way Air Direction
Control TypeElectronic
Fan Speed Selections3 Fan Only
Product TypeBuilt-In
Refrigerant TypeR410A
Air DischargeOver / Under
Filter TypeWashable
StyleThru-Wall
Chassis TypeSlide-Out
Plug TypeTandem/Right Angle/LCDI
Remote ControlYes
Thermostat TypeElectronic Digital
Temperature Range60->85 F
Cord Length68"
Rotary CompressorYes
Outdoor Vent / ExhaustYes
Unit TypeCool Only
Room Air Conditioner FeaturesRemote Control
Filter TypeRigid Frame
Airflow (cfm) Roomside280/260/240, 270/250/230
Room Air Conditioner FeaturesBatteries Included
Fan Speed Selections3 Cooling
Filter TypeEZ Slide-Out
Room Air Conditioner FeaturesFan Cycle Continuous
Room Air Conditioner Features24 Hr. Timer
Room Air Conditioner FeaturesFilter Reminder Function
Room Air Conditioner FeaturesEnergy Saver

POWER / RATINGS

Cooling - Rated Cooling Amps AHAM4.0/4.3
Cooling - Watts870/850
Voltage/Hertz/Phase230-208/60/1
CEER10.6/10.6

ACCESSORIES

Wall CaseRAB46A/RAB48B Required At Additional Cost

APPEARANCE

InstallationWall Mounted
Color AppearanceSoft Gray

CAPACITY

Cooling EER (BTUH / Watt)10.8/10.8
Dehumidification (pts./hr.)2.2/2.2
Cooling BTUH (MAX)9,400 Btu
Cooling BTUH (MIN)9,200 Btu

Dimensions & Weight

Width26 in.
Height15.63 in.
Length21.81 in.
Weight71 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width31 in.
Shipping Height20.63 in.
Shipping Length26.81 in.
Shipping Weight111 lbs.
Total of Shipping Weight111 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement5.13 ftĀ³
Dimensional Weight63.75 lbs.
Total of Cubes5.13 ftĀ³
Total of Dimensional Weight63.75 lbs.
