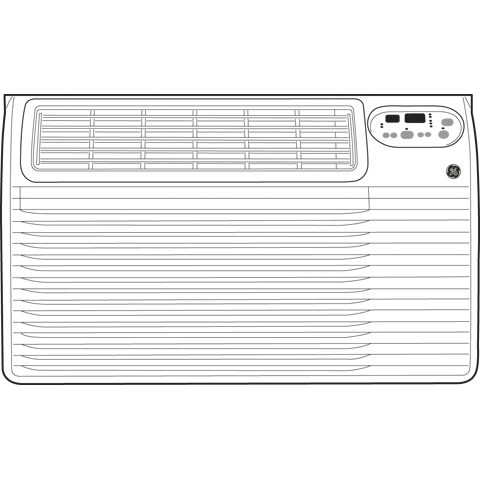

230/208 Volt Built-In Cool-Only Room Air Conditioner - AJCQ09DCE

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

230/208 Volt Built-In Cool-Only Room Air Conditioner

Model: AJCQ09DCE

230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ09DCE230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ09DCE230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ09DCE
230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ09DCE
230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ09DCE
230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ09DCE

Color : Soft Gray

230/208 Volt Built-In Cool-Only Room Air Conditioner AJCQ09DCE
Soft Gray

Key Features

  • 9,600 / 9,300 cooling BTU

  • 9.8 / 9.8 EER

  • R-410A refrigerant

  • Electronic controls with remote

  • Electronic digital thermostat control

  • 4-way air direction

  • Upfront, washable air filter

  • 3 cool / 3 fan speeds

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

9,600 / 9,300 cooling BTU

9.8 / 9.8 EER

R-410A refrigerant

Electronic controls with remote

Electronic digital thermostat control

4-way air direction

Upfront, washable air filter

3 cool / 3 fan speeds

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year
Parts (Sealed Refrigerating System)5 Year
Labor (Entire Appliance)2 Year
Labor (Sealed System)5 Year
Parts (Entire Appliance)2 Year

WEIGHTS & DIMENSIONS

Overall Width26 in
Approximate Shipping Weight88 lb
Overall Height (Excludes Sleeve)14.875 in
Overall Depth (Excludes Sleeve)19.90625 in
Overall Width (Excludes Sleeve)24.8125 in
Net Weight75 lb
Overall Depth21 13/16 in
Overall Height15 5/8 in

Dimensions & Weight

Width26 in.
Height15.63 in.
Length21.81 in.
Weight75 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width31 in.
Shipping Height20.63 in.
Shipping Length26.81 in.
Shipping Weight115 lbs.
Total of Shipping Weight115 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement5.13 ft³
Dimensional Weight63.75 lbs.
Total of Cubes5.13 ft³
Total of Dimensional Weight63.75 lbs.

FEATURES

Louver Style4-Way Air Direction
Control TypeElectronic
Fan Speed Selections3 Fan Only
Refrigerant TypeR410A
Air DischargeOver / Under
StyleThru-Wall
Chassis TypeSlide-Out
Plug TypeTandem/Right Angle/LCDI
Thermostat TypeElectronic Digital
Temperature Range60->85 F
Cord Length68"
Rotary CompressorYes
Outdoor Vent / ExhaustYes
Unit TypeCool Only
Filter TypeRigid Frame
Airflow (cfm) Roomside290/270/250, 280/260/240
Room Air Conditioner FeaturesBatteries Included
Filter TypeWashable
Room Air Conditioner FeaturesSmart Fan Switch
Fan Speed Selections3 Cooling
Filter TypeEZ Slide-Out
Room Air Conditioner Features24 Hr. Timer
Room Air Conditioner FeaturesSleep Auto 8 Hr. Timer
Room Air Conditioner FeaturesRemote Control
Room Air Conditioner FeaturesPower Interruption Restart

POWER / RATINGS

Cooling - Rated Cooling Amps AHAM4.4/4.8
Cooling - Watts980/950
Voltage/Hertz/Phase230-208/60/1

ACCESSORIES

Wall CaseRAB46A/RAB48B Required At Additional Cost

APPEARANCE

InstallationWall Mounted
Color AppearanceSoft Gray

CAPACITY

Cooling EER (BTUH / Watt)9.8/9.8
Dehumidification (pts./hr.)2.2/2.2
Cooling BTUH (MAX)9,600 Btu
Cooling BTUH (MIN)9,300 Btu
