230/208 Volt Built-In Room Air Cool Unit - AJCQ09DCD

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

230/208 Volt Built-In Room Air Cool Unit

Model: AJCQ09DCD

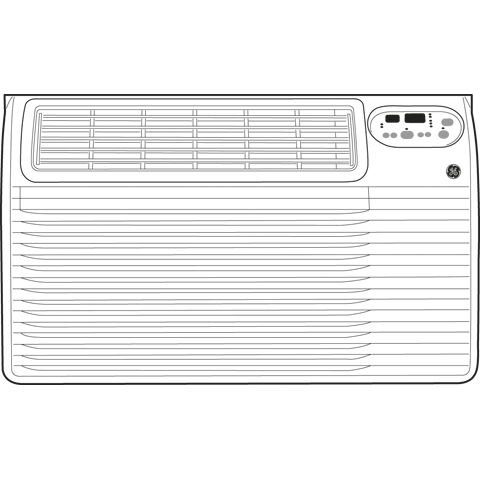

230/208 Volt Built-In Room Air Cool Unit AJCQ09DCD, product image 1 of 3230/208 Volt Built-In Room Air Cool Unit AJCQ09DCD, product image 2 of 3230/208 Volt Built-In Room Air Cool Unit AJCQ09DCD, product image 3 of 3
230/208 Volt Built-In Room Air Cool Unit AJCQ09DCD, thumbnail image 1 of 3
230/208 Volt Built-In Room Air Cool Unit AJCQ09DCD, thumbnail image 2 of 3
230/208 Volt Built-In Room Air Cool Unit AJCQ09DCD, thumbnail image 3 of 3

Color : Soft Gray

230/208 Volt Built-In Room Air Cool Unit AJCQ09DCD
Soft Gray

Key Features

  • R-410A refrigerant

  • 9.4 / 9.4 EER

  • 8,900 / 8,700 cooling BTU

  • ENERGY STAR qualified

  • Electronic controls with remote

  • Electronic digital thermostat control

  • 4-way air direction

  • Upfront, washable air filter

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

R-410A refrigerant

9.4 / 9.4 EER

8,900 / 8,700 cooling BTU

ENERGY STAR qualified

Electronic controls with remote

Electronic digital thermostat control

4-way air direction

Upfront, washable air filter

3 cool / 3 fan speeds

ENERGY STAR® qualified

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

WEIGHTS & DIMENSIONS

Overall Width26 in
Approximate Shipping Weight74 lb
Overall Height (Excludes Sleeve)14.875 in
Overall Depth (Excludes Sleeve)19.875 in
Overall Width (Excludes Sleeve)24.75 in
Net Weight67 lb
Overall Depth21 13/16 in
Overall Height15 5/8 in

FEATURES

Louver Style4-Way Air Direction
Control TypeElectronic
Fan Speed Selections3 Fan Only
Refrigerant TypeR410A
Air DischargeOver / Under
Hertz60
Filter TypeWashable
StyleThru-Wall or Window (Optional)
Chassis TypeSlide-Out
Plug TypeTandem/Right Angle/LCDI
Thermostat TypeElectronic Digital
Cord Length68"
Rotary CompressorYes
Outdoor Vent / ExhaustYes
Unit TypeCool Only
Room Air Conditioner FeaturesSmart Fan Switch
Filter TypeRigid Frame
Airflow (cfm) Roomside311/268/240, 297/244/212
Room Air Conditioner FeaturesBatteries Included
Fan Speed Selections3 Cooling
Filter TypeEZ Slide-Out
Room Air Conditioner Features24 Hr. Timer
Room Air Conditioner FeaturesSleep Auto 8 Hr. Timer
Room Air Conditioner FeaturesRemote Control
Room Air Conditioner FeaturesSleep Mode
Room Air Conditioner FeaturesPower Interruption Restart

POWER / RATINGS

Cooling - Rated Cooling Amps AHAM4.2/4.6
Cooling - Watts935/915
Voltage/Hertz/Phase230-208/60/1
Voltage (MIN)208 V
Voltage (MAX)230 V
Hertz60

ACCESSORIES

Wall CaseRAB46/47/48 Required At Additional Cost

APPEARANCE

InstallationWall Mounted
Color AppearanceSoft Gray
InstallationOptional Window Kit

CAPACITY

Cooling EER (BTUH / Watt)9.4/9.4
Dehumidification (pts./hr.)2.5/2.5
Cooling BTUH (MAX)8,900 Btu
Cooling BTUH (MIN)8,700 Btu

Dimensions & Weight

Width26 in.
Height15.63 in.
Length21.81 in.
Weight67 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width31 in.
Shipping Height20.63 in.
Shipping Length26.81 in.
Shipping Weight107 lbs.
Total of Shipping Weight107 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement5.13 ft³
Dimensional Weight63.75 lbs.
Total of Cubes5.13 ft³
Total of Dimensional Weight63.75 lbs.

Warranty

Labor (Entire Appliance)1 Year
Labor (Sealed System)5 Year
Parts5 Year
