230/208 Volt Built-In Room Air Cool Unit - AJCM12DCD

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

230/208 Volt Built-In Room Air Cool Unit

Model: AJCM12DCD

230/208 Volt Built-In Room Air Cool Unit AJCM12DCD, product image 1 of 5230/208 Volt Built-In Room Air Cool Unit AJCM12DCD, product image 2 of 5230/208 Volt Built-In Room Air Cool Unit AJCM12DCD, product image 3 of 5230/208 Volt Built-In Room Air Cool Unit AJCM12DCD, product image 4 of 5230/208 Volt Built-In Room Air Cool Unit AJCM12DCD, product image 5 of 5
230/208 Volt Built-In Room Air Cool Unit AJCM12DCD, thumbnail image 1 of 5
230/208 Volt Built-In Room Air Cool Unit AJCM12DCD, thumbnail image 2 of 5
230/208 Volt Built-In Room Air Cool Unit AJCM12DCD, thumbnail image 3 of 5
230/208 Volt Built-In Room Air Cool Unit AJCM12DCD, thumbnail image 4 of 5
230/208 Volt Built-In Room Air Cool Unit AJCM12DCD, thumbnail image 5 of 5

Color : Soft Gray

230/208 Volt Built-In Room Air Cool Unit AJCM12DCD
Soft Gray

Key Features

  • R-410A refrigerant

  • 11,600 / 11,400 cooling BTU

  • 9.4 / 9.4 EER

  • ENERGY STAR® qualified

  • Electronic controls with remote

  • Electronic digital thermostat control

  • 4-way air direction

  • Upfront, washable air filter

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications
Certifications

Features

R-410A refrigerant

11,600 / 11,400 cooling BTU

9.4 / 9.4 EER

ENERGY STAR® qualified

Electronic controls with remote

Electronic digital thermostat control

4-way air direction

Upfront, washable air filter

3 cooling / 3 fan only speeds

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year
Labor (Entire Appliance)1 Year
Labor (Sealed System)5 Year

WEIGHTS & DIMENSIONS

Overall Width26 in
Approximate Shipping Weight79 lb
Overall Height (Excludes Sleeve)14.875 in
Overall Depth (Excludes Sleeve)19.875 in
Overall Width (Excludes Sleeve)24.75 in
Net Weight72 lb
Overall Depth21 13/16 in
Overall Height15 5/8 in

Dimensions & Weight

Width26 in.
Height15.63 in.
Length21.81 in.
Weight72 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width31 in.
Shipping Height20.63 in.
Shipping Length26.81 in.
Shipping Weight112 lbs.
Total of Shipping Weight112 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement5.13 ft³
Dimensional Weight63.75 lbs.
Total of Cubes5.13 ft³
Total of Dimensional Weight63.75 lbs.

FEATURES

Louver Style4-Way Air Direction
Control TypeElectronic
Fan Speed Selections3 Fan Only
Refrigerant TypeR410A
Air DischargeOver / Under
StyleThru-Wall or Window (Optional)
Chassis TypeSlide-Out
Plug TypeTandem/Right Angle/LCDI
Thermostat TypeElectronic Digital
Cord Length68"
Rotary CompressorYes
Outdoor Vent / ExhaustYes
Unit TypeCool Only
Filter TypeRigid Frame
Airflow (cfm) Roomside307/290/212, 293/261/177
Room Air Conditioner FeaturesBatteries Included
Filter TypeWashable
Room Air Conditioner FeaturesSmart Fan Switch
Fan Speed Selections3 Cooling
Filter TypeEZ Slide-Out
Room Air Conditioner Features24 Hr. Timer
Room Air Conditioner FeaturesSleep Auto 8 Hr. Timer
Room Air Conditioner FeaturesRemote Control
Room Air Conditioner FeaturesSleep Mode
Room Air Conditioner FeaturesPower Interruption Restart

POWER / RATINGS

Hertz60
Cooling - Rated Cooling Amps AHAM5.8/6.3
Cooling - Watts1235/1215
Voltage/Hertz/Phase230-208/60/1
Voltage (MIN)208 V
Voltage (MAX)230 V

ACCESSORIES

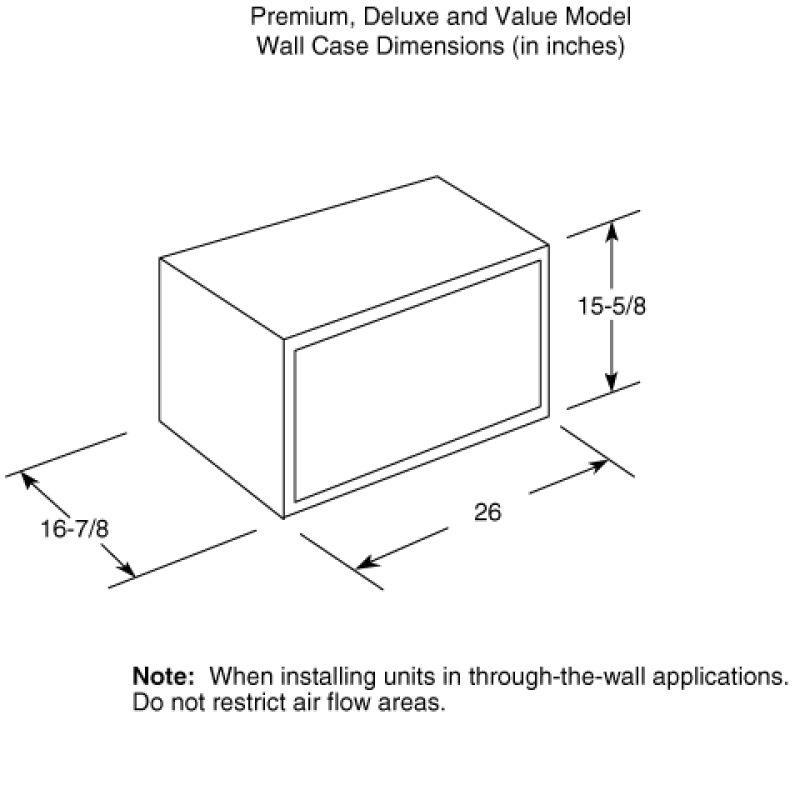

Wall CaseRAB46/47/48 Required At Additional Cost

CAPACITY

Cooling EER (BTUH / Watt)9.4/9.4
Dehumidification (pts./hr.)3.4/3.4
Cooling BTUH (MAX)11,600 Btu
Cooling BTUH (MIN)11,400 Btu

APPEARANCE

Color AppearanceSoft Gray
InstallationOptional Window Kit
InstallationWall Mounted
InstallationHigh Mount
